Zebra TLP 3842 (3842-10302-0001)
| Brand | Zebra 2008 |
| Model | 3842-10302-0001 |
| Released Year | 2008 |
| Type | Printers |
| Series | Tlp |
| Status | Discontinued |
Quick view
Overview

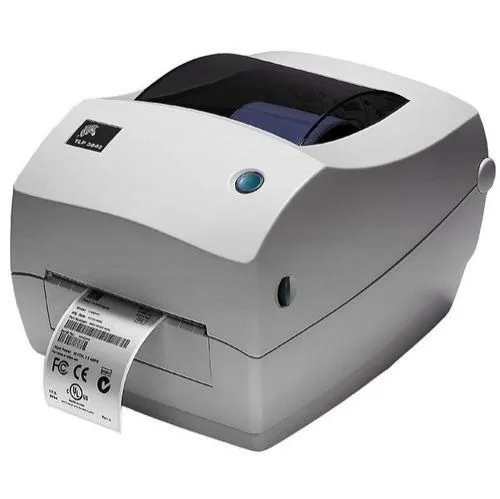

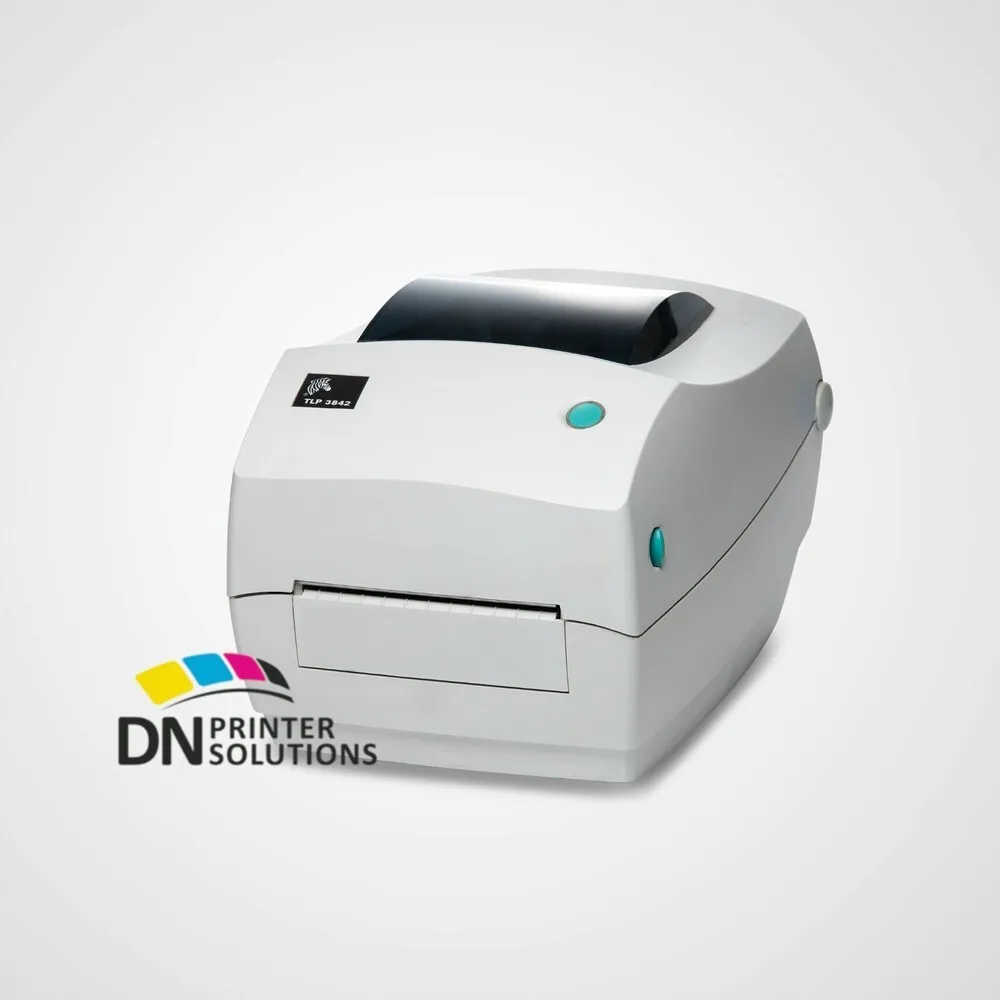

The Zebra TLP 3842 is an industrial-grade thermal transfer printer designed for high-volume label printing in office and warehouse environments. It features a print resolution of 203 dpi, ideal for producing clear barcodes, text, and graphics. The printer supports a maximum print width of 4.09 inches and maximum print speed up to 4 inches per second. Connectivity options include serial, parallel, and USB interfaces for versatile integration. It utilizes Zebra’s programming language (ZPL) for robust control and customization. The durable construction ensures reliable operation in demanding industrial settings.
Specifications
| Product Line | Zebra TLP |
| Type | Label Printer |
| Technology | Thermal |
| Output Type | Black & White |
| Connectivity | Serial RS-232, Parallel, USB 1.1 |
| MPN | 3842-10302-0001 |
| Model | TLP 3842 (3842-10302-0001) |
| Weight | Approximately 11 lbs (5 kg) |
| Depth | 9in |
| Height | 7in |
| Width | 8in |
| Max. Memory | 1MB |
| Platform | PC Products |
| Extend Printer Technology | Direct Thermal / Thermal Transfer |
| Installed RAM | 1MB |
| Computer Operating System | Microsoft Windows XP Home, Microsoft Windows 2000, Microsoft Windows NT, Microsoft Windows 98, Microsoft Windows 95 |
| Form Factor | Desktop |
| Media Type | Roll Tags, Labels, Roll Tickets |
| Max Resolution (Bw) | 300DPI |
| Max Media Size | Roll (10.8cm) |
| Black Print Speed | 2in/Sec |
| Media Capacity | 1 Roll(s) |
| Printer Type | Industrial Thermal Transfer Printer |
| Print Method | Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Width | Up to 4.09 inches (104 mm) |
| Print Speed | Up to 4 inches per second |
| Memory | 2 MB SDRAM, 1 MB Flash |
| Emulations | Zebra Programming Language (ZPL), EPL |
| Media Types | Continuous, die-cut, black mark, tags and tickets |
| Media Width | 0.75 inches to 4.5 inches |
| Media Thickness | 0.003 inches to 0.007 inches |
| Ribbon | Ink-coated thermal transfer ribbon; max length 300 meters |
| Dimensions | 11.2 x 8.4 x 10.3 inches (W x H x D) |
| Power Supply | External, 100-240VAC, 50-60Hz |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Certifications | UL, cUL, FCC Class A |
Images
Key Advantages
The Zebra TLP 3842 offers excellent reliability for continuous printing tasks. Its 203 dpi resolution delivers sharp labels suitable for scanning and identification. Multiple connectivity options allow easy integration into existing workflows. The device supports various label sizes, providing flexibility for diverse applications. It has a simple-to-use interface, which reduces training time for operators. Additionally, the printer's robust build quality minimizes downtime in busy office environments.
Limitations
Its 203 dpi resolution may limit print quality for applications needing fine detail or high-resolution graphics. The print speed, while adequate for many tasks, is slower compared to some newer industrial models. It lacks built-in wireless connectivity, which modern offices may require. The device does not support color printing, restricting it to monochrome labels only. Firmware updates and driver support have become limited due to the device's age. Overall, it may not fully meet current demands for advanced labeling features.
FAQ
What type of printing technology does the Zebra TLP 3842 use?
The Zebra TLP 3842 uses thermal transfer printing technology, which produces durable labels via heat-sensitive ribbons.
What is the maximum print resolution of this printer?
The maximum print resolution is 203 dots per inch (dpi), suitable for most barcode and text printing needs.
Can the TLP 3842 handle different label sizes?
Yes, it supports a variety of label sizes, accommodating widths up to approximately 4.09 inches.
Is wireless connectivity available on the Zebra TLP 3842?
No, this model does not include built-in wireless connectivity; it supports serial, parallel, and USB connections.
Is the Zebra TLP 3842 still supported and available for purchase?
This printer model has been discontinued and is no longer supported or manufactured by Zebra.
What programming languages does the printer support?
It supports Zebra Programming Language (ZPL), widely used for label and barcode printer configuration.
What are the typical applications for the TLP 3842 printer?
It's typically used for printing shipping labels, barcode labels, asset tags, and other industrial office label applications.
