Zebra TLP 2844
Brand | Zebra 2004 |
Model | 2844-10300-0011, TLP2844, AC Adapter |
Released Year | 2004 |
Type | Printers |
Series | Tlp |
Status | Discontinued |
Quick view
Overview
The Zebra TLP 2844 is a thermal transfer and direct thermal printer designed for label printing in office and retail environments. It features a 203 dpi resolution printhead, enabling crisp and clear barcode and text output. The printer supports print widths up to 4.16 inches (106 mm) and print speeds of up to 4 inches per second, making it efficient for medium-volume printing tasks. Connectivity options include serial and parallel ports, with optional USB and Ethernet interfaces for modern integration. The device is compatible with various label types, including continuous, die-cut, and fanfold media, supporting core sizes from 0.5 inches to 1.0 inch. It is powered by Zebra's Link-OS environment and supports multiple printer languages such as EPL and ZPL for versatile application deployment.

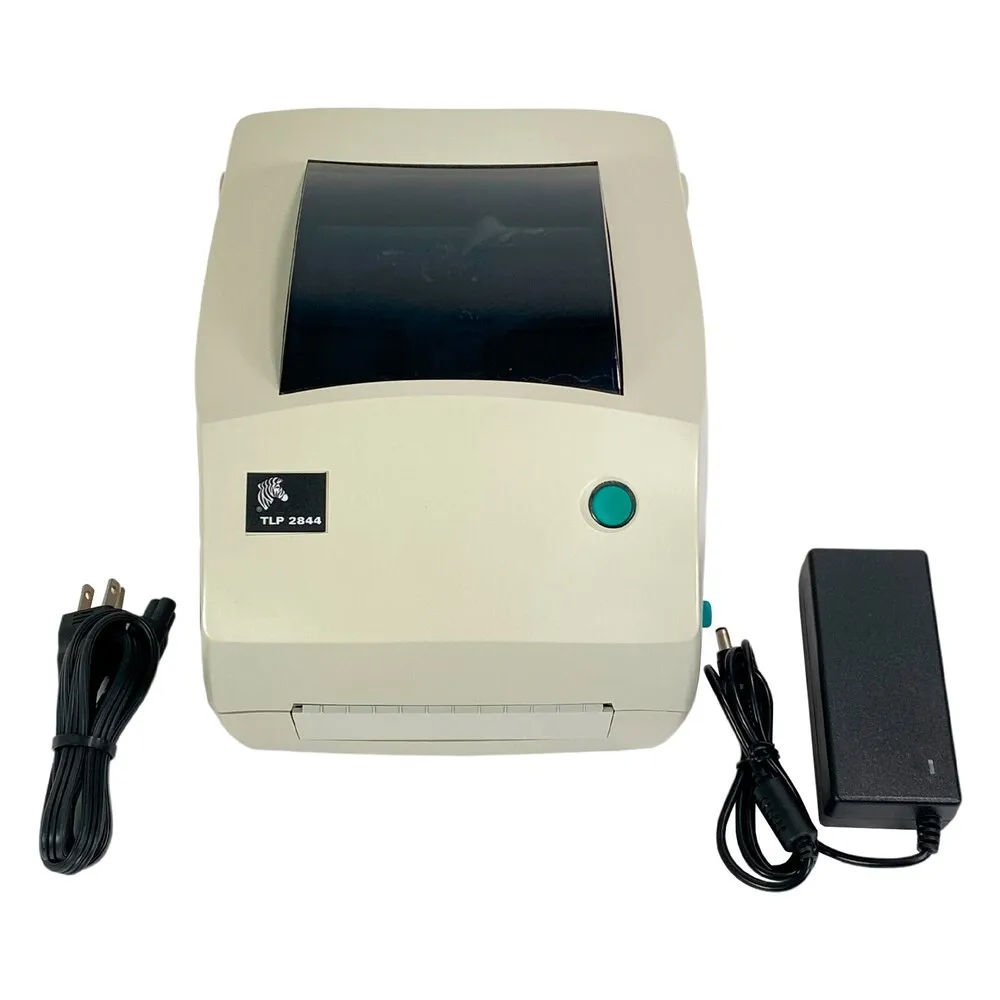

The TLP 2844 is often paired with the AC Adapter model 2844-10300-0011 for reliable power supply, ensuring consistent performance. It is designed to be compact and user-friendly, featuring a quick-loading mechanism for easy media replacement. The printer uses a sturdy metal frame to maintain durability in office and industrial settings. It supports 32-bit RISC processor technology and offers 512KB RAM and 2MB flash memory for print job processing. The unit is lightweight, portable, and comes with software utilities for configuration and diagnostics.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 512 KB RAM, 2 MB Flash |
MPN | 2844-10300-0011, TLP2844, AC Adapter |
Supported Paper Size | Label Width 4.25" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | TLP 2844 |
Connectivity | Parallel (IEEE 1284), Serial (RS-232), USB 2.0 |
Features | Portable |
Black Print Speed | 4 ips |
Product Line | Zebra TLP |
Printer Type | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 4.16 inches (106 mm) |
Print Speed | Up to 4 inches per second (102 mm/s) |
Processor | 32-bit RISC processor |
Media Types | Continuous, die-cut, black mark, fanfold labels |
Media Width | 0.75 inches to 4.38 inches (19 mm to 111 mm) |
Media Sensors | Movable reflective and transmissive sensors |
Interfaces | Serial, Parallel; optional USB, Ethernet |
Power Supply | External AC adapter model 2844-10300-0011 |
Dimensions | 8.1" H x 6" W x 10.9" D (206 mm H x 152 mm W x 277 mm D) |
Weight | Approx. 5.5 lb (2.5 kg) |
Printer Languages | ZPL, EPL |
Operating Systems Supported | Windows, Linux, Mac OS via drivers |
Images
Key Advantages
The Zebra TLP 2844 delivers high print quality with 203 dpi resolution suitable for various label applications. It provides flexible media compatibility, supporting different widths and types for versatile use. The printer’s compact design is space-saving for limited work environments. Easy media loading and intuitive controls reduce downtime for operators. It offers multiple interface options for better connectivity and integration into existing systems. The device is backed by a reliable brand and provides consistent, durable performance for office and light industrial use.
Limitations
The TLP 2844 has a relatively slow print speed compared to newer models, which may limit high-volume printing efficiency. Its maximum print width is limited to about 4 inches, restricting use for wider label formats. The older connectivity options such as serial and parallel ports may require adapter hardware for modern PC compatibility. It does not have built-in wireless networking capabilities, which limits mobile and remote printing flexibility. The printer’s memory and processor specifications are modest, potentially restricting complex printing tasks. Also, there is limited support for advanced graphics or color printing as it is primarily designed for monochrome output.
FAQ
What type of printing technology does the Zebra TLP 2844 use?
The Zebra TLP 2844 uses direct thermal and thermal transfer printing technology.
What is the maximum print width of the TLP 2844?
The maximum print width supported by the TLP 2844 is approximately 4.16 inches (106 mm).
Which connectivity options are available on the TLP 2844?
Standard connectivity includes serial and parallel ports, with optional USB and Ethernet interfaces.
Can the TLP 2844 print on different types of label media?
Yes, it supports continuous, die-cut, and fanfold labels with various core sizes for versatility.
Is the TLP 2844 still supported by Zebra?
The TLP 2844 model has been discontinued, and support availability may be limited.
What is the print resolution of the Zebra TLP 2844?
The printer offers a print resolution of 203 dpi (dots per inch).
Does the TLP 2844 support color printing?
No, the TLP 2844 is designed for monochrome label printing and does not support color.
