Intermec PB42
Brand | Intermec 2005 |
Model | PB42 |
Released Year | 2005 |
Type | Printers |
Series | Easycoder |
Status | Discontinued |
Quick view
Overview
The Intermec Easycoder PB42 is a robust office electronics printer primarily designed for barcode and label printing applications. It features a direct thermal and thermal transfer printing mechanism, providing versatile media handling capabilities. The print resolution is 203 dpi, suitable for clear barcode and label quality. It supports a print width of up to 4 inches, making it ideal for medium-sized label printing tasks in business environments. Connectivity options include serial and parallel ports, with optional USB and Ethernet interfaces for flexible integration. The PB42 incorporates a durable construction with an easy-to-load media system to minimize downtime.
Specifications
Black Print Speed | n/a |
California Prop 65 Warning | no |
Color Depth | n/a |
Connectivity | Serial RS-232, Parallel, Optional USB and Ethernet |
Country/Region of Manufacture | Singapore |
Features | Portable |
Grayscale Depth | n/a |
Image Sensor | n/a |
Input Type | Monochrome |
Manufacturer Warranty | n/a |
Maximum Resolution | 203 x 203 DPI |
Memory | 2 MB RAM, 1 MB Flash |
Model | PB42 |
MPN | Intermec PB42 |
Output Type | Black & White |
Product Line | Intermec EasyCoder |
Scanning Resolution | n/a |
Supported Paper Size | n/a |
Supported Scanning Sizes | n/a |
Technology | Thermal |
Type | Barcode Label Printer |
UPC | doesnotapply |
Printer Type | Direct thermal and thermal transfer |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 4 inches (102 mm) |
Print Speed | Up to 4 inches per second |
Media Types | Continuous, die-cut labels, tags, and receipt paper |
Max Media Roll Diameter | 5 inches (127 mm) |
Ribbon Types | Wax, wax/resin |
Dimensions | 221 mm (W) x 249 mm (D) x 174 mm (H) |
Weight | Approx. 2.3 kg |
Power Supply | External power supply 24V DC |
Operating Systems | Windows 95/98/NT/2000/XP (with drivers) |
Accessories | External rewinder, cutter, peeler (optional) |

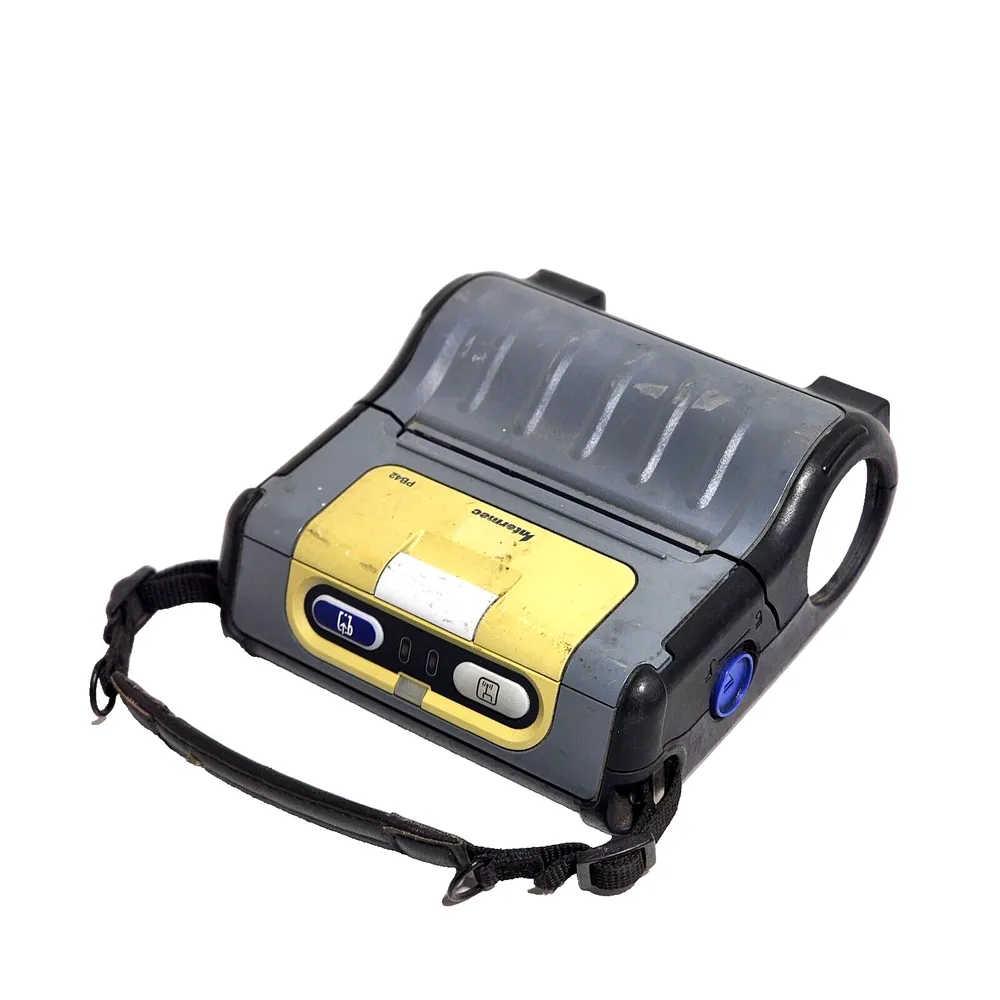

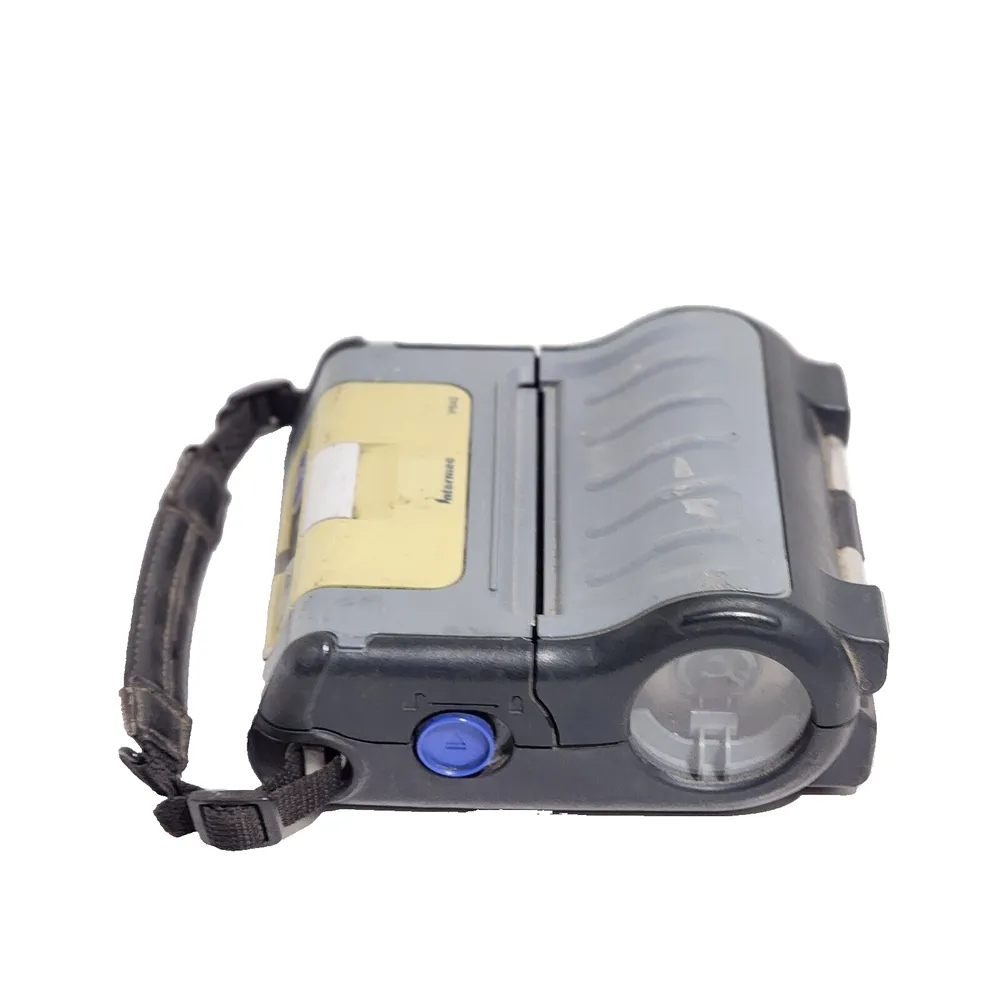

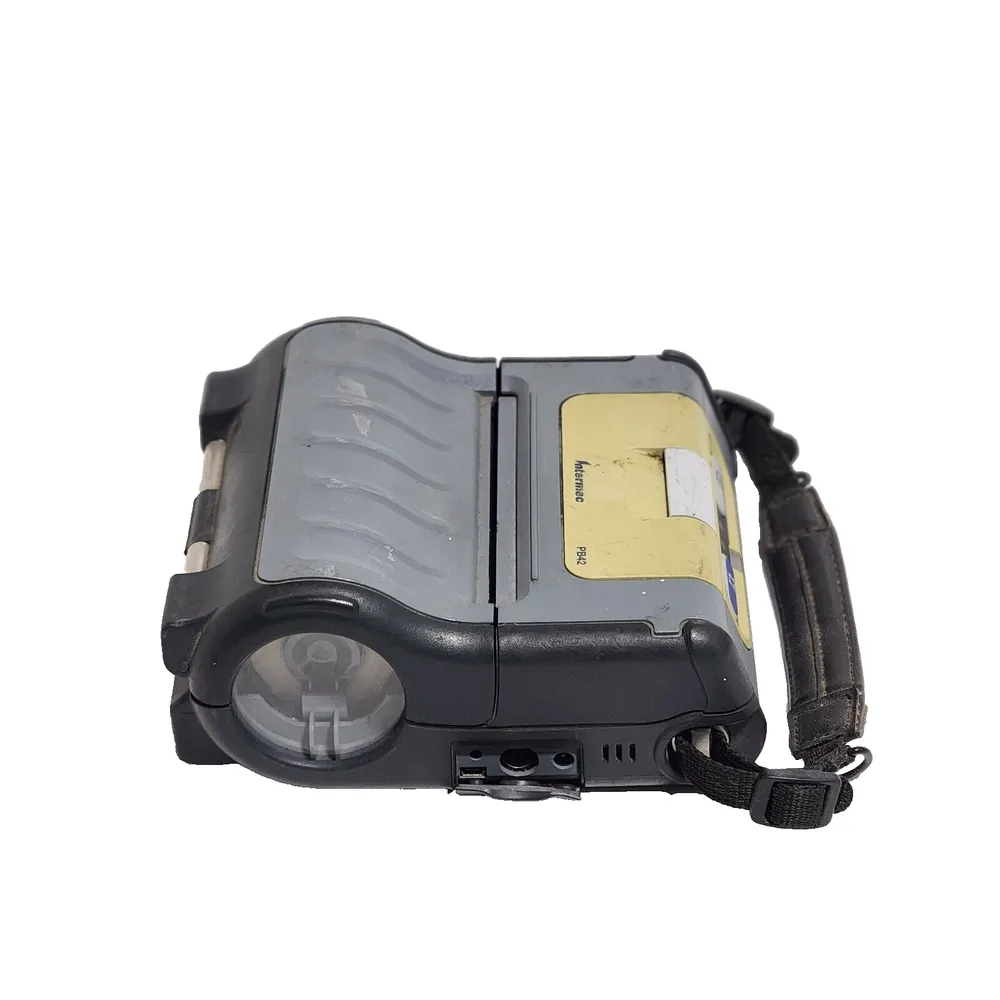

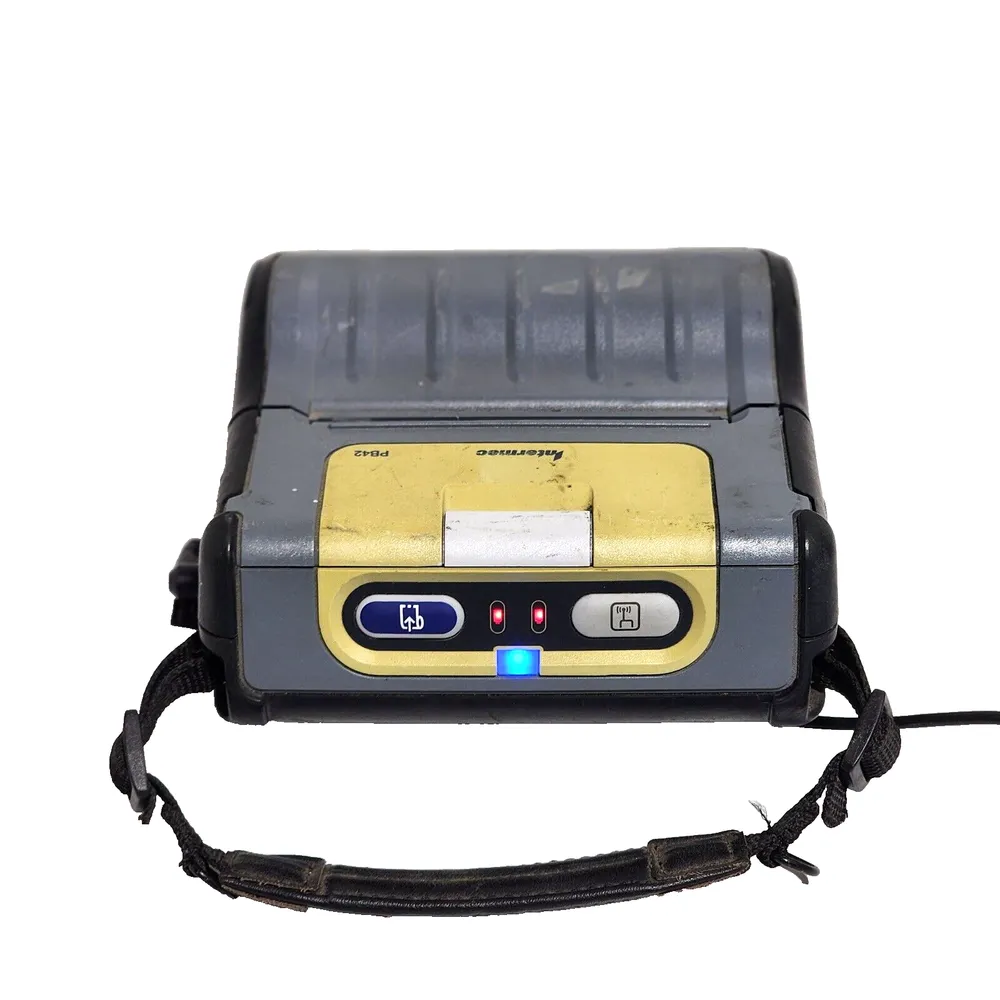

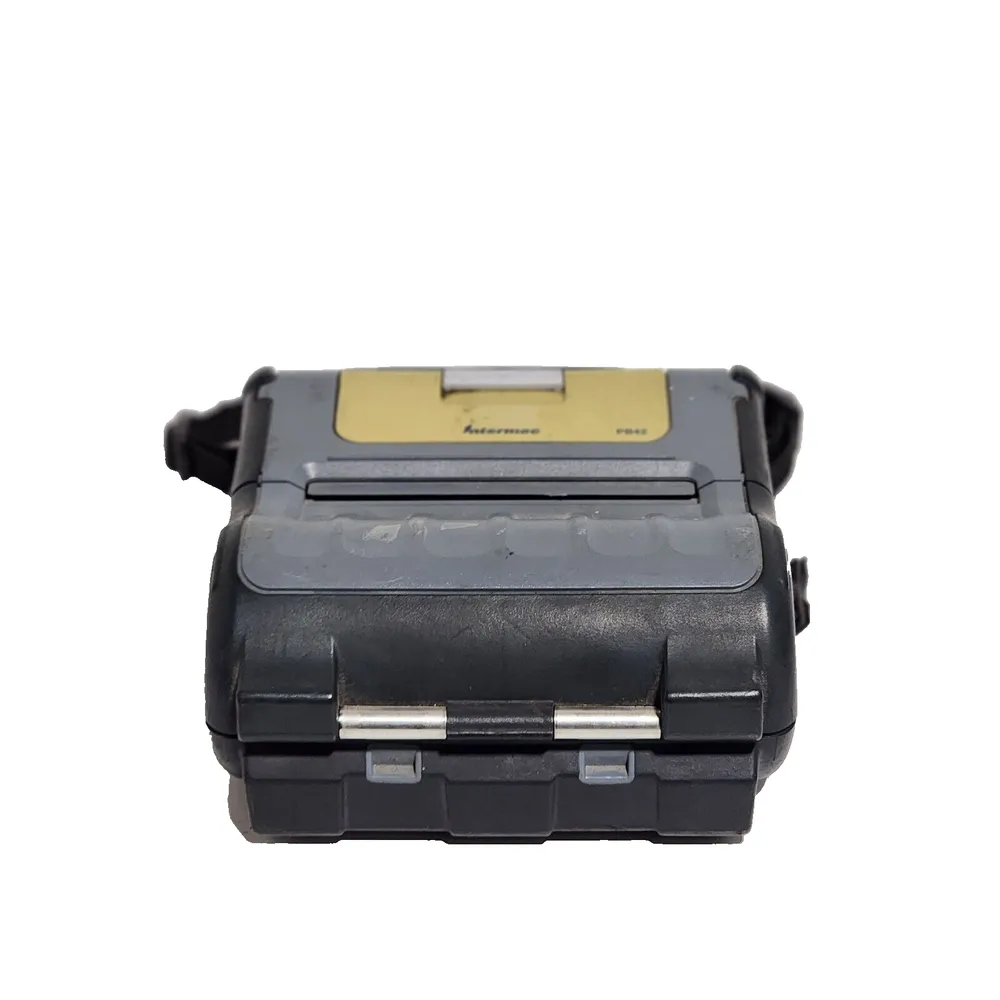

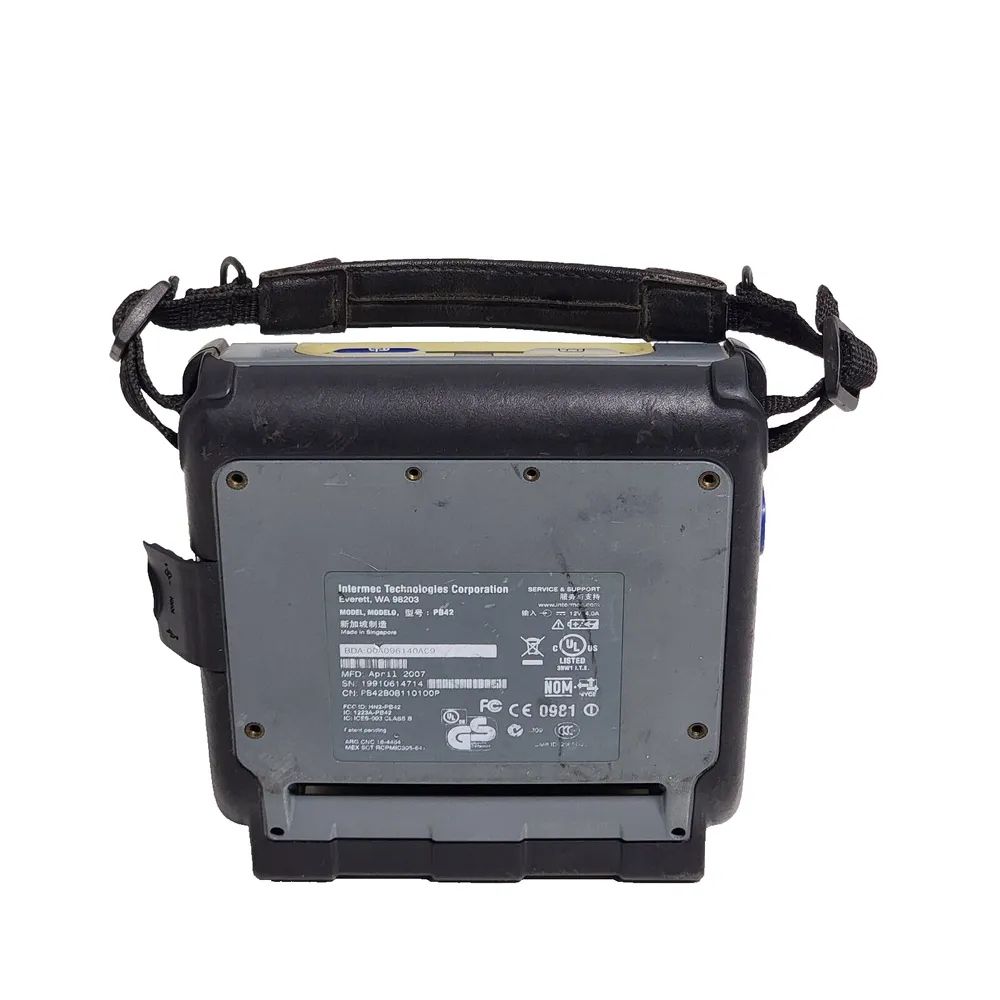

Images
Key Advantages
The PB42 offers high print quality with its 203 dpi resolution, ensuring accurate label readability. Its versatile media support allows the use of various label and ribbon types for multiple applications. The device's user-friendly design includes straightforward media loading, simplifying operation and maintenance. Multiple connectivity options increase compatibility with various host systems. Its compact size fits comfortably in limited workspace environments. Additionally, the printer supports a reliable and consistent printing speed, improving productivity in busy office settings.
Limitations
The PB42's maximum print speed and resolution might be limiting for industrial-grade requirements, where higher performance is necessary. Its memory capacity and processing power are modest compared to newer models, which may affect the printing of complex label formats. The lack of native wireless connectivity could hinder modern network integration without additional accessories. Media size and roll diameter constraints restrict long print runs without frequent media changes. The printer's firmware and software compatibility might require updates to support the latest operating systems. Lastly, replacement parts may become challenging to source as the model ages.
FAQ
What types of printing does the Intermec PB42 support?
The PB42 supports both direct thermal and thermal transfer printing methods, allowing flexibility in label materials.
What is the maximum print resolution of the PB42?
It offers a print resolution of 203 dpi, which is suitable for most barcode and label applications.
Does the PB42 have network connectivity options?
Standard models have serial and parallel ports; optional USB and Ethernet interfaces are available for network connectivity.
Is the Intermec PB42 still in production?
No, the Intermec PB42 is discontinued and has been replaced by newer models in the Easycoder series.
What media sizes can the PB42 handle?
It supports a maximum print width of 4 inches with media rolls that fit within the printer’s specified dimensions.
Are replacement parts and accessories for the PB42 available?
While some parts and accessories are still available, sourcing them may be difficult due to the model being discontinued.
What software compatibility does the PB42 offer?
The PB42 is compatible with standard label design software of its era, and drivers need to be checked for compatibility with modern operating systems.
