Zebra RW220
Brand | Zebra 2008 |
Model | R2A-0UKA010N-00 |
Released Year | 2008 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview
The Zebra RW220 is a compact mobile printer designed for on-the-go printing in various office and field environments. It utilizes direct thermal printing technology, eliminating the need for ink or toner cartridges, which enhances portability and ease of use. The printer supports a print resolution of 203 dpi, delivering clear labels and receipts with a maximum print width of 2.83 inches (72 mm). Connectivity options include Bluetooth 1.2 and an optional serial interface, facilitating versatile data transfer from handheld terminals and PDAs. Its battery is rechargeable lithium-ion, allowing for extended operation times, and the device is engineered with a sturdy enclosure to withstand everyday mobile use.
The RW220 features an intuitive LED indicator panel for status updates, and its design ensures quick media loading to minimize downtime. Compatible with multiple printer languages such as CPCL and EPL, it integrates smoothly with various operating systems including Windows CE and Windows Mobile. Its compact dimensions and lightweight design make it an ideal solution for logistics, retail, and field service applications.
Specifications
Features | Portable |
California Prop 65 Warning | non |
MPN | R2A-0UKA010N-00 |
Memory | 8 MB |
Output Type | Black & White |
Black Print Speed | 1 ppm |
Input Type | Monochrome |
Model | RW220 |
Product Line | Zebra Z |
Maximum Resolution | 203 x 203 DPI |
Connectivity | Bluetooth 1.2, Optional Serial interface |
Supported Paper Size | 2 inch |
Technology | Thermal |
Type | Mobile Printer |
UPC | Does not apply |
Print Technology | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 2.83 inches (72 mm) |
Print Speed | Up to 3 inches per second |
Battery Type | Rechargeable Lithium-Ion |
Media Type | Thermal receipt paper and labels |
Media Width | 1.57 to 2.83 inches (40 to 72 mm) |
Printer Languages | CPCL, EPL |
Dimensions | 4.3 x 6.2 x 2.3 inches (110 x 158 x 58 mm) |
Weight | Approx. 1.2 lbs (0.54 kg) |
Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Storage Temperature | -4°F to 140°F (-20°C to 60°C) |

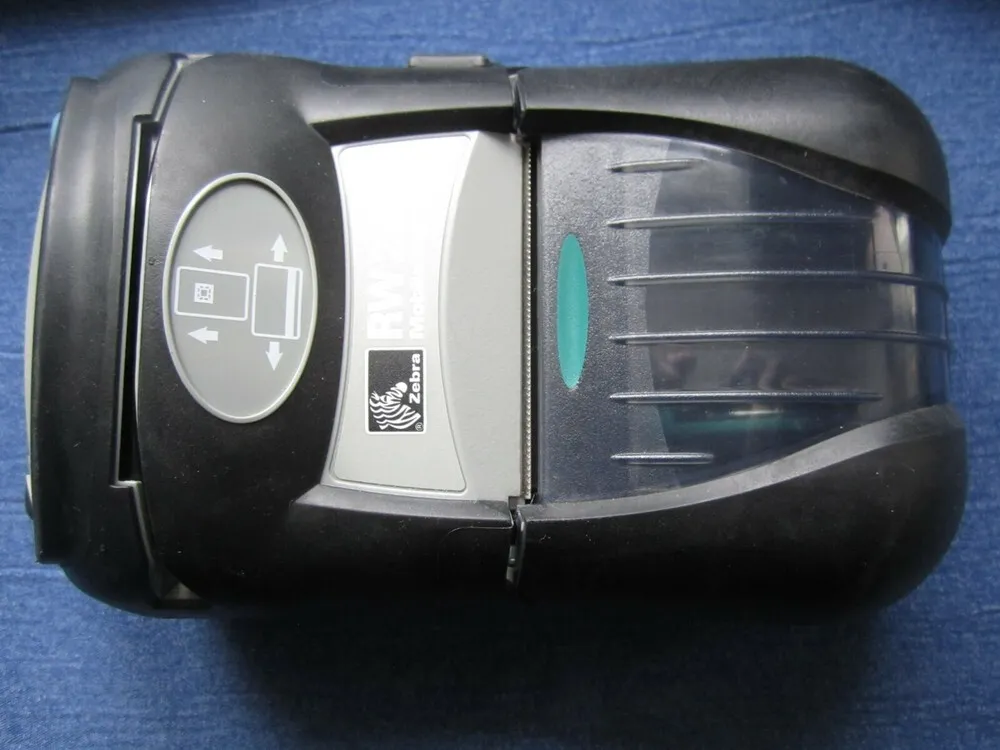

Images
Key Advantages
The Zebra RW220 offers portability with its compact and lightweight design, making it highly suitable for mobile and field printing. Its direct thermal printing method provides maintenance-free operation without requiring ribbons or ink. The printer provides reliable Bluetooth connectivity for seamless wireless printing. A long-lasting rechargeable battery ensures continuous use during work shifts. Compatibility with multiple printer languages allows easy integration with existing systems. The device's rugged design ensures durability in various working conditions.
Limitations
The print speed of the RW220 is moderate, which may not suffice for high-volume printing tasks. The maximum print resolution is limited to 203 dpi, which might not meet the needs for high-detail graphics. The Bluetooth version 1.2 has limited range and slower data transfer compared to newer versions. It lacks built-in Wi-Fi connectivity, restricting network printing flexibility. The device supports a limited range of media types and sizes, which could constrain usage scenarios. Battery life, while generally sufficient for a day, can require recharging for extended field operations.
FAQ
What types of media can the Zebra RW220 print on?
The RW220 supports direct thermal receipt paper and labels with widths up to 2.83 inches (72 mm). It is compatible with standard thermal media rolls designed for mobile printing.
Does the Zebra RW220 support wireless connectivity?
Yes, it supports Bluetooth 1.2 for wireless printing. However, it does not come with built-in Wi-Fi.
What is the maximum print resolution of the Zebra RW220?
The printer delivers a maximum resolution of 203 dpi, suitable for clear barcodes and text in mobile applications.
Is the Zebra RW220 still available or has it been discontinued?
The Zebra RW220 has been discontinued and is no longer in production, though used units and parts may be available from third-party vendors.
What printer languages does the RW220 support?
It supports CPCL and EPL printer languages, allowing compatibility with various label printing applications.
Can the printer be charged while in use?
Yes, the RW220 features a rechargeable lithium-ion battery that can be charged via a cradle or AC adapter, but usage during charging depends on the charging method.
What operating systems is the RW220 compatible with?
The printer is compatible with Windows CE, Windows Mobile, and can also interface with various handheld terminals supporting Bluetooth or serial connections.
