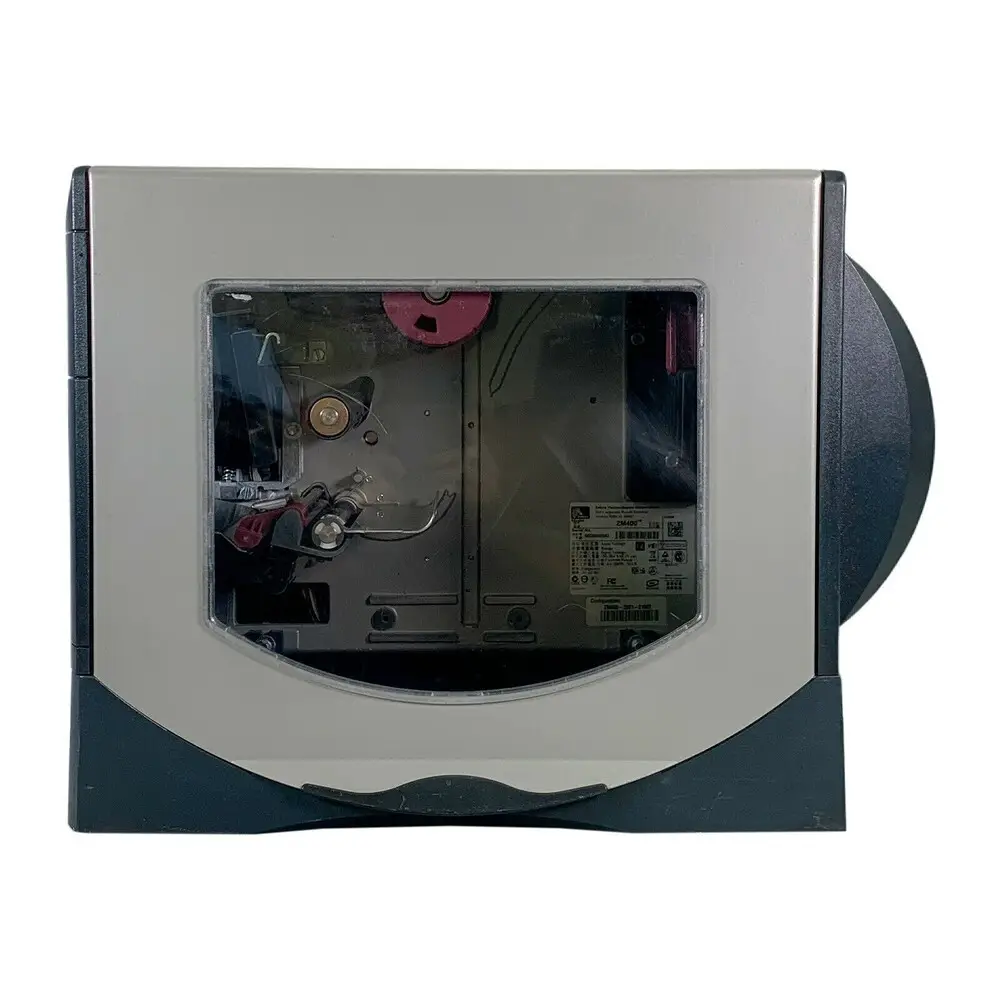

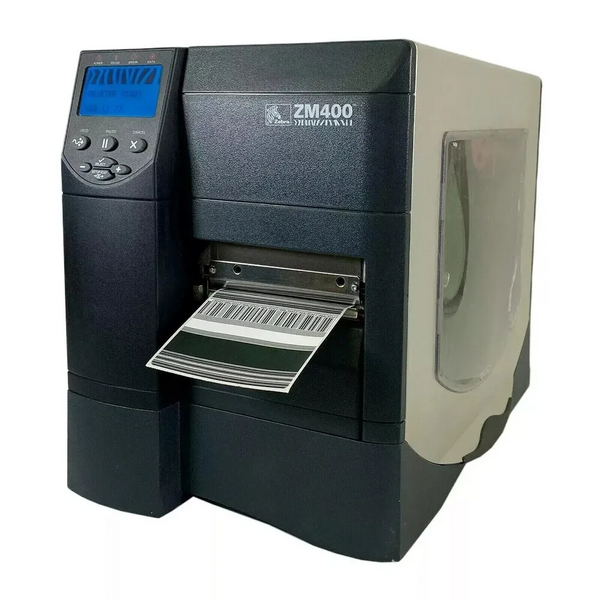

Zebra ZM400
Brand | Zebra 2014 |
Model | ZM400-2001-0000T, Barcode, Ethernet |
Released Year | 2014 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview
The Zebra ZM400 is a robust industrial-grade label printer designed for high-volume printing applications in office and manufacturing environments. It supports thermal transfer and direct thermal printing technologies, enabling versatile material compatibility. The device operates with a high-resolution printhead, typically 203 dpi, providing clear, precise barcode and label output. Connectivity options include Ethernet for network integration, USB, and serial ports, facilitating seamless communication with various systems. The printer supports multiple barcode symbologies and label formats, essential for diverse industrial labeling needs. Its durable construction ensures reliability in demanding environments, and it supports media widths up to 4.09 inches.
Specifications
Print Method | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 10 inches per second |
Processor | 32-bit RISC CPU |
Memory | 16 MB |
Connectivity | Ethernet (RJ-45), Parallel (IEEE 1284), Serial (RS-232), USB |
Media Types | Continuous, die-cut, black mark, fan-fold, tags |
Media Width | 0.79 inches to 4.65 inches (20 mm to 118 mm) |
Label Length | 0.25 inches to 39 inches (6 mm to 991 mm) |
Ribbon Width | 1.6 inches to 4.33 inches (40 mm to 110 mm) |
Dimensions (WxDxH) | 11.3 x 21.5 x 12.7 inches (287 x 546 x 323 mm) |
Weight | Approx. 35 lbs (15.9 kg) |
Operating Temperature | 40°F to 104°F (5°C to 40°C) |
Power Supply | 100-240 VAC, 50-60 Hz |
Emulations | ZPL, EPL, XML-Enabled printing |
Input Type | Monochrome |
Output Type | Black & White |
MPN | ZM400-2001-0000T, Barcode, Ethernet |
Supported Paper Size | 4.25 |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZM400 |
Black Print Speed | 10 ips |
Product Line | Zebra Z |
UPC | Does not apply |
Images
Key Advantages
The Zebra ZM400 offers high print speed and reliability, optimizing productivity for large-scale printing tasks. Its Ethernet connectivity allows easy network integration and remote management capabilities. The printer is compatible with a wide range of label materials and adhesive types, enhancing versatility. It features a user-friendly interface with an LCD display for easy configuration and status monitoring. The robust metal frame provides longevity and stability in tough industrial settings. Additionally, the device supports multiple emulations and programming languages, ensuring compatibility with existing systems and software.
Limitations
The ZM400's print resolution is limited to 203 dpi, which may not suffice for applications requiring ultra-fine detail or graphics. Its size and weight make it less portable and more suitable for fixed installations. While Ethernet is supported, wireless connectivity options are absent, potentially limiting flexibility in some environments. The printer requires regular maintenance, such as printhead cleaning and media path checks, to maintain optimal performance. Initial setup and configuration might require technical expertise, particularly when integrating with complex networks. Compared to newer models, its firmware features and user interface may lack some advanced modern conveniences.
FAQ
What type of printing technologies does the Zebra ZM400 support?
The Zebra ZM400 supports both thermal transfer and direct thermal printing technologies.
Does the ZM400 model support network connectivity?
Yes, the ZM400 includes an Ethernet port for network connectivity along with USB and serial interfaces.
What is the maximum print resolution of the Zebra ZM400?
The ZM400 typically offers a print resolution of 203 dpi (dots per inch).
Can the Zebra ZM400 print different types of barcode symbologies?
Yes, it supports a wide range of barcode symbologies suitable for industrial labeling applications.
Is the Zebra ZM400 still in production?
No, the Zebra ZM400 has been discontinued.
What media width can the ZM400 handle?
The printer can handle media widths up to 4.09 inches (104 mm).
Does the Zebra ZM400 provide a user interface for configuration?
Yes, it features an LCD display and buttons for user-friendly configuration and status updates.
