Zebra RW 420 (R4D-0UBA000N-00)
Brand | Zebra 2004 |
Model | R4D-0UBA000N-00 |
Released Year | 2004 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra RW 420 is a compact, portable thermal printer designed primarily for field and mobile printing applications. It supports direct thermal printing technology, eliminating the need for ink or toner, which simplifies maintenance and reduces operational costs. The device offers connectivity through serial and optional Bluetooth interfaces, facilitating versatile integration with mobile computers and PDAs. It prints at a resolution of 203 dpi, ensuring clear, legible output suitable for labels, receipts, and tickets. Its clamshell design enables quick media loading, enhancing usability in fast-paced work environments. Powered by a rechargeable battery, it supports extended printing sessions with ease, making it ideal for retail, logistics, and on-the-go printing tasks.
Specifications
MPN | R4D-0UBA000N-00 |
UPC | 0777786357412 |
Model | RW 420 (R4D-0UBA000N-00) |
Technology | Thermal |
Connectivity | Wireless, Bluetooth, Serial (RS-232), USB 1.0/1.1, Ethernet (RJ-45) |
Output Type | Black & White |
Type | Mobile Printer |
Extend Printer Technology | Direct Thermal |
Max Resolution (Bw) | 203DPI |
Black Print Speed | 3in/Sec |
Printer type | Direct Thermal |
Print resolution | 203 dpi (8 dots/mm) |
Print speed | Up to 4 inches per second (102 mm/s) |
Maximum print width | 2.83 inches (72 mm) |
Media types | Direct thermal labels, receipts, tickets |
Media width | 1.57 to 2.83 inches (40 to 72 mm) |
Interfaces | Serial RS-232, optional Bluetooth |
Battery | Rechargeable Lithium-ion battery |
Dimensions (W x D x H) | 4.9 x 6.8 x 2.9 inches (124 x 173 x 74 mm) |
Weight | 0.98 lbs (0.44 kg) |
Operating temperature | 14°F to 122°F (-10°C to 50°C) |
Memory | 4 MB DRAM, 2 MB Flash memory |

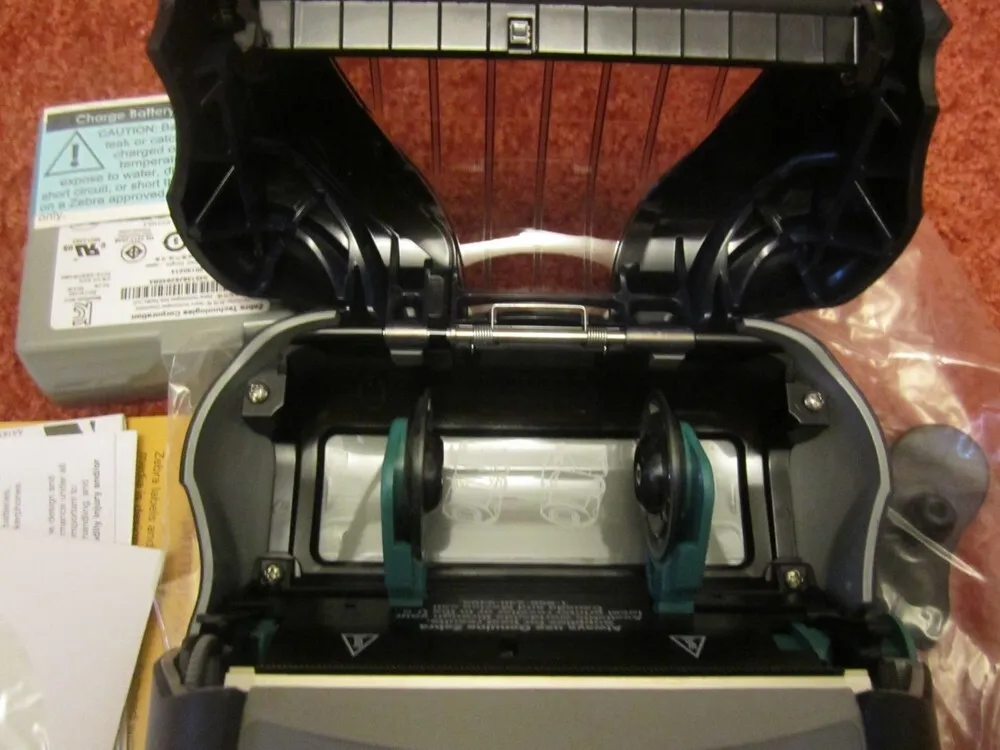

Print mechanism | Clamshell design for easy media loading |
Sensors | Media status sensor, ribbon status sensor |
Supported fonts | Fonts A, B, CG Triumvirate, downloadable fonts |
Emulations | ZPL, CPCL |
Images
Key Advantages
The RW 420 boasts a lightweight and durable design, making it highly portable for field use. Its thermal printing technology ensures maintenance-free operation without ink cartridges or ribbons. Multiple interface options, including Bluetooth connectivity, provide flexible deployment scenarios. High print speed and 203 dpi resolution deliver efficient and quality output. The user-friendly clamshell design enables quick media replacement, minimizing downtime. Long-lasting rechargeable battery support allows for continuous mobile use, enhancing productivity.
Limitations
As a direct thermal printer, the RW 420's prints are susceptible to fading over time, especially under heat or sunlight exposure. The print resolution is limited to 203 dpi, which may not be sufficient for very detailed graphics. It lacks advanced connectivity options like Wi-Fi or USB found in newer models. The media width and capacity are constrained due to its compact size, limiting the size of printable labels or receipts. The device does not support color printing, being strictly monochrome thermal. Replacement parts might be harder to find as it is an older model facing limited support.
FAQ
What type of printing technology does the Zebra RW 420 use?
The Zebra RW 420 uses direct thermal printing technology, which prints by applying heat to thermal paper without the need for ink or toner.
What connectivity options are available for the RW 420?
The RW 420 primarily supports serial connectivity and offers optional Bluetooth interface for wireless connections.
What is the maximum print resolution of the RW 420?
The printer supports a maximum resolution of 203 dots per inch (dpi).
Is the Zebra RW 420 suitable for color printing?
No, the Zebra RW 420 is a monochrome thermal printer and does not support color printing.
What types of media can the RW 420 handle?
It handles direct thermal labels, receipts, and tickets up to 2.83 inches in width.
Is the Zebra RW 420 still supported or discontinued?
The Zebra RW 420 has been discontinued and is considered a legacy product.
Where is the Zebra RW 420 commonly used?
It is commonly used in retail, logistics, and field service environments for printing labels and receipts on the go.
