HP M506n image

HP M506n

Quick information
Brand HP 2020
Model F2A68ABGJ
Released Year 2020
Type Printers
Status Active
Quick view

Overview

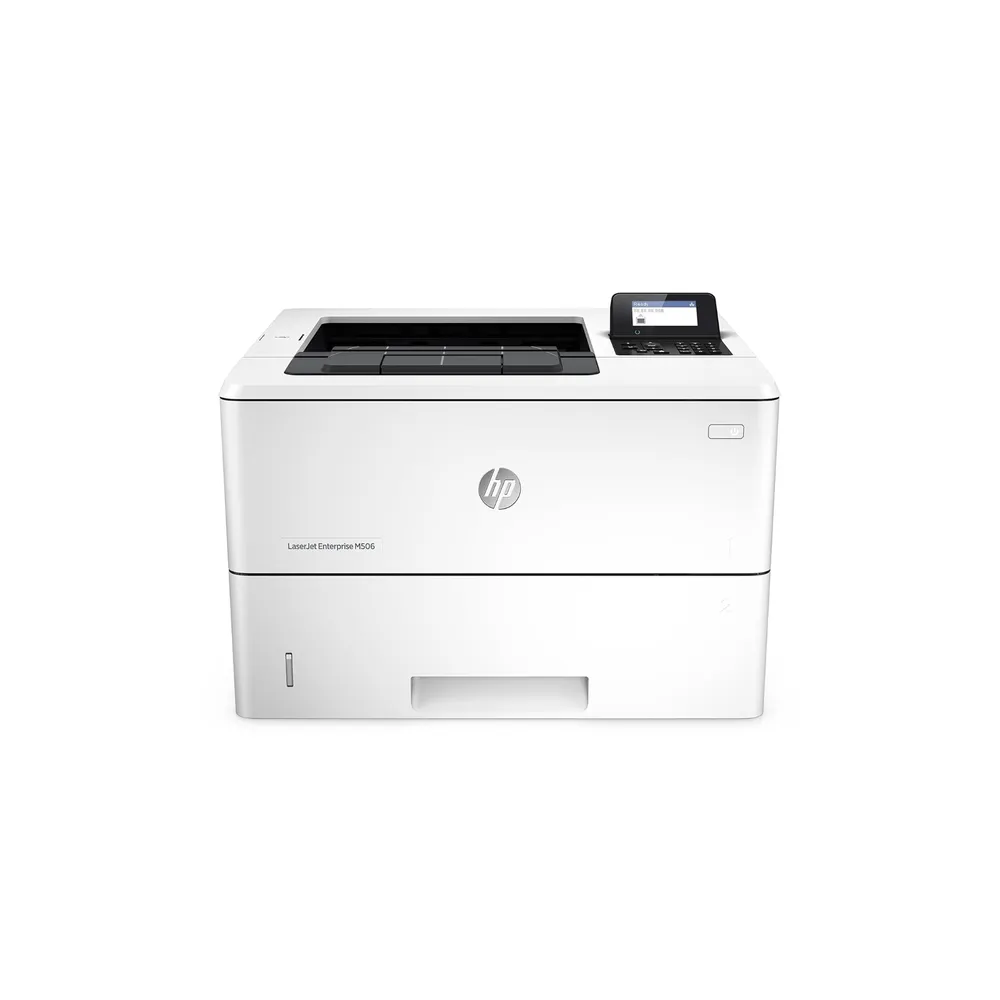

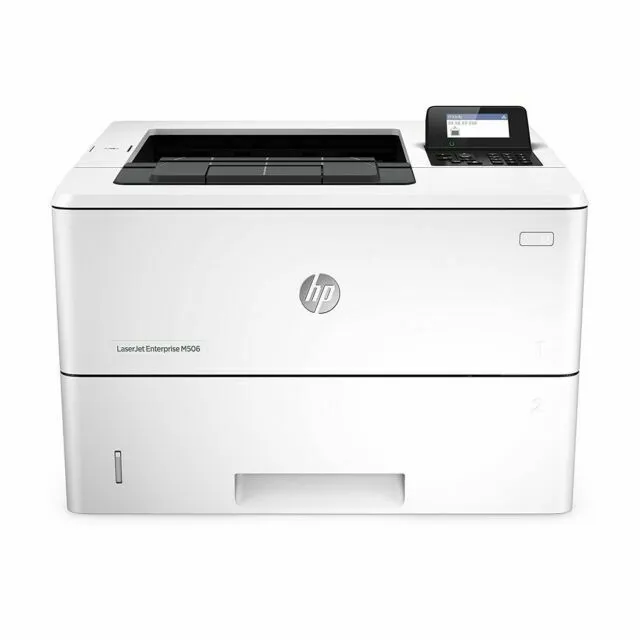

The HP LaserJet Pro M506n is a monochrome laser printer designed for medium to large office environments. It features a robust 1200 MHz processor coupled with 512 MB RAM for efficient data processing, enabling fast and smooth print jobs. The printer supports print speeds up to 45 pages per minute (PPM) with a maximum print resolution of 1200 x 1200 dpi. Connectivity options include a standard Gigabit Ethernet port, facilitating reliable network printing within offices. It uses HP’s proprietary toner cartridges which provide high yield and consistent output quality. The printer supports multiple paper sizes and types, with an input capacity of up to 600 sheets, extendable via optional trays.

Equipped with advanced security features, the M506n supports secure printing protocols and user authentication to protect sensitive documents. It also accommodates various operating systems via HP’s Universal Print Driver, ensuring compatibility across diverse environments. The device boasts energy-efficient operation complying with ENERGY STAR standards, contributing to reduced power consumption. Maintenance is simplified through easy-to-replace consumables and intuitive control panel navigation. Its compact design balances performance and footprint, making it suitable for busy office settings where space is a consideration.

Specifications

MPN F2A68ABGJ
Model M506n
Memory 512 MB RAM
Technology Laser
Connectivity Gigabit Ethernet 10/100/1000 Base-T
Output Type Black & White
California Prop 65 Warning Yes
Supported Paper Size A4 (210 x 297 mm)
Type Workgroup Printer
Maximum Resolution 1200 x 1200 DPI
Black Print Speed 43 ppm
Product Line HP LaserJet Enterprise
Weight Approx. 13.74 kg
Depth 14.8
Width 16.5
Non-Domestic Product No
Color White
Applicable Regions Cn
Modified Item No
Print Technology Laser
Print Speed (Black, A4) Up to 45 ppm
Print Resolution 1200 x 1200 dpi
Processor Speed 1200 MHz
Mobile Printing Capability Supported via HP ePrint and AirPrint
Duty Cycle Up to 100,000 pages per month
Recommended Monthly Volume Up to 7,500 pages
Paper Input Capacity Standard 600 sheets (two 300-sheet trays)
Duplex Printing Automatic (standard)
Supported Paper Sizes A4, A5, A6, B5, envelopes (various types)
Dimensions (W x D x H) 408 x 410 x 370 mm
Energy Star Certified Yes
Operating Systems Compatibility Windows 7/8/10/11, macOS, Linux

Key Advantages

The HP LaserJet Pro M506n offers high-speed printing up to 45 PPM, greatly enhancing productivity in busy offices. Its 1200 x 1200 dpi resolution delivers sharp and professional-quality prints consistently. The inclusion of Gigabit Ethernet ensures fast and reliable network connectivity, ideal for shared office environments. With a robust paper handling capacity of 600 sheets standard, it minimizes frequent reloads during large print jobs. The printer supports a wide range of media sizes and types, adding to its versatility for various office needs. Additionally, it incorporates advanced security features protecting confidential information effectively.

Limitations

The HP M506n is a monochrome-only printer, restricting it to black and white printing which might limit usage for color-required documents. It does not include wireless connectivity options such as Wi-Fi, relying solely on wired Ethernet connections. The printer lacks a touchscreen interface, instead featuring a basic control panel which might be less intuitive for some users. It also does not support duplex scanning or copying as it is strictly a printer device. The initial cost of toner cartridges may be relatively high compared to other models. Furthermore, it is somewhat bulky compared to smaller desktop printers, requiring adequate space in office setups.
