Zebra Ql420 plus
Brand | Zebra 2012 |
Model | Q4D-LUGA0000-00 |
Released Year | 2012 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview
The Zebra QL420 Plus is a rugged mobile printer designed for on-the-go label and receipt printing, utilizing direct thermal printing technology for high-quality output without the need for ink or toner.
It supports print resolutions up to 203 dpi, ensuring clear and legible barcodes and text suitable for various office and retail applications.
The device is equipped with connectivity options such as USB and Bluetooth, enabling seamless integration with multiple host systems including laptops, handheld devices, and POS terminals.
Its compact and ergonomic design incorporates a backlit LCD display and intuitive button controls to facilitate ease of use in mobile environments.
The QL420 Plus supports a variety of media types and sizes, accommodating different label and receipt formats to meet diverse printing needs.
Powered by a rechargeable battery, it offers portability while maintaining reliable print speed and durability under frequent mobile usage conditions.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 8 MB SDRAM, 4 MB Flash memory |
Custom Bundle | No |
MPN | Q4D-LUGA0000-00 |
Supported Paper Size | 4 inch |
California Prop 65 Warning | non |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ql420 plus |
Connectivity | USB 2.0, Bluetooth |
Features | Portable |
Black Print Speed | 4 ppm |
Product Line | Zebra Z |
UPC | Does not apply |
Print Method | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Max Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 4 inches per second (102 mm/s) |
Media Types | Direct Thermal Labels, Tags, Receipts |
Media Width | 1.00 to 4.41 inches (25.4 to 112 mm) |

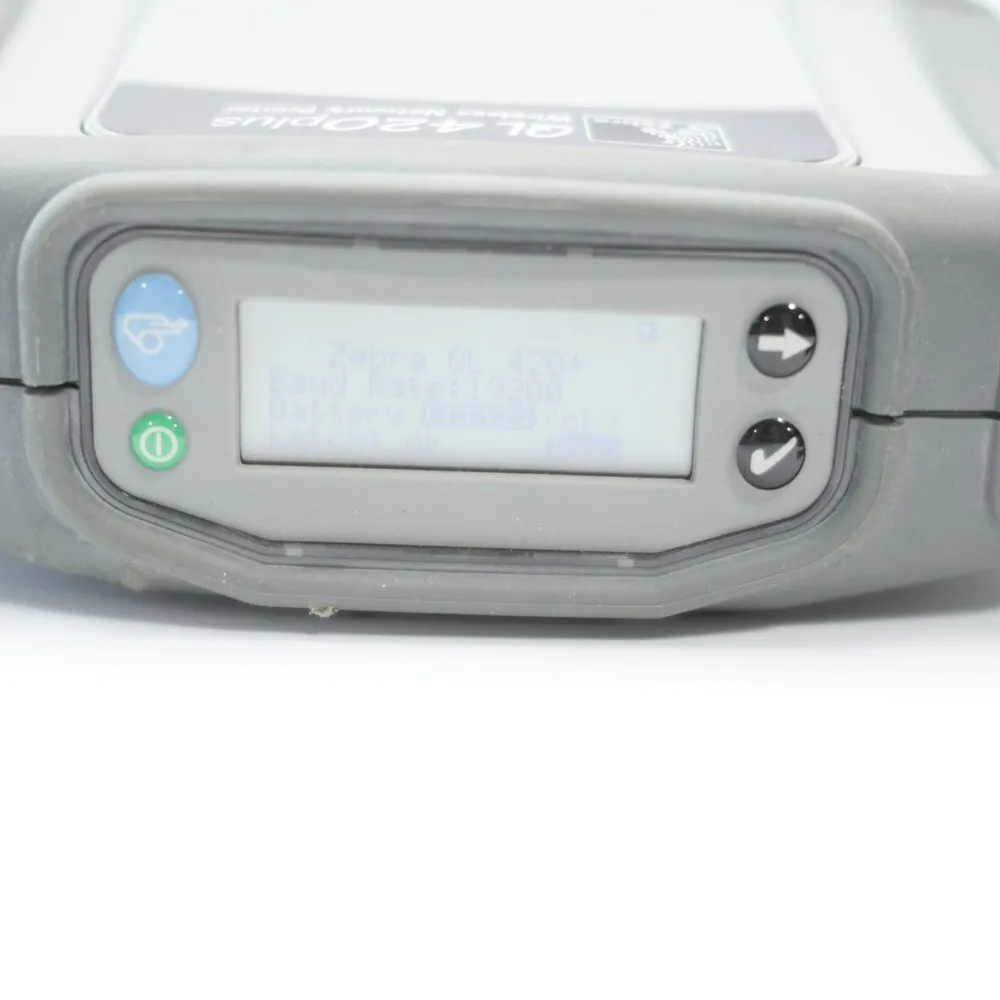

Display | Backlit LCD and Control Buttons |
Battery | Rechargeable Lithium-ion Battery |
Dimensions | 6.4 x 5.8 x 2.9 inches (162 x 147 x 73 mm) |
Weight | 1.6 lbs (0.73 kg) |
Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
Fonts | Built-in CPCL, ZPL, and EPL programming languages |
Operating Systems | Compatible with Windows, iOS, and Android devices (with appropriate software) |
Power Supply | AC Adapter or USB powered charging |
Images
Key Advantages
Compact and lightweight design enhances portability for mobile printing needs.
High resolution (203 dpi) printing ensures crisp and precise label output.
Multiple connectivity options including Bluetooth and USB provide flexibility in device pairing.
Durable construction withstands harsh environments common in field operations.
Supports various media types and sizes, increasing versatility for different applications.
Intuitive user interface with backlit LCD simplifies operation and status monitoring.
Limitations
Limited to direct thermal printing technology, which requires special thermal paper that may fade over time.
Print speed may be slower compared to more advanced or newer mobile printers.
Connectivity limited to USB and Bluetooth; lacks Wi-Fi capability found in newer models.
Battery life may require frequent recharging during intensive usage periods.
Relatively narrow print width (up to 4 inches) might restrict certain label sizes.
Device discontinued, so obtaining replacement parts or firmware updates may be challenging.
FAQ
What types of media does the Zebra QL420 Plus support?
The Zebra QL420 Plus supports direct thermal labels, receipts, and tags in various sizes, typically up to 4 inches wide.
What connectivity options are available on the QL420 Plus?
It offers USB and Bluetooth connectivity, allowing wireless and wired connections to multiple devices.
Is the Zebra QL420 Plus still supported by the manufacturer?
The QL420 Plus is discontinued, and official support including parts or firmware updates may be limited.
What is the print resolution of the Zebra QL420 Plus?
The printer delivers a maximum print resolution of 203 dpi, suitable for clear text and barcode printing.
Can the QL420 Plus be used for printing receipts as well as labels?
Yes, it is designed to print both receipts and labels efficiently using direct thermal technology.
What is the typical battery life for this portable printer?
Battery life varies depending on usage but typically supports several hours of printing before requiring recharge.
Is the QL420 Plus compatible with modern mobile devices?
The device supports Bluetooth connectivity, which allows pairing with many mobile devices, but compatibility depends on specific device and software configurations.
