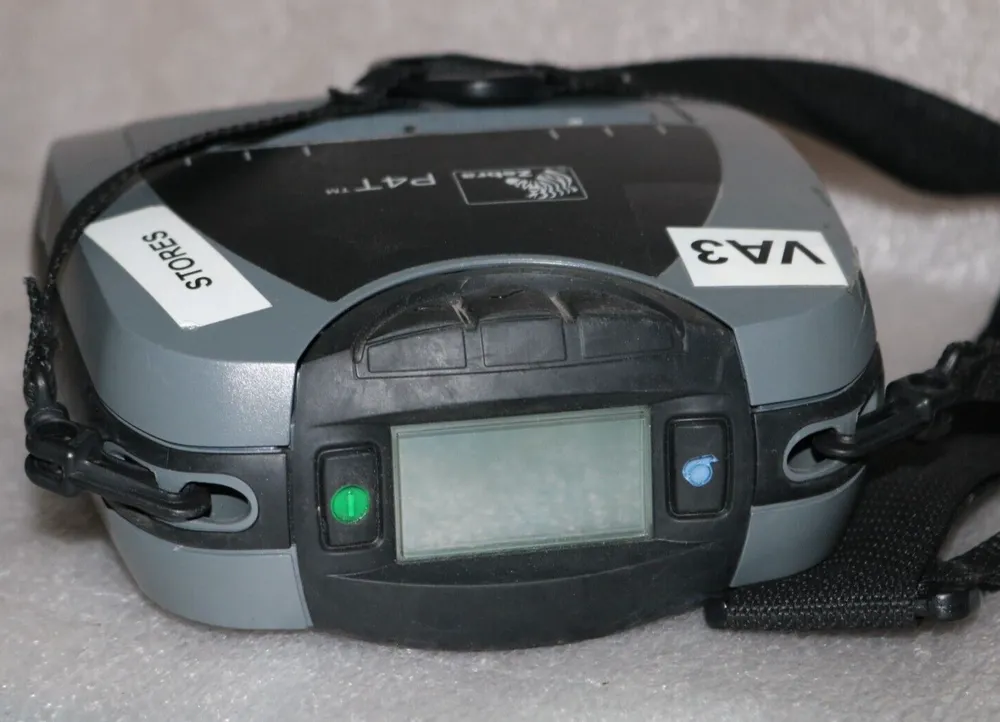

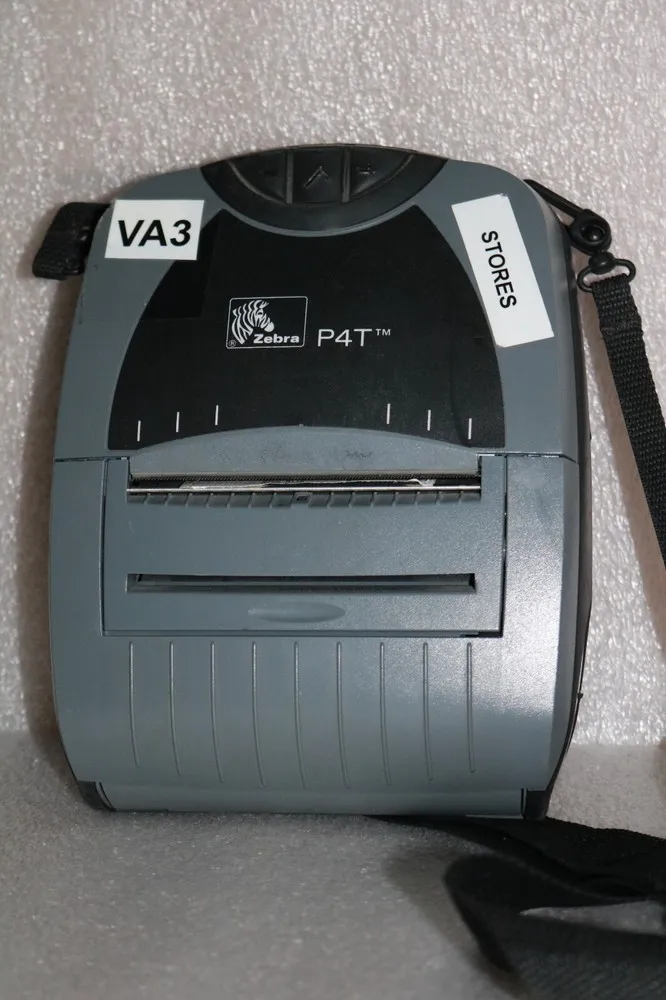

Zebra P4T (P4D-0UG00000-00) image

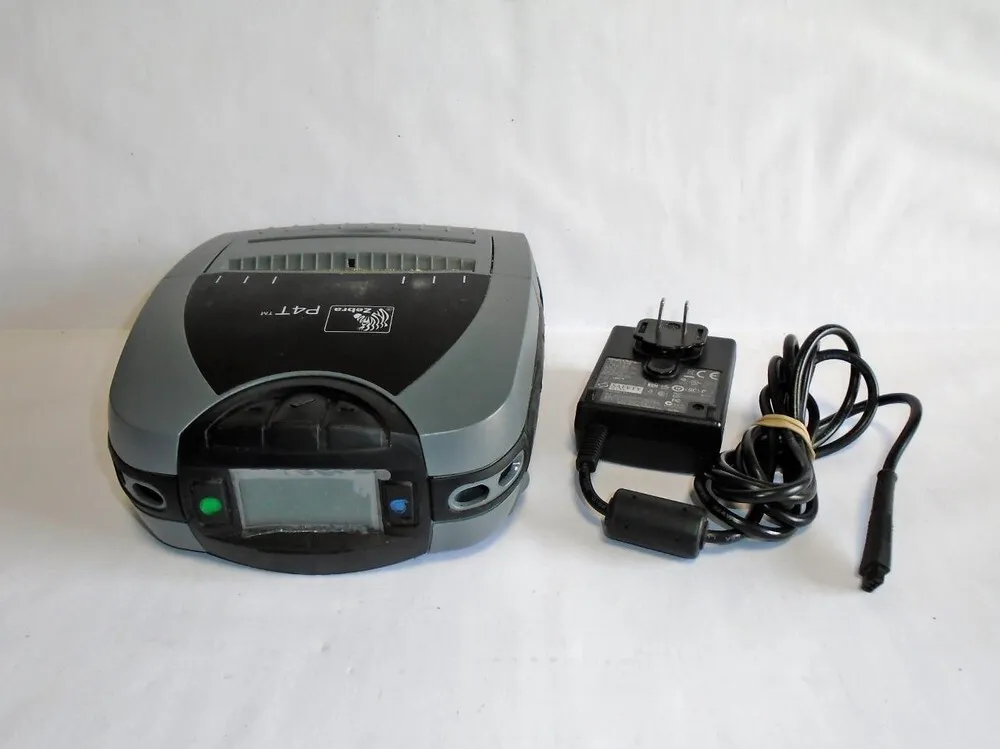

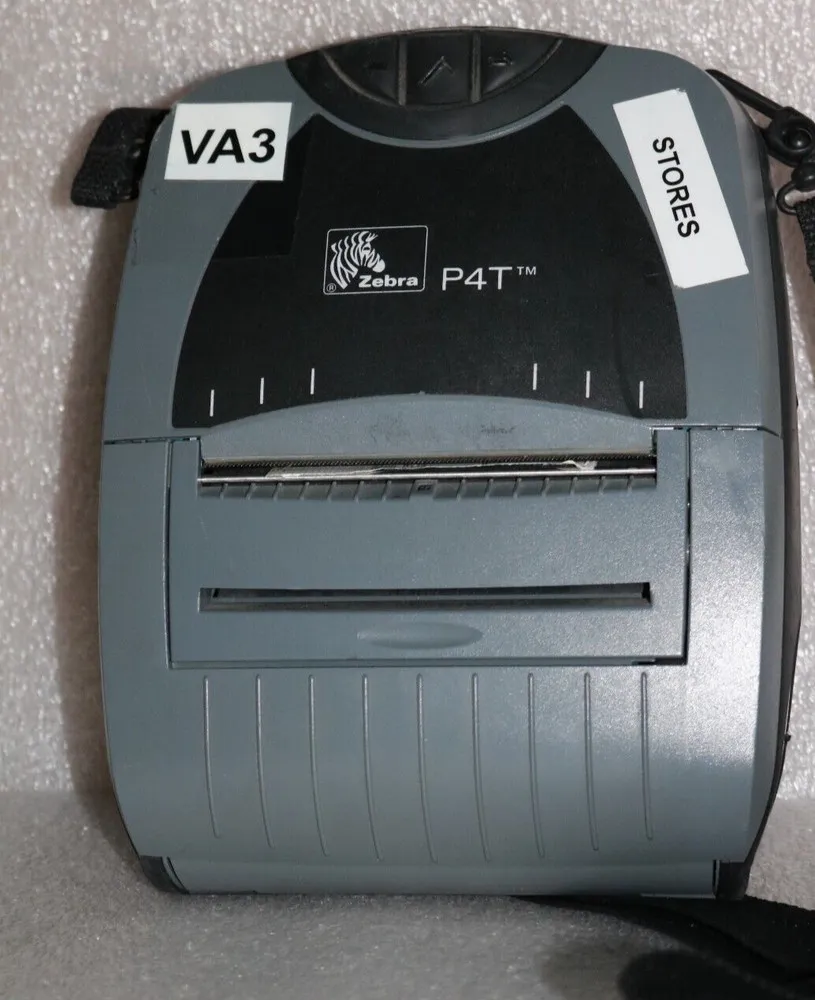

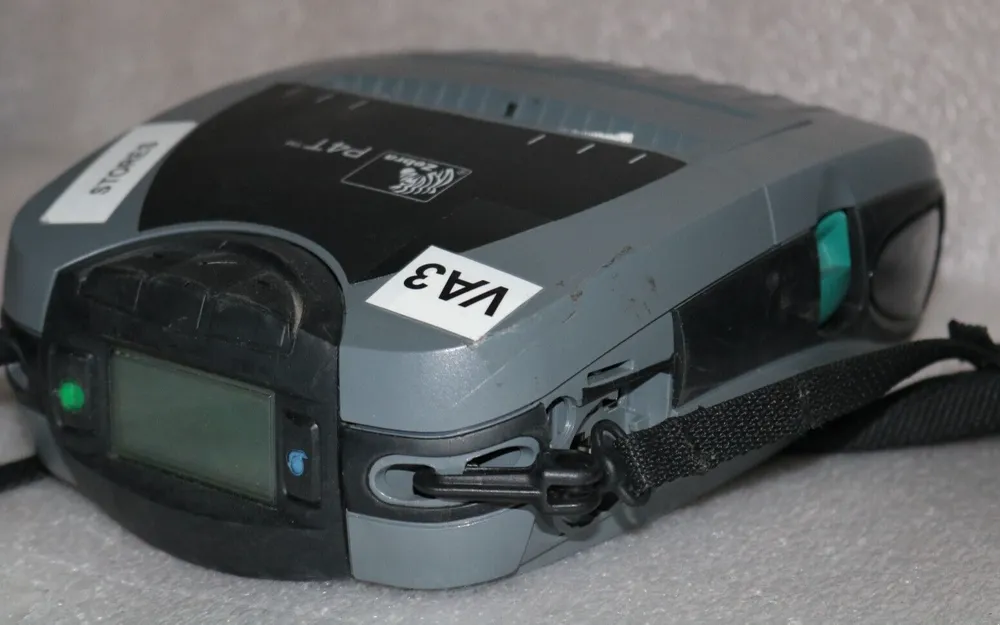

Zebra P4T (P4D-0UG00000-00)

Quick information
Brand Zebra 2014
Model P4D-0UG00000-00
Released Year 2014
Type Printers
Series Z
Status Active
Quick view

Overview

The Zebra P4T (P4D-0UG00000-00) is a rugged mobile thermal transfer printer designed for office and industrial environments requiring reliable label printing on the go. It supports direct thermal and thermal transfer printing technology with a print resolution of 203 dpi(8 dots/mm) for clear and durable output. The device integrates a 32-bit processor and 8 MB memory, enabling consistent and fast print speeds up to 4 inches per second. Connectivity options include Bluetooth and USB, allowing versatile device integration for printing from various platforms. Designed for portability, it features a compact and ergonomic form with a robust housing rated at IP54 for resistance to dust and water. The printer supports multiple media widths from 1 inch to 4.3 inches, accommodating a wide range of label and tag sizes used in asset tracking and inventory management.

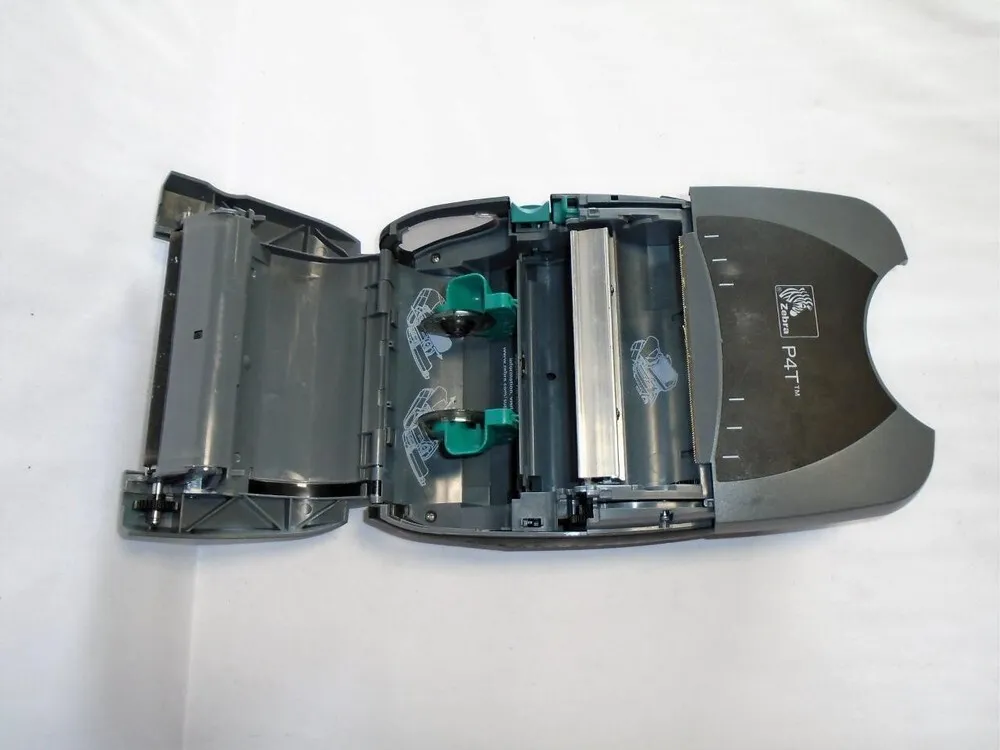

Designed to operate on rechargeable lithium-ion batteries, the P4T enables extended printing in field operations with minimal downtime. Its software compatibility includes Zebra Programming Language (ZPL) and EPL support, making it adaptable to existing printing environments. The device is engineered for quick media loading and provides alerts for low battery and media to optimize operational efficiency.

Specifications

Features Portable
UPC 0034200003363, 0807027543387
Output Type Black & White
Connectivity Bluetooth, USB
MPN P4D-0UG00000-00
Model P4T (P4D-0UG00000-00)
Depth 3in
Height 8.6in
Width 7in
Platform PC Products
Extend Printer Technology Direct Thermal / Thermal Transfer
Duplex Printout Optional
Technology Thermal
Data Link Protocol Bluetooth
Form Factor Desktop
Networking Type Wireless Network Adapter, Print Server
Media Type Labels
Max Resolution (Bw) 203DPI
Printer Type Mobile Printer, Label Printer
Black Print Speed 3in/Sec
Product Line Zebra Z
Printer type Thermal Transfer
Print resolution 203 dpi (8 dots/mm)
Max print speed 4 inches per second
Processor 32-bit
Memory 8 MB RAM
Media width 1 inch to 4.3 inches
Enclosure rating IP54

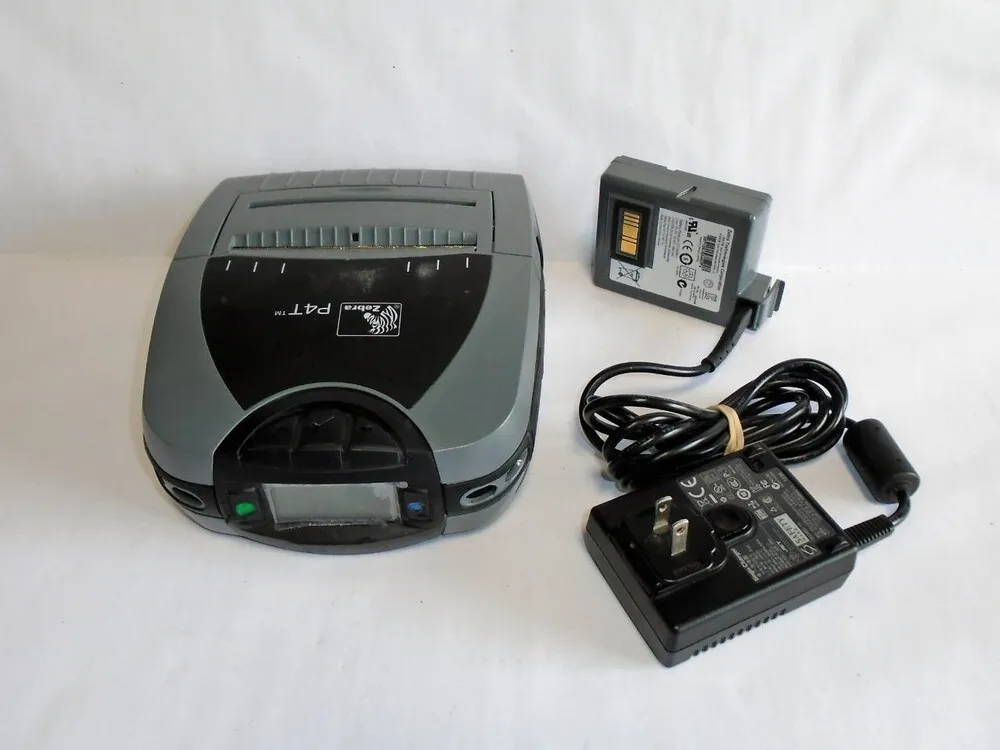

Battery Rechargeable Lithium-ion
Supported printer languages ZPL, EPL
Dimensions 7.9 x 6.9 x 3.3 inches
Weight 2.2 lbs (approx.)
Operating temperature 14°F to 122°F (-10°C to 50°C)
Storage temperature -40°F to 140°F (-40°C to 60°C)
Drop specification 4 feet (1.2 meters) tested

Key Advantages

The Zebra P4T offers robust thermal transfer printing that ensures print durability in harsh environments. Its compact, lightweight design facilitates easy transport and mobile operation. With advanced connectivity options like Bluetooth and USB, it seamlessly integrates into various workflows. The printer's IP54-rated enclosure provides protection against dust and splash water, enhancing its reliability in industrial settings. Its energy-efficient rechargeable battery enables extended operation with rapid recharging capabilities. User-friendly interfaces and quick media loading minimize downtime and improve productivity.

Limitations

The print resolution of 203 dpi limits the printer's capability for high-detail graphics and small fonts. Its maximum print speed of 4 inches per second may be slower compared to some competitors in high volume printing scenarios. The media capacity is limited by the compact form factor, restricting the length or quantity of labels that can be loaded at once. Lacking Wi-Fi connectivity may restrict wireless flexibility compared to newer models. The device's rugged design increases its weight relative to non-rugged mobile printers, which could impact portability during long shifts. Software compatibility is limited primarily to Zebra's own printer languages, potentially requiring additional drivers for other printing languages.
