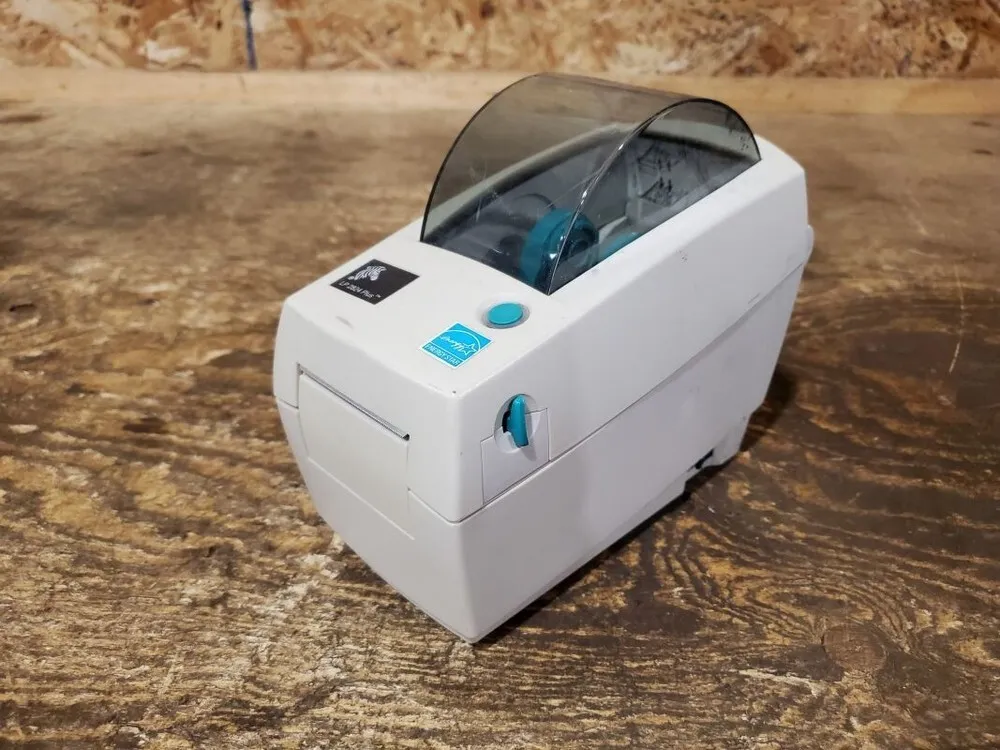

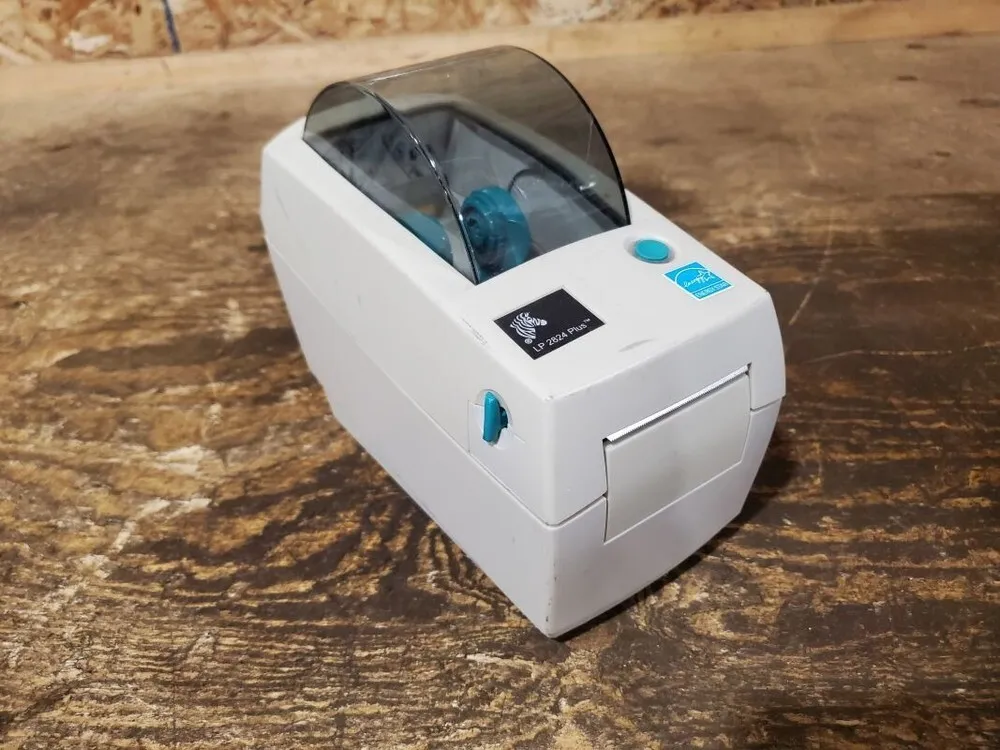

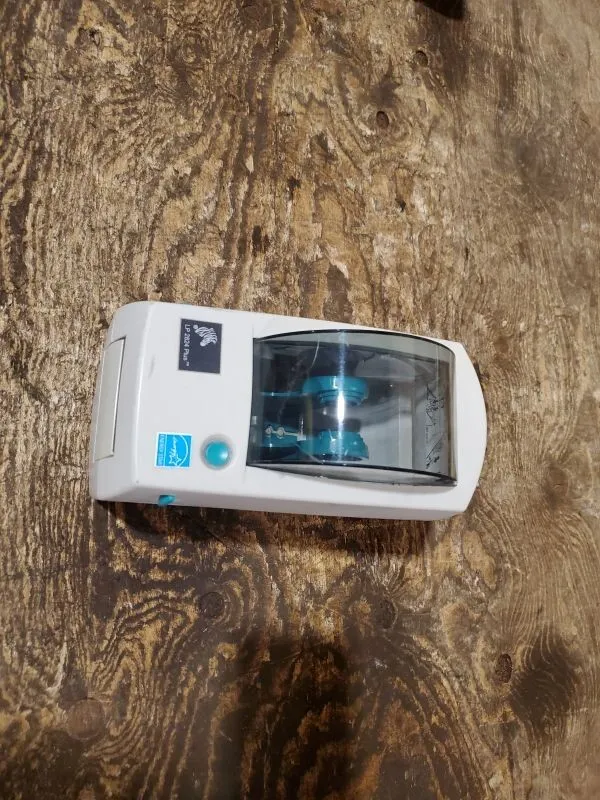

Zebra LP2824 Plus image

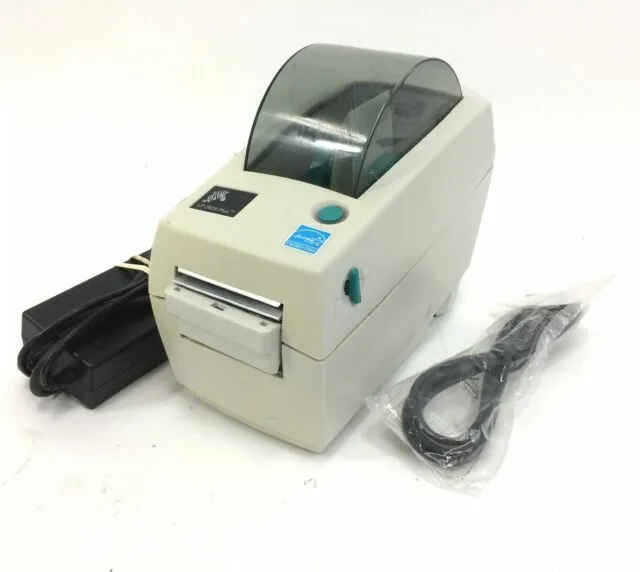

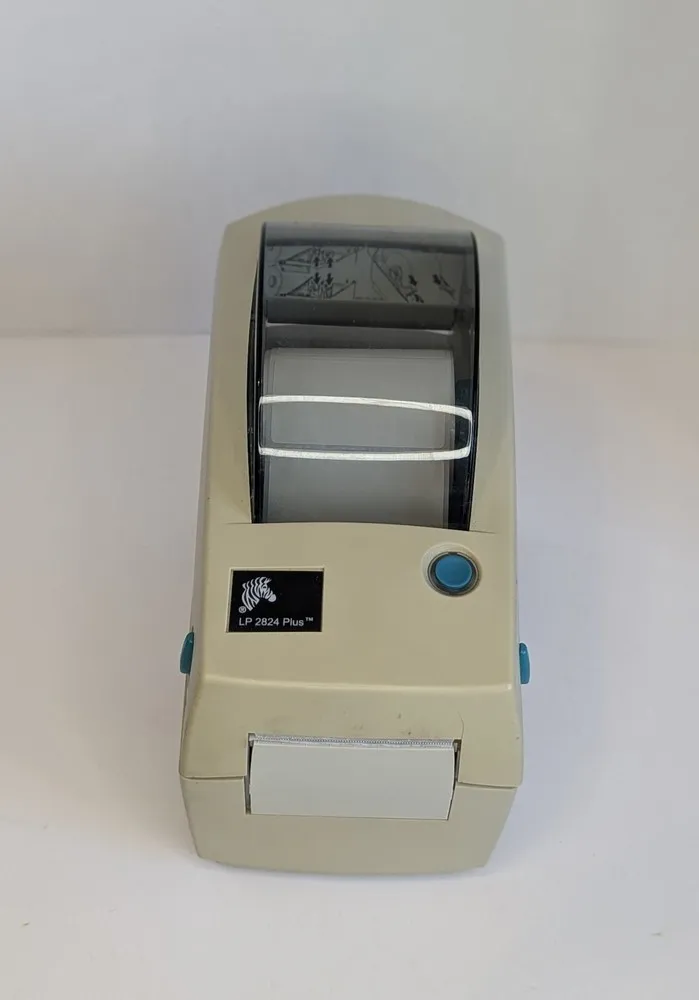

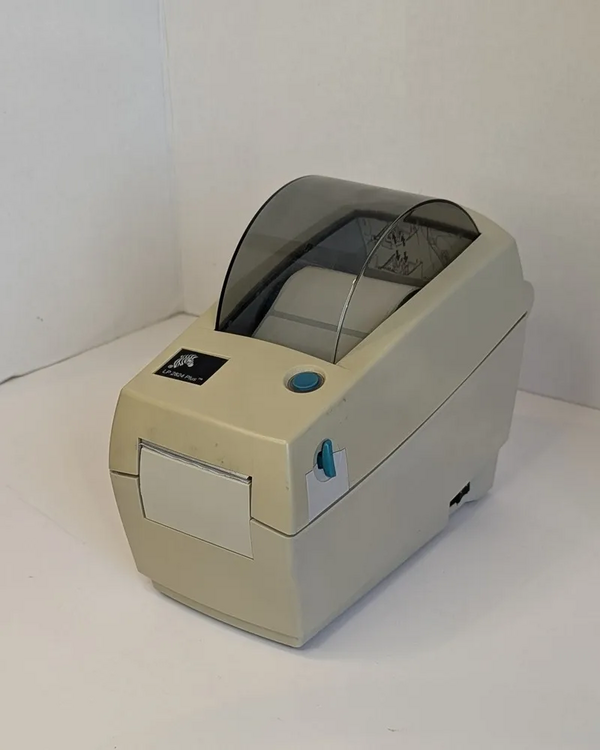

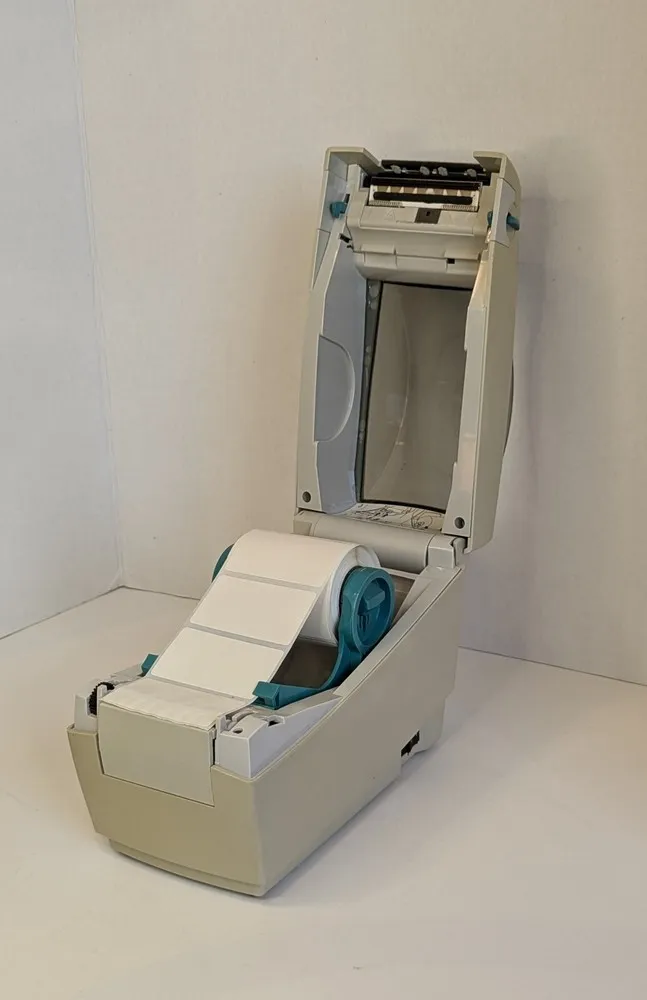

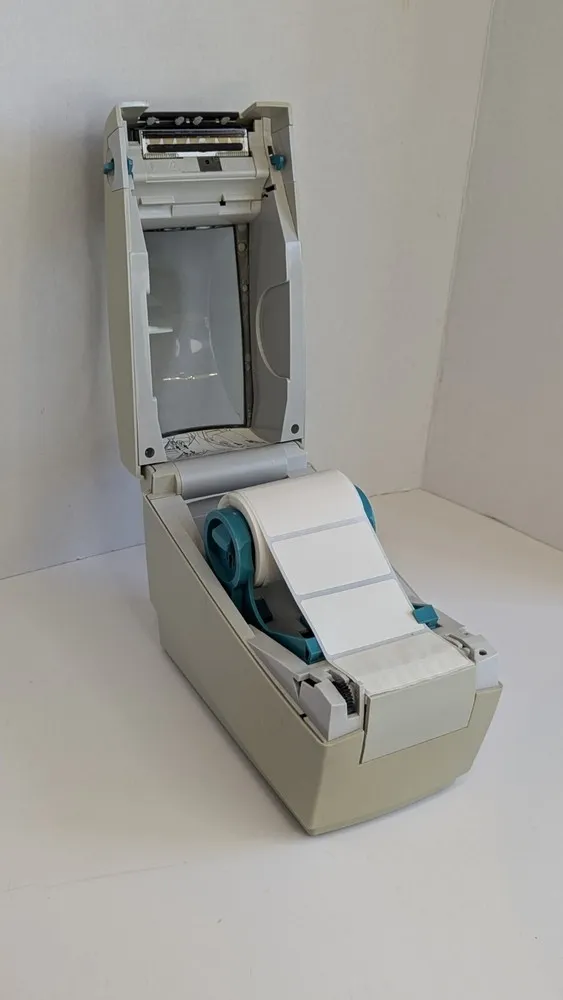

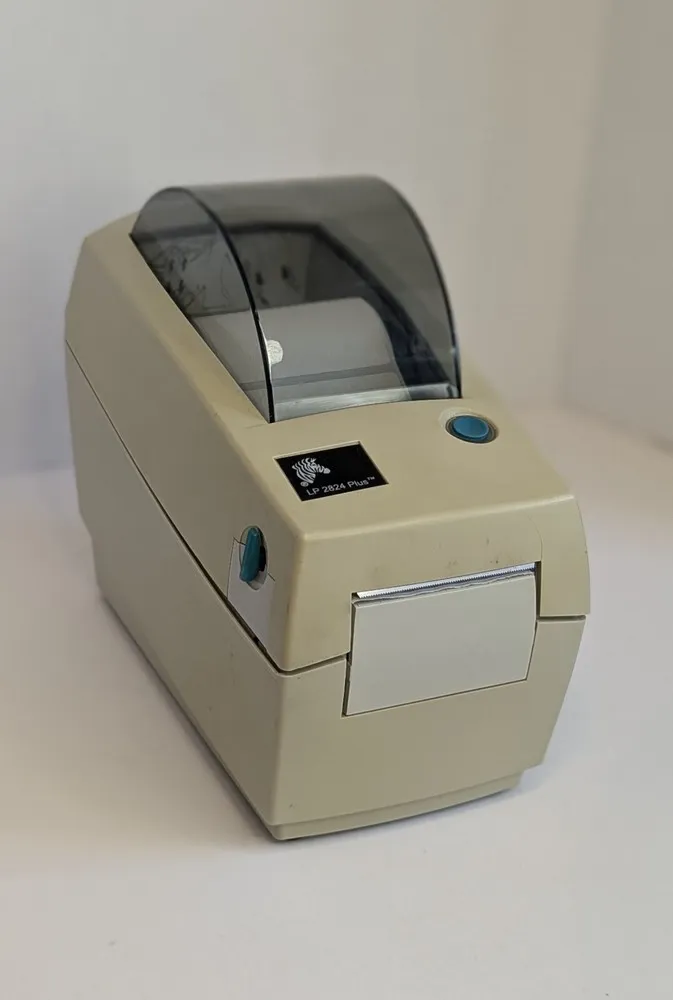

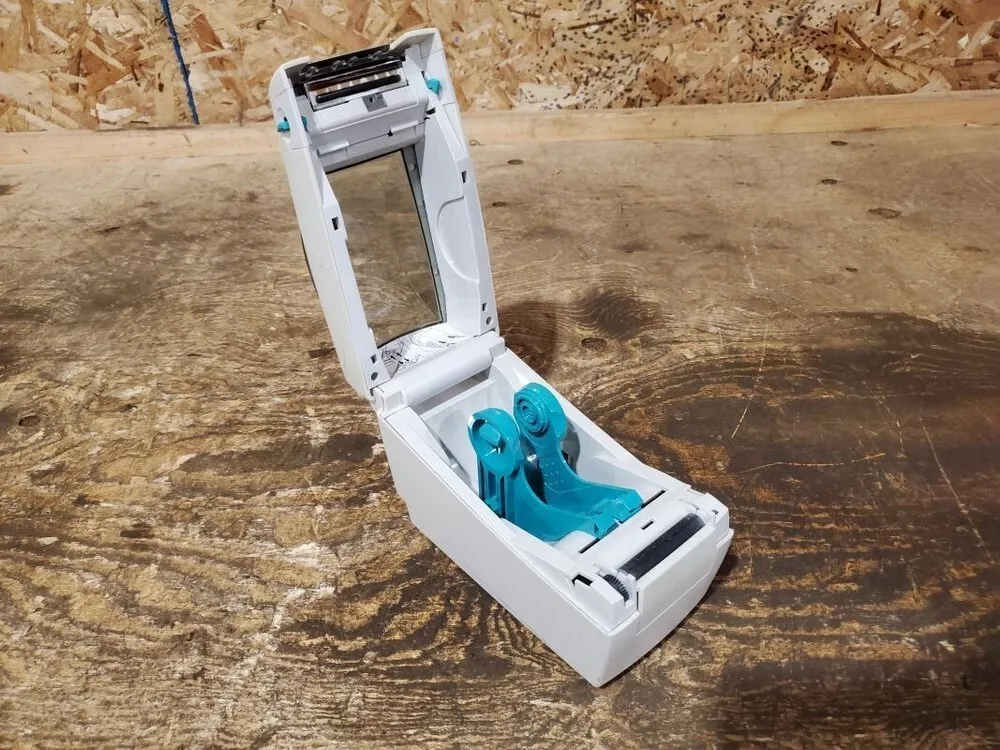

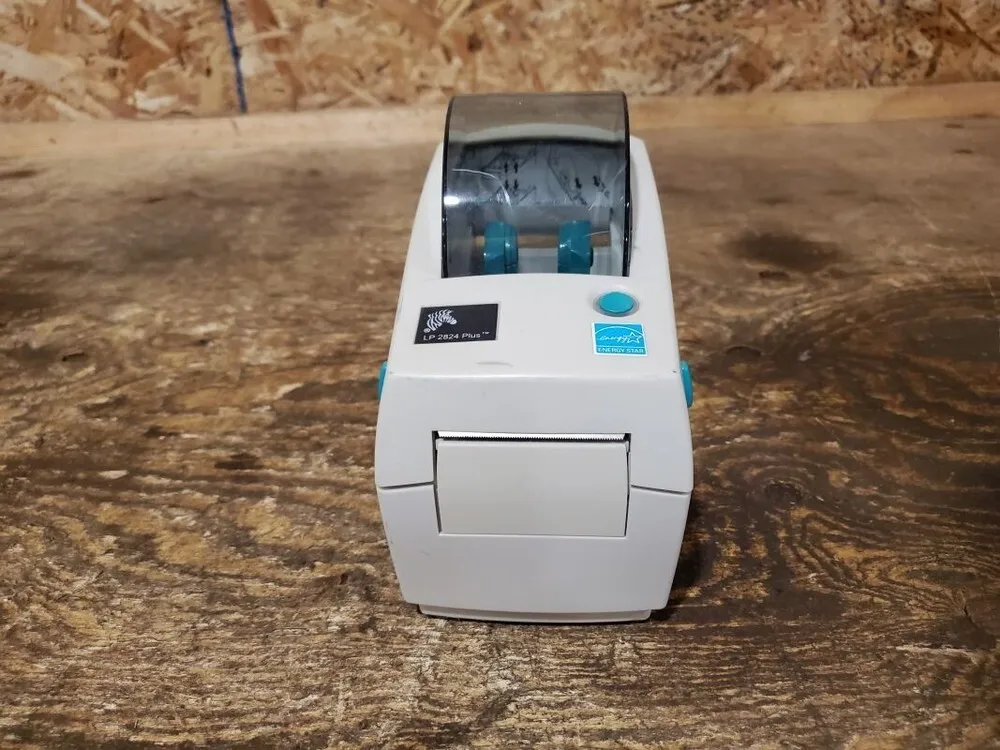

Zebra LP2824 Plus

Quick information
Brand Zebra 2004
Model 282P201110000
Released Year 2004
Type Printers
Series Lp
Status Discontinued
Quick view
Full specs Images

Overview

The Zebra LP2824 Plus is a compact desktop thermal printer designed for low to medium volume label printing tasks. It supports direct thermal printing technology, eliminating the need for ink or toner. The printer offers a print resolution of 203 dpi, ensuring clear and readable labels for various office and industrial applications. It supports a print speed up to 4 inches per second, enabling efficient label production. Connectivity options include USB and serial interfaces, providing compatibility with diverse systems. The compact design allows easy integration into tight workspaces.

Specifications

MPN 282P201110000
UPC 0622990911519
Model LP2824 Plus
Memory 4 MB Flash, 8 MB SDRAM
Technology Thermal
Connectivity USB 1.1, Serial RS-232
Scanning Resolution 200x200 DPI
Output Type Black & White
Features Portable
Input Type Monochrome
Supported Paper Size A8 (52 x 74 mm), A9 (37 x 52 mm)
Type Label Printer
Maximum Resolution 203 x 203 DPI
Black Print Speed 4 ppm
Product Line Zebra LP
Weight 3.5 lbs (1.59 kg)
Printer Type Direct Thermal Desktop Printer
Print Resolution 203 dpi
Maximum Print Width 2.2 inches (56 mm)
Print Speed Up to 4 inches per second
Media Type Labels, Tags, Receipts (Direct Thermal)
Media Width 0.75 to 2.36 inches (19 to 60 mm)
Media Roll Diameter Up to 5 inches (127 mm)
Dimensions 7.9 x 5.9 x 5.1 inches (200 x 150 x 130 mm)
Power Supply External power supply, 100-240 VAC
Operating Systems Supported Windows, Linux, Mac OS (via drivers)
Print Languages ZPL, EPL
Discontinued Yes

Key Advantages

The LP2824 Plus provides high-quality printing with straightforward operation suitable for small businesses. Its direct thermal technology reduces maintenance costs by eliminating cartridges and ribbons. The printer's compact footprint saves valuable desktop space. Fast print speeds support quick turnaround times for labeling needs. Compatibility with popular label design software enhances usability. It also features easy media loading to minimize printer downtime.

Limitations

This printer uses direct thermal printing, making labels susceptible to fading when exposed to heat and sunlight. It has a limited print width of 2.2 inches, restricting label size options. The 203 dpi resolution may not be ideal for very fine text or graphics. It lacks support for wireless connectivity, limiting remote printing capabilities. The device is better suited for lower volume printing and could be inadequate for high-demand environments. Additionally, the firmware and software support are not frequently updated due to its discontinuation.

FAQ

The Zebra LP2824 Plus uses direct thermal printing technology, which does not require ink or toner.

The maximum print speed is up to 4 inches per second.

Yes, the LP2824 Plus provides USB and serial connectivity options.

No, the LP2824 Plus printer has been discontinued and is no longer officially supported.

The print resolution is 203 dots per inch (dpi).

No, it does not support wireless connectivity.

It prints on direct thermal media including labels, tags, and receipts suitable for short-term use.
