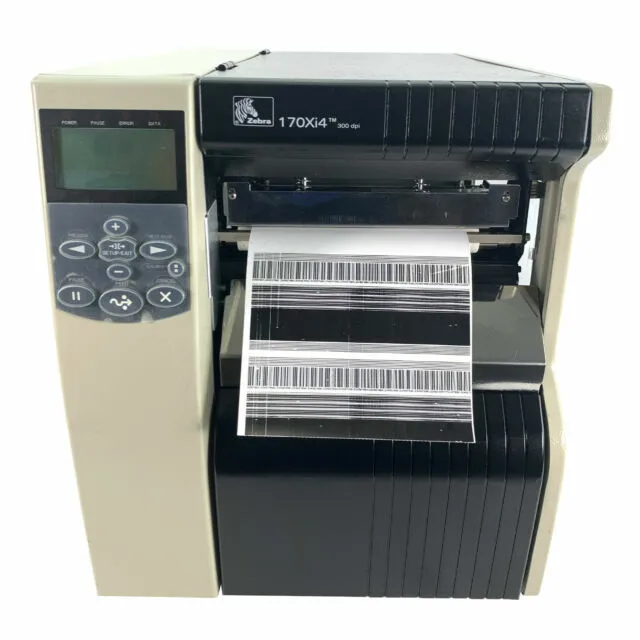

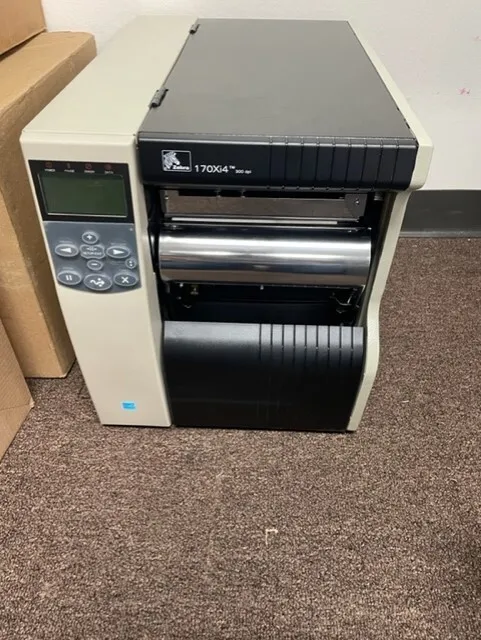

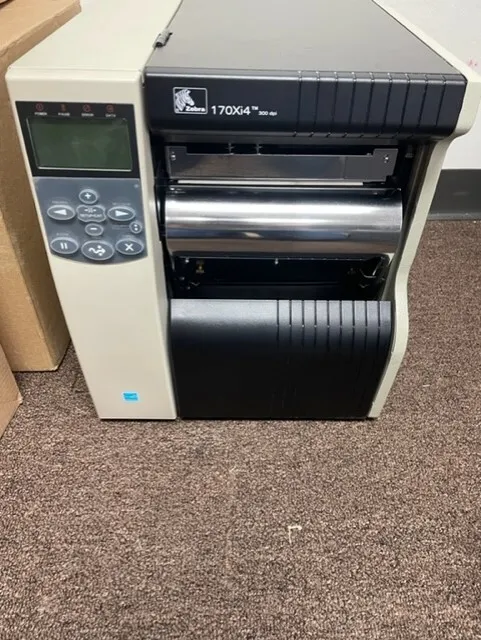

Zebra 170Xi4 image

Zebra 170Xi4

Quick information
Brand Zebra 2010
Model 17080100200
Released Year 2010
Type Printers
Series Xi
Status Discontinued
Quick view
Full specs Images

Overview

The Zebra 170Xi4 is an industrial-grade barcode printer designed for high-quality, high-volume printing operations. It features a robust direct thermal and thermal transfer printing technology capable of producing durable labels and tags. The printer supports resolutions up to 300 dpi, suited for detailed barcode and text printing. It is built with a metal frame to ensure durability in demanding industrial environments. The model includes an advanced linker programming language and supports various media types and widths. It provides versatile connectivity options including serial, parallel, and USB interfaces.

Specifications

MPN 17080100200
GTIN 0853585479033
UPC 0853585479033
Model 170Xi4
Memory 8 MB DRAM, 4 MB Flash
Technology Thermal
Image Sensor Contact Image Sensor (CIS)
Connectivity Serial RS-232, Parallel, USB 2.0
Grayscale Depth 32 Bit
Output Type Black & White
Features Networkable
Input Type Monochrome
Type Label Printer
Maximum Resolution 300 x 300 DPI
Black Print Speed 12 ppm
Product Line Zebra Xi
Print Technology Direct Thermal and Thermal Transfer
Print Resolution 203 dpi and 300 dpi options
Print Speed Up to 14 inches per second at 203 dpi
Max Print Width 4.09 inches (104 mm)
Media Types Roll-fed, die-cut, continuous label stock, tag stock
Processor 32-bit RISC
Dimensions 20" W x 19" H x 24" D (508 mm x 483 mm x 610 mm)
Weight 60 lbs (27.2 kg)
Compatibility Zebra ZPL, EPL programming languages
Operating Temperature 40°F to 105°F (4.4°C to 40.5°C)
Power Supply 110V - 240V, 50-60 Hz
Frame Heavy-duty metal construction
Discontinued Yes

Key Advantages

The Zebra 170Xi4 boasts exceptional print quality with up to 300 dpi resolution ensuring crisp barcode readability. Its industrial metal construction offers durability and reliability in rigorous work environments. The printer accommodates a wide range of media sizes and types, enhancing flexibility for diverse labeling needs. It features programmable firmware for customization and integration with complex workflows. Multiple interface options facilitate easy connection with legacy and modern systems. Additionally, it offers fast print speeds suited for high-volume production requirements.

Limitations

The Zebra 170Xi4, while robust, is relatively large and heavy compared to newer compact models, making it less portable. Initial setup and configuration can require technical expertise. The printer's power consumption is higher than some newer printers optimized for energy efficiency. It does not feature wireless connectivity such as Wi-Fi or Bluetooth. Replacement parts and consumables may be harder to source as the model ages. Software updates and support might be limited due to the model's age and discontinuation status.

FAQ

The Zebra 170Xi4 uses direct thermal and thermal transfer printing technologies to produce high-quality and durable labels and tags.

The printer supports a maximum print resolution of 300 dots per inch (dpi), suitable for detailed barcode and text printing.

Yes, the printer is designed as an industrial-grade solution capable of high-speed printing suitable for high-volume production.

It includes serial, parallel, and USB interfaces for flexible connectivity with various host systems.

The model has been discontinued, thus official support and updates from Zebra are limited.

Yes, it supports various media widths and types to accommodate diverse labeling requirements.

No, this model does not include wireless connectivity options such as Wi-Fi or Bluetooth.
