Zebra LP 2824 Plus
Brand | Zebra 2006 |
Model | 282P-201520-000 |
Released Year | 2006 |
Type | Printers |
Series | Lp |
Printing technology | Direct Thermal |
Status | Discontinued |
Quick view
Overview
The Zebra LP 2824 Plus is a compact, thermal label printer designed primarily for low to medium volume printing needs in office environments. It utilizes direct thermal technology, eliminating the need for ink, toner, or ribbons, which simplifies maintenance. The printer supports a resolution of 203 dpi, enabling clear, precise barcode and label printing. Connectivity options include serial and USB ports, allowing versatile integration with various computer systems. The maximum print speed is 4 inches per second, and it accommodates label widths up to 2.2 inches (56 mm). The printer is designed with a user-friendly clamshell design that facilitates easy media loading and reduces downtime. Overall, the LP 2824 Plus balances efficient label production with economical design, suitable for diverse labeling applications.
This model is part of Zebra's LP series, recognized for robust office printing solutions with straightforward operation. It includes basic LCD or LED indicators for status notifications and supports multiple font types and barcode symbologies. Firmware can be updated via USB connection for sustained performance and compatibility over time.
Specifications
Type | Label Printer |
Technology | Thermal |
Output Type | Black & White |
Connectivity | USB 2.0, Serial RS-232 |
MPN | 282P-201520-000 |
Product Line | Zebra LP |
UPC | 5051964792819 |
Model | LP 2824 Plus |
Extend Printer Technology | Direct Thermal |
Energy Star | With Energy Star |
Data Link Protocol | Ethernet |
Color | White |
Form Factor | Desktop |
Networking Type | Print Server |
Media Type | Perforated Thermal Paper, Receipt Paper, Continuous Forms, Labels, Tag Stock, Fanfold |
Max Resolution (Bw) | 203x203DPI |
Max Media Size | Roll (6cm) |
Black Print Speed | 4in/Sec |
Printing technology | Direct Thermal |
Print resolution | 203 dpi (8 dots/mm) |
Print speed | Up to 4 inches per second (102 mm/s) |
Maximum print width | 2.2 inches (56 mm) |
Media types supported | Labels, Tags, Receipt paper |
Media width range | 0.75 inches to 2.36 inches (19 to 60 mm) |
Media thickness | 0.003 inches to 0.007 inches |
Media loading | Clamshell design for easy loading |
Memory | 4 MB Flash, 8 MB SDRAM |
Dimensions | 7.8 x 5.3 x 7.2 inches (198 x 134 x 183 mm) |
Weight | 3.6 lbs (1.63 kg) |
Power supply | 110-230V AC, 50-60 Hz |
Supported barcode symbologies | Code 39, Code 128, EAN-13, UPC-A, Interleaved 2 of 5, QR Code, PDF417 |
Operating temperature | 41°F to 104°F (5°C to 40°C) |
Storage temperature | -40°F to 140°F (-40°C to 60°C) |

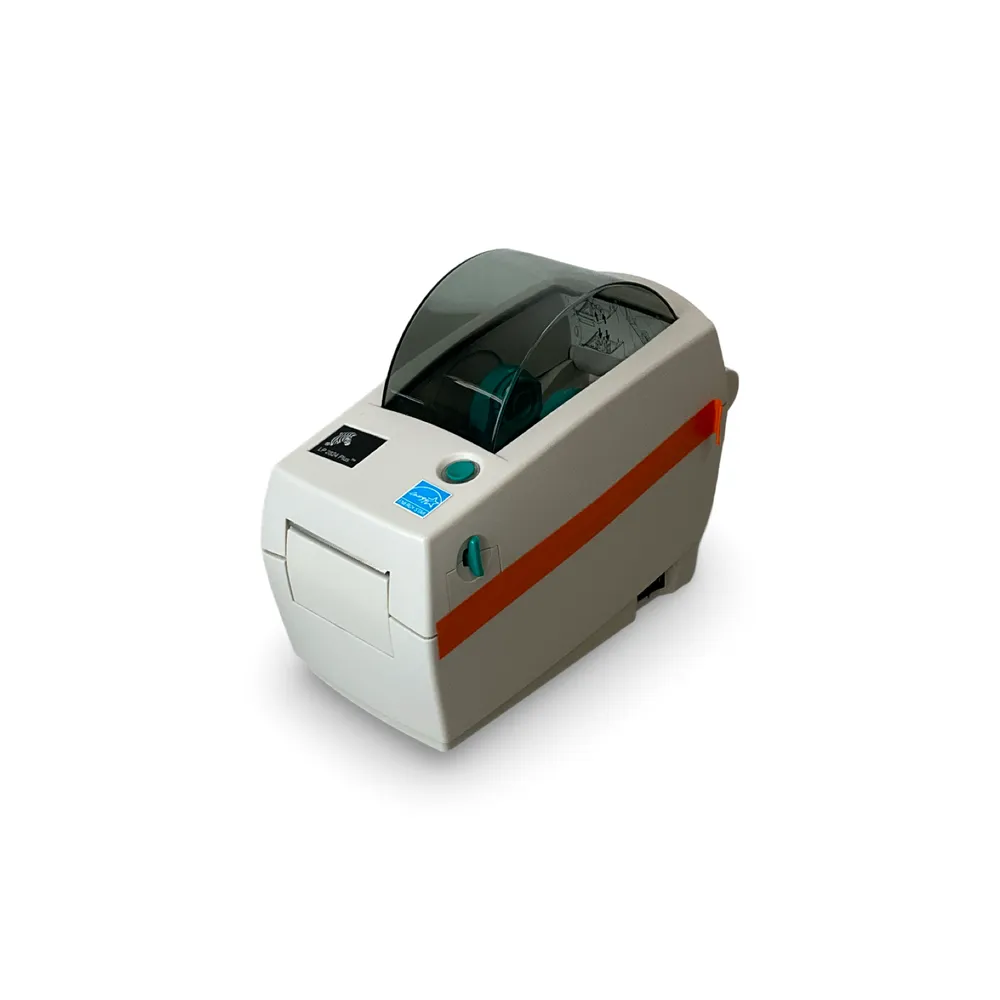

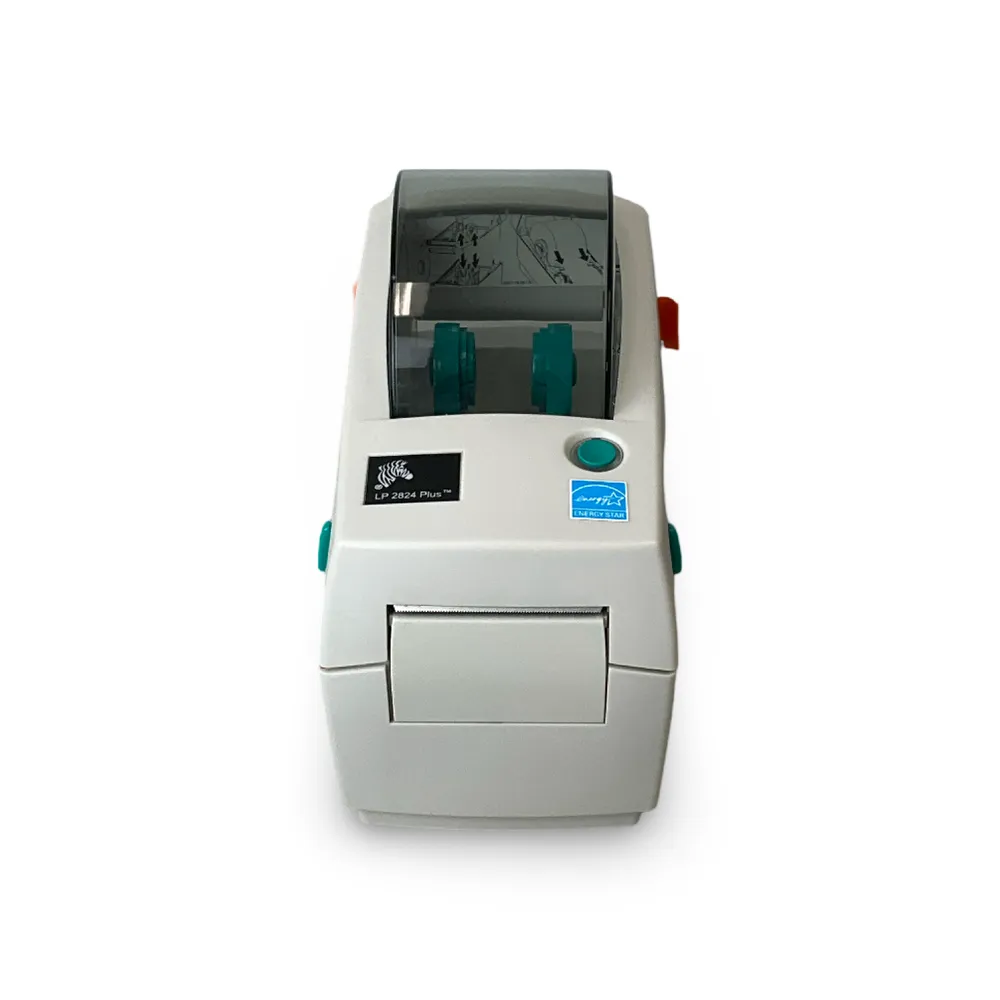

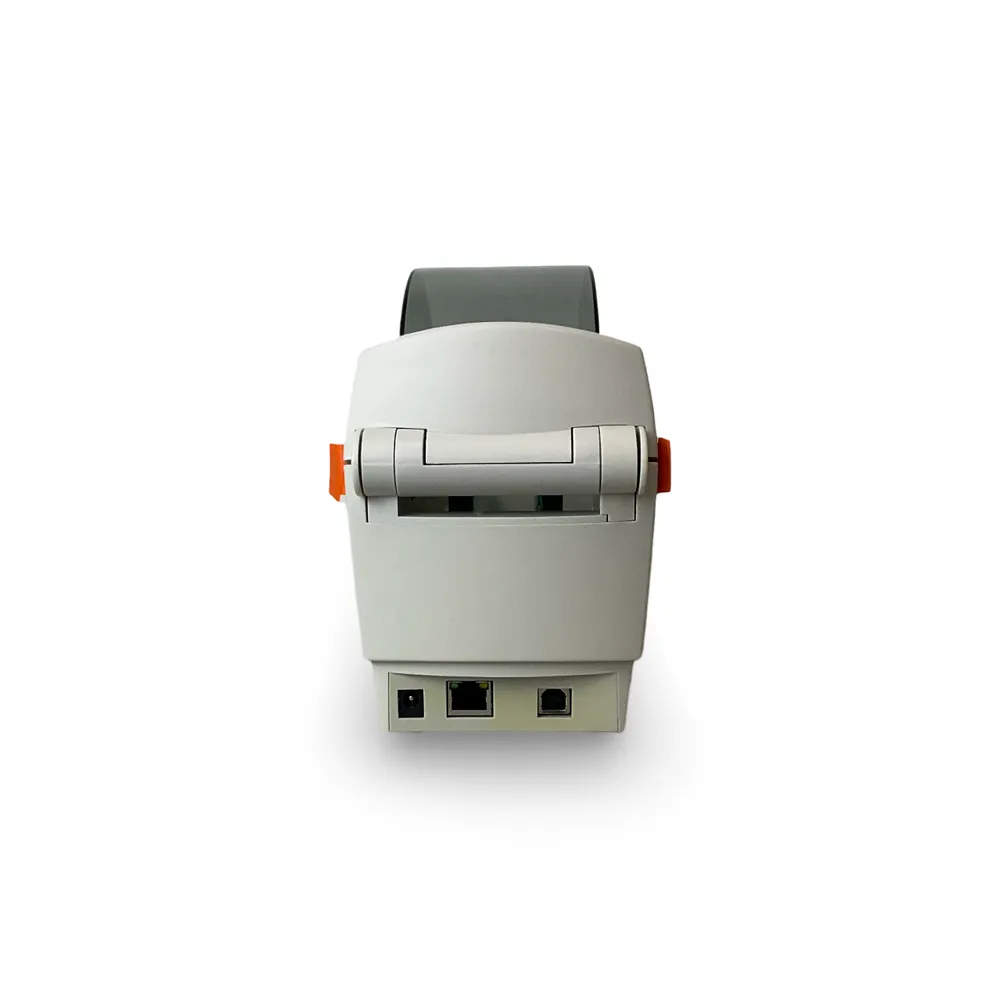

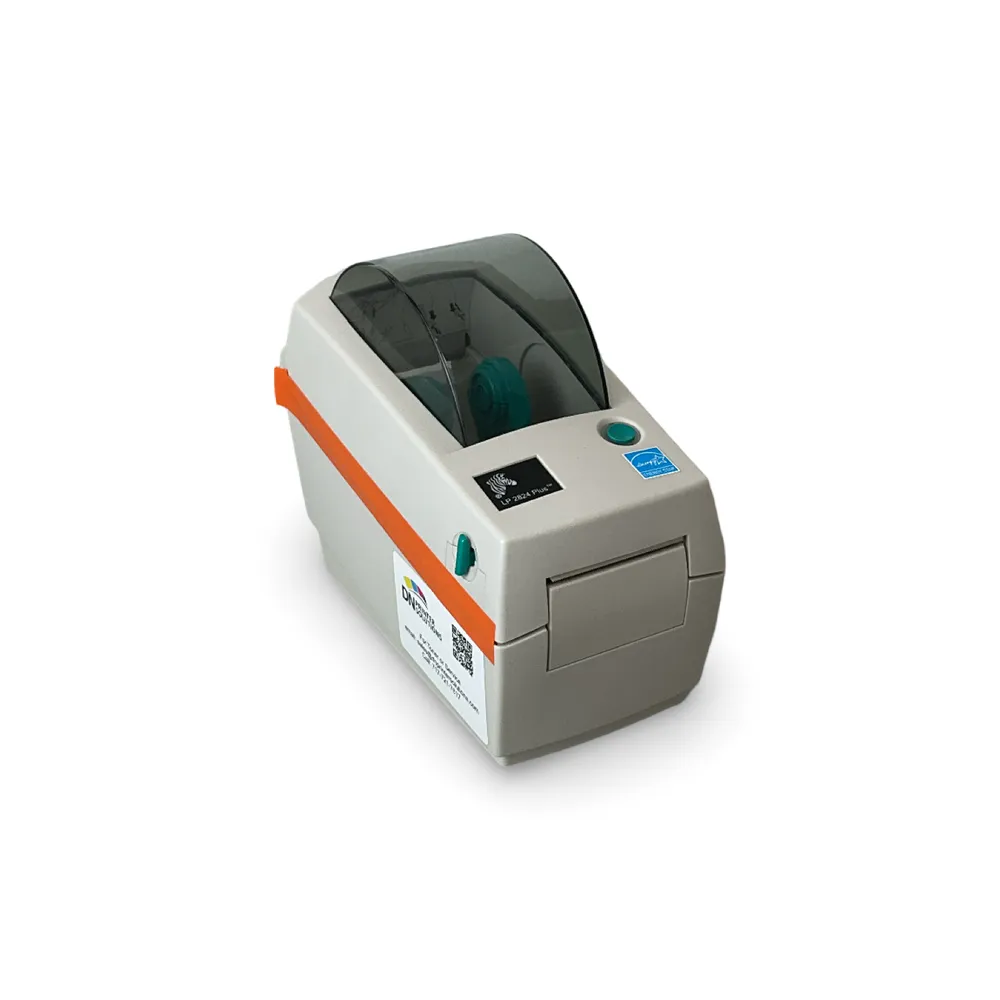

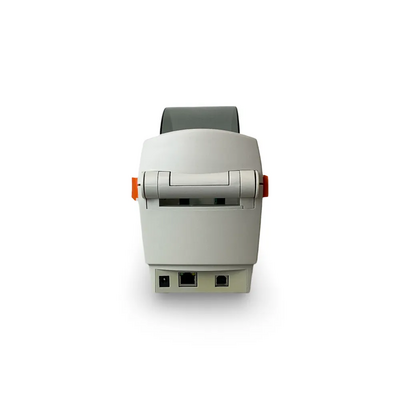

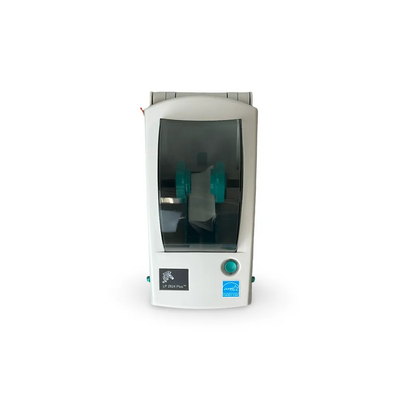

Images
Key Advantages
The Zebra LP 2824 Plus offers a compact and space-saving form factor ideal for desktop use. Its direct thermal technology reduces consumable costs by eliminating the need for ribbons and ink. The printer supports fast print speeds of up to 4 inches per second, aiding productivity in small to medium workloads. It provides versatile connectivity including USB and serial interfaces, allowing easy integration with existing systems. Media loading is straightforward with a clamshell design, minimizing printer downtime. Additionally, it supports a broad range of media types and sizes up to 2.2 inches wide, offering flexibility in label applications.
Limitations
The LP 2824 Plus is limited to a maximum print resolution of 203 dpi, which may not be suitable for highly detailed graphics or very small barcodes. The print width maximum of 2.2 inches restricts label size options to smaller formats only. It does not include networking capabilities such as Wi-Fi or Ethernet natively, requiring additional accessories for network connectivity. The printer is designed for low to medium print volumes and may not be optimal for high-demand industrial environments. Additionally, because it uses direct thermal printing, labels may fade over time due to heat or exposure to sunlight. Lack of a touchscreen interface means configuration relies on software or buttons, which can be less intuitive for some users.
FAQ
What type of printing technology does the Zebra LP 2824 Plus use?
The Zebra LP 2824 Plus uses direct thermal printing technology, which prints labels by selectively heating coated thermal paper.
What is the maximum print speed of the LP 2824 Plus?
The maximum print speed is up to 4 inches per second.
What connectivity options are available on the Zebra LP 2824 Plus?
The printer provides serial and USB connectivity for flexible device integration.
Can the Zebra LP 2824 Plus print color labels?
No, the LP 2824 Plus supports direct thermal printing which is monochrome (black and white) only.
Is the Zebra LP 2824 Plus still supported or has it been discontinued?
The device has been discontinued and is no longer actively supported with new firmware updates.
What is the maximum print resolution for the LP 2824 Plus?
The maximum print resolution is 203 dpi (dots per inch).
Does the printer support networking capabilities like Wi-Fi?
No, networking is not built-in, but optional accessories may provide network connectivity.
