Zebra GX420d
| Brand | Zebra 2011 |
| Model | AC Adapter, Shipping, GX42-201710-000 |
| Released Year | 2011 |
| Type | Printers |
| Series | Gx |
| Status | Discontinued |
Quick view
Overview

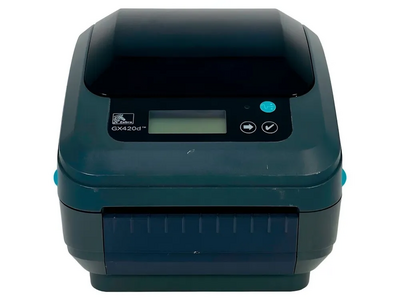

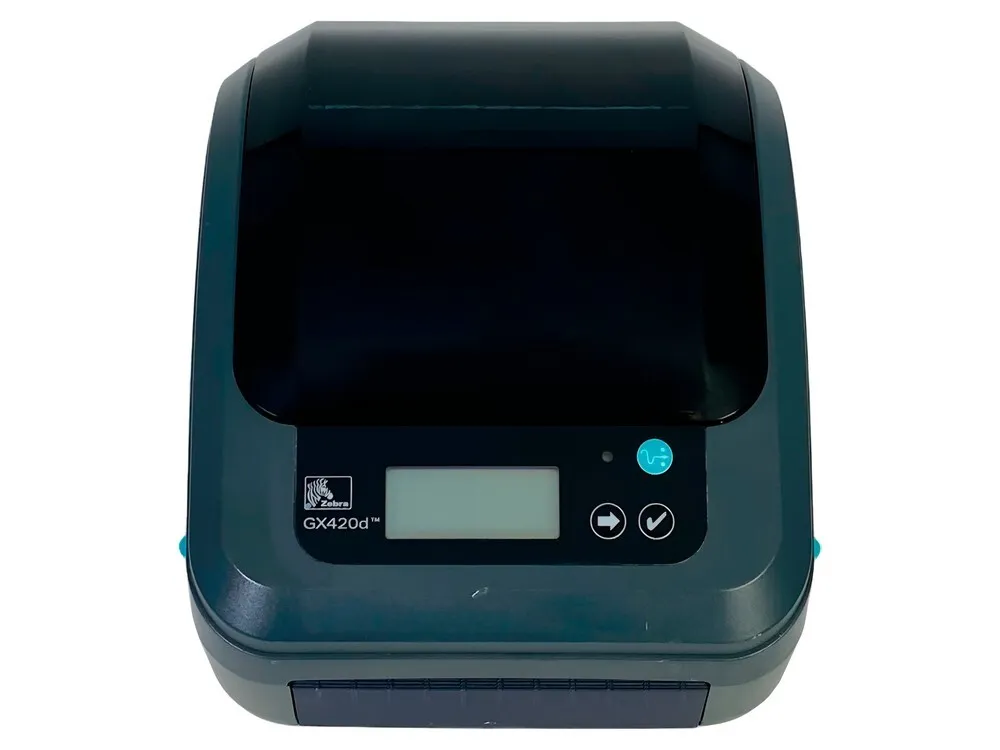

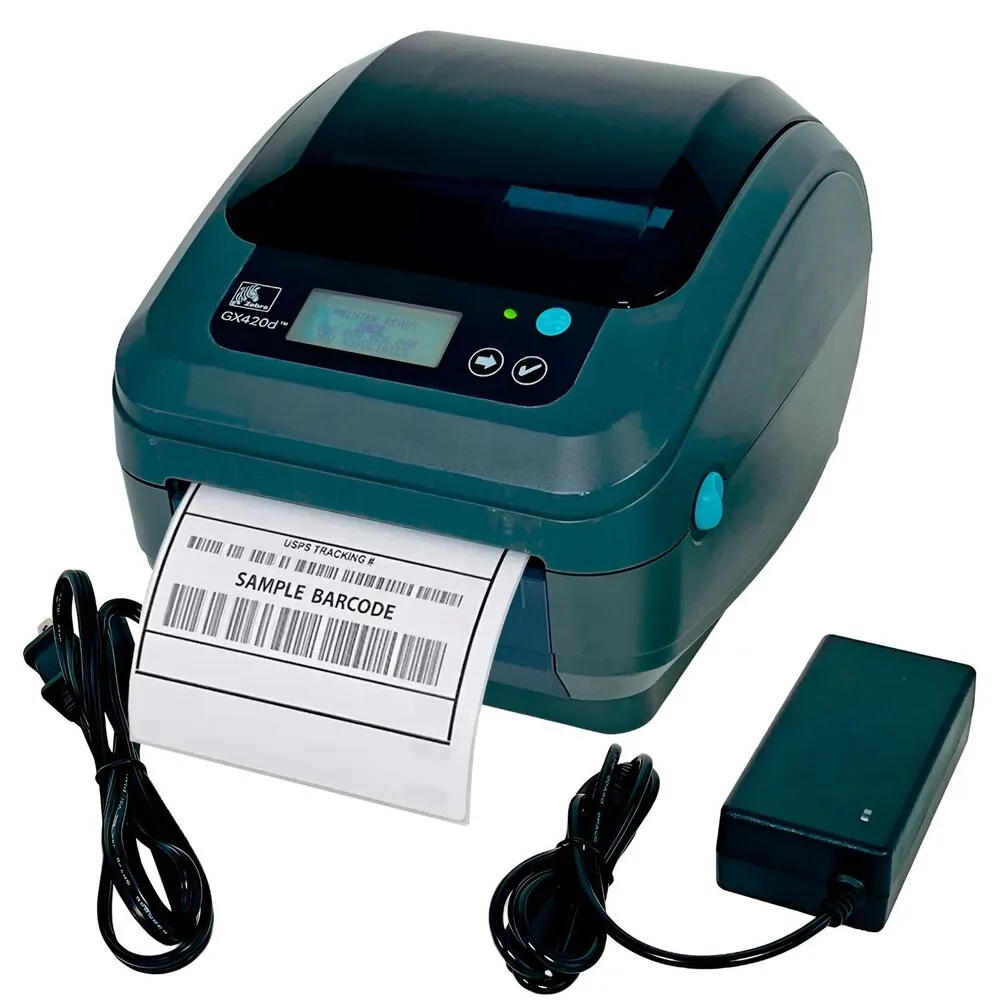

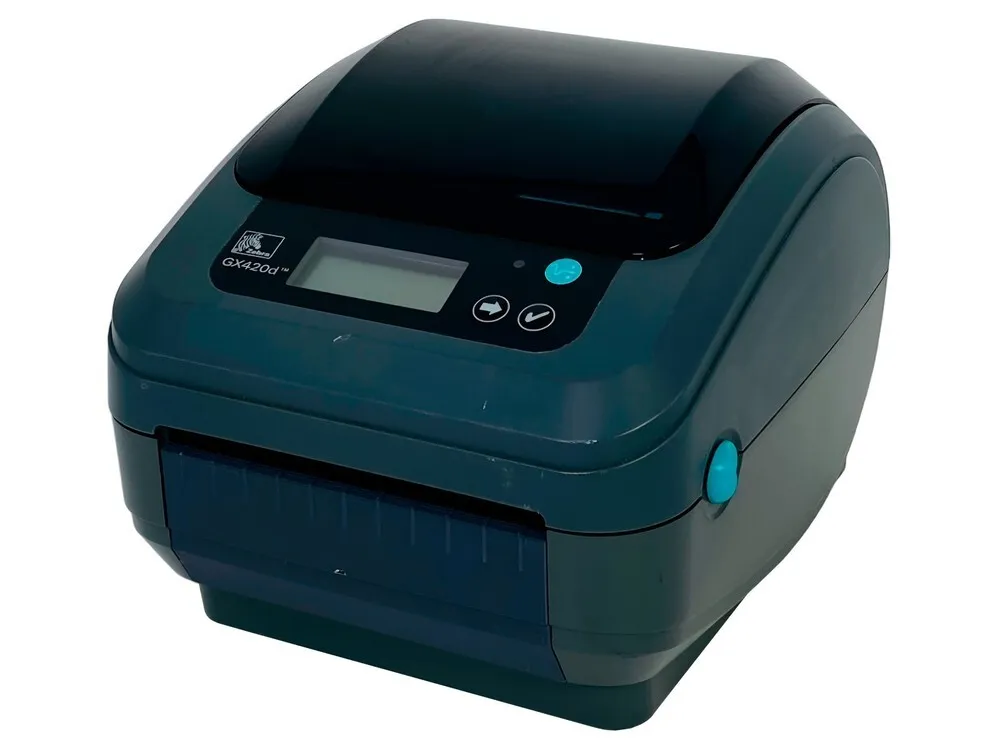

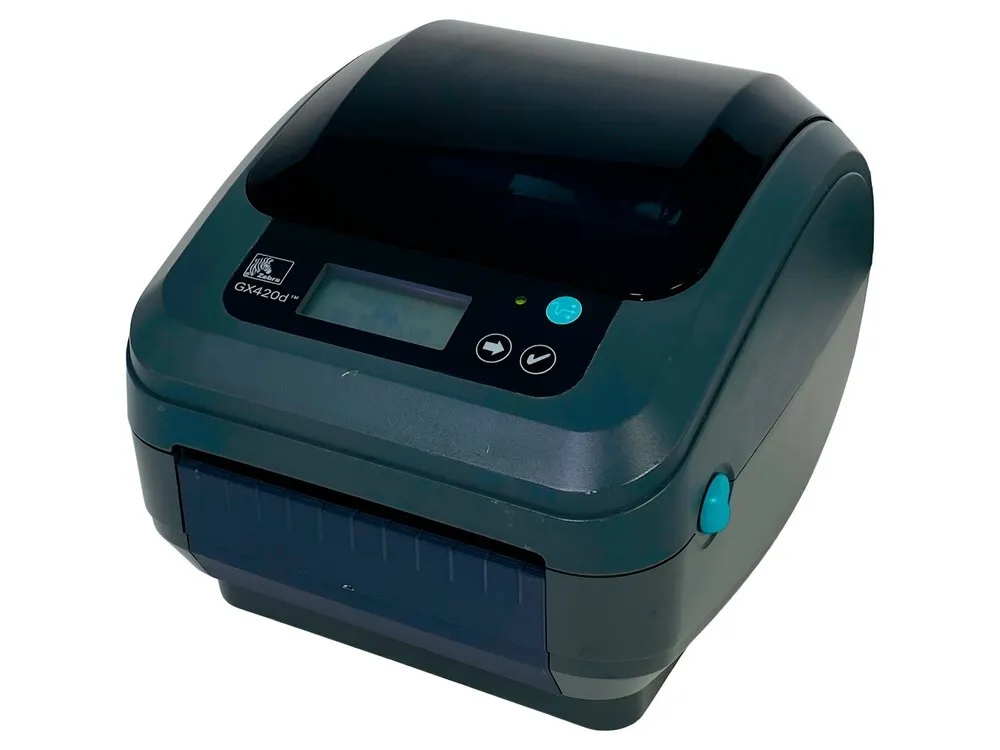

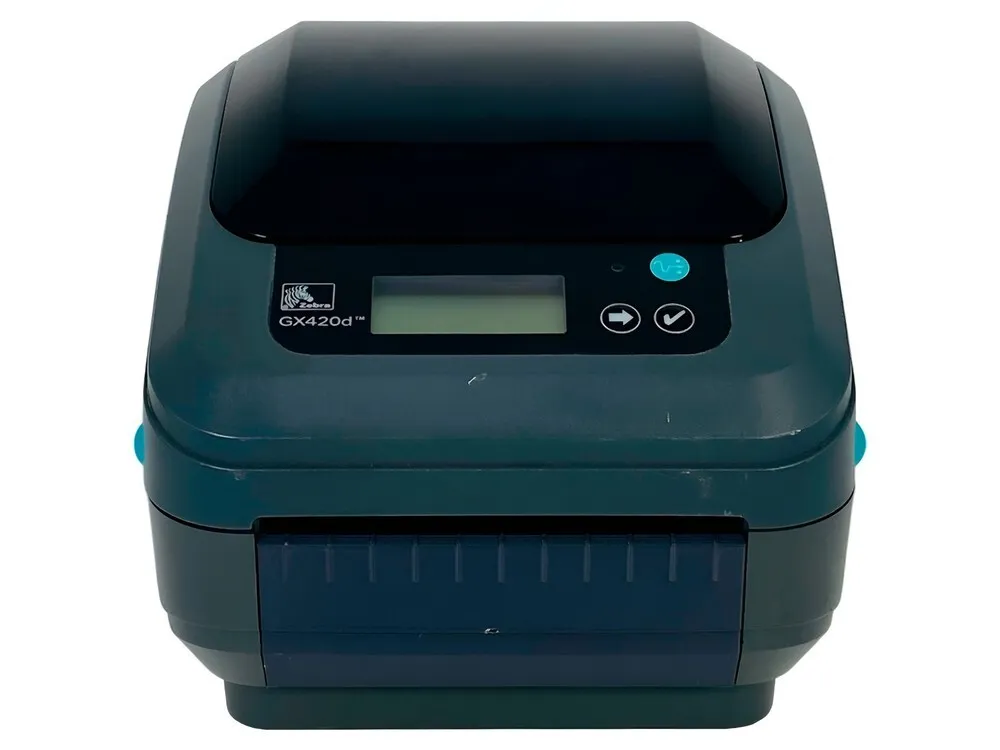

The Zebra GX420d printer is a desktop direct thermal printer designed specifically for moderate volume printing needs in office and industrial environments.
It operates with a 32-bit RISC processor at 200MHz, ensuring quick data processing and label printing at speeds up to 4 inches per second.
This model supports a print resolution of 203 dpi (8 dots/mm), allowing for clear text and barcode output suitable for many labeling applications.
The GX420d features standard interfaces including USB 2.0, Serial, and Parallel ports for versatile connectivity options with computers and other devices.
Its construction includes a durable, compact design with an LCD display for easy status monitoring and user-friendly operation aligned to office electronics standards.
The printer handles label widths up to 4.09 inches and paper rolls with an outer diameter of up to 5 inches, allowing convenient media loading and flexible printing capabilities for various applications.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 8 MB SDRAM, 4 MB Flash |
| MPN | AC Adapter, Shipping, GX42-201710-000 |
| Supported Paper Size | Max Label Width: 4.25" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | GX420d |
| Connectivity | USB 2.0, Serial (RS-232), Parallel |
| Features | Portable |
| Black Print Speed | 5 ips |
| Product Line | Zebra GX |
| Print Technology | Direct Thermal |
| Print Speed | Up to 4 inches per second (ips) |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Processor | 32-bit RISC, 200 MHz |
| Media Type | Roll-fed, die-cut labels, continuous labels, tags |
| Media Width | 0.75 in to 4.25 in (19 mm to 108 mm) |
| Media Thickness | 0.003 inches to 0.007 inches (0.08 mm to 0.18 mm) |
| Max Media Roll Diameter | 5.0 inches (127 mm) |
| Ribbon | Not applicable (direct thermal printer) |
| Dimensions (WxHxD) | 7.3 in x 6.75 in x 9.5 in (185 mm x 171 mm x 241 mm) |
| Weight | Around 3.8 lbs (1.7 kg) |

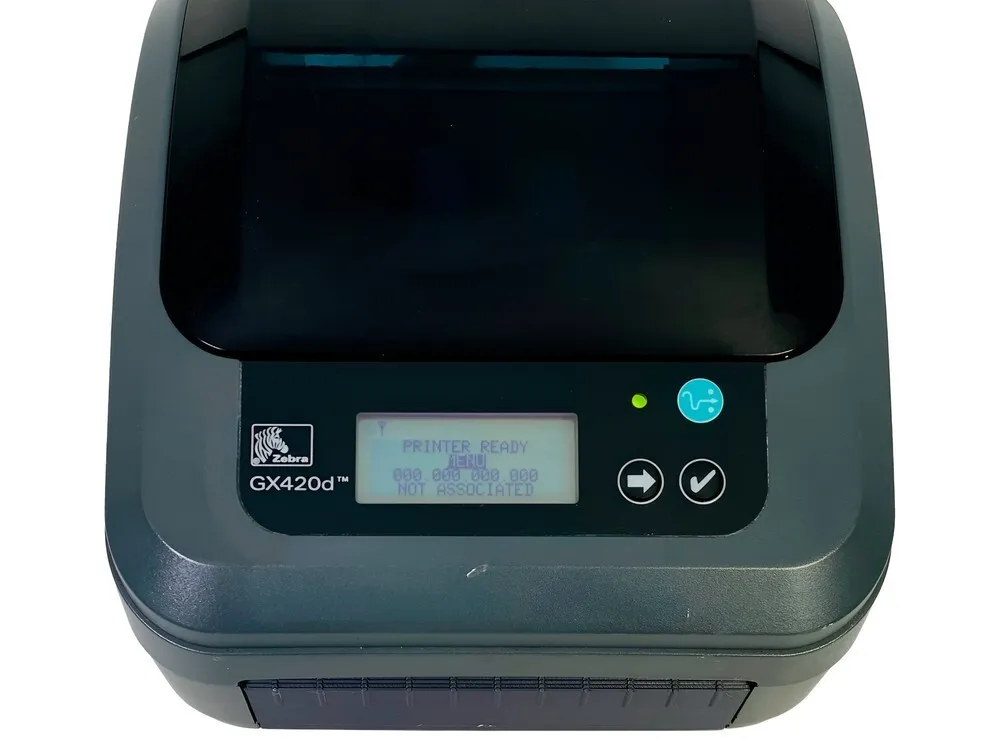

| Display | Graphic LCD with status indicators |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | External power adapter (included) |
Images
Key Advantages
The Zebra GX420d provides fast printing speeds up to 4 inches per second, improving workflow efficiency.
Its direct thermal technology eliminates the need for ink or toner, reducing operational costs and maintenance.
Versatile connectivity via USB, Serial, and Parallel ports allows integration into multiple system setups.
Compact size and sturdy build make it suitable for space-constrained office environments while maintaining durability.
Supports a variety of label sizes and media types accommodating diverse labeling requirements easily.
User-friendly design with LCD display enhances operational convenience and reduces setup time.
Limitations
Limited to a print resolution of 203 dpi, which may not be sufficient for very high-resolution label needs.
Direct thermal printing is susceptible to label fading over time, especially when exposed to heat or sunlight.
Lacks built-in wireless connectivity options, which may limit flexible placement in modern networked environments.
Maximum print width of 4.09 inches restricts large format label printing capabilities.
The printer’s reliance on thermal media necessitates use of specific label types, potentially limiting media variety.
Comparatively lower print speed than some newer industrial printers for high-volume applications.
FAQ
What type of printing technology does the Zebra GX420d use?
The Zebra GX420d uses direct thermal printing technology, which prints by applying heat to special thermal label paper.
What is the maximum print speed of the GX420d printer?
The GX420d can print labels at speeds up to 4 inches per second (ips).
Which interfaces are available on the Zebra GX420d printer?
This printer includes USB 2.0, Serial, and Parallel ports to connect with various devices.
Can the GX420d print color labels?
No, the GX420d is a monochrome thermal printer designed for black and white prints only.
Is the Zebra GX420d still in production?
No, the Zebra GX420d has been discontinued but is still supported with parts and documentation.
What label sizes can the GX420d accommodate?
It supports labels with widths up to approximately 4.09 inches and label roll diameters up to 5 inches.
Does the GX420d support wireless printing?
No, the GX420d does not have built-in wireless capabilities, but third-party adapters might be added.
