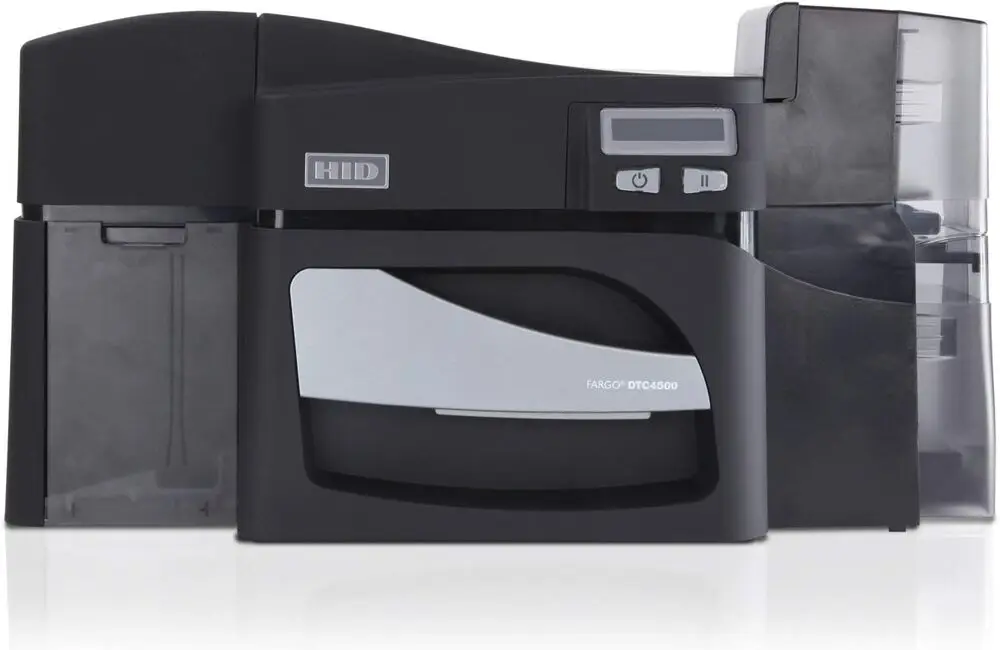

HID FARGO DTC4500e
| Brand | HID FARGO 2018 |
| Model | DTC4500e |
| Released Year | 2018 |
| Type | Printers |
| Series | DTC |
| Printing Technology | Direct to Card Dye-Sublimation and Resin Thermal Transfer |
| Maximum Color Print Resolution | 300 x 300 |
| Product Dimensions | 15.5 x 11.75 x 21.5 inches |
| Status | Discontinued |
Quick view
Overview
The HID FARGO DTC4500e is a direct-to-card ID badge printer designed for offices requiring high-quality card printing. It utilizes direct dye-sublimation transfer technology combined with resin thermal transfer for printing on a variety of card types. The printer supports monochrome and color printing modes and offers edge-to-edge printing capabilities. It features a print speed of up to 190 cards per hour (monochrome) and approximately 140 cards per hour for full-color single-sided prints. The DTC4500e includes USB connectivity and an optional Ethernet port for network integration. It also supports color dye thermal transfer and monochrome resin thermal transfer ribbons, enhancing print durability.
Specifications
| Printing Technology | Direct to Card Dye-Sublimation and Resin Thermal Transfer |
| Print Speed (Monochrome) | Up to 190 cards per hour |
| Print Speed (Color) | Approximately 140 cards per hour (single-sided) |
| Print Resolution | 300 dpi (11.8 dots/mm) |
| Card Types Supported | PVC, Composite PVC, PET, and others |
| Card Thickness Supported | 0.25 mm (10 mil) to 1.0 mm (40 mil) |
| Connectivity | USB 2.0 (standard), Optional Ethernet |
| Input Hopper Capacity | 100 cards (0.76 mm / 30 mil thickness) |
| Output Hopper Capacity | 70 cards (0.76 mm / 30 mil thickness) |
| Color Printing | Full-color dye sublimation |
| Monochrome Printing | Resin thermal transfer |
| Display | Backlit LCD control panel |
| Dimensions (WxDxH) | 330 mm x 207 mm x 215 mm (13.0" x 8.2" x 8.5") |
| Weight | Approximately 4.5 kg (10 lbs) |
| Power Requirements | 24V DC, 3A |
| Operating Environment | 15° to 30°C, 35% to 70% humidity |
| Ribbon Types Supported | YMCKO, YMCKOK, Monochrome |
| Duplex Printing | Optional duplex module available |
| Driver Support | Windows 7/8/10 32 & 64 bit |
| Print media | Card stock |
| Max Input Sheet Capacity | 100 |
| Compatible Devices | Laptops |
| Maximum Color Print Resolution | 300 x 300 |
| Sheet Size | 85.6 millimeters |
| Maximum Black and White Print Resolution | 300 |
| Warranty Type | 90 days limited warranty |
| Color Depth | 300 bpp |
| Dual-sided printing | Yes |
| Max copy resolution color | 300 dpi |
| Max copy resolution black-white | 300 |
| Duplex | Automatic |
| Hardware Interface | USB |
| Ink Color | CMYK |
| Additional Printer functions | Print Only |
| Control Method | Remote |
| Total USB Ports | 1 |
| Specific Uses For Product | Office |
| UPC | 800265816688 |
| Product Dimensions | 15.5 x 11.75 x 21.5 inches |
| Item model number | DTC4500e |
| Is Discontinued By Manufacturer | No |
| Date First Available | October 18, 2018 |
| Manufacturer | HID FARGO |
Images
Key Advantages
The DTC4500e provides fast and efficient card printing with a high throughput suitable for medium to large organizations. It delivers excellent print quality with sharp images and vibrant colors. The device supports both single-sided and duplex printing for increased versatility. It features an easy-to-use LCD control panel and offers an optional Ethernet interface for flexible network connectivity. The printer handles various card thicknesses, making it adaptable to diverse ID card requirements. Additionally, the modular design allows for easy ribbon changes and maintenance.
Limitations
Despite its robust features, the DTC4500e has a relatively large footprint which may require substantial desk space. Its cost is higher compared to basic ID card printers, making it more suitable for professional settings. The printer uses proprietary ribbons that can increase operational costs. It may require regular maintenance to maintain print quality, especially in high-volume environments. Color print speeds, while fast, can still be slower than monochrome printing modes. Lastly, it is less suitable for on-the-go or mobile printing needs due to its size and power requirements.
FAQ
What type of printing technology does the HID FARGO DTC4500e use?
The DTC4500e uses direct-to-card dye sublimation transfer and resin thermal transfer technologies for printing.
Can the printer print on both sides of a card?
Yes, the DTC4500e supports duplex printing with an optional duplex module.
What is the printing speed of the DTC4500e?
It can print up to 190 monochrome cards per hour and approximately 140 full-color cards per hour.
Does the printer support network connectivity?
Yes, it includes USB connectivity by default and has an optional Ethernet interface for network use.
Is the DTC4500e still in production?
No, the HID FARGO DTC4500e has been discontinued.
What card thickness does the DTC4500e support?
It supports card thicknesses from 0.25 mm (10 mil) to 1.0 mm (40 mil).
What are the maintenance requirements of the DTC4500e?
Regular cleaning of print heads and rollers is recommended to maintain print quality and prevent jams.
