Zebra DA402 (D402-251-00000)
Brand | Zebra 2010 |
Model | D402-251-00000 |
Released Year | 2010 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra DA402 (D402-251-00000) is a direct thermal desktop printer designed primarily for office environment printing applications. It supports a resolution of 203 dpi which ensures clear and precise barcode, label, and receipt printing. This printer features a print speed of up to 4 inches per second, combined with a compact footprint to fit tight workspaces. Connectivity options include USB and serial interfaces for flexible integration with existing office hardware. The device supports media widths ranging from 1 inch to 4.25 inches and maximum media length of up to 99 inches. Its embedded programming language allows customization and efficient label design management.
Specifications
Type | Label Printer |
Technology | Thermal |
Output Type | Black & White |
Connectivity | Serial (RS-232), Parallel (IEEE 1284) |
MPN | D402-251-00000 |
Model | DA402 (D402-251-00000) |
Weight | 3.5 lbs (1.6 kg) |
Depth | 9in |
Height | 7in |
Width | 8in |
Platform | PC Products |
Extend Printer Technology | Direct Thermal / Thermal Transfer |
Color | White |
Form Factor | Desktop, Point of Sale |
Media Type | Labels |
Max Resolution (Bw) | 203x203DPI |
Black Print Speed | 64mm/Sec |
Media Capacity | 1 Roll(s) |
Printing Method | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Speed | 4 inches per second |
Maximum Print Width | 4.09 inches (104 mm) |
Media Width Supported | 1 inch to 4.25 inches (25.4 mm to 108 mm) |
Media Thickness | 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm) |
Media Types | Direct thermal labels and tags, receipts |
Interface | USB 2.0, Serial RS-232 |
Processor | 32-bit RISC |
Memory | 4 MB Flash, 8 MB SDRAM |
Physical Dimensions | 7.9 x 6.6 x 5.9 inches (200 x 168 x 150 mm) |
Power Supply | External 110-240V AC adapter |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Operating Humidity | 20% to 85% non-condensing |
Programming Language | ZPL (Zebra Programming Language) |
Certifications | FCC, CE, RoHS compliant |

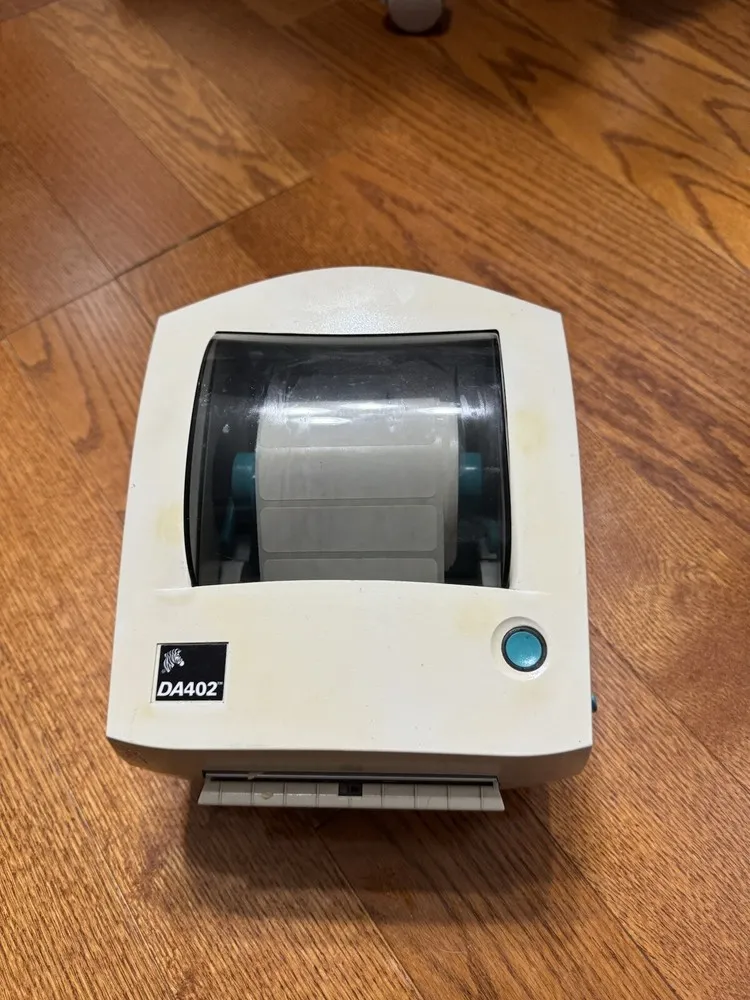

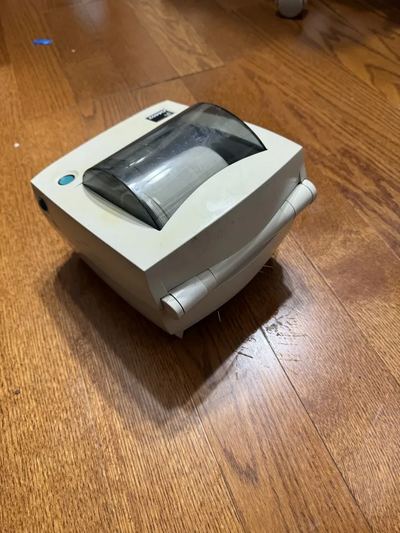

Images
Key Advantages
The DA402 offers excellent print quality suitable for barcode and label printing at 203 dpi resolution. Its compact size makes it ideal for office environments with limited space. Multiple connectivity options, including USB and serial ports, enhance compatibility with various systems. The printer's direct thermal technology requires no ink or toner, reducing operating costs and maintenance. Quick printing speeds up to 4 ips help improve productivity in busy work settings. Easy media loading and adjustment simplify day-to-day operation for users.
Limitations
The direct thermal printing technology restricts the lifespan of printed labels, as they are prone to fading over time and exposure to heat or sunlight. The maximum print speed of 4 ips may be insufficient for very high-volume printing demands. Connectivity is somewhat limited without network interface options like Ethernet or Wi-Fi. The printer only supports up to 4.25 inch wide media, limiting the size of label outputs. It lacks advanced features such as automatic cutter or peelers found in higher-end models. Compatibility may be affected as it is an older model with limited driver support on newer operating systems.
FAQ
What printing technology does the Zebra DA402 use?
The Zebra DA402 employs direct thermal printing technology, which prints by selectively heating thermal paper.
What is the maximum print resolution of the Zebra DA402?
The printer provides a maximum print resolution of 203 dpi.
Which connectivity options are available for the DA402?
It includes USB and serial port connectivity options.
Is the Zebra DA402 still in production?
No, the Zebra DA402 is a discontinued model.
What is the maximum print speed of this printer?
The printer can print at speeds up to 4 inches per second.
What media sizes are supported by this printer?
It supports media widths from 1 inch to 4.25 inches and lengths up to 99 inches.
Does the DA402 require ink or toner to print?
No, as a direct thermal printer, it uses heat-sensitive media and does not require ink or toner.
