Zebra 555009988-00
Brand | Zebra 2015 |
Model | ZD42043-C01W01EZ, Label |
Released Year | 2015 |
Type | Printers |
Series | Z |
Status | Active |
Quick view
Overview
The Zebra ZD42043-C01W01EZ is part of the ZD420 series, a line of compact, versatile desktop label printers designed for office and industrial environments. It supports both direct thermal and thermal transfer printing technologies, allowing for flexibility in label media. Featuring a 203 dpi print resolution, it ensures clear and sharp label output suitable for a variety of labeling applications. Connectivity options include USB, Ethernet, and optional Wi-Fi, facilitating seamless integration into diverse IT environments. The printer utilizes a 4-inch print width, enabling medium-sized label production. Its user-friendly interface includes a color LCD screen for easy operation and quick configuration changes.
The ZD420 series supports a variety of media types such as labels, tags, and receipt paper with a maximum roll diameter of 127 mm. The device is powered by a 1 GHz processor and 512 MB SDRAM ensuring efficient and fast printing performance. Additionally, it features an openACCESS clamshell design for straightforward media loading and maintenance, reducing downtime. Compliance with industry standards and extensive accessory options make it adaptable across multiple sectors including healthcare, retail, and manufacturing.
Specifications
Input Type | Monochrome |
Memory | 512 MB RAM, 256 MB Flash |
Output Type | Black & White |
MPN | ZD42043-C01W01EZ, Label |
Supported Paper Size | Max Label Width: 4.65" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 300 x 300 DPI |
Model | 555009988-00 |
Connectivity | USB 2.0, Ethernet 10/100, Optional Wi-Fi (802.11ac) and Bluetooth |
Features | Portable |
Black Print Speed | 6 ppm |
Product Line | Zebra Z |
UPC | 0053926222834 |
Print Technology | Direct Thermal and Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Width | 4 inches (104 mm) |
Print Speed | Up to 6 inches per second |
Processor | 1 GHz |
Display | 2.3-inch color LCD touchscreen |
Media Roll Diameter | 127 mm (5 inches) maximum |
Media Types | Labels, tags, receipt paper |
Dimensions (WxHxD) | 8.7 x 6.7 x 7.5 inches |
Weight | 4.6 lbs (2.09 kg) |
Power Supply | Power supply built-in, 100-240V AC |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |

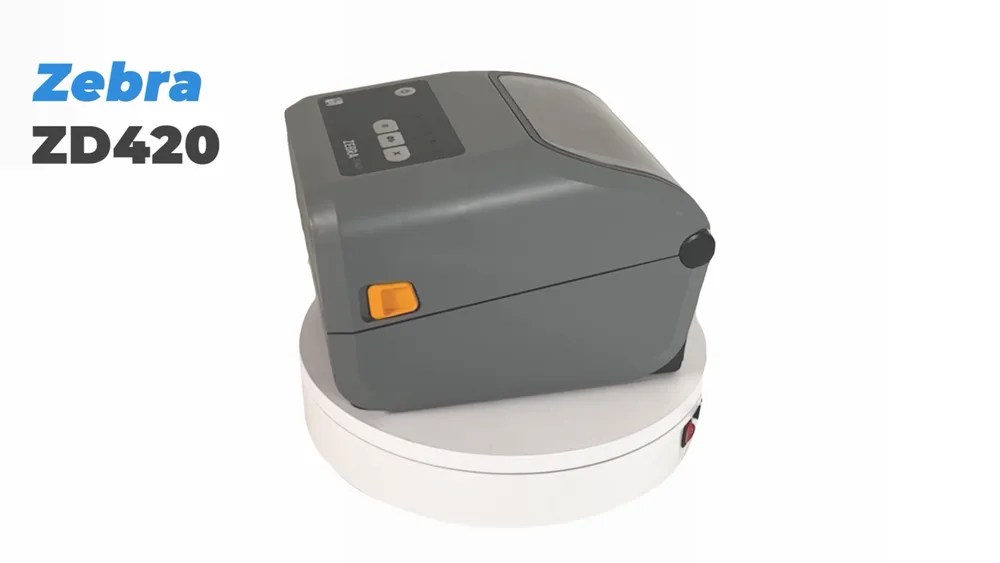

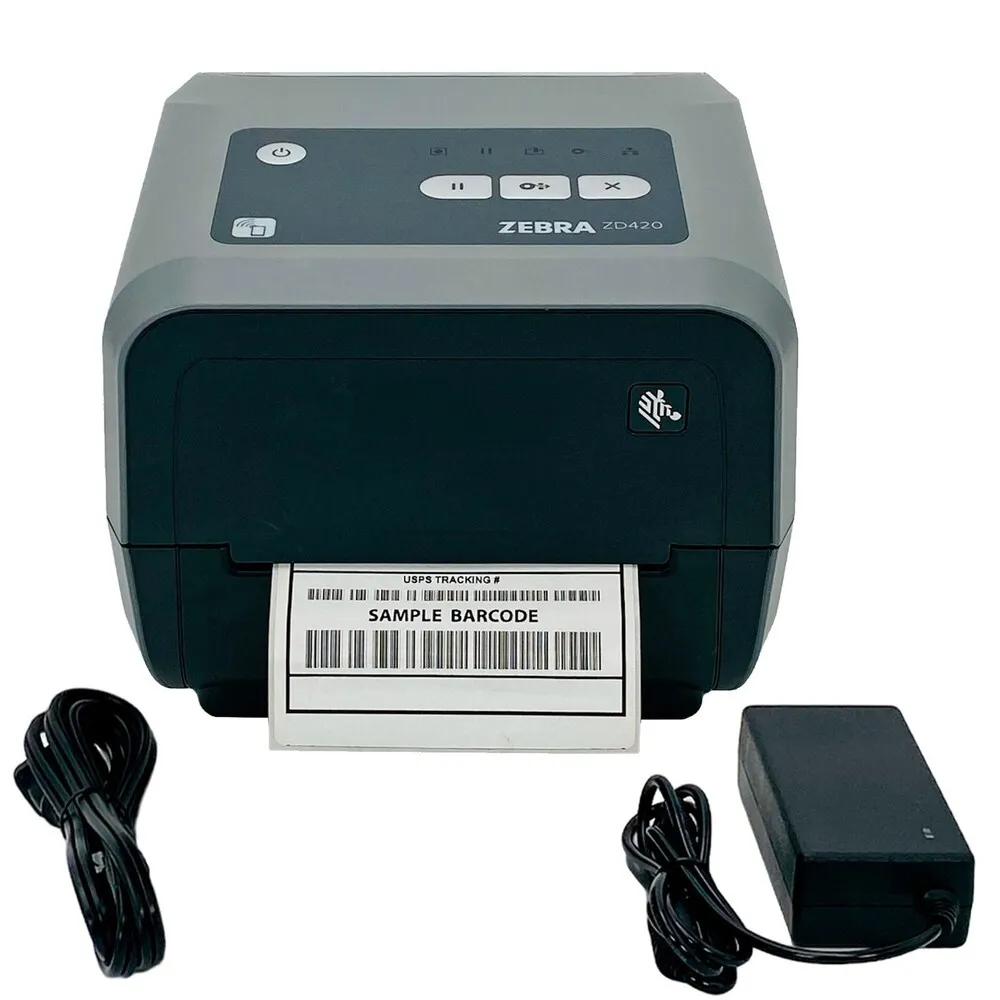

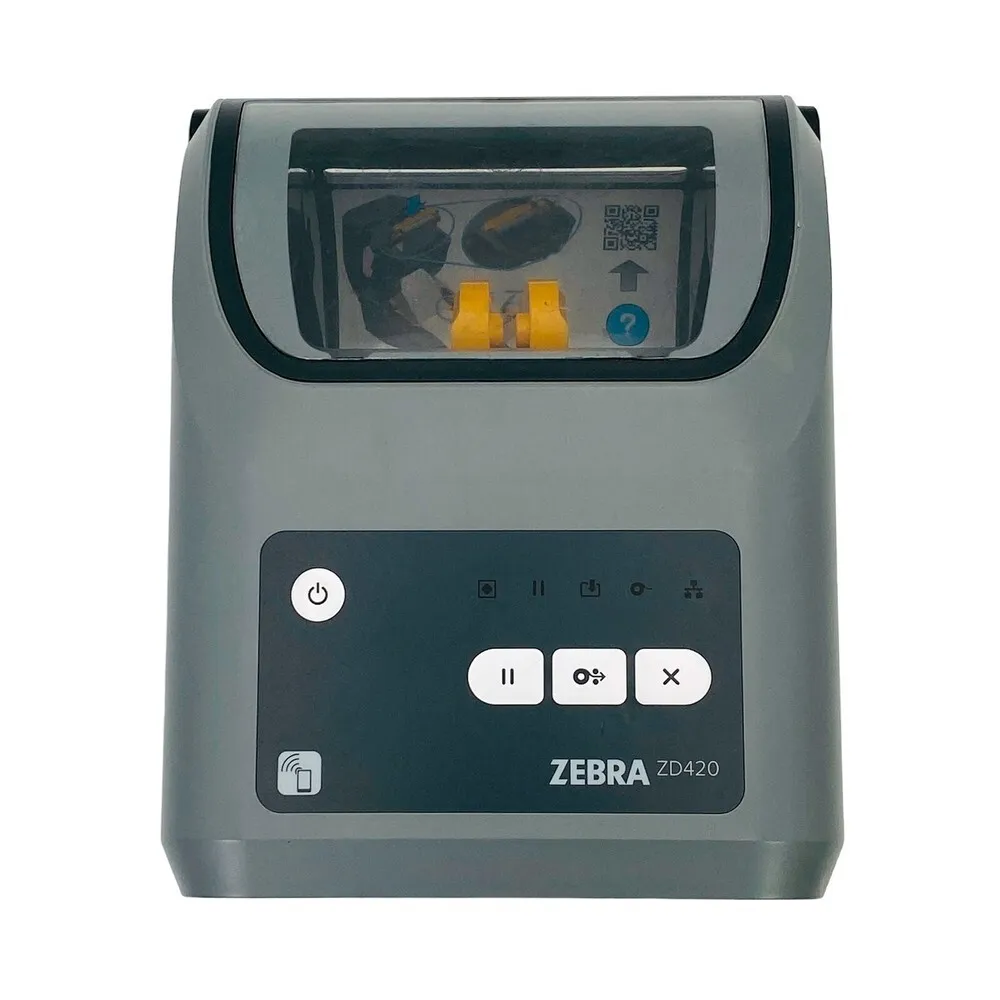

Images
Key Advantages
The Zebra ZD420 offers compact size facilitating easy placement on crowded desktops. Its dual printing modes provide operational flexibility for different labeling needs. Enhanced connectivity options, including wireless, ensure smooth network integration. The printer boasts quick media loading with its clamshell design, saving time during roll changes. High print speed of up to 6 inches per second improves productivity. Compatible with various media types and widths makes it versatile across applications.
Limitations
While efficient, the 203 dpi resolution may not meet very high-definition printing requirements such as detailed graphics. The maximum media roll diameter limits usage for very large volume print tasks. Some users may find the initial setup of wireless connectivity slightly complex without technical support. The printer's price point is higher compared to basic label printers, possibly limiting adoption for small businesses. Limited onboard memory restricts handling of complex or large label formats without external software. Thermal transfer option requires consumables such as ribbons, adding to operational costs.
FAQ
What media types does the Zebra ZD420 support?
The Zebra ZD420 supports direct thermal and thermal transfer media including labels, tags, and receipt paper.
What interfaces are available on the Zebra ZD420 printer?
Standard interfaces include USB and Ethernet, with optional Wi-Fi for wireless connectivity.
Can the Zebra ZD420 handle high-resolution printing tasks?
The ZD420 prints at 203 dpi, which is sufficient for most label applications but not ideal for very detailed graphics.
Is the printer suitable for high volume printing?
While it offers reasonable speed, the maximum media roll size may limit very high volume print jobs.
Does the ZD420 have a user-friendly interface?
Yes, it features a color LCD screen that simplifies navigation and configuration.
Is the thermal transfer printing option included?
The ZD420 model supports thermal transfer printing, but it requires ribbons as consumables.
Is the Zebra ZD420 model still supported by the manufacturer?
Yes, as of now, the Zebra ZD420 series is not discontinued and continues to receive support.
