Zebra 2824 plus
Brand | Zebra 2006 |
Model | 282P201510000 |
Released Year | 2006 |
Type | Printers |
Series | Lp |
Status | Discontinued |
Quick view
Overview
The Zebra 2824 Plus is a compact thermal transfer and direct thermal printer engineered for label, tag, and receipt printing applications. It utilizes a 203 dpi print resolution allowing for clear barcode and text output. The printer supports multiple media types including continuous paper, die-cut labels, and tags ranging between 0.75 inches to 2.36 inches in width. Connectivity options include serial and parallel interfaces with optional USB and Ethernet adapters, making it versatile for integration into various office environments. The device incorporates an on-demand printing mechanism with a resolution optimized for small and mid-volume printing jobs. Its compact footprint and straightforward controls facilitate seamless deployment in space-constrained office settings.
Featuring an LCD status indicator and easy change ribbon and media cartridges, the 2824 Plus enhances operational efficiency. The printer's durable construction ensures reliability in continuous usage scenarios. Its compatibility with Zebra's ZPL and EPL programming languages offers advanced printing flexibility. The 2824 Plus also supports multiple font and barcode types, allowing customization for diverse labeling requirements. Overall, the device is designed to balance print performance with ease of use in professional office electronics applications.
Specifications

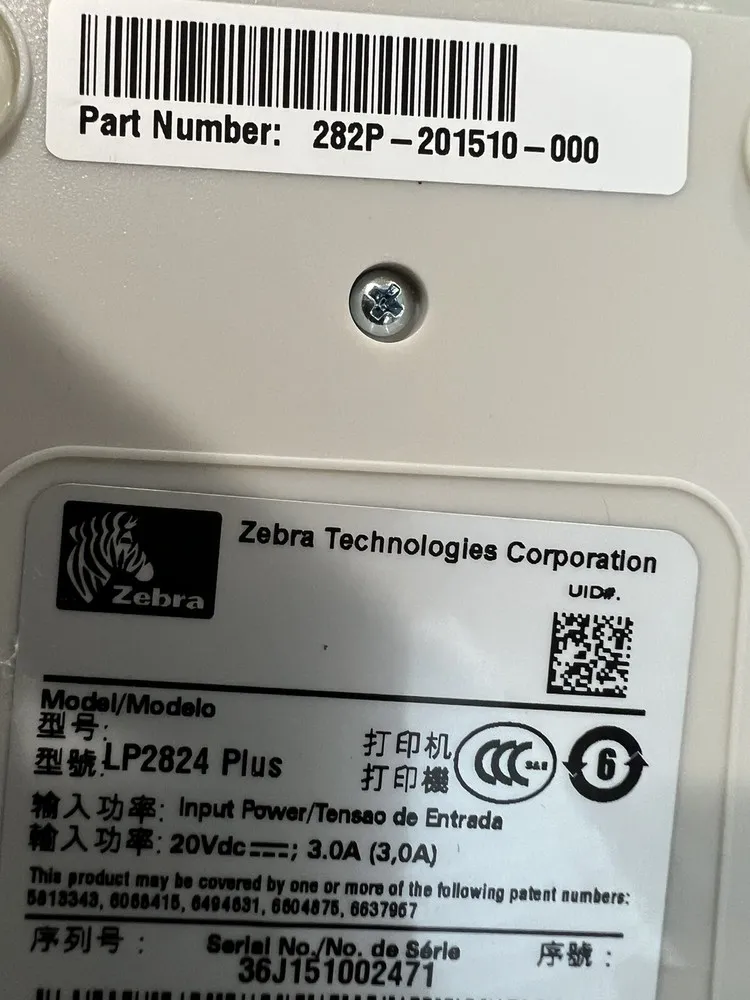

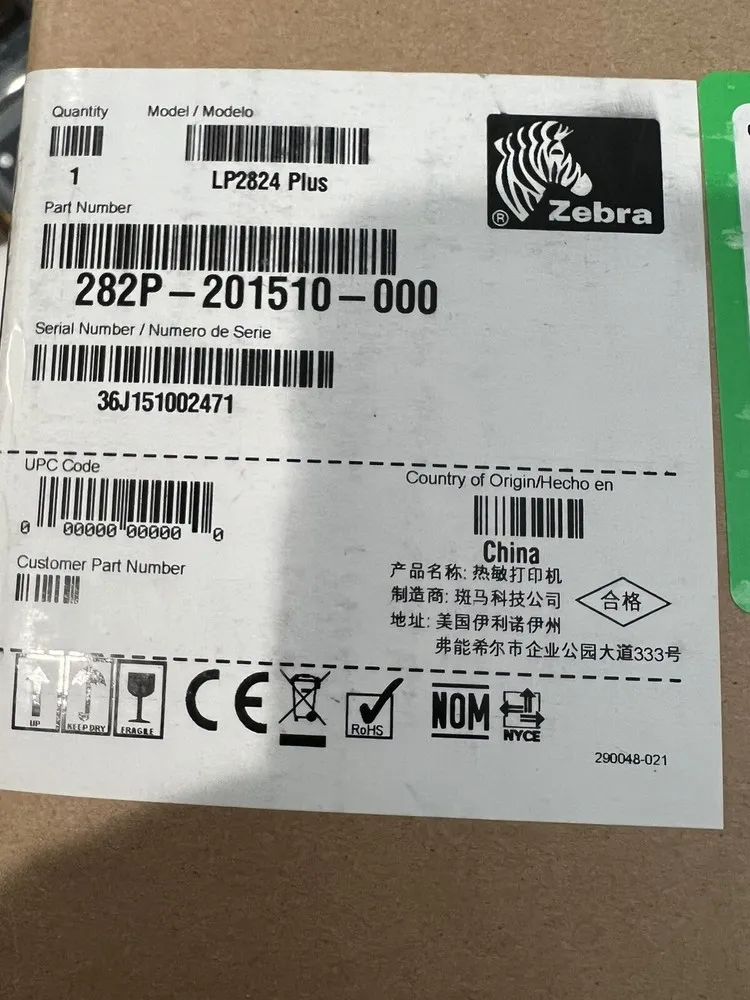

MPN | 282P201510000 |
Model | Zebra 2824 Plus |
Memory | 2 MB Flash, 1 MB SDRAM |
Technology | Thermal |

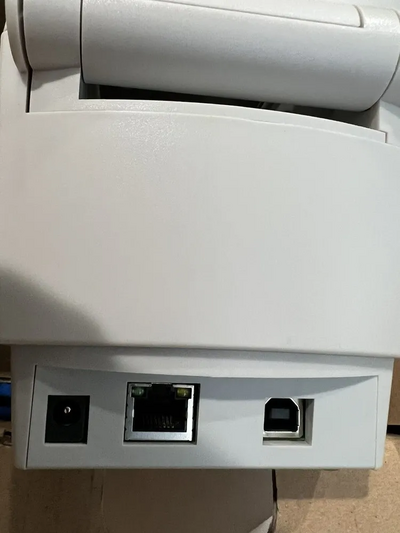

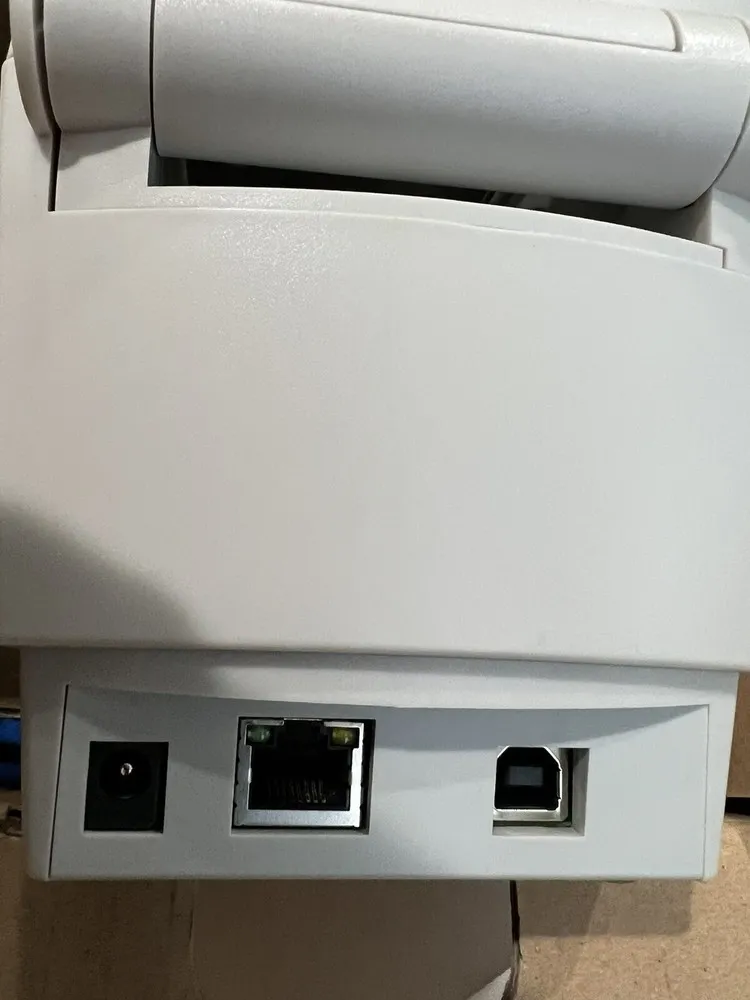

Connectivity | Serial (RS-232), Parallel (IEEE 1284), USB 1.0/1.1, Ethernet (RJ-45), USB 2.0 |
Output Type | Black & White |
Features | Portable, Networkable |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 4 ppm |
Product Line | Zebra LP |
Printer Type | Thermal transfer and direct thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Max Print Width | 2.36 inches (60 mm) |
Print Speed | Up to 4 inches per second |
Media Types | Continuous paper, die-cut labels, tags, wristbands |
Media Width | 0.75 to 2.36 inches (19 to 60 mm) |
Media Sensors | Reflective and transmissive sensors |
Interfaces | Serial RS-232, Parallel, optional USB and Ethernet |
Fonts | Multiple resident bitmap and scalable fonts |
Barcode Symbologies | Code 39, Code 93, Code 128, UPC/EAN, 2D barcodes (PDF417, QR Code) |
Dimensions (W x D x H) | 7.3 x 7.8 x 6.0 inches (186 x 199 x 152 mm) |
Weight | Approximately 3.5 lbs (1.6 kg) |
Power Supply | External power adapter 100-240V AC |
Operating Temperature | 5 to 40 °C (41 to 104 °F) |
Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
Programming Languages | ZPL, EPL |
Discontinued | Yes (product no longer manufactured) |

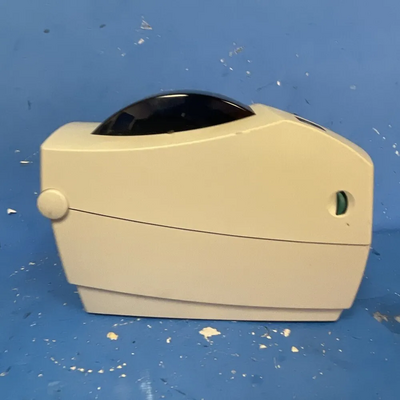

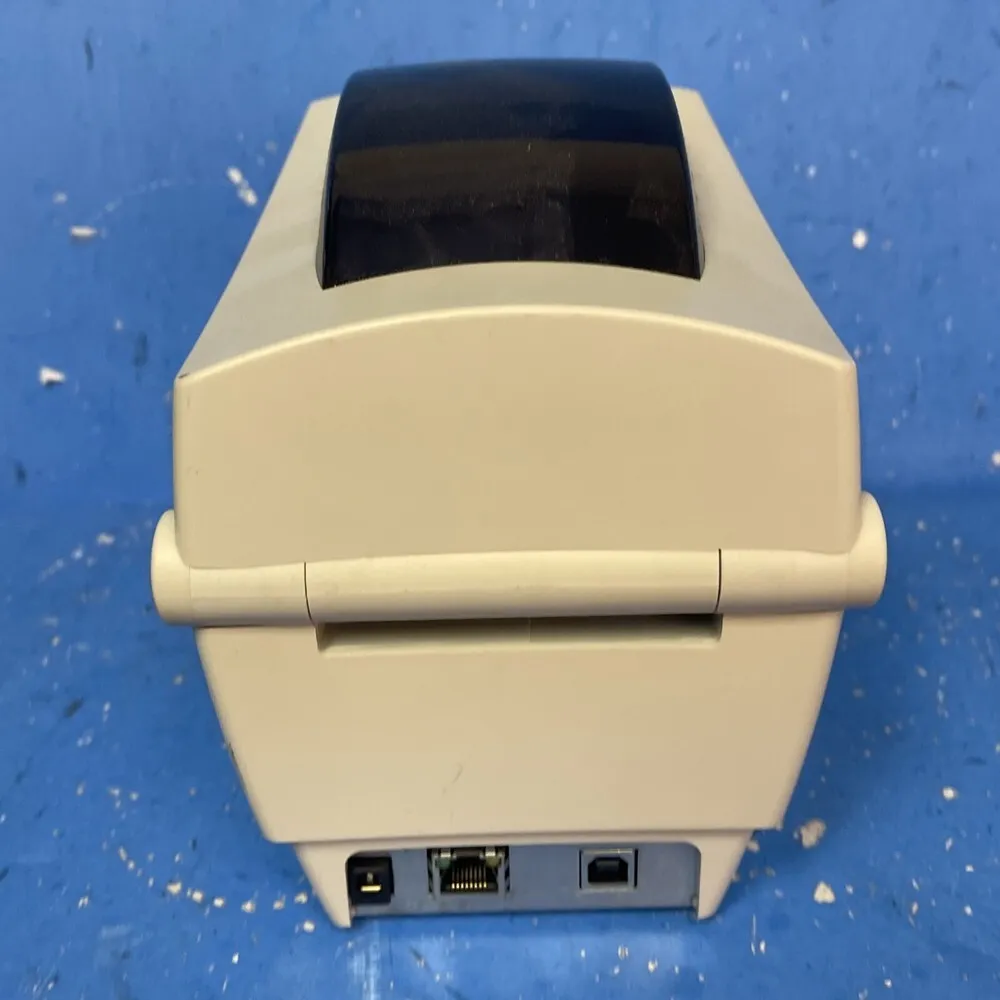

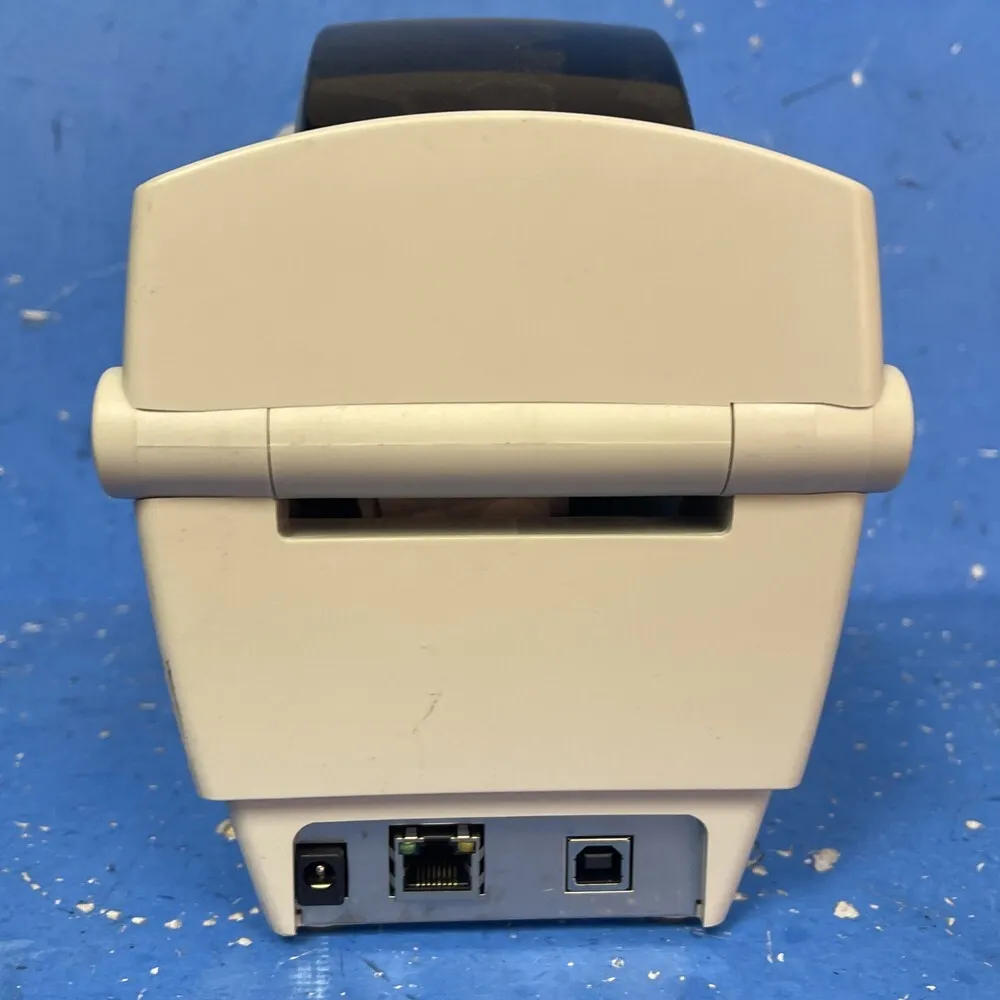

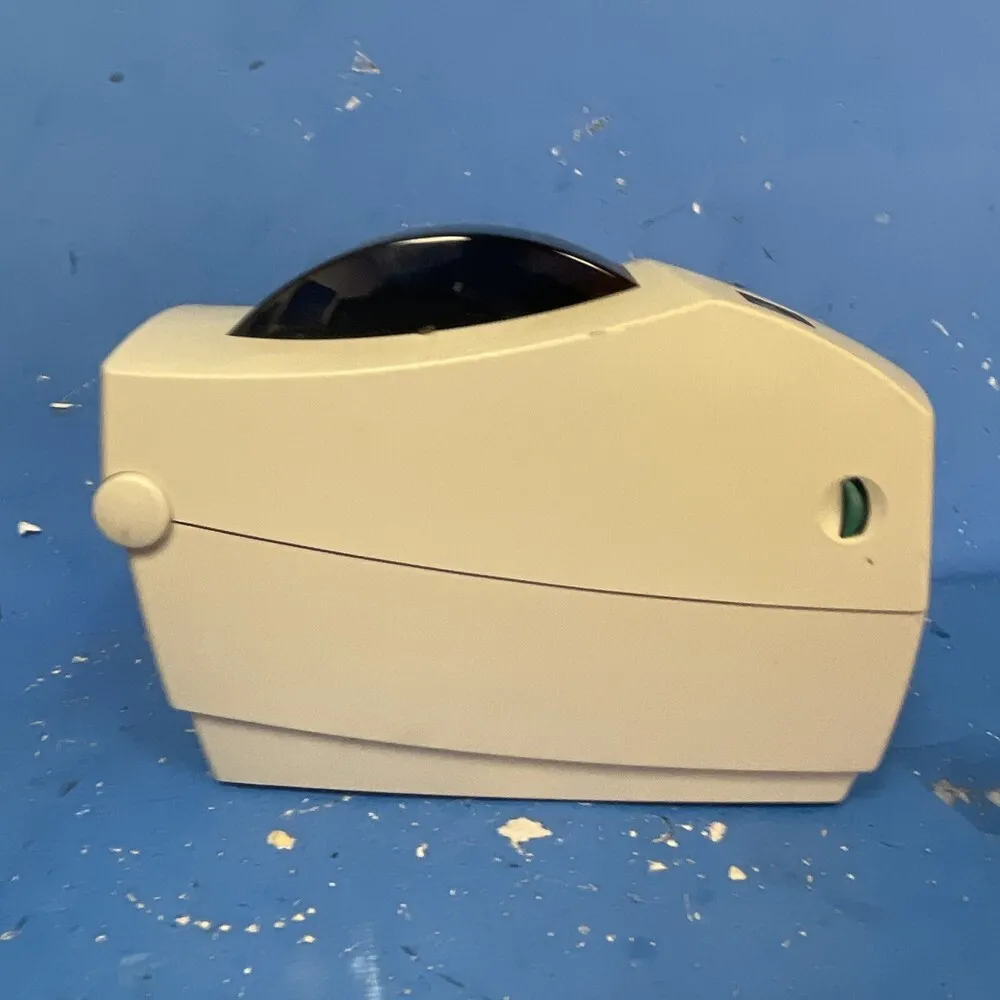

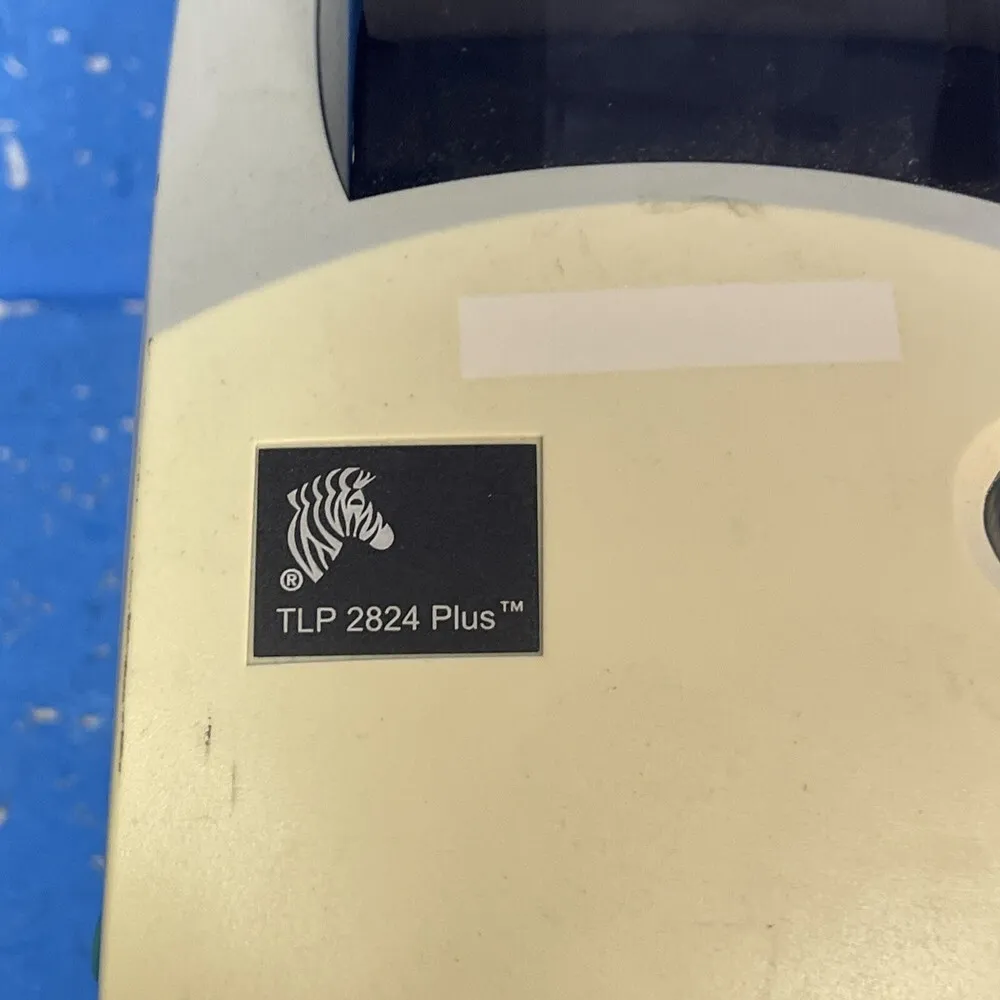

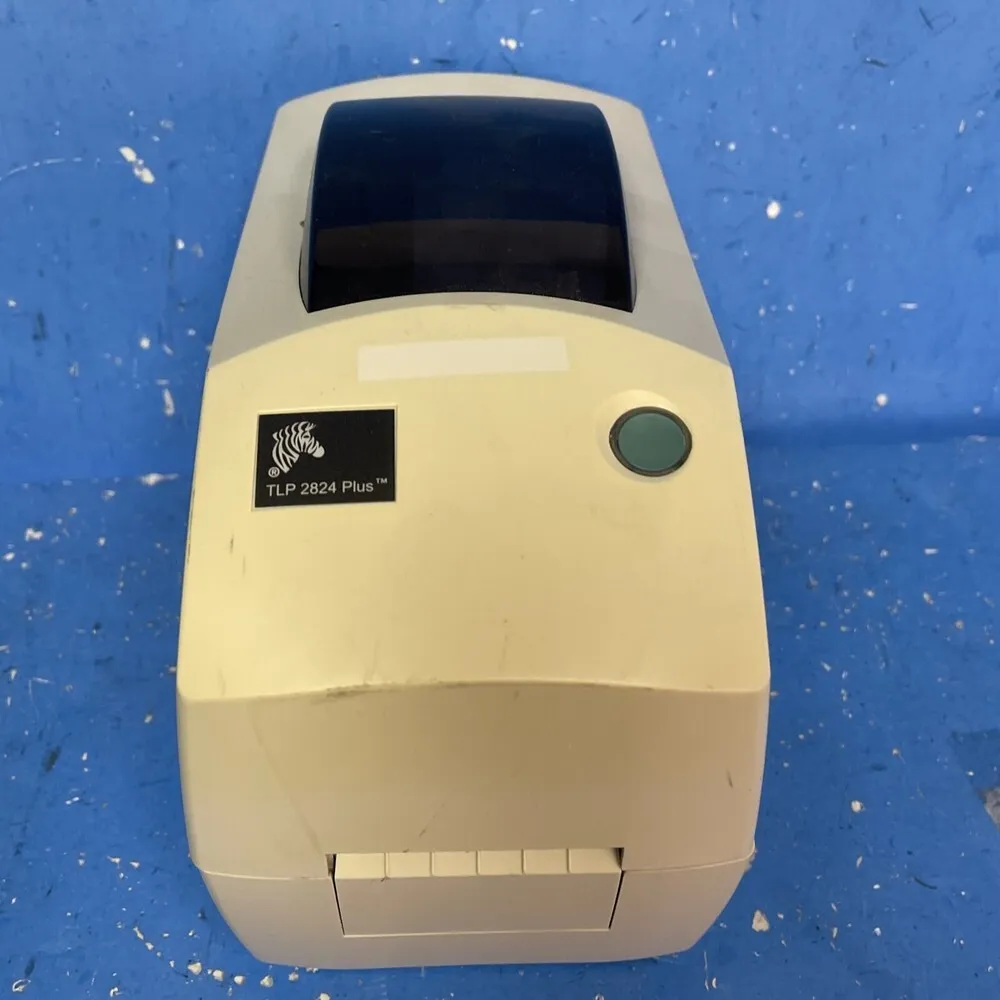

Images
Key Advantages
The Zebra 2824 Plus excels with its high-resolution 203 dpi print engine providing sharp text and barcode clarity. Its compact and lightweight design makes it ideal for offices with limited space. The printer supports both direct thermal and thermal transfer printing, allowing flexibility depending on label longevity requirements. Easy media loading and ribbon replacement reduce downtime and improve user convenience. Versatile connectivity options, including serial, parallel, and optional USB/Ethernet, enable integration with various host systems. Robust build quality ensures dependable performance in demanding work environments.
Limitations
The Zebra 2824 Plus is limited to printing widths up to 2.36 inches, restricting its use for larger label formats. It operates primarily at 203 dpi resolution, which may not suffice for extremely high-detail graphics. The absence of built-in wireless connectivity can constrain modern network integration without adapters. Print speeds are moderate for small office needs but slower compared to some industrial printers. The device's monochrome thermal printing restricts usage to black/white labels only. Additionally, the older interface standards may complicate compatibility with current computer hardware without appropriate converters.
FAQ
What printing technologies does the Zebra 2824 Plus support?
The Zebra 2824 Plus supports both direct thermal and thermal transfer printing technologies, allowing it to print on various label materials with or without the use of ribbons.
What types of media can be used with the Zebra 2824 Plus?
It can print on continuous paper, die-cut labels, tags, and wristbands with widths ranging from 0.75 inches to 2.36 inches.
Which connectivity options are available for this printer?
The standard Zebra 2824 Plus includes serial and parallel ports; optional adapters are available for USB and Ethernet connections.
Is the Zebra 2824 Plus still in production?
No, the Zebra 2824 Plus has been discontinued and replaced by newer models in Zebra's printer lineup.
What is the maximum print resolution of the Zebra 2824 Plus?
The printer offers a maximum print resolution of 203 dots per inch (dpi).
Can the printer handle color printing?
No, the Zebra 2824 Plus supports only monochrome thermal printing, which means it prints in black and white.
What programming languages does this printer support?
It supports Zebra's proprietary ZPL and EPL printer command languages for label formatting and customization.
