Zebra QLn420 / QN4-AUCA0M00-00
Brand | Zebra 2013 |
Model | QLn420 / QN4-AUCA0M00-00 |
Released Year | 2013 |
Type | Printers |
Series | Qln |
Status | Active |
Quick view
Overview
The Zebra QLn420 is a high-performance mobile label printer designed for industrial environments. It features a 4-inch print width with a resolution of 203 dpi, ensuring crisp and clear labels. Powered by a 32-bit processor and robust memory options, it supports fast print speeds up to 4 inches per second. Connectivity options include Bluetooth, Wi-Fi, and USB, allowing flexible integration with various mobile devices. The device utilizes direct thermal printing technology, eliminating the need for ink or toner. Its durable design offers IP54-rated sealing and MIL-STD 810g certification for resistance against drops, dust, and water immersion.
The QLn420 supports multiple barcode symbologies and can print text, graphics, and logos efficiently. The battery system provides extended operation time, which can be enhanced with the Power Smart Print Technology to optimize battery usage. It runs on Link-OS® operating system, enabling advanced device management and application development. Compact and ergonomic, the device is suited for on-the-go printing tasks in warehouses, retail, and manufacturing sectors.
Specifications
Type | Label Printer |
Features | Portable |
Connectivity | 802.11a/b/g/n Wi-Fi, Bluetooth 3.0, USB 2.0 |
Maximum Resolution | 203 dpi/8 dots per mm |
Black Print Speed | Up to 4"/102 mm per second |
Product Line | Zebra QLn |
Model | QLn420 / QN4-AUCA0M00-00 |
Output Type | Black and White |
Printer Type | Mobile |
Technology | Direct Thermal |
UPC | N/A |
MPN | QLn420 |
Print Method | Direct Thermal |
Print Width | 4.09 inches (104 mm) |
Print Resolution | 203 dpi (8 dots per mm) |
Print Speed | Up to 4 ips (102 mm/sec) |
Processor | 32-bit ARM Cortex |
Memory | 128 MB Flash; 64 MB SDRAM |
Display | Monochrome LCD with 4 buttons |
Battery | Rechargeable lithium-ion battery pack |
Durability | IP54 dust and water resistance, MIL-STD 810g drop tested |
Supported Media Types | Labels, receipts, tags, continuous, die-cut |
Operating System | Zebra Link-OS |
Dimensions | 6.9" H x 6.6" W x 3.2" D (175 mm x 168 mm x 82 mm) |
Weight | 2.6 lbs (1.18 kg) including battery |
Barcode Symbologies | Code 39, Code 128, EAN-13/8, UPC-A/E, QR Code, Data Matrix, PDF417 |

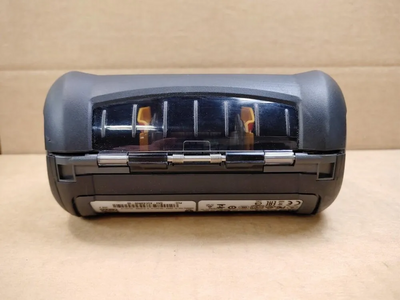

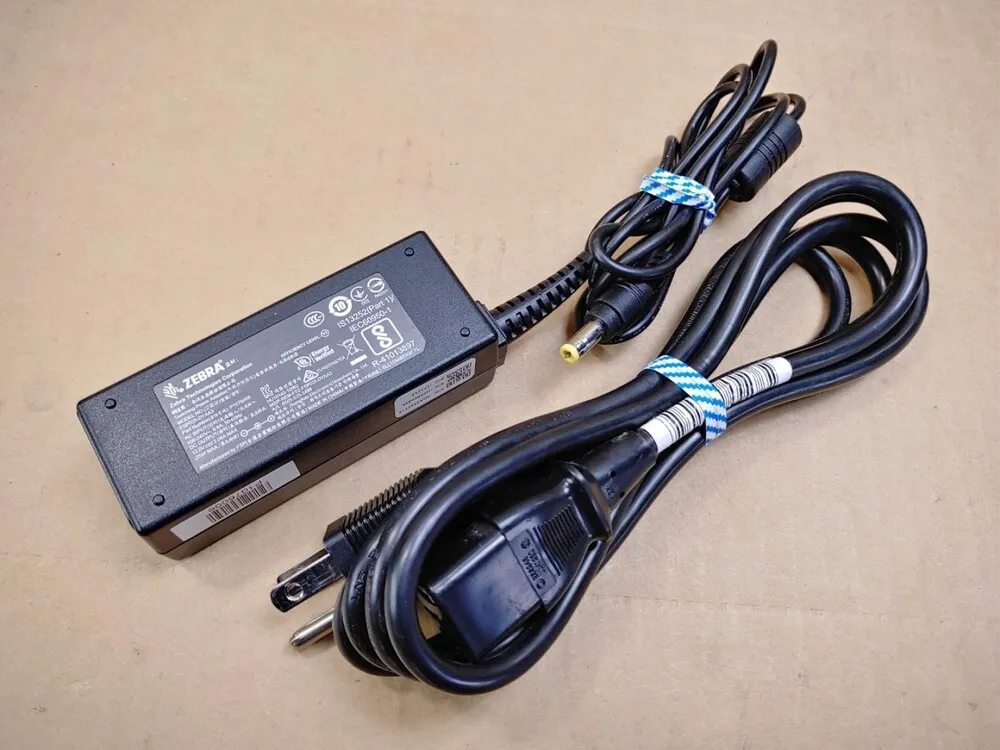

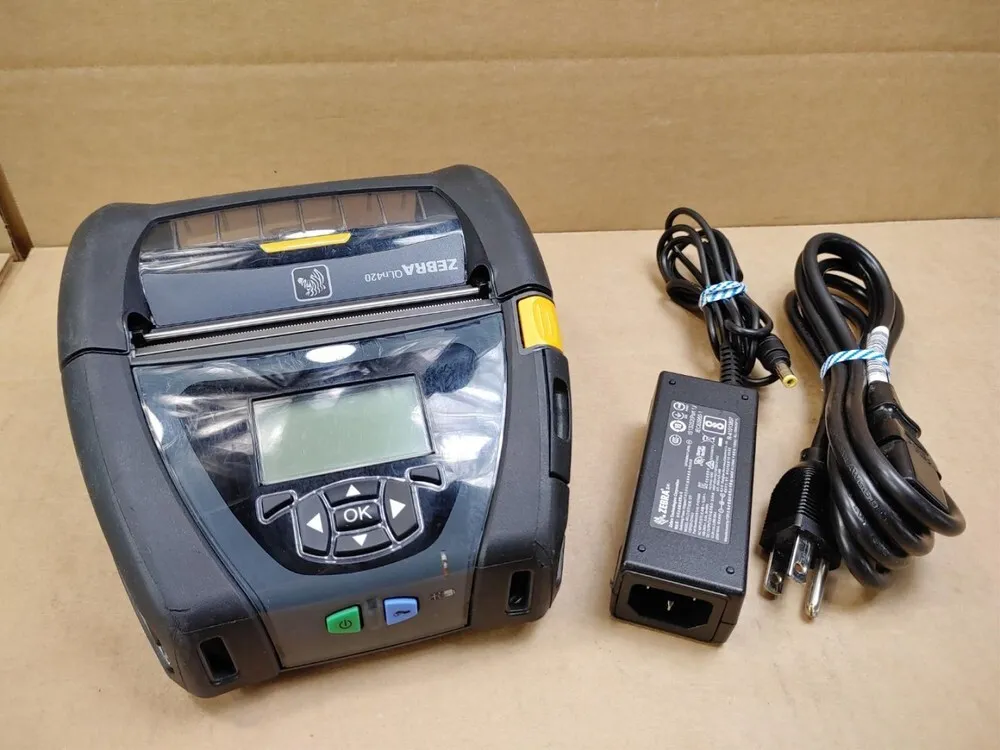

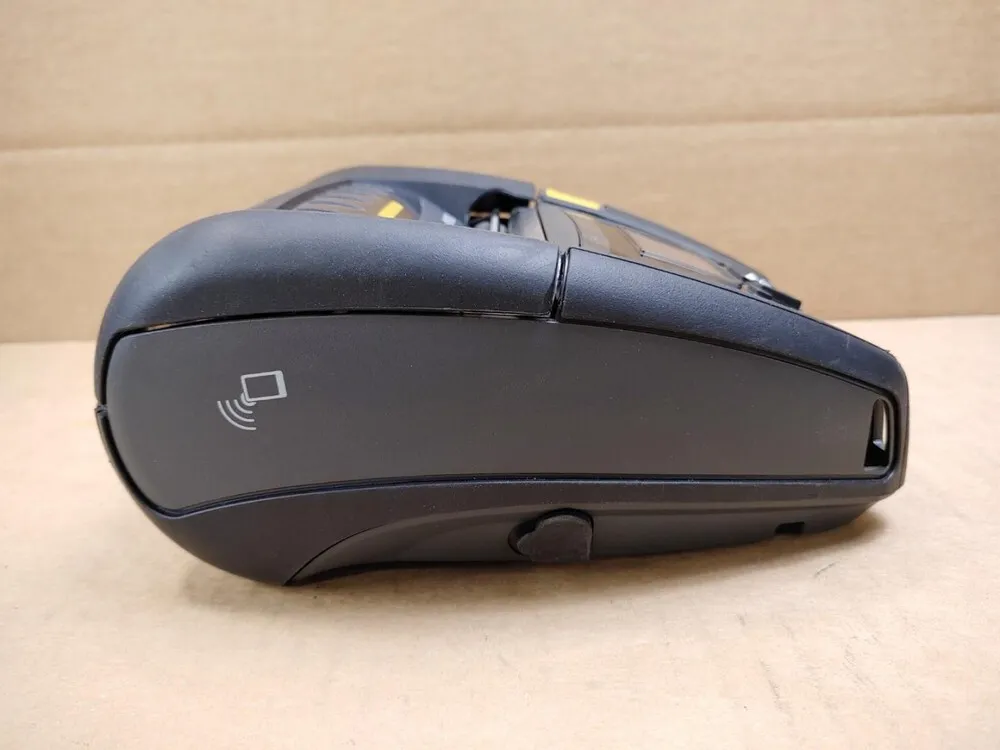

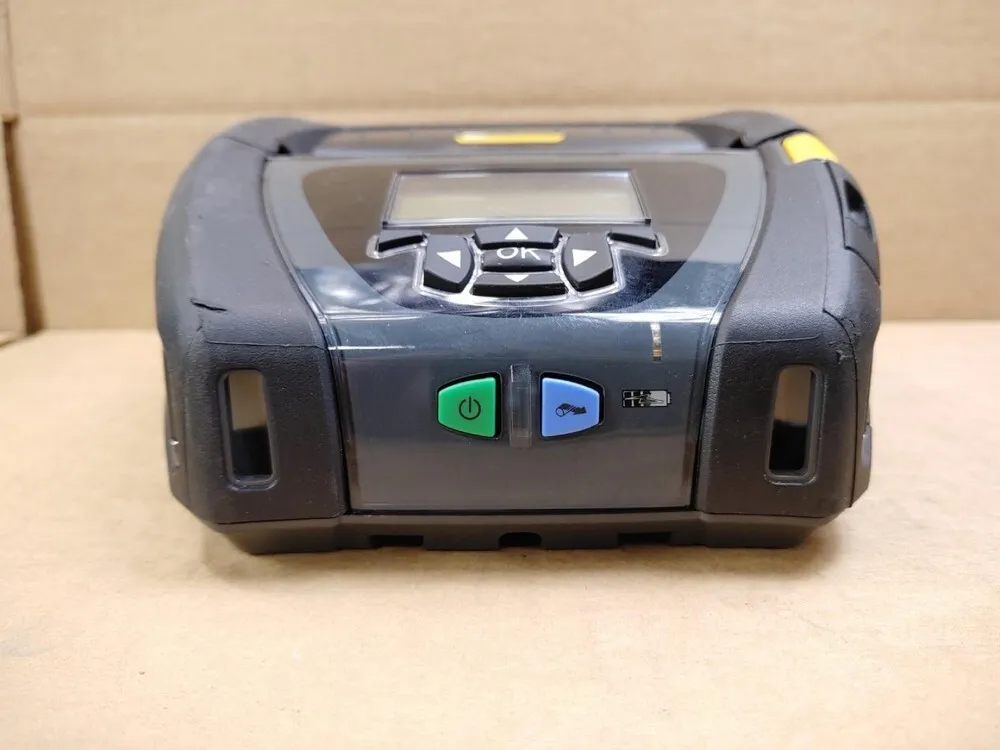

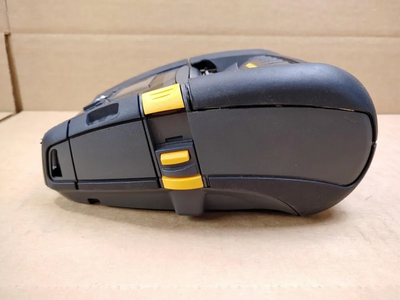

Images
Key Advantages
The QLn420 provides excellent mobility with long-lasting battery life to ensure uninterrupted printing in diverse environments. It offers versatile connectivity including Wi-Fi and Bluetooth for seamless integration. The printer's rugged build meets industrial standards, providing operational reliability in harsh conditions. User-friendly features like an intuitive interface and status indicators enhance ease of use. The support for multiple media types and sizes makes it adaptable to different label requirements. Additionally, advanced printing technology like Power Smart Print reduces battery consumption and extends operational time.
Limitations
The QLn420 uses direct thermal printing which is susceptible to fading when exposed to heat or sunlight, limiting label durability. Print speed, while adequate for most mobile tasks, may not meet high-volume desktop printer demands. Its 203 dpi resolution may not satisfy applications requiring ultra-high print clarity or fine detail. The device battery, though long-lasting, may require frequent charging during continuous heavy usage. Firmware updates and advanced configurations may require technical support or Zebra's specialized software tools. The initial cost and replacement media can be more expensive compared to some consumer-grade printers.
FAQ
What print resolution does the Zebra QLn420 support?
The Zebra QLn420 supports a print resolution of 203 dpi, suitable for clear text and barcode printing.
Does the QLn420 support wireless connectivity?
Yes, it supports both Wi-Fi and Bluetooth connectivity for flexible wireless printing.
What type of printing technology does the QLn420 use?
The QLn420 uses direct thermal printing technology, which does not require ink or toner.
Is the QLn420 suitable for harsh industrial environments?
Yes, it has an IP54 rating and meets MIL-STD 810g standards for durability against drops, dust, and water.
What is the maximum print speed of the QLn420?
The maximum print speed is up to 4 inches per second.
Can the QLn420 print graphics and logos?
Yes, it supports printing text, graphics, and logos with multiple barcode symbologies.
Is the QLn420 still supported by Zebra?
As of now, the QLn420 continues to be supported and is not discontinued.
