Zebra 140XiIII Plus
Brand | Zebra 2009 |
Model | 140-7A1-00000, Network LAN, Barcode |
Released Year | 2009 |
Type | Printers |
Series | Xi |
Status | Active |
Quick view
Overview
The Zebra 140XiIII Plus is a high-performance industrial barcode printer designed for heavy-duty printing in demanding environments. It supports a resolution of 203 dpi (8 dots/mm), offering clear and precise barcode quality suitable for various labeling applications. The printer features a robust metal frame and print mechanism, ensuring durability and reliability in continuous use. It employs both thermal transfer and direct thermal printing technologies, supporting a wide range of media types and sizes. This model offers network connectivity through an optional embedded internal LAN card, allowing integration into enterprise systems. Its print speed can reach up to 10 inches per second depending on resolution, making it suitable for high-volume labeling tasks.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 32 MB SDRAM, 8 MB Flash |
Custom Bundle | No |
MPN | 140-7A1-00000, Network LAN, Barcode |
Max. Resolution | 203 dpi |
Modified Item | No |
Supported Paper Size | Max. Label Width: 5.51" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | 140XiIII Plus |
Connectivity | Serial, Parallel, USB, Optional internal LAN (Network) |
Features | Zebra Firmware, Networkable |
Black Print Speed | 12 ips |
Product Line | Zebra Xi |
UPC | Does not apply |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 10 inches per second (ips) |
Print Width | 4.09 inches (104 mm) |
Print Technology | Thermal transfer and direct thermal |
Processor | 250 MHz |
Maximum Ribbon Length | 450 meters |
Media Width Range | 0.79 inches to 4.57 inches (20 mm to 116 mm) |
Label Roll Capacity | Up to 8 inches OD |
Dimensions | 10.5 in (W) x 17.1 in (D) x 13.64 in (H) |
Weight | Approximately 28.6 pounds (13 kg) |
Supported Barcode Types | UPC, EAN, Code 39, Code 128, Interleaved 2 of 5, QR Code, Data Matrix, PDF417 |
Operating Temperature | 40°F to 104°F (5°C to 40°C) |
Power Supply | 90-132 or 180-264 VAC; 48-62 Hz auto-range |

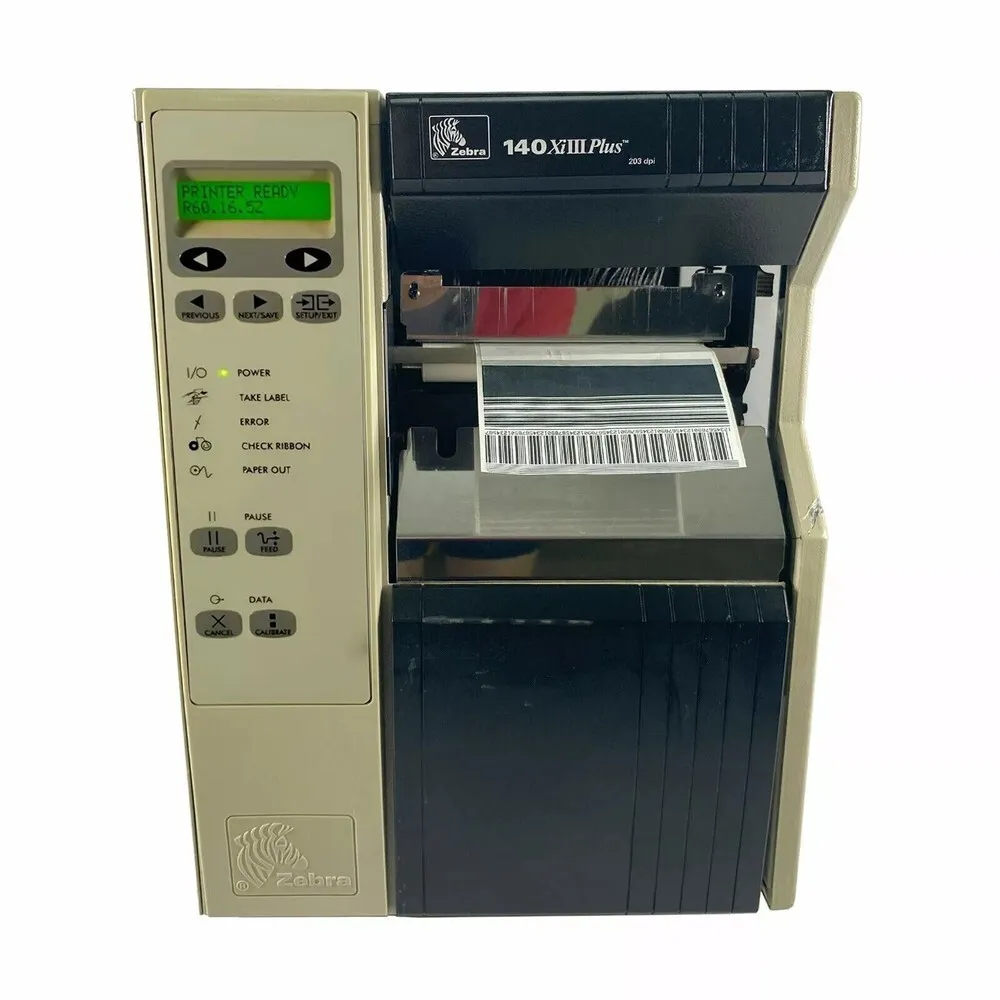

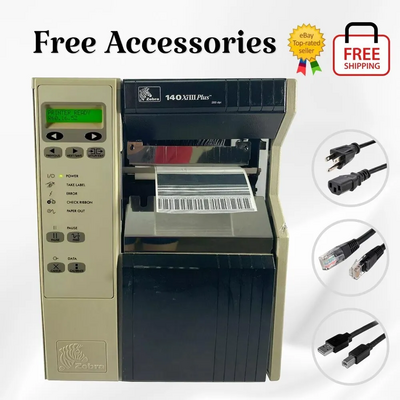

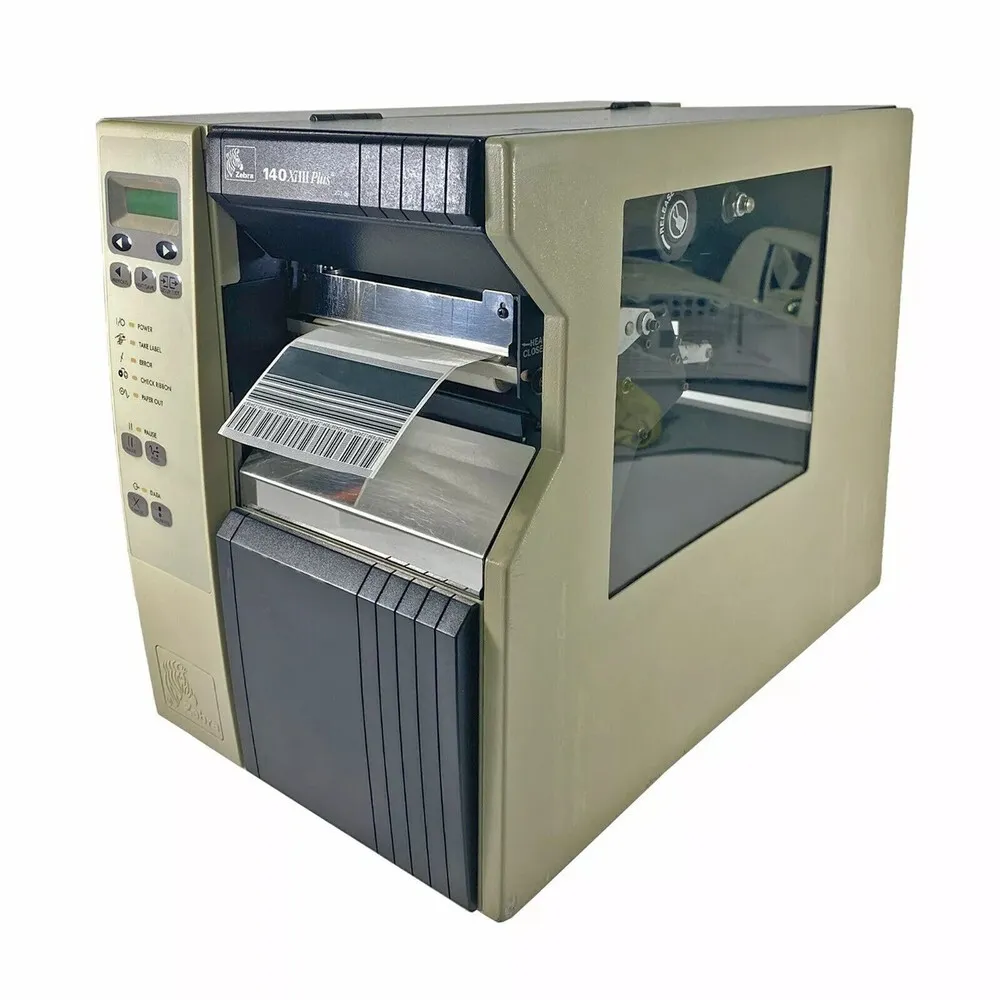

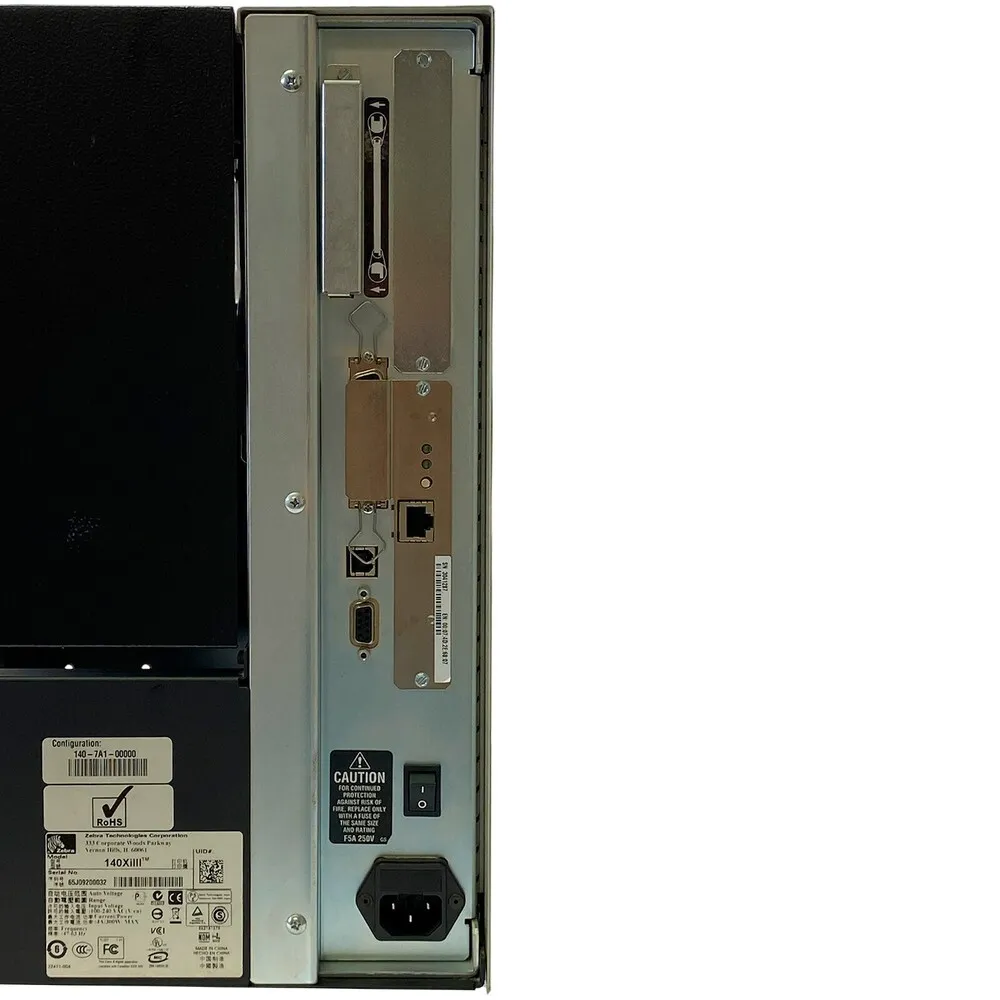

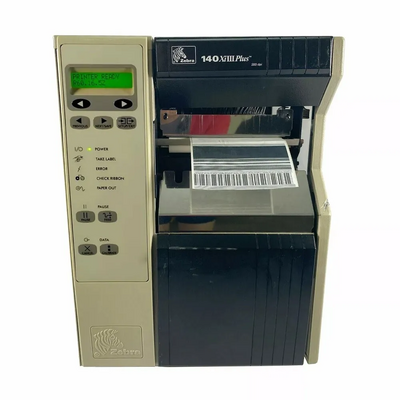

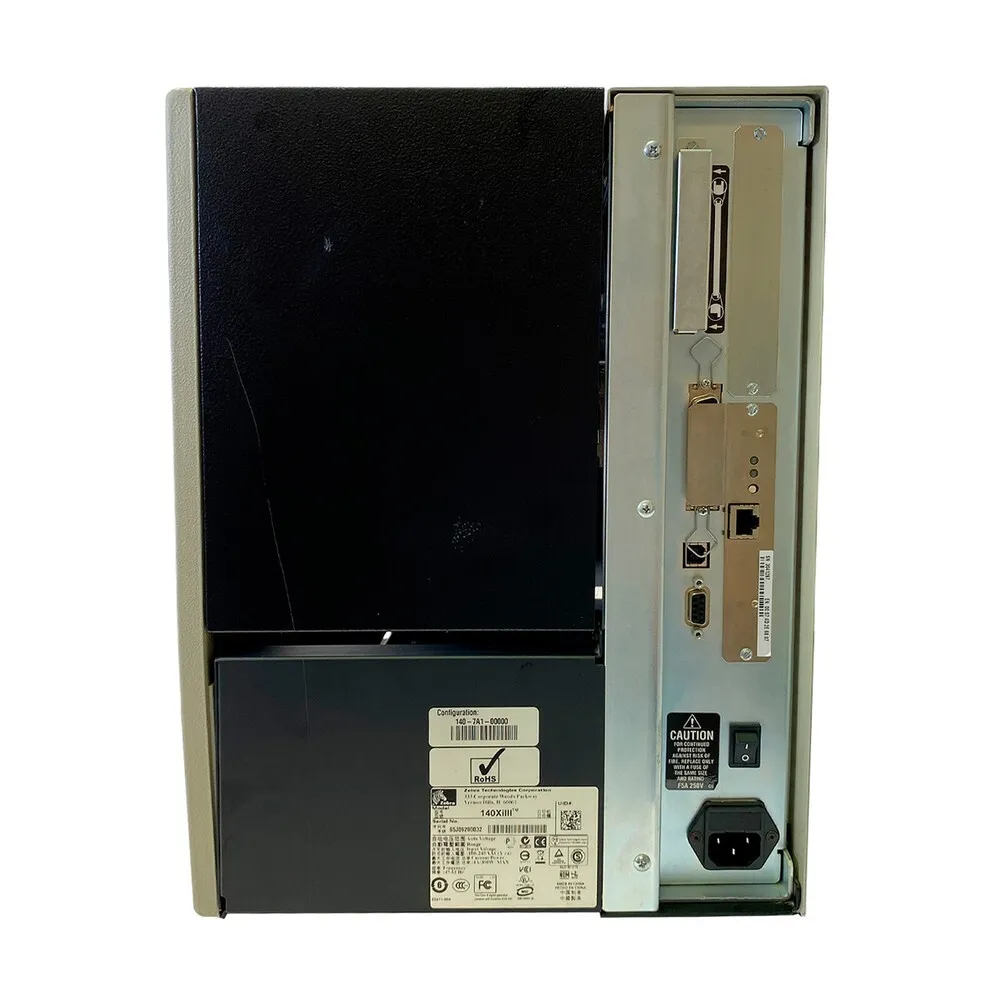

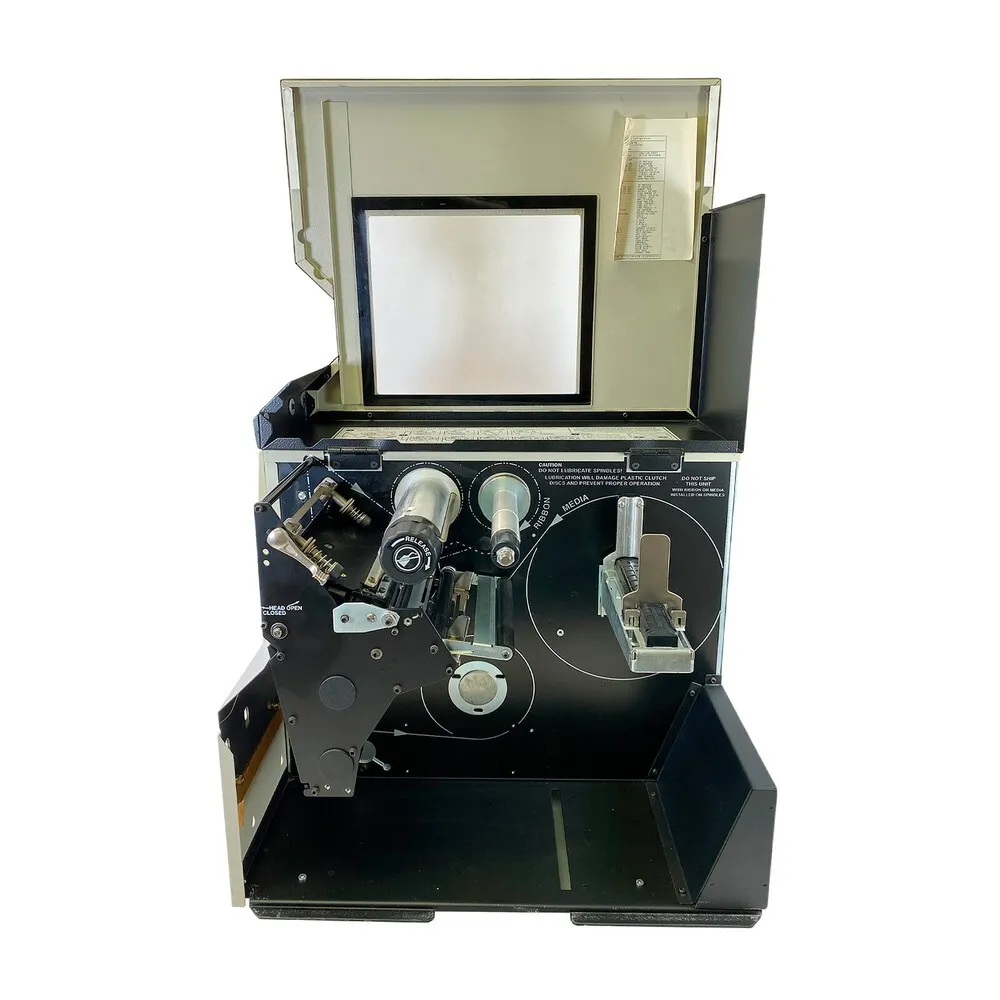

Images
Key Advantages
The 140XiIII Plus provides high reliability with its durable industrial design suitable for harsh working environments. It offers versatile connectivity options including serial, parallel, USB, and optional internal LAN, enabling flexible integration. The printer supports multiple barcode symbologies and graphic formats, expanding its usability across various industries. Its adjustable printhead and media handling system accommodate different media widths and thicknesses. With a fast print speed and large ribbon capacity, it increases efficiency by reducing downtime. Additionally, its support for Zebra's Link-OS and programming languages enhances customization and remote management capabilities.
Limitations
The Zebra 140XiIII Plus, while robust, is relatively bulky and heavy, limiting its portability and space efficiency. The printer's 203 dpi resolution may not meet highest detail requirements compared to higher resolution models. Setting up network connectivity requires additional hardware and configuration expertise. It lacks some modern connectivity features such as Wi-Fi and Bluetooth that are common in newer models. The proprietary ribbon and media may increase operating costs over time. Additionally, discontinuation of support and firmware updates could pose challenges for long-term integration in evolving IT environments.
FAQ
What printing technologies does the 140XiIII Plus support?
It supports thermal transfer and direct thermal printing technologies, enabling versatile label printing.
Does the Zebra 140XiIII Plus have network connectivity?
Yes, it offers an optional internal LAN card for network connectivity alongside serial, parallel, and USB ports.
What is the maximum print resolution of the 140XiIII Plus?
The printer's maximum resolution is 203 dpi (8 dots per millimeter).
Can the printer handle different media sizes?
Yes, it has adjustable media handling features allowing for various label widths and thicknesses.
Is the 140XiIII Plus suitable for high-volume printing?
Yes, it supports fast print speeds up to 10 inches per second, designed for high-volume industrial use.
What types of barcodes can it print?
It supports a wide range of barcode symbologies including linear and 2D codes for diverse labeling needs.
Is the Zebra 140XiIII Plus still supported by the manufacturer?
This model is still supported, but it may have limited firmware updates as it is not the newest generation.
