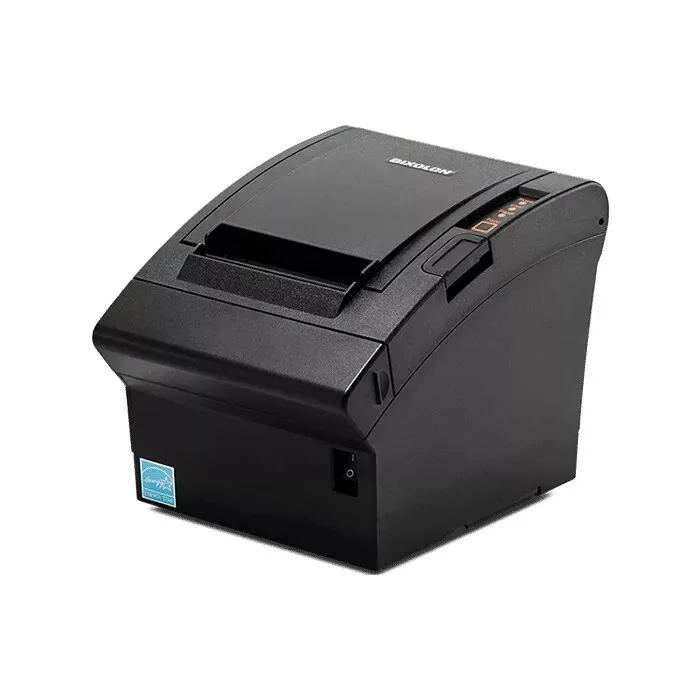

BIXOLON SRP-380 image

BIXOLON SRP-380

Quick information
Brand BIXOLON 2012
Model SRP-380
Released Year 2012
Type Printers
Series Thermal POS
Status Active
Quick view

Overview

The Bixolon SRP-380 is a high-performance thermal POS printer engineered for retail and hospitality environments requiring reliable receipt printing. It features a fast printing speed of up to 300 mm/sec with a resolution of 180 dpi, ensuring crisp and clear text and graphics output. The printer supports a print width of 72mm, compatible with standard POS receipt widths. Designed for ease of integration, it offers multiple interface types including USB, Serial, and Ethernet, enhancing connectivity with various POS systems. The SRP-380 incorporates an easy paper loading mechanism with a front opening cover and supports both 58mm and 80mm paper rolls, improving operational efficiency. Additionally, the printer includes advanced power management and energy-saving features, maintaining performance while reducing power consumption.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 768 Kbytes
Item Length 7.87in
Supported Paper Size 80 mm
Type POS Printer
Technology Direct Termal
Maximum Resolution 180dpi
Item Height 5.79in
Model SRP-380
Connectivity Ethernet (RJ-45), USB 2.0
Black Print Speed Up to 350 mm/sec
Country/Region of Manufacture Korea, Republic of
Item Width 5.82in
Product Line Thermal POS
Printing Method Direct Thermal
Print Speed Up to 300 mm/sec
Print Resolution 180 dpi
Print Width 72 mm (3 inches)
Paper Width 58mm / 80mm
Interface Options USB 2.0, Serial (RS-232), Ethernet (model dependent)
Paper Loading Top cover open, drop-in paper loading
Cutter Partial cut (model dependent)
Dimensions (W x D x H) 145 x 195 x 146 mm
Weight Approx. 1.6 kg
Power Supply DC 24V, external power adapter
Character Sets Supports various international character sets including ASCII, Unicode
Drivers Supported Windows, Linux, and OPOS compatibility

Key Advantages

The Bixolon SRP-380 offers rapid printing speeds that reduce customer waiting times at checkout points. Its multiple interface options provide versatile compatibility with diverse POS terminals and software systems. The compact and robust design makes it suitable for space-constrained environments, ensuring longevity under heavy daily usage. Easy paper loading minimizes downtime and operator errors during roll replacement. The thermal printing technology eliminates the need for ink or toner, lowering maintenance and operational costs. Energy-efficient operations contribute to reduced power consumption, supporting environmentally friendly business practices.

Limitations

The SRP-380 printer primarily supports only thermal paper media, limiting its use for specialized or color printing needs. While it offers multiple interfaces, simultaneous connection is not typically available, which may restrict flexibility in some setups. The resolution of 180 dpi is sufficient for text and simple graphics but may not be optimal for high-resolution images or logos. Without built-in wireless connectivity, reliance on wired connections may affect placement in certain retail environments. The device does not inherently support extensive firmware updates for feature expansions, which could limit adaptability over time. Additionally, it lacks an integrated cutter blade in some models, requiring manual tearing of receipts.
