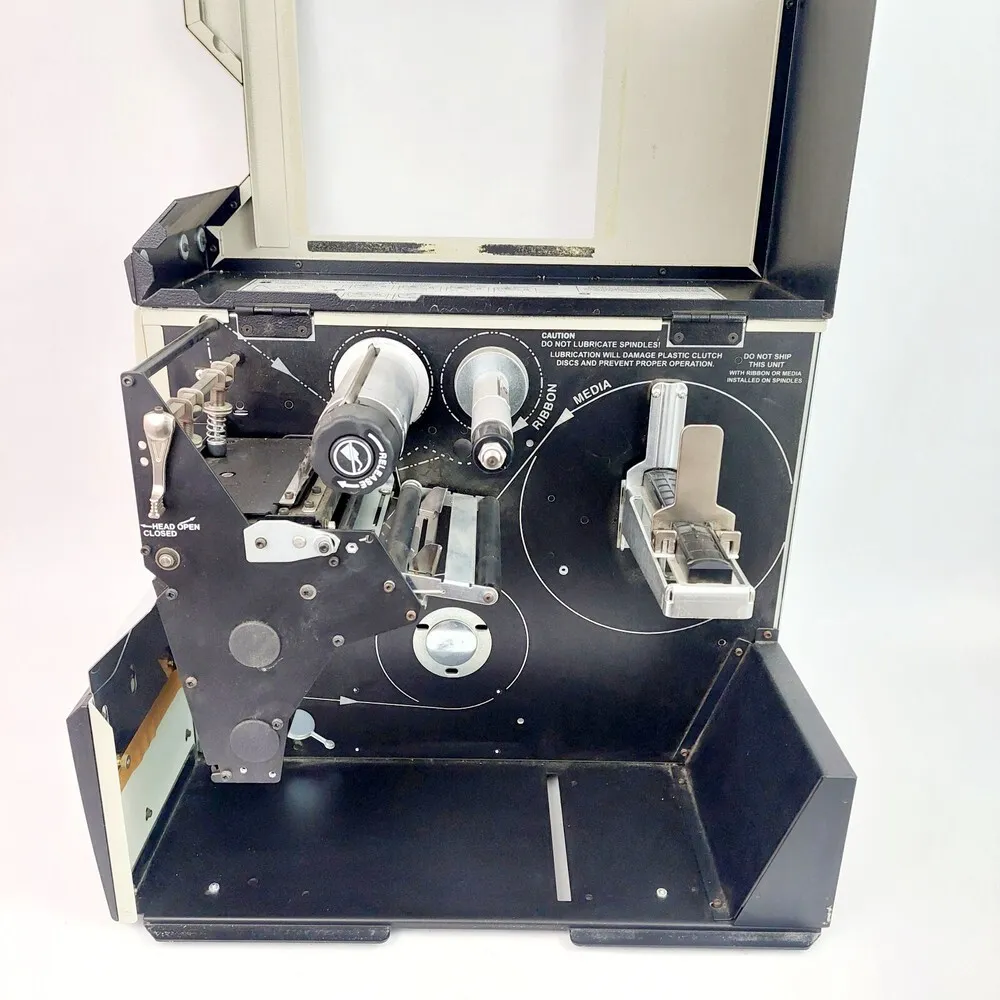

Zebra 140Xi III Plus image

Zebra 140Xi III Plus

Quick information
Brand Zebra 2012

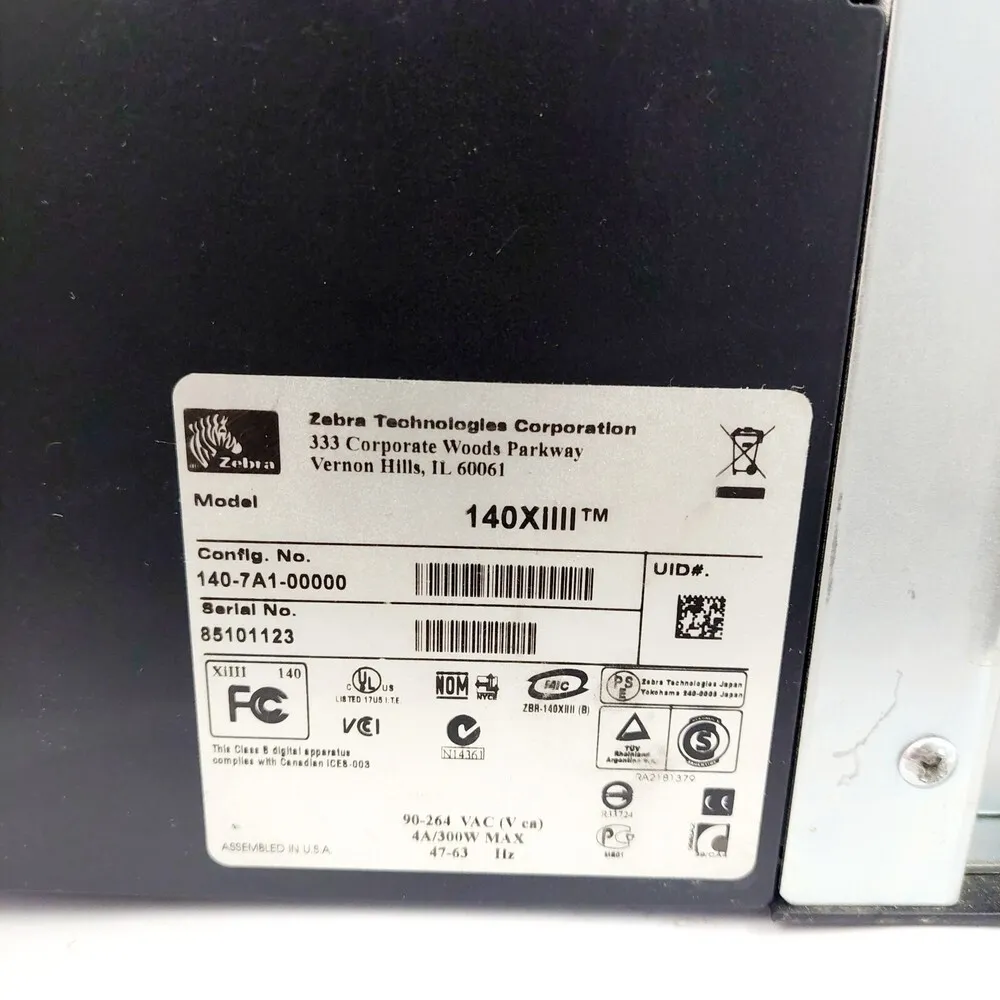

Model 140-7A1-00000
Released Year 2012
Type Printers
Series Xi
Status Discontinued
Quick view
Full specs Images

Overview

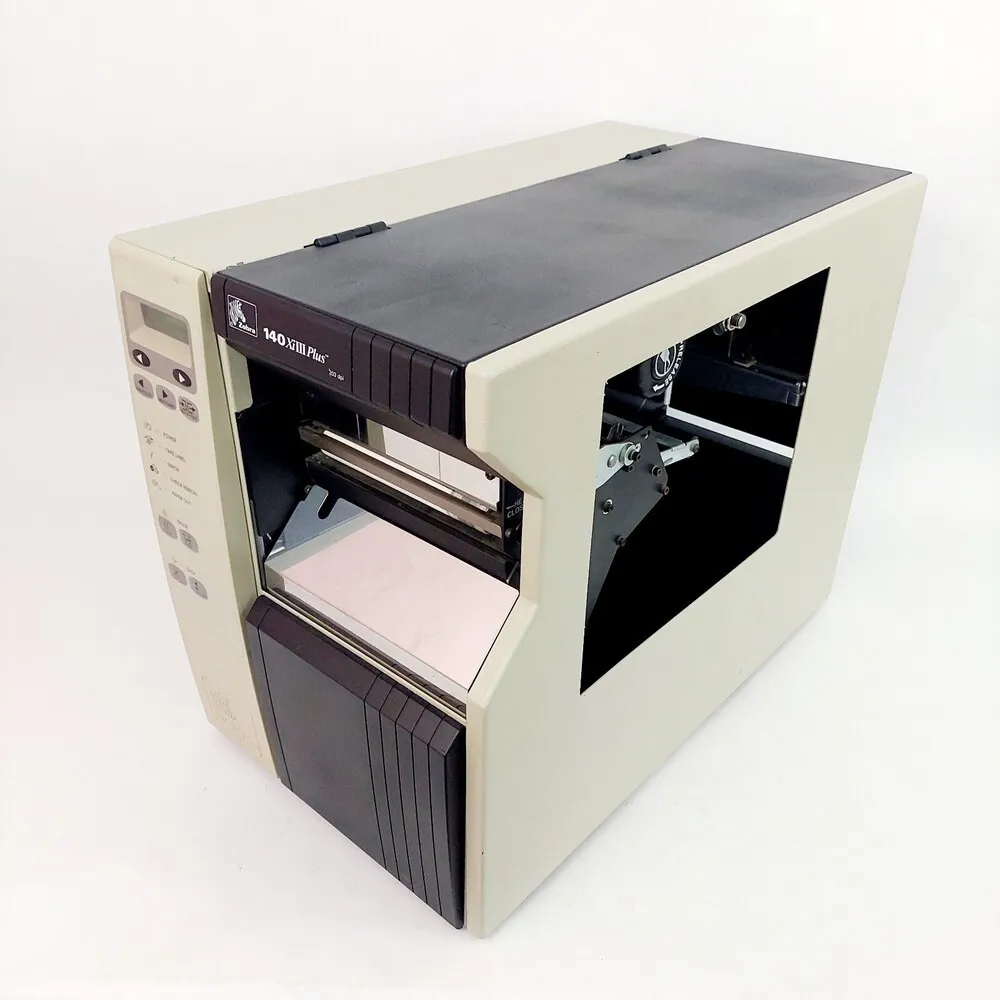

The Zebra 140Xi III Plus is an industrial-grade thermal transfer and direct thermal printer designed for high-volume labeling applications. It supports print widths up to 4 inches with a maximum print speed of 10 inches per second. This printer includes a monochrome LCD status display for easier operation and diagnostics. Connectivity options include serial, parallel, and USB interfaces with optional Ethernet capability for network integration. The robust metal casing ensures durability in demanding industrial environments. The 140Xi III Plus also supports multiple programming languages including ZPL and EPL for flexible integration.

Specifications

Input Type Monochrome
Output Type Black & White
Memory Standard 8MB SDRAM, 4MB FLASH
MPN 140-7A1-00000
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model 140Xi III Plus
Connectivity Ethernet (RJ-11), Ethernet (RJ-45), Parallel (IEEE 1284), Serial (RS-232), USB 2.0
Features Networkable
Black Print Speed 12 in/s
Product Line Zebra Xi
Print method Thermal transfer and direct thermal
Print resolution 203 dpi (8 dots/mm), optional 300 dpi (12 dots/mm)
Max print width 4.09 inches (104 mm)
Max print speed 10 inches per second (254 mm/s)
Processor 32-bit RISC CPU

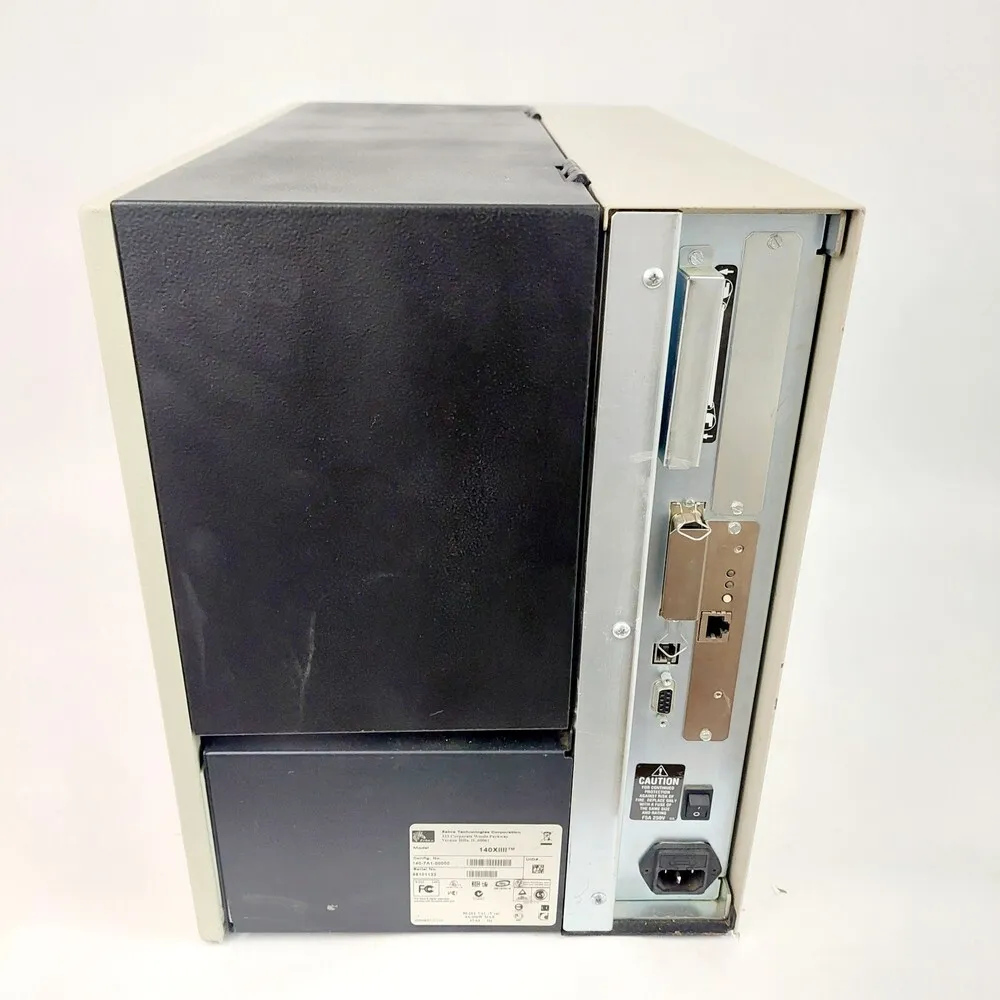

Interface options RS-232 serial, Centronics parallel, USB 2.0, optional Ethernet 10/100

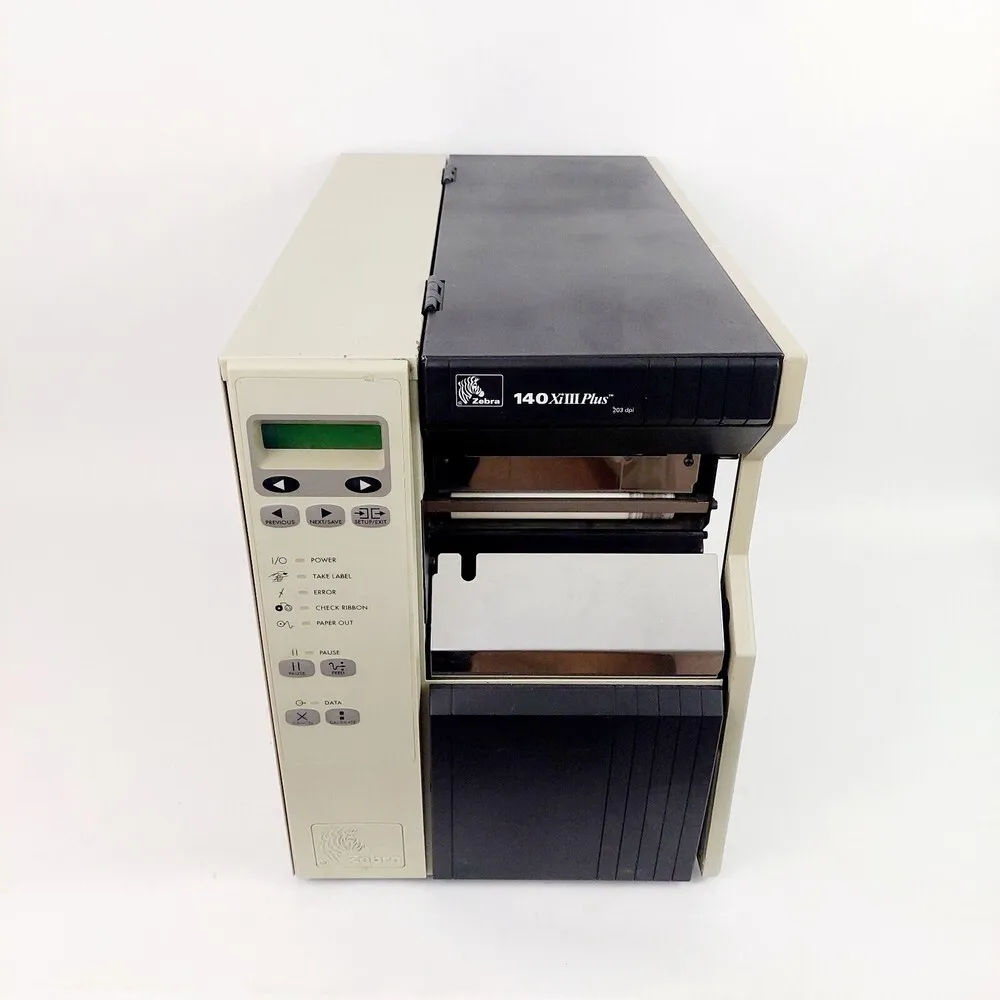

Display Monochrome LCD with warning LEDs
Label sensor Moveable reflective and transmissive
Dimensions (WxHxD) 11.5 x 11 x 20 inches (292 x 279 x 508 mm)
Weight Approximately 28 lbs (12.7 kg)
Operating temperature 40°F to 104°F (5°C to 40°C)
Power supply Internal power supply, 90-132 or 180-264 VAC
Media types supported Roll-fed, fan-fold labels and tags, continuous forms, perforated media
Ribbon type Ribbon wound ink side out, standard length 1476 ft (450 m)
Programming languages ZPL (Zebra Programming Language), EPL (Eltron Programming Language)
Safety certifications UL, cUL, CE, FCC Class A

Key Advantages

The Zebra 140Xi III Plus offers rugged durability to withstand harsh industrial settings, ensuring long-lasting performance. High print resolution up to 300 dpi provides crisp, clear labels suitable for detailed barcodes and graphics. Its reliable print mechanism reduces downtime and maintenance needs. The variety of connectivity options allows versatile installation across different systems. Extensive programming language support enhances compatibility with existing workflows. Furthermore, ease of use is improved with clear operator feedback via the LCD display.

Limitations

Despite its robust design, the 140Xi III Plus can be relatively large and heavy compared to desktop printers, limiting portability. While connectivity options are diverse, some interfaces require optional modules increasing overall costs. Consumable ribbons and media specific to the printer model may limit sourcing flexibility. The printer's user interface is functional but somewhat outdated compared to modern touchscreen controls. Integration with newer network infrastructures might require additional hardware adaptation. Additionally, firmware updates and technical support for this older model may be limited.

FAQ

The Zebra 140Xi III Plus supports both thermal transfer and direct thermal printing technologies.

It offers a maximum print resolution of 300 dots per inch (dpi).

Connectivity options include serial, parallel, USB interfaces, with optional Ethernet for network connectivity.

No, the 140Xi III Plus has been discontinued and is no longer supported officially.

It is commonly used in industrial environments for high-volume barcode, shipping, and product labeling.

Yes, it supports a range of label sizes up to 4.09 inches in width and variable lengths.

The printer supports Zebra Programming Language (ZPL) and Eltron Programming Language (EPL) for label formatting.
