Zebra GX420T image

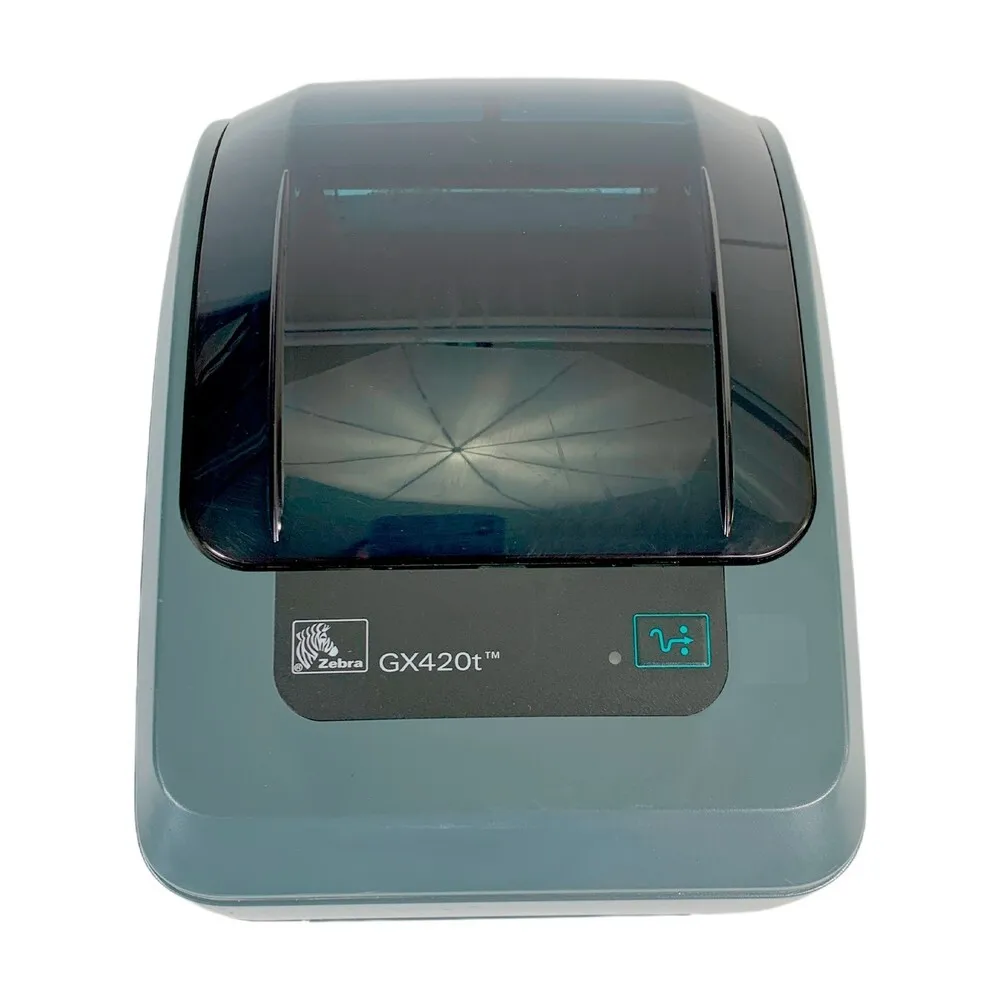

Zebra GX420T

Quick information
Brand Zebra 2011
Model GX42-102410-000, Label Network LAN, AC Adapter, Shipping
Released Year 2011
Type Printers
Series Gx
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Zebra GX420T is a compact, thermal transfer label printer designed for medium volume printing applications. It supports resolutions up to 203 dpi for clear, high-quality label printing. Connectivity options include USB, serial, and optional built-in LAN for network communication. The printer features a print speed of up to 4 inches per second, accommodating various label sizes up to 4.09 inches wide. It incorporates a peel-and-present feature and supports multiple barcode symbologies, making it versatile for office electronics and industrial environments. The device supports EPL and ZPL printing languages for broad compatibility with labeling software.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 8 MB SDRAM, 4 MB Flash
MPN GX42-102410-000, Label Network LAN, AC Adapter, Shipping
Supported Paper Size Max Label Width: 4.25"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model GX420T
Connectivity USB 2.0, Serial RS-232, Optional Ethernet LAN
Features Networkable, Portable
Black Print Speed 6 ips
Product Line Zebra GX
Print Method Thermal Transfer and Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Max Print Speed 4 inches per second (ips)
Print Width 4.09 inches (104 mm)
Media Types Continuous, die-cut, black mark, tag, wristband labels (thermal transfer media)
Media Width 0.75 inches to 4.25 inches (19 mm to 108 mm)
Ribbon Type Wax, wax/resin, resin ribbons (total ribbon length up to 300 meters)
Operating Temperature 40°F to 105°F (5°C to 40°C)
Dimensions 7.6" H x 5.9" W x 8.1" D (193 mm x 150 mm x 205 mm)
Weight 4.9 lbs (2.2 kg)
Printer Language Support EPL and ZPL

Key Advantages

The Zebra GX420T boasts reliable thermal transfer printing, which ensures durable and long-lasting labels. Its compact design allows for easy integration into tight spaces. Network connectivity via the optional LAN module enables multi-user access, increasing operational efficiency. The printer's peel-and-present sensor streamlines label application workflows. Compatibility with a wide range of media types and sizes enhances its flexibility. Furthermore, its easy-to-use interface and straightforward maintenance contribute to minimal downtime.

Limitations

The printer's maximum resolution is limited to 203 dpi, which may be insufficient for extremely detailed graphics or small fonts. It lacks wireless connectivity, requiring physical network connections or USB. The maximum print speed of 4 ips, while adequate for moderate volumes, may not meet high throughput demands. Its memory capacity is modest compared to newer models, limiting complex label storage. The printer's firmware updates are less frequent, offering limited modern feature enhancements. Additionally, while compatible with many label types, it may require specific ribbons for optimal performance.
