Zebra 110Xi4
| Brand | Zebra 2010 |
| Model | 113-801-00000, 300Dpi, USB LAN, Ethernet Network, Parallel, Serial, Barcode |
| Released Year | 2010 |
| Type | Printers |
| Series | Xi |
| Status | Active |
Quick view
Overview
The Zebra 110Xi4 is an industrial-grade barcode and label printer designed for high-volume printing environments. It features a robust construction ensuring durability in demanding operational settings. The printer supports a 300 dpi resolution, providing high-quality, precise print output suitable for detailed barcodes and labels. Connectivity options include USB, LAN, Ethernet, Parallel, and Serial interfaces, allowing seamless integration into various network configurations. The printer operates with Zebra’s Link-OS software platform, enhancing device management and control. Additionally, the 110Xi4 supports multiple barcode symbologies, making it versatile for diverse labeling purposes.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 64 MB SDRAM, 128 MB Flash |
| Custom Bundle | No |
| MPN | 113-801-00000, 300Dpi, USB LAN, Ethernet Network, Parallel, Serial, Barcode |
| Supported Paper Size | Max. Width: 4.5" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Model | 110Xi4 |

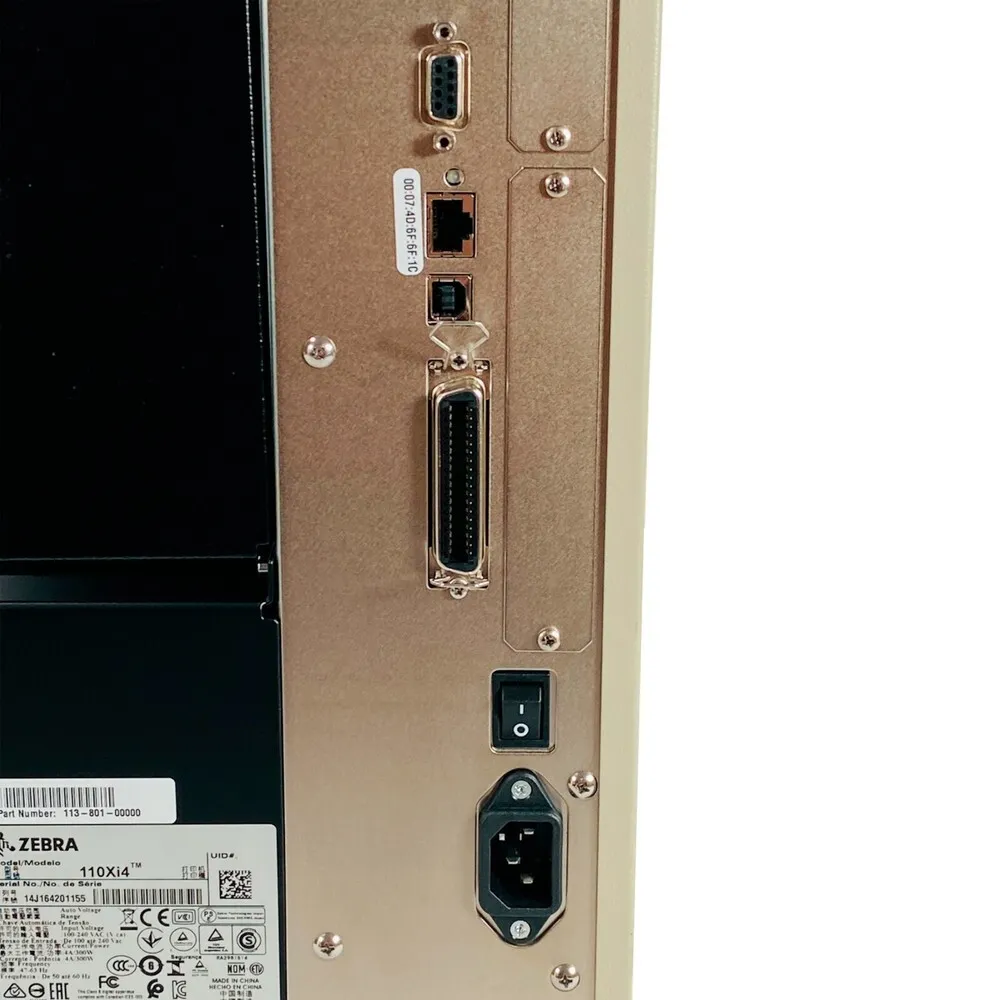

| Connectivity | USB 2.0, LAN, Ethernet 10/100 Mbps, Parallel, Serial RS-232 |
| Features | Networkable |
| Black Print Speed | 14 ips |
| Product Line | Zebra Xi |
| UPC | 807027540683 |
| Print Method | Thermal Transfer and Direct Thermal |
| Print Resolution | 300 dpi (12 dots/mm) |
| Print Width | Up to 4.09 inches (104 mm) |
| Print Speed | Up to 14 inches per second (ips) at 203 dpi, slower at 300 dpi |
| Processor | 400 MHz 32-bit RISC CPU |
| Media Types Supported | Continuous, die-cut, black mark, notch, tag, wristband |
| Media Width | 0.79 inches to 4.65 inches (20 mm to 118 mm) |
| Media Length | 0.25 inches to 39 inches (6.35 mm to 991 mm) |

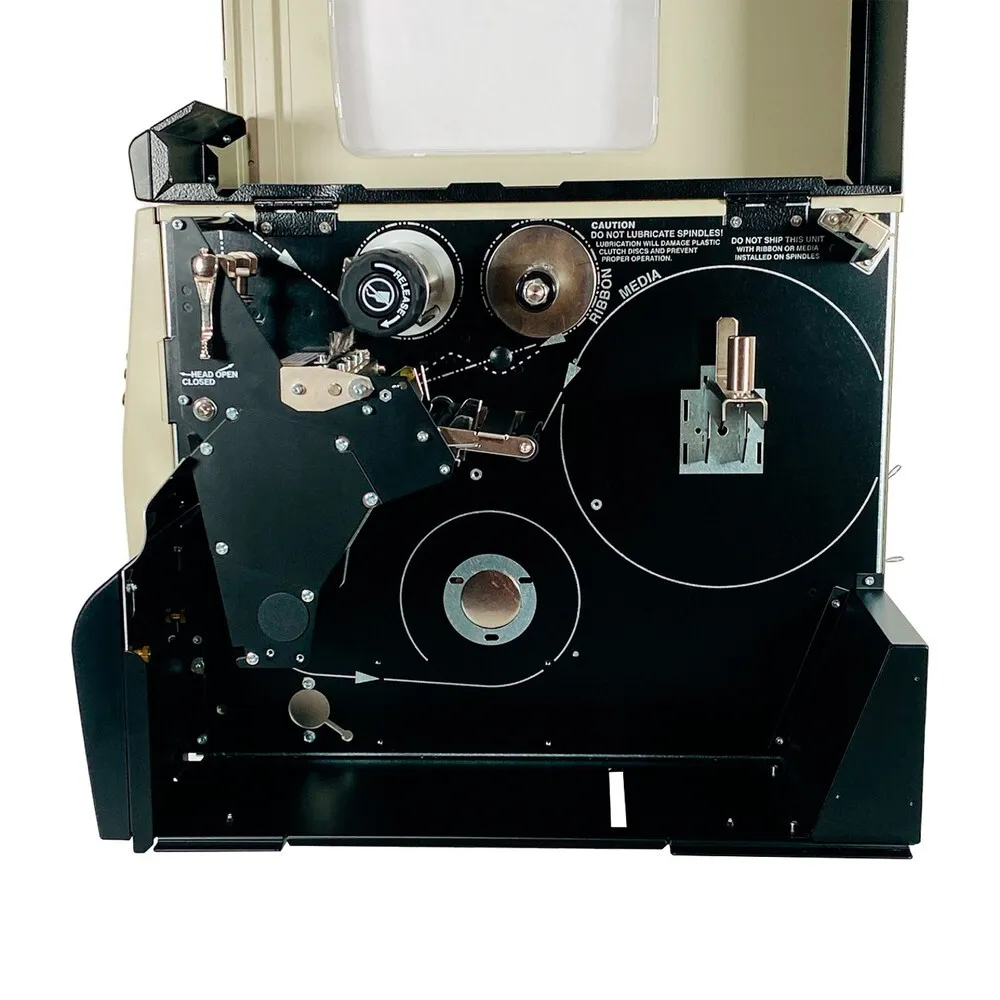

| Ribbon | Ink-side in/out, core 1 inch, max length 800 meters |
| Dimensions | 13.5 x 10 x 16 inches (WxHxD) |
| Weight | Approximately 32 lbs (14.5 kg) |
| Operating Temperature | 40°F to 104°F (5°C to 40°C) |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Operating Humidity | 20% to 85% non-condensing |
| Fonts and Graphics | Unicode compliant scalable fonts, graphics, and barcode symbologies |
| Barcode Symbologies | Code 39, Code 128, UPC, EAN, Interleaved 2 of 5, QR Code, Data Matrix, PDF417 and others |
Images
Key Advantages
The 110Xi4 offers exceptional print quality with a 300 dpi resolution, ideal for small labels requiring high detail. Multiple connectivity options provide flexible deployment in different IT environments. Its rugged design ensures reliability and longevity under heavy-duty industrial use. Zebra’s Link-OS platform grants advanced device management features for improved operational efficiency. The printer supports a wide range of media types and sizes, enhancing adaptability. User-friendly interface and quick media loading reduce downtime during production runs.
Limitations
Despite its strengths, the 110Xi4 is relatively heavy and bulky compared to desktop printers, limiting portability. Initial setup and configuration may require technical expertise. The printer's cost can be higher than standard office or desktop label printers, which might not be ideal for low-volume needs. Consumable supplies such as ribbons and labels might have limited availability depending on the region. Firmware updates require network connectivity and occasional manual intervention. Its industrial focus means it is less suited for casual or light-duty printing environments.
FAQ
What types of connectivity does the Zebra 110Xi4 support?
The Zebra 110Xi4 supports USB, LAN, Ethernet, Parallel, and Serial connections, enabling versatile integration into various network setups.
What is the print resolution of the 110Xi4 printer?
The printer offers a 300 dots per inch (dpi) print resolution for high-quality, precise label and barcode printing.
Is the Zebra 110Xi4 suitable for high-volume industrial printing?
Yes, it is specifically designed for heavy-duty industrial environments requiring high-volume and reliable printing.
Can the 110Xi4 printer handle multiple barcode symbologies?
Yes, it supports a comprehensive set of barcode symbologies, making it adaptable for various labeling requirements.
What software platform does the Zebra 110Xi4 use for device management?
It operates with Zebra's Link-OS platform, which provides enhanced device management and control capabilities.
Is the Zebra 110Xi4 still supported and available for purchase?
As of now, the printer is not discontinued and remains supported, though newer models may be available.
What are common limitations of the Zebra 110Xi4 printer?
Limitations include its bulky size, higher cost compared to desktop printers, and the need for technical setup expertise.
