TSC TE200
| Brand | TSC 2020 |
| Model | TE200 |
| Released Year | 2020 |
| Type | Printers |
| Series | TE200 |
| Printing Technology | Thermal transfer and direct thermal |
| Controller Type | Android |
| Item Weight | 5.3 pounds |
| Maximum Media Size | 4" |
| Product Dimensions | 11.02 x 8.03 x 11.02 inches |
| Status | Discontinued |
Quick view
Overview

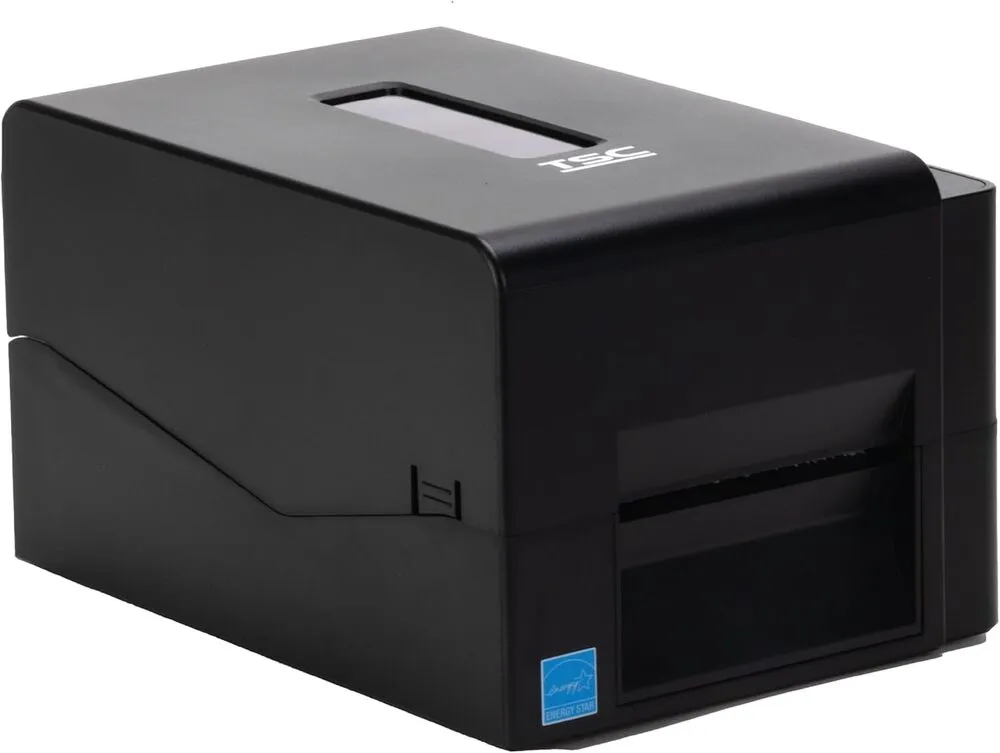

The TSC TE200 is a thermal transfer and direct thermal label printer designed for moderate volume labeling tasks in office and industrial environments.
It supports a printing resolution of 203 dpi, ensuring clear and legible barcode and text output suitable for various labeling applications.
The printer utilizes a 32-bit processor to deliver consistent print speeds up to 5 inches per second, enhancing productivity.
It offers a print width of up to 4.25 inches and supports label rolls up to 5 inches in diameter for extended printing sessions without frequent media changes.
The device is equipped with USB 2.0 and Serial RS-232 interfaces for flexible connectivity with computers and legacy systems.
The TE200's durable design and user-friendly interface make it a reliable solution for industrial and commercial printing needs.
Specifications
| Controller Type | Android |
| Maximum Media Size | 4" |
| Power Consumption | 60 Watts |
| Included Components | Printer |
| Print media | Labels |
| Max Input Sheet Capacity | 100 |
| Max Copy Speed (Black & White) | 152.4 ppm |
| Compatible Devices | Laptops |
| Sheet Size | 4 |
| Maximum Black and White Print Resolution | 203 dpi |
| Warranty Type | full warranty |
| Dual-sided printing | No |
| Wattage | 60 watts |
| Max copy resolution black-white | 203 dpi |
| Duplex | Simplex |
| Hardware Interface | USB |
| Ink Color | Black |
| Additional Printer functions | Print Only |
| Control Method | App |
| Processor Count | 1 |
| Series Number | 200 |
| Number of USB 2 Ports | 1 |
| Total USB Ports | 1 |
| Memory Storage Capacity | 16 MB |
| Product Dimensions | 11.02 x 8.03 x 11.02 inches |
| Item Weight | 5.3 pounds |
| Item model number | TE200 |
| Date First Available | February 4, 2020 |
| Manufacturer | TSC |
| Printing Technology | Thermal transfer and direct thermal |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 4.25 inches (108 mm) |
| Maximum Print Speed | 5 inches per second (127 mm/sec) |
| Processor | 32-bit RISC CPU |
| Memory | 8 MB SDRAM, 4 MB Flash memory |
| Connectivity | USB 2.0, Serial RS-232 |
| Media Type | Continuous, die-cut, black mark, fan-fold, notch |
| Max Media Width | 4.5 inches (114 mm) |
| Max Media Roll Diameter | 5 inches (127 mm) |
| Ribbon Type | Wax, resin, or wax/resin ribbon |
| Ribbon Max Length | 300 meters |
| Supported Barcodes | 1D and 2D barcode symbologies |
| Dimensions (W x D x H) | 261 x 480 x 270 mm |
| Weight | 7.5 kg |
| Operating Temperature | 5°C to 40°C |
| Power Supply | External 24V DC, 2.5A power adapter |
Images
Key Advantages
The TSC TE200 provides reliable thermal printing technology capable of both direct thermal and thermal transfer printing methods.
Its compact build is ideal for limited workspace environments while maintaining industrial-level durability.
The fast print speed of up to 5 ips ensures efficient label production, minimizing downtime.
Multiple connectivity options including USB and Serial ports enhance compatibility with various systems.
User-friendly controls and easy media loading simplify operation and reduce training time.
Cost-effective performance makes it a suitable choice for businesses seeking dependable mid-range label printing solutions.
Limitations
The TSC TE200 offers a maximum print resolution of 203 dpi, which may not be sufficient for extremely high-detail printing requirements.
Its connectivity lacks modern network options such as Ethernet or Wi-Fi, limiting integration into networked environments.
The model does not support color printing; it is exclusively designed for monochrome labels.
It has limited onboard memory compared to newer models, potentially restricting complex label storage capacity.
The printer's mechanical design might be less suitable for very high-volume industrial applications requiring continuous heavy use.
Driver and software updates for this model may be limited as it is an older device series.
FAQ
What printing technology does the TSC TE200 use?
The TSC TE200 supports both thermal transfer and direct thermal printing methods.
What is the maximum print resolution of the TE200?
It offers a maximum print resolution of 203 dpi (dots per inch).
Which connectivity options are available on the TE200?
The printer includes USB 2.0 and Serial RS-232 ports for connectivity.
Can the TE200 print in color?
No, the TE200 is designed for monochrome label printing only.
Is the TSC TE200 still supported and available for purchase?
The TSC TE200 model has been discontinued and is no longer in active production.
What maximum label width can the TE200 print?
It can print labels up to 4.25 inches in width.
What types of labels can the TE200 handle?
The printer supports both direct thermal labels and thermal transfer labels using ribbon.
