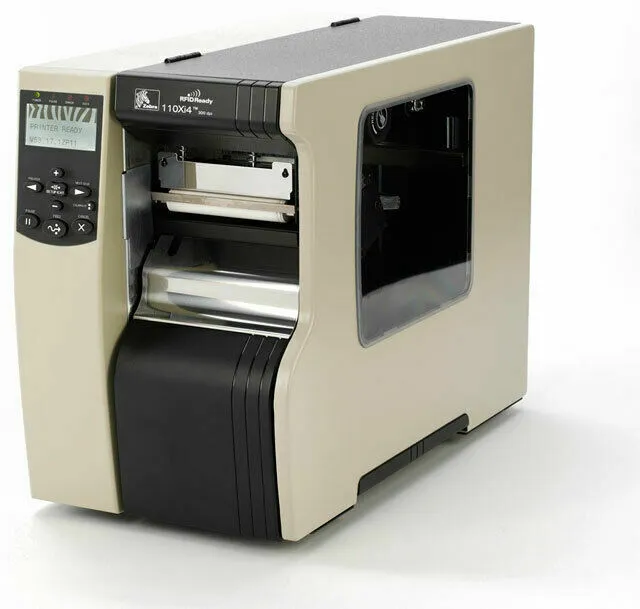

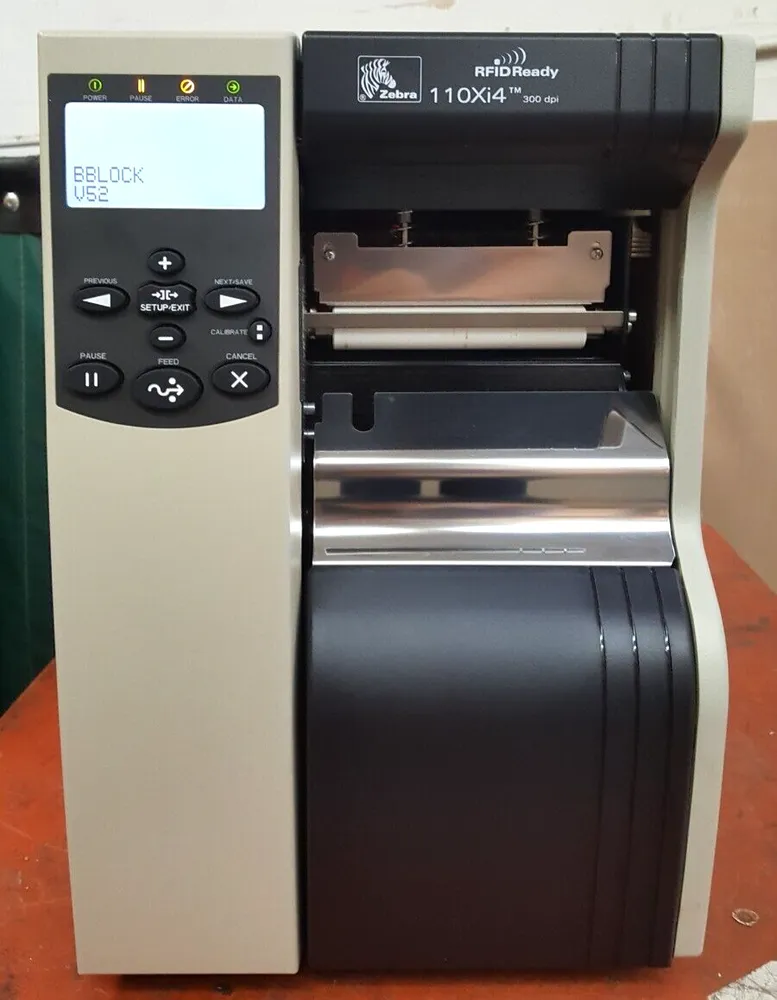

Zebra 110XI4 image

Zebra 110XI4

Quick information
Brand Zebra 2002
Model 110XI4
Released Year 2002
Type Printers
Status Discontinued
Quick view
Full specs Images

Overview

The Zebra 110XI4 is a high-performance industrial printer designed for label and barcode printing applications in demanding environments.

It features a robust metal frame construction ensuring durability and long-term reliability for industrial use.

The printer supports a print resolution of up to 203 dpi with faster print speeds suitable for high volume tasks.

Connectivity options include parallel, serial, and USB interfaces enabling flexible integration with various systems.

It is compatible with a broad range of media types and sizes, supporting both continuous and die-cut labels with linerless media capability.

The device includes an easy-to-use LCD for configuration and status monitoring, along with Zebra's proprietary programming language support.

Specifications

MPN 110XI4
UPC 0880959838820
Model 110XI4
Memory 8 MB SDRAM, 4 MB Flash (standard)
Technology Thermal

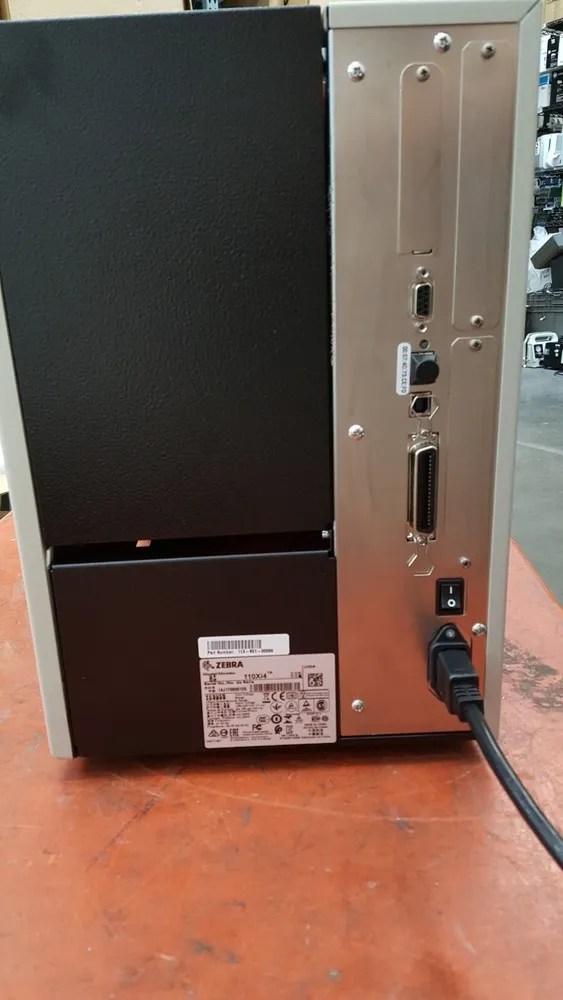

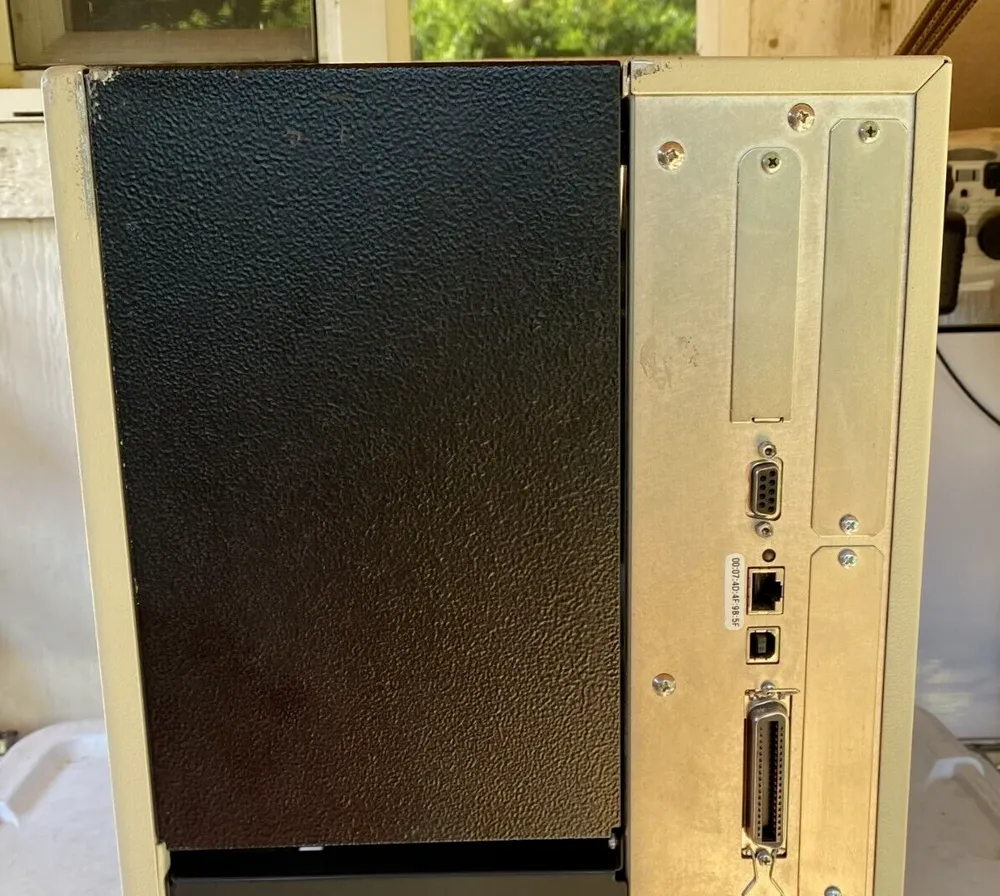

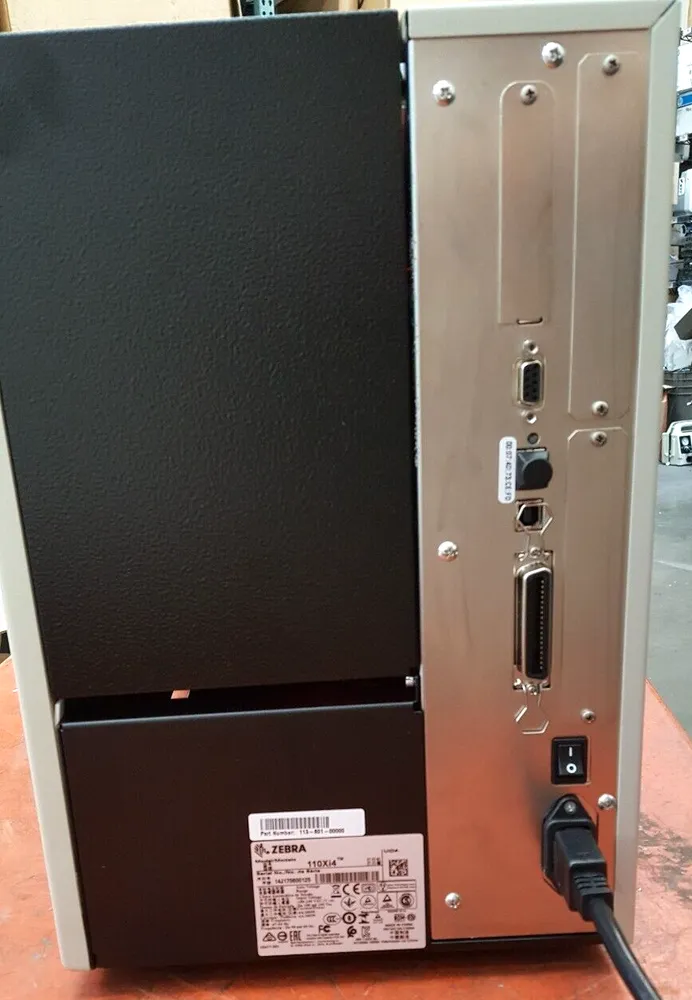

Connectivity Parallel, Serial RS232, USB 1.1
Output Type Black & White
Features Networkable
Input Type Monochrome
Type Label Printer
Maximum Resolution 203 x 203 DPI
Black Print Speed 14 ppm
Printer Type Industrial Thermal Transfer / Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Max Print Width 4.09 inches (104 mm)
Print Speed Up to 14 inches per second
Media Type Roll-fed, die-cut labels, continuous labels, tags, linerless media
Media Width 0.79 to 4.65 inches (20 to 118 mm)
Media Length 0.25 to 39 inches (6.35 to 991 mm)
Media Thickness 0.0023 to 0.01 inches (0.06 to 0.25 mm)
Ribbon Type Wax, wax/resin, resin ribbons
Ribbon Length 450 meters

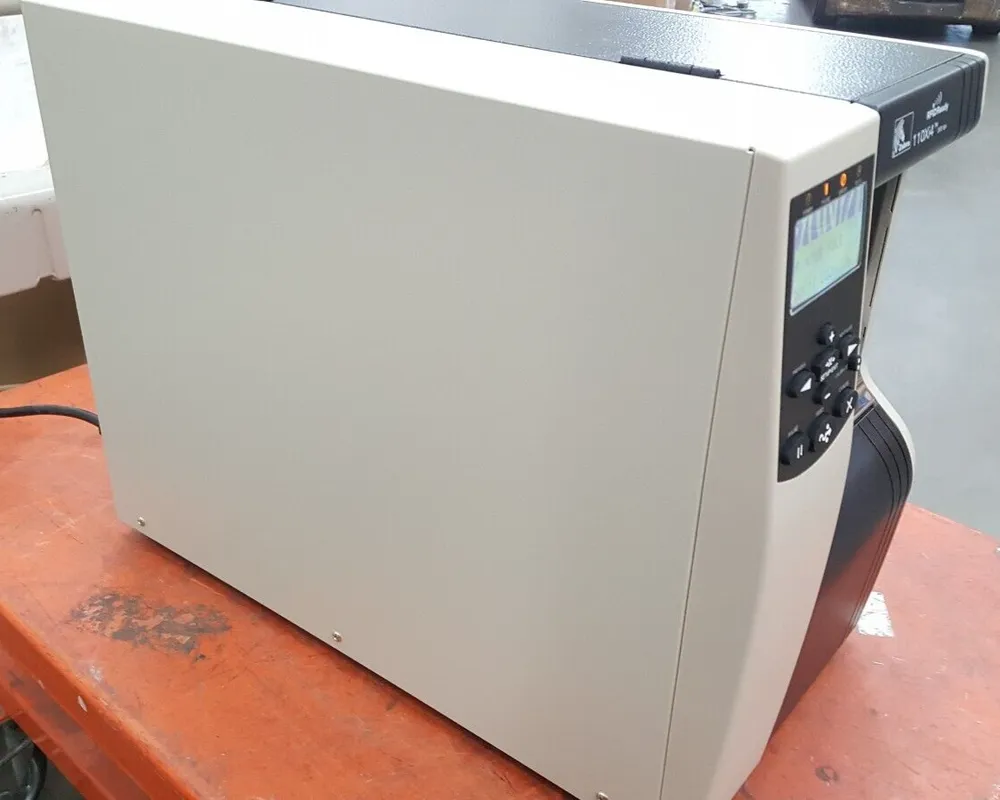

Display 16-character backlit LCD
Dimensions (W x H x D) 12.5 x 11.75 x 19 inches (318 x 298 x 483 mm)
Weight Approx. 38 lbs (17.24 kg)
Operating Temperature 40°F to 104°F (5°C to 40°C)

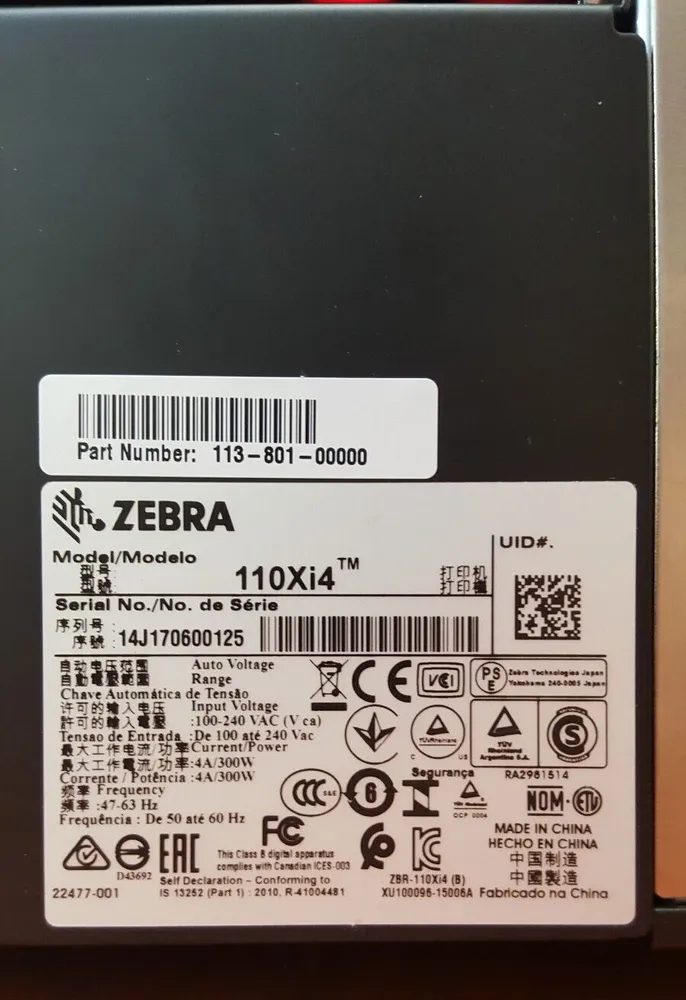

Power Supply Internal auto-ranging 90-264 VAC, 48-62 Hz

Key Advantages

Robust metal housing ensures high durability under harsh industrial conditions.

High-speed printing capacity boosts operational efficiency in high-volume environments.

Supports multiple connectivity interfaces for versatile integration options.

Wide media compatibility including linerless and tags enhances adaptability.

Built-in LCD display allows easy operation and status tracking without external devices.

Zebra's reliable print engines optimize print quality and longevity of components.

Limitations

Print resolution is limited to 203 dpi; not suitable for applications requiring very high-resolution printing.

The printer model is relatively heavy, which makes it less portable compared to desktop models.

Firmware updates and driver support may be limited due to the older release date.

It lacks wireless connectivity options such as Wi-Fi or Bluetooth which are standard in newer models.

Replacement parts and supplies can be harder to find owing to its discontinued status.

Menu navigation on the LCD may feel less intuitive compared to modern touch interfaces.

FAQ

The Zebra 110XI4 supports a wide range of label types including linerless labels, tags, and die-cut labels in various sizes.

No, it supports up to 203 dpi which is adequate for most industrial barcode and label applications but not for very fine detailed print.

The 110XI4 model has been discontinued, so official support and parts availability are limited and mainly serviced through third-party providers.

It includes parallel, serial, and USB interfaces but does not have wireless connectivity such as Wi-Fi or Bluetooth.

The printer supports a maximum print width of 4.09 inches (104 mm).

Yes, the 110XI4 supports both direct thermal and thermal transfer ribbon printing methods.

Yes, detailed PDF manuals and technical documentation are available on Zebra's official website and various authorized resellers.
