Zebra QLN320
Brand | Zebra 2012 |
Model | QN3AUNA0M0000 |
Released Year | 2012 |
Type | Printers |
Series | Qln |
Status | Discontinued |
Quick view
Overview
The Zebra QLN320 is a compact, mobile thermal label printer designed for on-the-go printing needs in various industries, particularly in logistics and retail. It utilizes direct thermal printing technology with a resolution of 203 dpi, delivering clear and crisp labels up to 72 mm in width. The device features a processor capable of handling complex label formats and supports multiple connectivity options including USB and Bluetooth for seamless integration. Its rechargeable lithium-ion battery ensures extended operation, making it suitable for mobile use cases. The QLN320 supports multiple barcode symbologies, enhancing its versatility in barcode printing tasks. The printer is ruggedized to withstand drops and shocks, designed for durability in demanding work environments.
Specifications
MPN | QN3AUNA0M0000 |
UPC | 0625585575189 |
Model | QLN320 |
Memory | 8 MB Flash, 16 MB SDRAM |
Technology | Thermal |
Connectivity | USB 2.0, Bluetooth 2.0 |
Output Type | Black & White |
Features | Portable, Networkable |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Product Line | Zebra QLn |
Item Length | 32in. |
Item Height | 3.3in. |
Item Width | 3.10in. |
Weight | 1.4 lbs (0.635 kg) including battery |
Release Year | 2012 |
Printer Type | Mobile Thermal Printer |
Print Method | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 72 mm (2.83 inches) |
Print Speed | Up to 4 inches per second (101 mm/s) |
CPU | 32-bit ARM processor |
Battery | Rechargeable Lithium-ion battery (7.2V 2200 mAh) |
Supported Barcodes | Code 39, Code 128, EAN-13, UPC-A, QR Code, PDF417, Data Matrix |
Dimensions | 5.9 x 7.2 x 2.9 inches (150 x 183 x 74 mm) |
Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
Durability | Drop tested to 6 feet (1.8 m) |
Operating System Support | Windows, iOS via SDK |

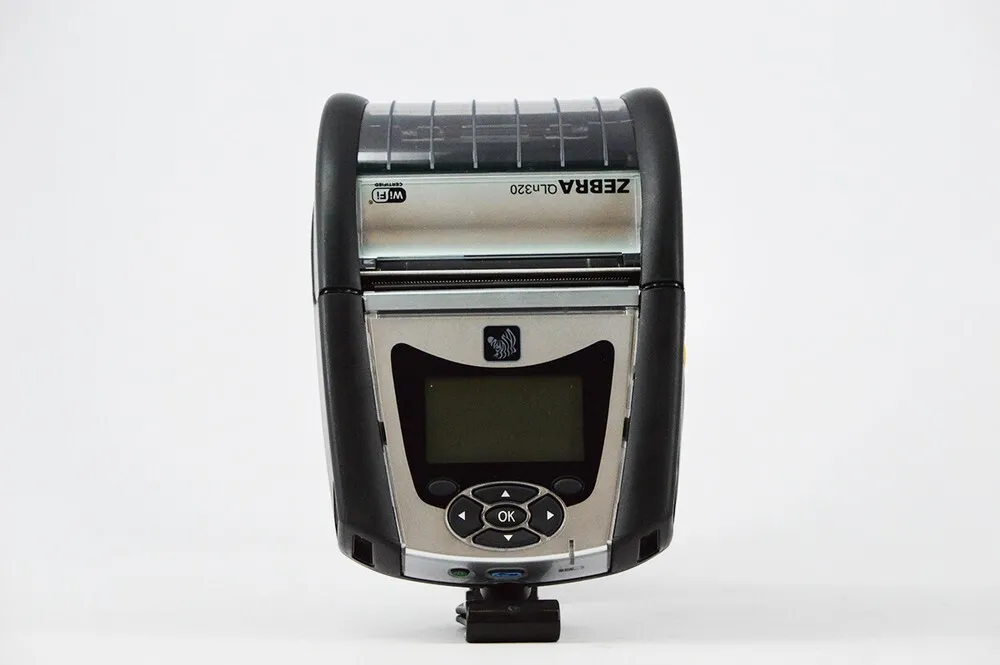

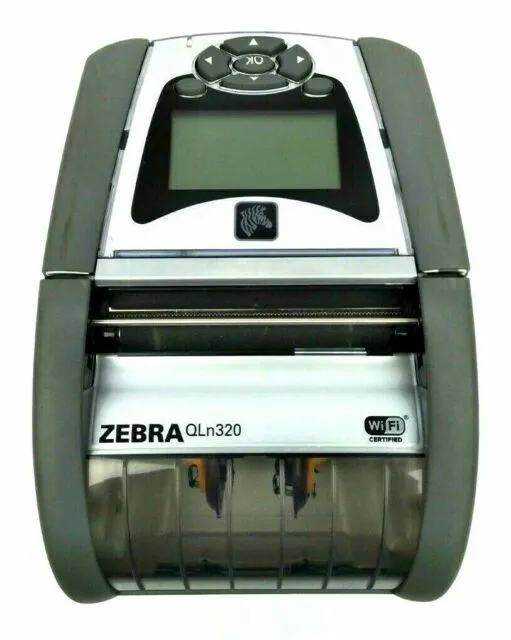

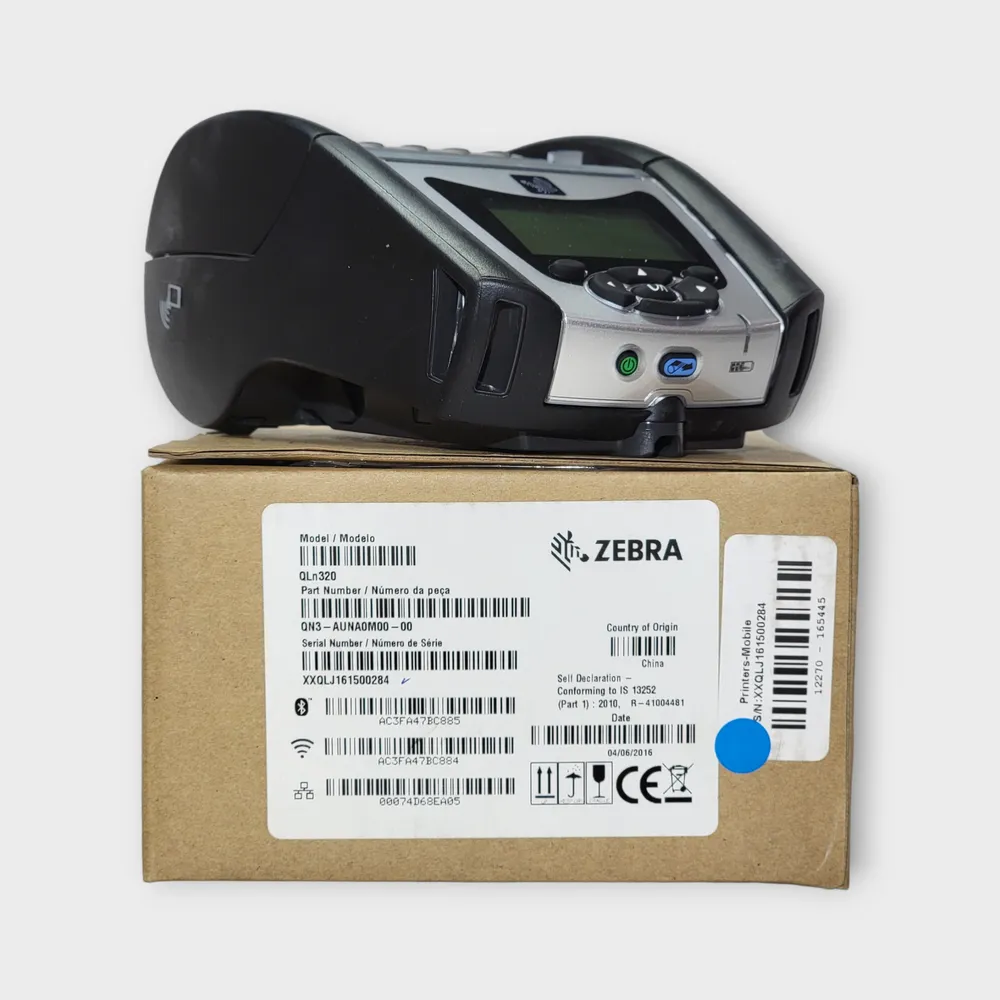

Images
Key Advantages
The Zebra QLN320 offers excellent portability due to its compact size and lightweight design. Its high-speed printing capability ensures efficient label production, improving productivity. The device’s Bluetooth and USB connectivity options provide flexibility for various use scenarios. With its durable construction, the printer resists damage from regular drops and harsh conditions. The inclusion of a long-lasting rechargeable battery supports extended mobile usage without frequent recharging. Additionally, the printer supports multiple languages and barcode formats, enhancing its adaptability for diverse printing demands.
Limitations
The QLN320 has a printing resolution limited to 203 dpi, which may not be sufficient for high-detail graphics or fine text requirements. Its maximum print width of 72 mm restricts it to smaller label sizes, limiting applications requiring larger labels. The printer lacks Wi-Fi connectivity, potentially restricting wireless integration options compared to modern devices. The thermal printing method requires special heat-sensitive labels, which may increase consumable costs. Its processing power, while adequate for most tasks, may struggle with very complex label designs. Battery life, though sufficient for typical use, might require frequent charging in intensive printing scenarios.
FAQ
What is the maximum print width of the Zebra QLN320?
The Zebra QLN320 supports a maximum print width of 72 mm (3 inches).
Does the Zebra QLN320 support wireless connectivity?
The QLN320 supports Bluetooth for wireless connections but does not include Wi-Fi.
What types of labels can be printed on the QLN320?
It uses direct thermal printing technology and requires thermal-sensitive labels compatible with the printer.
Is the Zebra QLN320 suitable for heavy industrial use?
The QLN320 is ruggedized and designed for durable mobile use, but extreme industrial environments may require more specialized printers.
What barcode types are supported by the QLN320?
The printer supports multiple barcode symbologies including Code 39, Code 128, EAN-13, UPC-A, and QR codes.
Can the QLN320 connect to mobile devices?
Yes, the QLN320 can connect to mobile devices via Bluetooth for printing on the go.
Is the Zebra QLN320 still available for purchase?
The Zebra QLN320 has been discontinued but may still be found through third-party resellers or used equipment suppliers.
