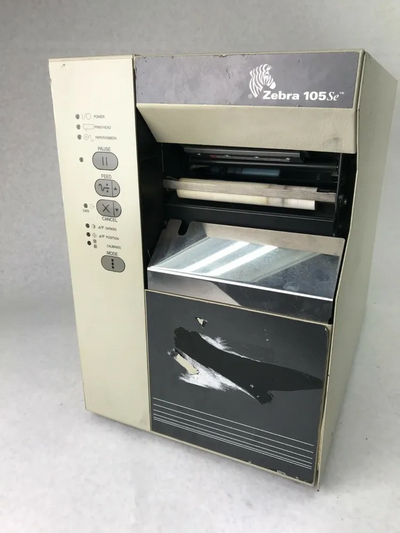

Zebra 105SE image

Zebra 105SE

Quick information
Brand Zebra 2016
Model 105SE
Released Year 2016
Type Printers
Series S
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Zebra 105SE is a robust industrial printer designed primarily for barcode labeling and identification applications. It employs direct thermal and thermal transfer printing technologies allowing flexibility according to label material and longevity needs. The printer supports print widths up to 4 inches, which is ideal for a wide range of label sizes. Technical communication interfaces include USB, parallel, and serial ports, facilitating easy integration into existing office and industrial systems. The 105SE series is powered by a 32-bit processor that increases throughput and reduces print time. Its rugged metal frame and durable construction are crafted to withstand intensive operational environments.

Specifications

Supported Paper Size Max Label Width: 4.09"
Model 105SE
Maximum Resolution 203 x 203 DPI
Black Print Speed 8 ips
Product Line Zebra S
Input Type Monochrome
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Connectivity USB 2.0, RS-232 Serial, Parallel (Centronics)
Type Label Printer
Output Type Black & White
Features Zebra Firmware
Memory 8 MB SDRAM, 4 MB Flash
Technology Thermal
MPN 105-411-00000
Printer Type Label Printer
UPC Does not apply
Print Method Thermal Transfer / Direct Thermal
Print Width 4 inches (104 mm)
Print Speed Up to 6 inches per second
Resolution 203 dpi (8 dots/mm)
Processor 32-bit RISC
Media Type Roll-fed, fan-fold, die-cut, continuous labels, tags, and tickets
Media Width 0.75 to 4.5 inches (19 to 114 mm)
Max Media Roll Diameter 8 inches (203 mm)
Ribbon Type Wax, Wax/Resin, Resin ribbons
Ribbon Width 1 to 4.33 inches (25.4 to 110 mm)
Dimensions 282mm (W) x 280mm (H) x 453mm (D)
Weight 7.2 kg
Operating Temperature 5°C to 40°C
Storage Temperature -40°C to 60°C
Durability Metal frame construction for industrial durability

Key Advantages

The Zebra 105SE offers excellent printing speed, enhancing productivity in busy workspaces. Its versatile media handling capabilities allow it to use both thermal transfer and direct thermal labels. The intuitive LCD and user interface simplify operation and message management, reducing training time. Compatible with a wide range of connectivity options makes integration seamless. The rugged design ensures longevity, minimizing maintenance and downtime. Additionally, it supports a variety of barcode symbologies which enhances versatility in labeling applications.

Limitations

The printer's size and weight are larger compared to modern compact desktop models, limiting portability. It lacks some advanced connectivity options like wireless or Ethernet in basic configurations, which may require additional modules. Limited color printing capability confines it primarily to monochrome labels. The device requires specific media and ribbons which can sometimes be costlier or less accessible. Firmware updates require manual installation which might not be as user-friendly as newer models. Noise levels during operation are higher than quiet office printers, making it less ideal for noise-sensitive environments.
