Unbranded/Generic JK-58PL
| Brand | Unbranded/Generic 2015 |
| Model | JK-58PL |
| Released Year | 2015 |
| Type | Printers |
| Printing Technology | Thermal |
| Status | Discontinued |
Quick view
Overview

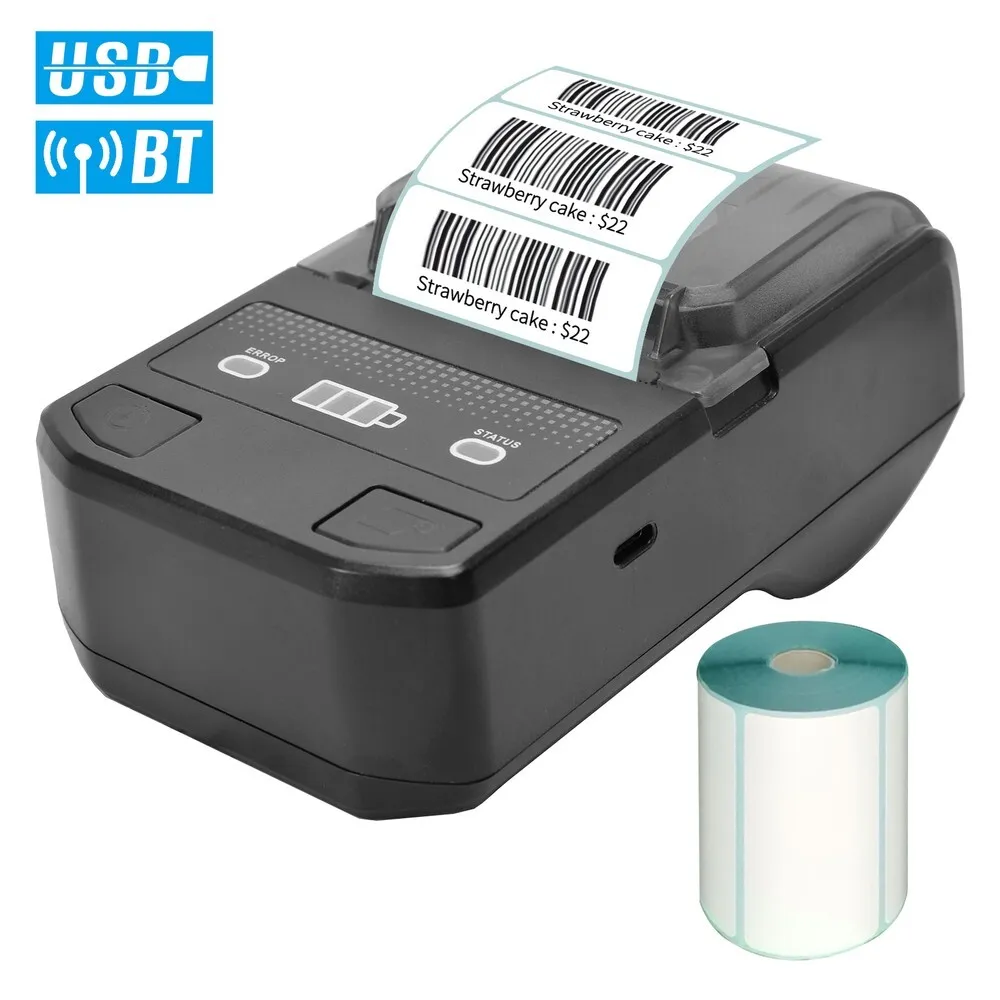

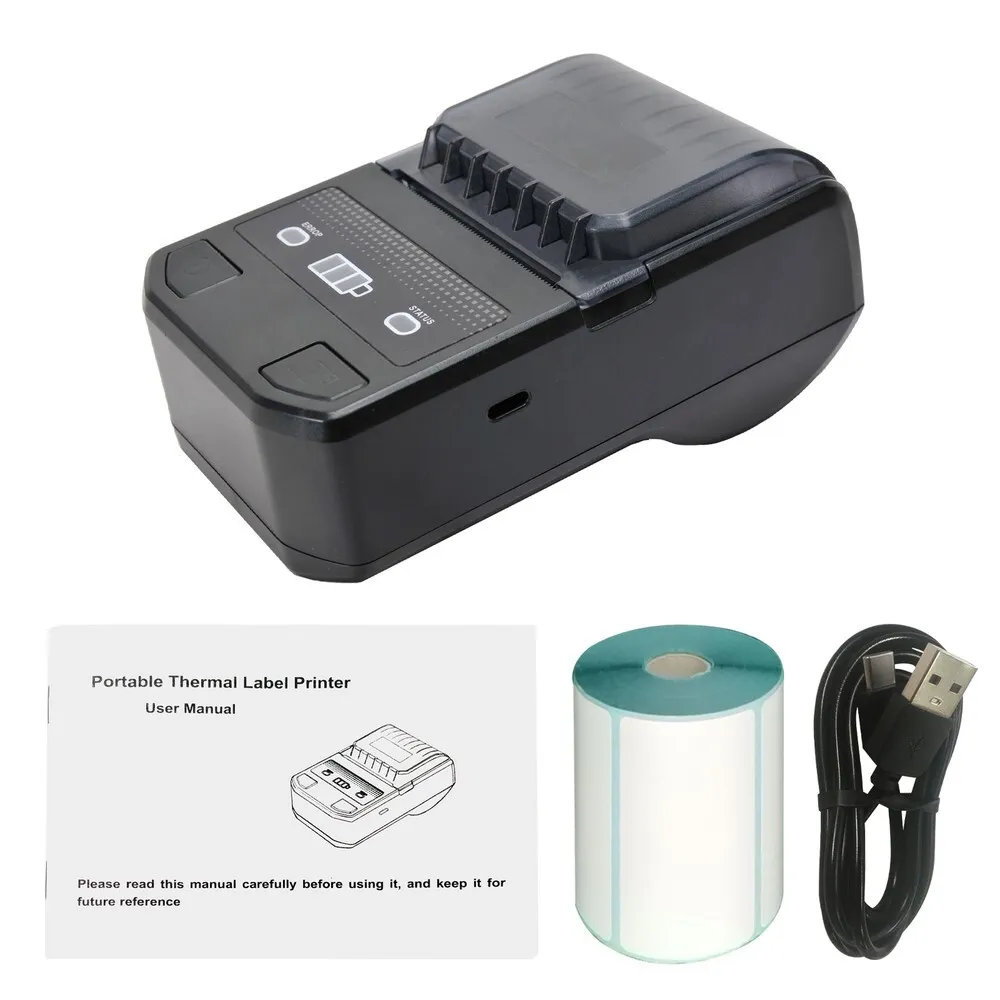

The JK-58PL is a compact office printer designed primarily for small to medium-sized businesses with moderate print volume needs. It utilizes thermal printing technology to produce sharp and durable text and images on various paper types. The printer supports USB connectivity, allowing straightforward integration with most office computers without needing additional network hardware.
This model features a maximum print resolution of 203 dpi, suitable for basic printing tasks such as documents, labels, and receipts. It operates at a printing speed of up to 50 millimeters per second, making it efficient for quick print jobs. The machine is powered by an integrated power supply with low energy consumption, ensuring cost-effective operation. Paper feeding is managed manually or through a single sheet feeder designed for continuous roll paper or standard sheets.
Specifications
| MPN | Does not Apply |
| Type | Label Printer |
| Label Print Version | TSC |
| Operating Temperature | -20~ 60℃, Storage Humidity: 5~95%(No Dew) |
| Smart Power Saving | Support |
| Effective Printing Width | 48mm |
| Color | Black |
| Roll Diameter | 50mm(max.) |
| Print Method | Direct Thermal Printing |
| Graphics Printing | Supports bitmap dowmload and print(support size Max.8K, Most 5pcs |
| Variable Speed Printing | Support |
| Battery Capacity | 1500mAh lithium polymer battery 7.4V |

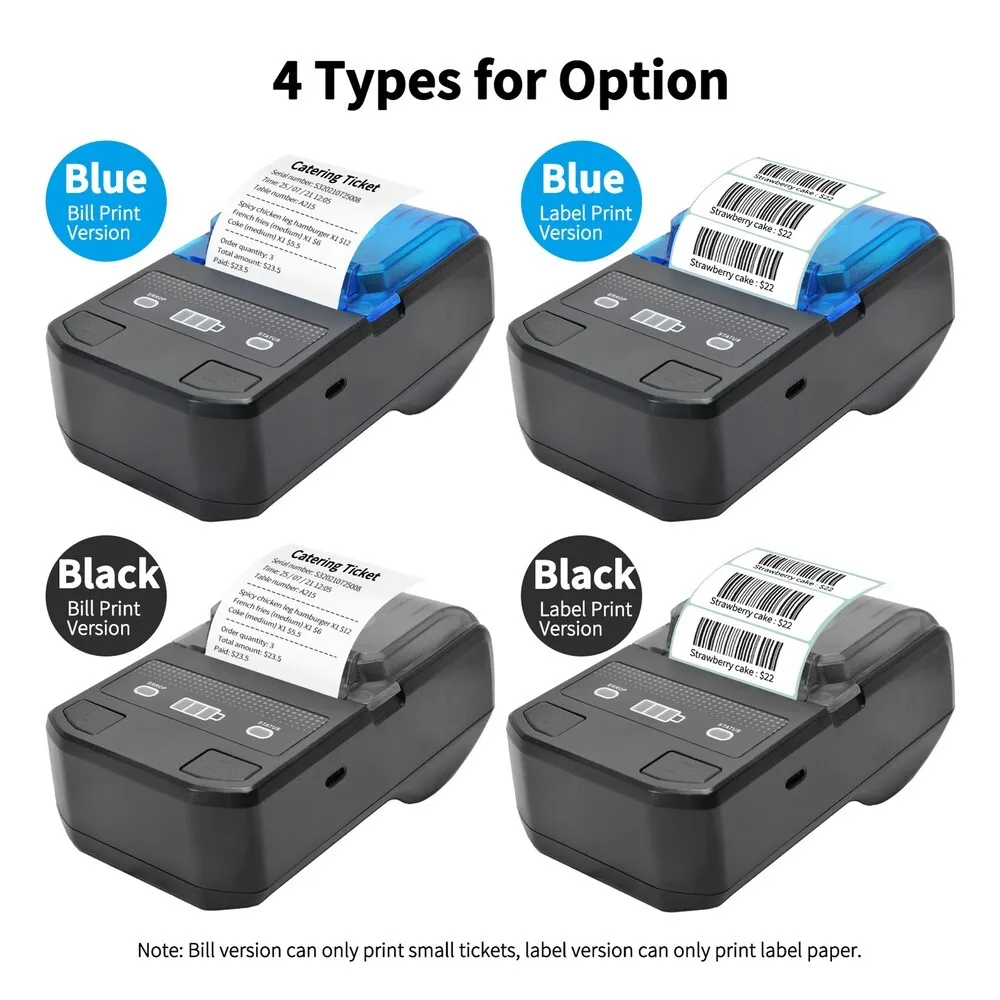

| Version | Label Print Version |
| Bill Print Version | ESC |
| Model | JK-58PL |
| Operating System | Compatible with Phone:(Android, iOS), PC(Linux, Windows) |
| Print Head Life | 50KM(printing Density ≤12.5) |
| Paper Width | 57.5±0.5mm |
| Max. Printing Speed | 85mm/s |

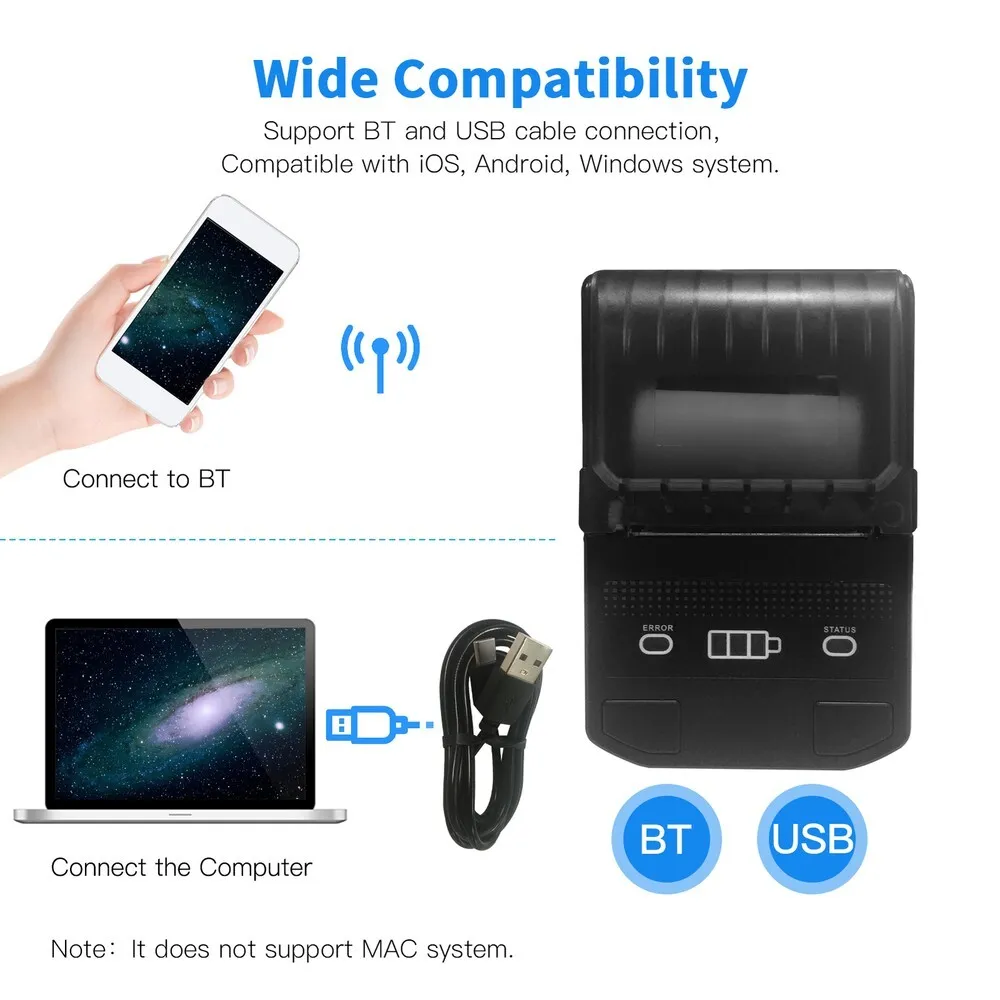

| Interface | USB/BT |
| Power | USB Rechargeable |
| Resolution | 384 dots/line(8dots/mm, 203dpi) |
| UPC | Does not Apply |
| Device Type | Office Electronics - Printer |
| Printing Technology | Thermal |
| Print Resolution | 203 dpi |
| Print Speed | Up to 50 mm/sec |
| Connectivity | USB 2.0 |
| Media Types Supported | Thermal paper rolls, standard paper sheets |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions (WxDxH) | 150 x 120 x 90 mm |
| Weight | Approx. 1.2 kg |
| Operating Systems Supported | Windows 7/8/10, Mac OS X, Linux |
| Standby Power Consumption | Less than 1.5W |
| Setup | Plug and play, no additional drivers typically required |
| Manufacturer | Unbranded/Generic |
| Discontinued | Yes |
Images
Key Advantages
The JK-58PL offers a simple plug-and-play setup, making it easy to deploy in multiple office environments. Its thermal printing method eliminates the need for ink or toner, reducing running costs significantly. The compact size and light weight of the device allow space-saving placement and enhanced portability. It is compatible with various common operating systems without requiring complex drivers. The low maintenance requirements further increase uptime and reduce service interruptions. Additionally, its reliable mechanics ensure consistent print quality over extended use.
Limitations
The maximum print resolution of 203 dpi can limit the quality of detailed graphic printing or color reproduction. The printer lacks wireless connectivity options, which may restrict flexible placement in modern networked environments. It supports a narrow range of media sizes and types, primarily targeting standard paper and labels. The print speed is modest compared to high-capacity office printers, potentially slowing down large print jobs. The device is unbranded, so official support and firmware updates might be limited or unavailable. Additionally, the absence of an automatic document feeder limits functionality for multi-page scanning or copying tasks.
FAQ
What type of printing technology does the JK-58PL use?
The JK-58PL uses thermal printing technology, which prints by selectively heating coated thermal paper.
Does the JK-58PL support wireless printing?
No, the JK-58PL only supports USB connectivity for direct connection to a computer.
What is the maximum print resolution of the JK-58PL?
The maximum print resolution is 203 dpi, suitable for clear text and simple graphics.
Can the JK-58PL handle color printing?
No, the JK-58PL is a monochrome thermal printer and does not support color printing.
Is the JK-58PL still in production?
No, the JK-58PL has been discontinued and is no longer produced.
What types of media can the JK-58PL print on?
It can print on thermal paper rolls and standard sheets typically used for receipts or labels.
Are replacement parts and accessories available for the JK-58PL?
Due to its unbranded nature and discontinued status, replacement parts and accessories may be limited and harder to source.
