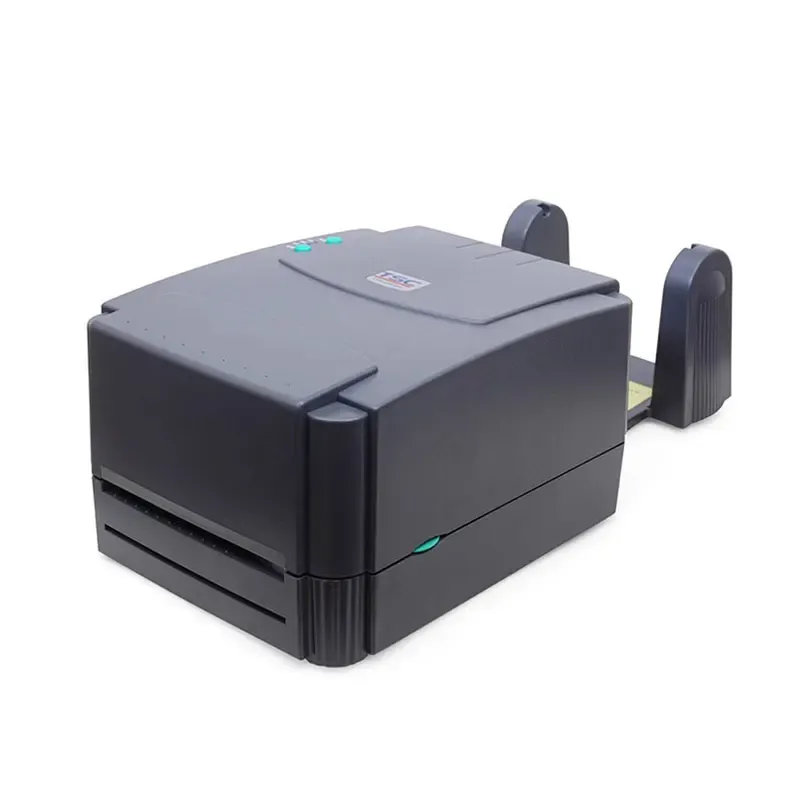

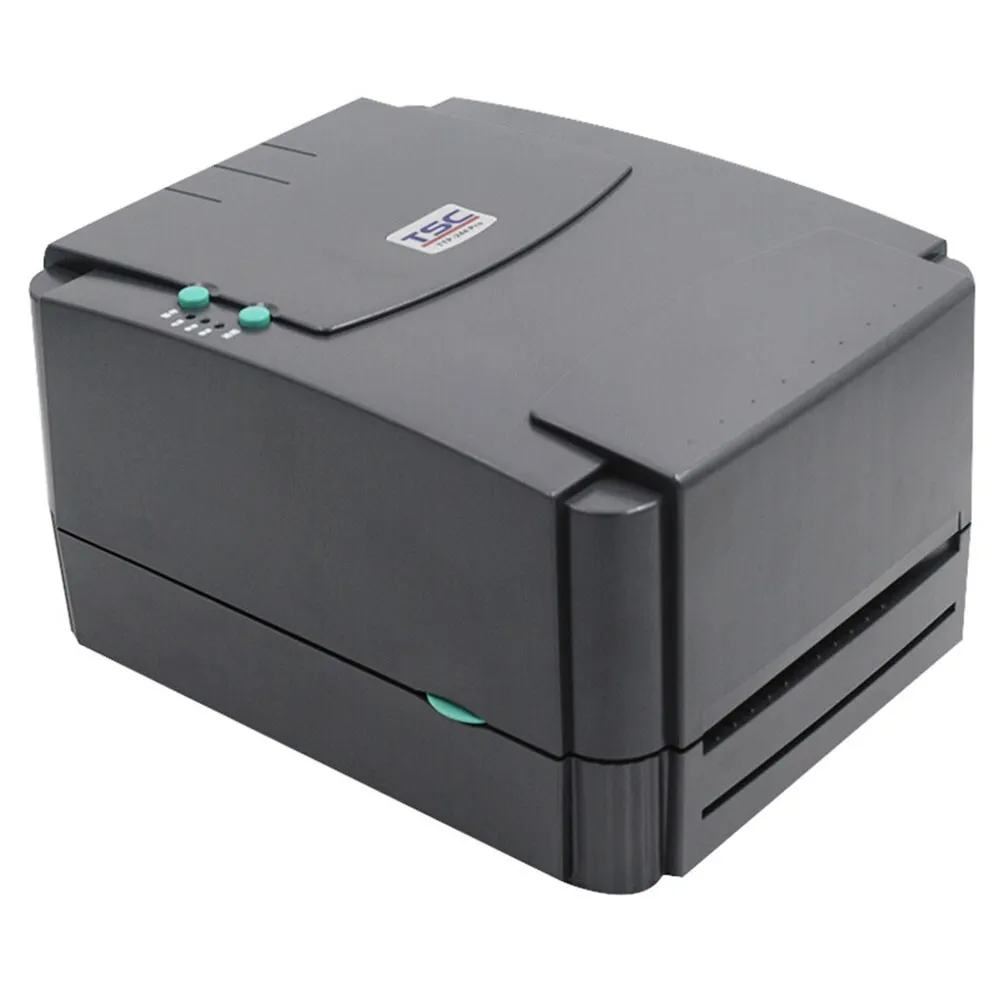

TSC TTP-244 PRO image

TSC TTP-244 PRO

Quick information
Brand TSC 2015
Model TTP-244 PRO
Released Year 2015
Type Printers
Status Active
Quick view
Full specs Images

Overview

The TSC TTP-244 PRO is an industrial-grade thermal transfer and direct thermal printer designed for high-volume label printing applications. Equipped with a 203 dpi print resolution, it ensures sharp and clear barcode, text, and graphics output. The printer supports various label widths up to 4.25 inches and has a print speed of up to 6 inches per second, making it suitable for medium to large scale use. It comes with a 32-bit RISC CPU for fast data processing and supports multiple communication interfaces including USB, serial, and parallel ports. The printer features a robust metal frame for durability and is compatible with various media types including continuous, die-cut, and fanfold labels. It also supports multiple barcode symbologies and graphic formats for versatile printing needs.

The TTP-244 PRO also incorporates an optional internal Ethernet interface for network printing capabilities and expandable memory options to handle complex print jobs, making it a reliable choice in logistics, manufacturing, and retail environments.

Specifications

Connectivity
  • Cable, Serial (RS-232), USB 2.0
  • Wired
Enclosure ABS plastic
Input Type Monochrome
Label roll capacity 110 mm (4.33“) OD
Max. print length 2,286 mm (90“)
Max. print speed 127 mm (5”)/second
Max. print width 108 mm (4.25“)
Memory 4 MB Flash, 8 MB SDRAM (expandable)
Model TTP-244 PRO
MPN TTP-244 PRO
Output Type Black & White
Processor 32-bit RISC CPU
Resolution 8 dots/mm (203 DPI)
Ribbon width 40 mm ~ 110 mm (1.6” ~ 4.3”)
Technology Thermal
Type
  • Desktop Scanner
  • Barcode Printer
UPC Does not apply
Printer Technology Thermal Transfer and Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Speed 6 inches per second (152 mm/s)
Maximum Print Width 4.25 inches (108 mm)
Interfaces USB 2.0, Serial RS-232, Parallel, Optional Ethernet
Media Types Supported Continuous, Die-cut, Black Mark, Fanfold, Wristbands
Media Width 0.79 to 4.33 inches (20 to 110 mm)
Media Thickness 0.06 to 0.254 mm
Ribbon Type Wax, Wax/Resin, Resin
Ribbon Width 1.57 to 4.33 inches (40 to 110 mm)
Dimensions (W x D x H) 246 x 206 x 171 mm
Weight Approx. 3.6 kg
Power Supply External universal switching power supply 100-240V AC
Operating Temperature 5°C to 40°C
Storage Temperature -40°C to 60°C
Durability Metal frame for industrial use
Barcode Types Supported Code 39, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5, QR Code, PDF417, Data Matrix
Bar code 1D/2D
Interface USB
Maximum Resolution 8 dots/mm (203 DPI)
Printing method Thermal Transfer & Direct Thermal

Key Advantages

The TTP-244 PRO excels in delivering high-quality print resolution at 203 dpi, ensuring crisp labels and barcodes suitable for professional applications.

Its durable metal housing protects internal components, increasing the printer's longevity in industrial settings.

With print speeds reaching up to 6 inches per second, it facilitates efficient label production to keep up with busy operations.

Multiple interface options including USB, serial, and Ethernet allow flexible connectivity to various systems.

Expandable memory and compatibility with a broad range of media types add versatility to meet different printing requirements.

The printer handles multiple barcode formats and graphic images, supporting diverse labeling standards and compliance.

Limitations

The TTP-244 PRO has a fixed print resolution of 203 dpi and does not support higher resolutions for detailed image printing.

It is limited to a maximum label width of 4.25 inches, which may restrict applications needing larger labels.

The lack of a built-in Wi-Fi interface requires additional adapters or cables for wireless connectivity.

The printer’s operation depends on external power, limiting portability for mobile printing needs.

Its design mainly targets industrial applications, which might be over-specification and cost-inefficient for light or home office use.

Firmware updates may require manual intervention, lacking automatic update capabilities that some modern printers provide.

FAQ

The TTP-244 PRO supports continuous, die-cut, black mark, fanfold, and wristband labels, making it versatile for various labeling needs.

The printer supports an optional internal Ethernet interface for network printing, along with USB, serial, and parallel connectivity options.

The maximum print speed is 6 inches per second, suitable for medium to high volume printing tasks.

Yes, it supports multiple barcode symbologies and graphic formats for printing labels with text, barcodes, and logos.

No, it requires external power and is designed for stationary use in industrial or office environments.

It offers a print resolution of 203 dots per inch (dpi), which is standard for sharp barcode and label printing.

Firmware can be updated manually via connected PC software, but it does not support automatic over-the-air updates.
