Datamax-ONeil H-4212X
Brand | Datamax-ONeil 2007 |
Model | C32-U7-48000S04, H4212X, O'Neil, Honeywell, Wireless, Ethernet Network, Industrial |
Released Year | 2007 |
Type | Printers |
Series | H-Series |
Status | Discontinued |
Quick view
Overview
The Datamax-O'Neil H-4212X is an industrial-grade direct thermal and thermal transfer printer designed primarily for high reliability in harsh office and industrial environments. It operates on a wireless Ethernet network connectivity providing seamless integration into networked printing setups. The printer supports high-speed printing capabilities with resolutions optimized for detailed barcode and label production. It uses a 32-bit processor for faster data processing and supports a wide variety of label media widths and types. The device is outfitted with advanced printhead technology ensuring consistent print quality and durability. Its robust metal enclosure enhances the lifespan in industrial settings where resistance to dust and vibration is critical.
Specifications
Printer type | Industrial Direct Thermal and Thermal Transfer |
Print resolution | 203 dpi (8 dots/mm) |
Print speed | Up to 6 ips (inches per second) |
Processor | 32-bit RISC processor |

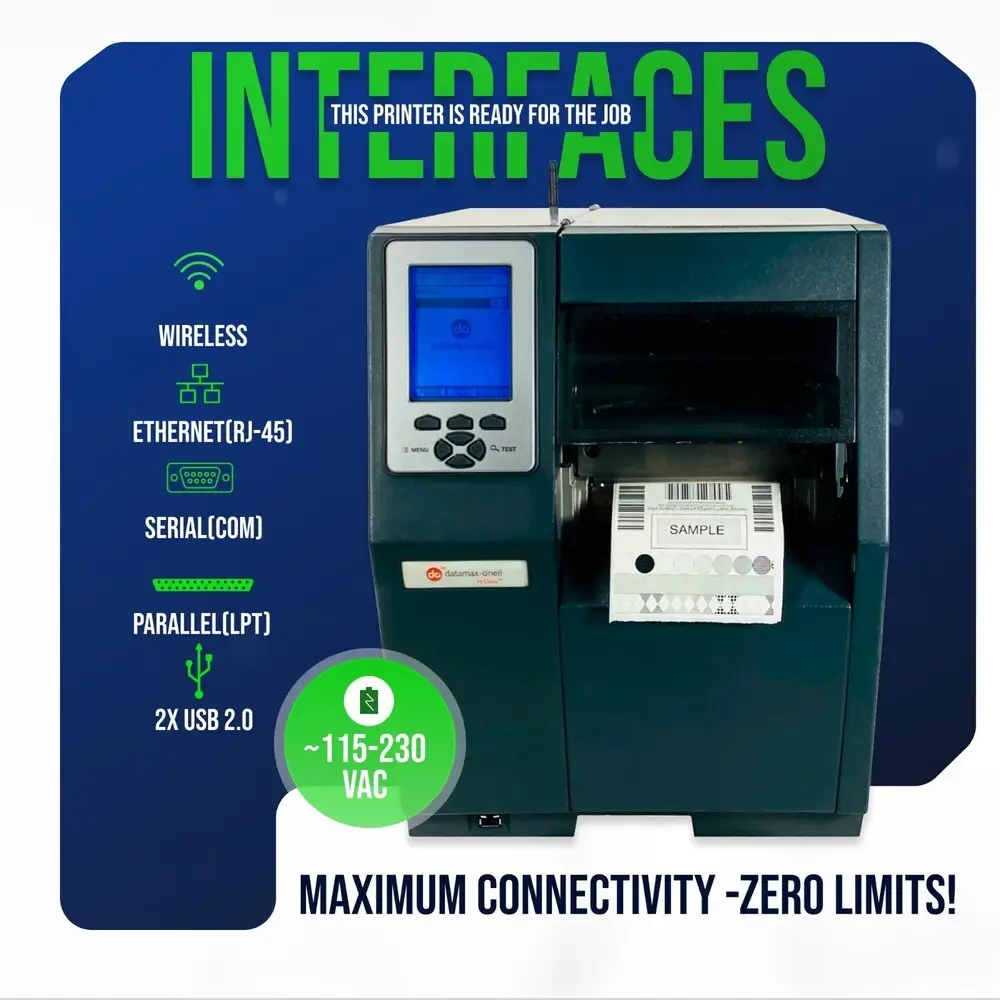

Connectivity | Serial (RS-232 DB9), Ethernet (RJ-45), Parallel (IEEE 1284), USB 2.0, Wireless |
Memory | 16 MB |
Max print width | 4.16 inches (106 mm) |
Media types supported | Continuous, die-cut, black mark, fan-fold |
Media width | 0.75 to 4.65 inches (19 to 118 mm) |
Media roll diameter | Up to 8 inches (203 mm) |
Ribbon type | Wax or resin-based thermal transfer ribbons |
Dimensions | 11.25 x 8.5 x 9.5 inches (W x D x H) |
Weight | Approx. 12 lbs (5.44 kg) |
Operating temperature | 41°F to 104°F (5°C to 40°C) |
Power supply | Universal auto-ranging 100-240 VAC, 50-60 Hz |
Enclosure | Rugged metal casing |
Emulations | Datamax-DPL, MCL, DCL, IPL |
Input Type | Monochrome |
Output Type | Black & White |
MPN | C32-U7-48000S04, H4212X, O'Neil, Honeywell, Wireless, Ethernet Network, Industrial |
Supported Paper Size | Maximum Label Width: 4.65" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | H-4212X |
Features | Networkable |
Black Print Speed | 12 ips |
Country/Region of Manufacture | United States |
Product Line | H-Series |
UPC | Does not apply |
Images
Key Advantages
The H-4212X offers wireless Ethernet connectivity allowing flexible setup without tethered cables, thus enhancing operational efficiency. It supports both direct thermal and thermal transfer printing methods, making it versatile for multiple labeling needs. The device features a fast processor that reduces print job latency for high productivity. Its rugged design is suitable for continuous use in demanding environments. Additionally, it accommodates a large roll capacity which minimizes downtime due to label changes. The printer's user interface and firmware allow easy integration with existing inventory and logistic systems.
Limitations
Despite its robust design, the H-4212X may require specialized maintenance due to the complexity of its wireless networking components. The initial setup of wireless Ethernet on industrial networks could involve more detailed configuration than wired counterparts. Its resolution, while suitable for most industrial applications, may not meet the requirements of ultra-high-density printing. The device's size and weight can be a limitation in environments with space constraints. Replacement parts and accessories might be less readily available due to its discontinued manufacturing status. Power consumption is relatively high compared to newer models optimized for energy efficiency.
FAQ
What types of printing technology does the H-4212X support?
The H-4212X supports both direct thermal and thermal transfer printing technologies.
Can the H-4212X connect to a wireless Ethernet network?
Yes, the printer includes wireless Ethernet connectivity for network integration.
Is the H-4212X suitable for industrial environments?
Yes, its rugged design and metal enclosure make it well-suited for harsh industrial conditions.
What is the maximum print resolution of the H-4212X?
The printer provides a maximum resolution of 203 dpi, optimized for barcode and label printing.
Are there replacement parts readily available for the H-4212X?
As the device is discontinued, replacement parts might be more difficult to source through standard channels.
Does the H-4212X support large label rolls?
Yes, it supports large roll sizes to reduce the frequency of label roll changes.
What operating systems are compatible with the H-4212X printer drivers?
Drivers are available for major operating systems including Windows XP and newer; however, compatibility with modern systems may require testing.
