Zebra ZT51043-T010000Z
| Brand | Zebra 2019 |
| Model | ZT51043-T010000Z |
| Released Year | 2019 |
| Type | Printers |
| Series | ZT510 |
| Item Weight | 40.1 pounds |
| Maximum Color Print Resolution | 300 dpi |
| Status | Discontinued |
Quick view
Overview

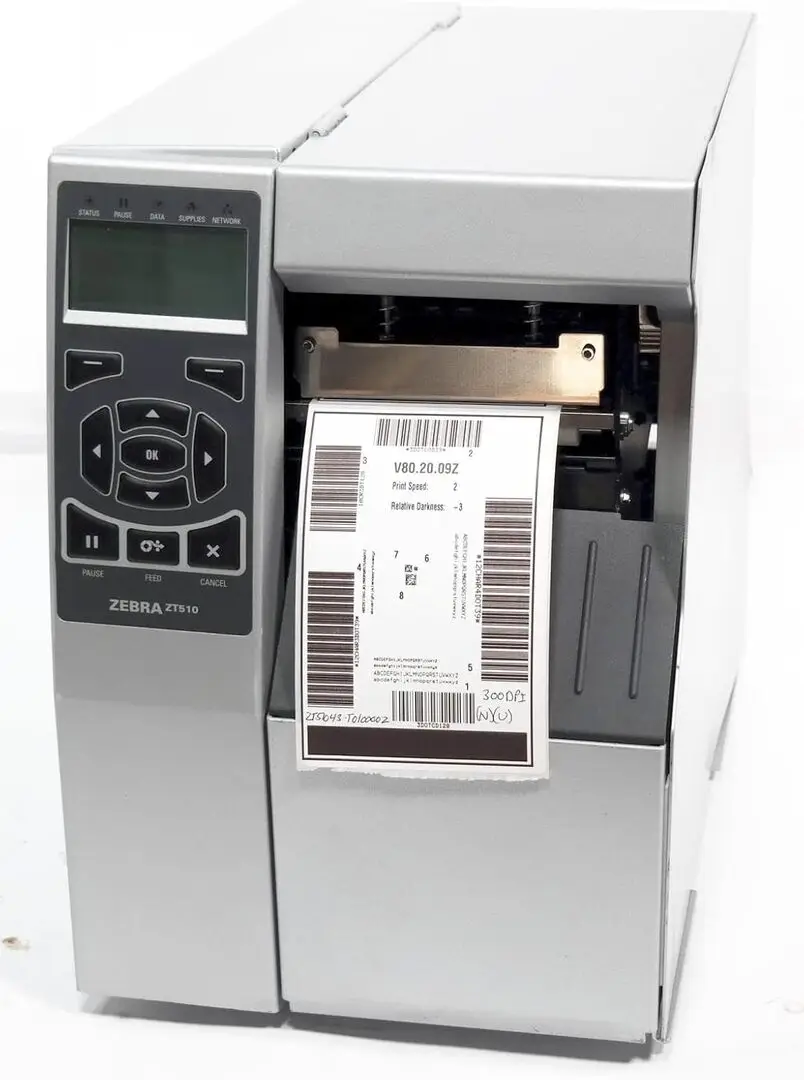

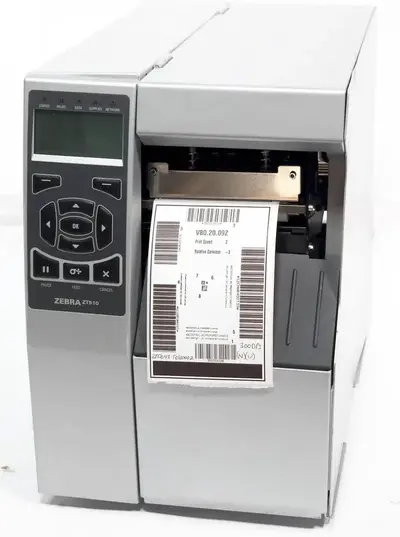

The Zebra ZT510 is an industrial-grade thermal label printer designed for high-volume printing tasks in office and manufacturing environments.
It supports both direct thermal and thermal transfer printing methods, allowing versatile media compatibility.
The printer features a 203 dpi print resolution suitable for barcode labeling and text output with precision.

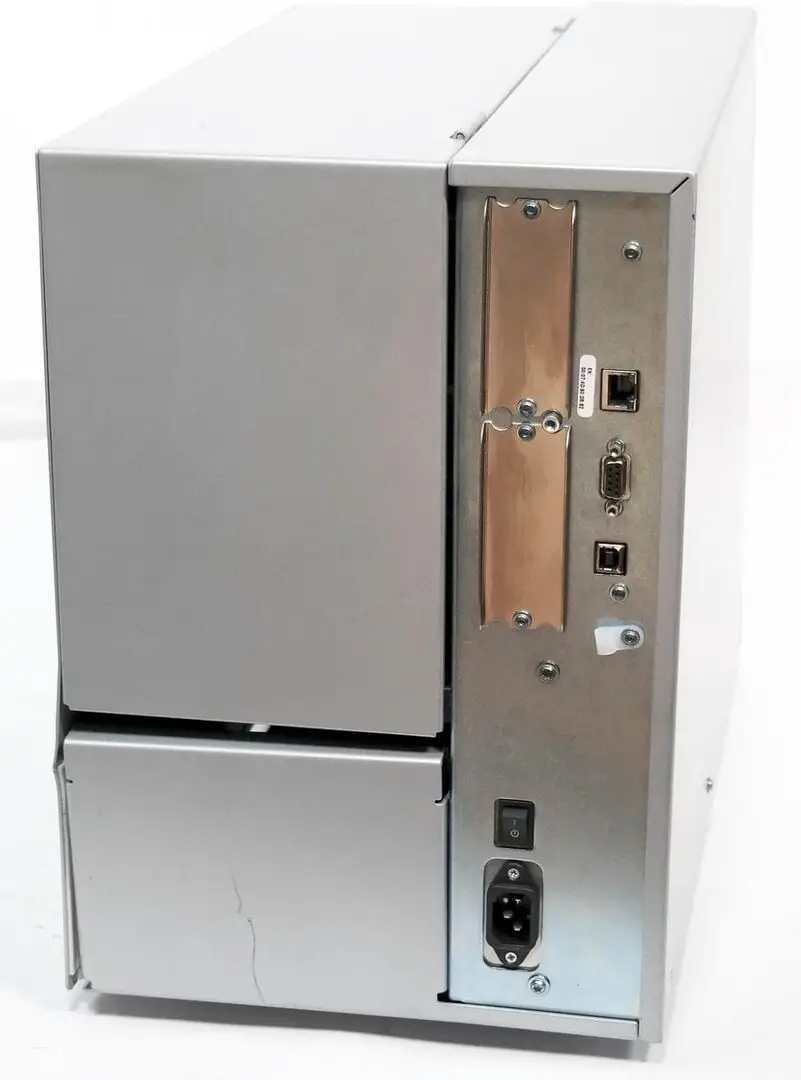

Connectivity options include USB, serial, parallel, and optional Ethernet, facilitating integration with various network systems.
Its robust metal frame design ensures durability under continuous operation and harsh settings.
The ZT510 incorporates a graphical LCD display providing intuitive user interface and advanced control menus for print management.
Specifications
| Print Method | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Speed | 14 ips (356 mm/s) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Media Type | Continuous, die-cut, black mark, tag stock, fan-fold, hole-punched |
| Media Width | 0.79 to 4.65 inches (20 to 118 mm) |
| Roll Capacity | Up to 8 inch (203 mm) diameter |
| Processor | 32-bit RISC CPU |
| Memory | 32 MB DRAM, 16 MB Flash |
| Connectivity | USB 2.0, RS-232 Serial, Centronics Parallel, Optional Ethernet |
| Display | Graphical LCD with 128 x 64 pixels |
| Dimensions (W x H x D) | 10.0 x 14.4 x 19.4 inches (254 x 366 x 493 mm) |
| Weight | 28 lbs (12.7 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Humidity | 20% to 85% non-condensing |
| Power Supply | Auto-ranging 100-240 VAC, 50-60 Hz internal |
| Compatible Devices | Laptops |
| Maximum Color Print Resolution | 300 dpi |
| Sheet Size | 3 inches |
| Maximum Black and White Print Resolution | 300 dpi |
| Warranty Type | Full warranty |
| Dual-sided printing | No |
| Max copy resolution black-white | 300 dpi |
| Duplex | Manual |
| Hardware Interface | USB |
| Ink Color | black |
| Additional Printer functions | Print Only |
| Control Method | Touch |
| Series Number | 510 |
| Number of USB 2 Ports | 1 |
| Total USB Ports | 1 |
| Package Dimensions | 23 x 18 x 15 inches |
| Item Weight | 40.1 pounds |
| Item model number | ZT51043-T010000Z |
| Date First Available | March 28, 2019 |
| Manufacturer | Zebra |
Images
Key Advantages
The ZT510 offers high throughput with print speeds up to 14 inches per second, increasing productivity in demanding environments.
Its wide media handling capability supports labels up to 4.09 inches wide and large roll sizes, minimizing downtime.

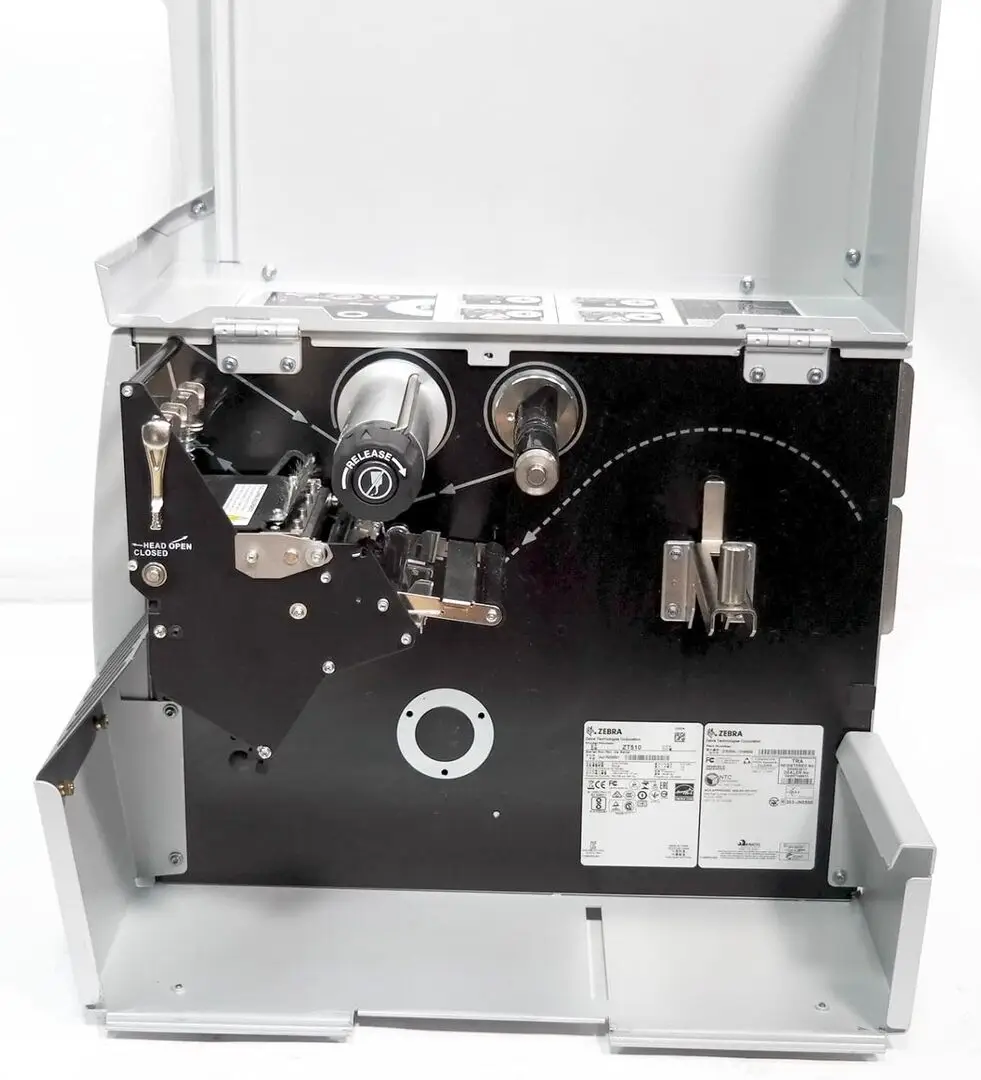

The printer's modular design allows easy replacement of printheads and maintenance components, reducing service time.
Comprehensive connectivity options enable flexible deployment in diverse network topologies.
The intuitive user interface simplifies printer operation and configuration.
Built-in diagnostics and error detection enhance reliability and reduce operational disruptions.
Limitations
The 203 dpi print resolution may be insufficient for applications requiring extremely fine detail or small fonts.
Its physical size and weight limit portability compared to desktop printers.
The ZT510 lacks native wireless connectivity, which may necessitate additional adapters for certain environments.
Limited support for emerging media types without additional accessory upgrades.
Firmware updates and advanced features require specialized software that may not be fully user-friendly.
As an older model, parts availability may be constrained in some regions.
FAQ
What type of printing technology does the Zebra ZT510 use?
The Zebra ZT510 uses both direct thermal and thermal transfer printing technologies for versatile labeling applications.
What is the maximum print speed of the ZT510?
The printer supports a maximum print speed of up to 14 inches per second.
Which connectivity options are available on the ZT510?
Standard connectivity options include USB, serial, and parallel ports, with optional Ethernet support.
Is the ZT510 suitable for high-resolution printing needs?
The ZT510 has a print resolution of 203 dpi, which is adequate for most barcode and text printing but may not suffice for very fine detail.
Is the Zebra ZT510 still being manufactured?
No, the ZT510 model has been discontinued and is no longer in production.
What media width can the ZT510 accommodate?
It supports label widths up to 4.09 inches, suitable for a wide range of industrial labeling requirements.
How does the ZT510 handle maintenance and part replacement?
The printer features a modular design that allows easy access and replacement of printheads and other components to streamline maintenance.
