Zebra Zt510
Brand | Zebra 2019 |
Model | Zt510 |
Released Year | 2019 |
Type | Printers |
Series | Zt510 |
Item Weight | 53.3 pounds |
Maximum Color Print Resolution | 300 dpi |
Status | Active |
Quick view
Overview

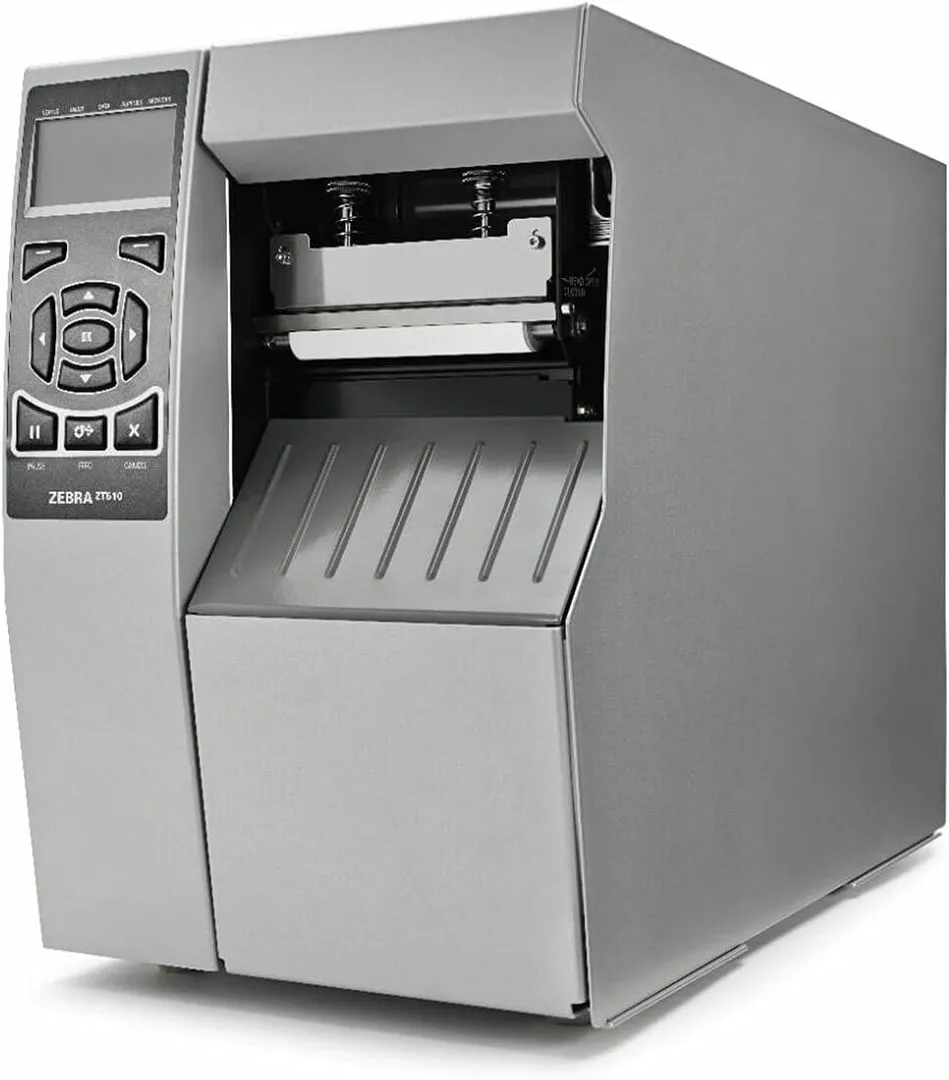

The Zebra ZT510 is an industrial-grade printer designed for high-volume label printing in office and manufacturing environments. It features a rugged metal frame and advanced thermal printing technology, supporting both direct thermal and thermal transfer methods. The printer offers a print resolution of 203 dpi and a print speed of up to 14 inches per second, balancing quality and efficiency. Equipped with a large color LCD interface, it facilitates easy navigation and control. Connectivity options include USB, Serial, and Ethernet for versatile integration into existing networks. The device supports a wide range of media types and widths to enhance adaptability across varied applications.
Specifications
Print media | Labels |
Max Input Sheet Capacity | 250 |
Compatible Devices | Laptops |
Maximum Color Print Resolution | 300 dpi |
Sheet Size | 4.09 inches |
Maximum Black and White Print Resolution | 300 dpi |
Warranty Type | limited warranty |
Color Depth | 1 bpp |
Dual-sided printing | No |
Maximum copies per run | hundreds |
Max copy resolution color | 300 dpi |
Max copy resolution black-white | 300 dpi |
Duplex | Simplex |
Hardware Interface | USB |
Ink Color | black |
Additional Printer functions | Print Only |
Control Method | Remote |
Compatible Cartridge | [Zebra] |
Processor Count | 1 |
Series Number | 510 |
Total Ethernet Ports | 1 |
Number of USB 2 Ports | 1 |
Number of USB 3 Ports | 1 |
Total USB Ports | 1 |
Specific Uses For Product | shipping labeling, inventory management, product tracking |
Package Dimensions | 23.7 x 20 x 16.4 inches |
Item Weight | 53.3 pounds |
Item model number | Zt510 |
Date First Available | March 1, 2019 |
Manufacturer | Zebra |
Print Method | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots per mm) |
Maximum Print Speed | 14 inches per second (356 mm/s) |
Max Print Width | 4.09 inches (104 mm) |
Media Width | 0.75 inches to 4.5 inches (19 mm to 114 mm) |
Memory | 256 MB Flash, 128 MB DRAM |
Interface Options | USB 2.0, RS-232 Serial, 10/100 Ethernet |
Display | 4.3-inch color touch LCD |
Dimensions (HxWxD) | 265 mm x 264 mm x 508 mm |
Weight | Approx. 15 kg |
Power | External power supply, 100-240 VAC, 47-63 Hz |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |
Certifications | FCC, UL, CE, RoHS |
Images
Key Advantages
The Zebra ZT510 boasts excellent durability with its all-metal construction, ensuring long-term reliability in harsh industrial settings. Its high print speed accelerates workflows without sacrificing print quality, boosting overall productivity. The intuitive color LCD screen simplifies operation, reducing training time and operator errors. Flexible connectivity options enable seamless integration into multiple IT environments. Robust media handling capabilities allow the use of diverse materials, making it adaptable to different labeling needs. Additionally, advanced features like RFID encoding options expand its functionality for asset tracking and inventory management.
Limitations
While the 203 dpi resolution is suitable for most label applications, it may not meet the demands of high-definition printing needs. The ZT510 does not support wireless connectivity out of the box, which could limit flexibility in certain network configurations. Its large size and weight may pose challenges in space-constrained environments. The printer’s thermal transfer ribbons and media can introduce additional operating costs compared to some other technologies. The firmware updates and feature enhancements depend heavily on Zebra's support lifecycle. Lastly, users needing color printing capabilities will find the ZT510 limited as it focuses exclusively on monochrome thermal printing.
FAQ
What printing technologies does the Zebra ZT510 support?
The Zebra ZT510 supports both direct thermal and thermal transfer printing technologies, allowing for versatile label printing options.
What is the maximum print speed of the ZT510?
The printer can achieve print speeds up to 14 inches per second.
Does the ZT510 have RFID capabilities?
Yes, the ZT510 offers optional RFID encoding to support asset tracking applications.
What connectivity options are available on the ZT510?
Connectivity options include USB, Serial, and Ethernet ports for flexible integration.
Is wireless connectivity supported?
No, the ZT510 does not support wireless connectivity by default.
What resolution does the printer offer?
The ZT510 offers a print resolution of 203 dpi.
Is the Zebra ZT510 still in production?
As of now, the Zebra ZT510 is not discontinued and remains supported within the ZT500 Series lineup.
