Zebra ZT411
| Brand | Zebra 2021 |
| Model | ZT411 |
| Released Year | 2021 |
| Type | Printers |
| Series | ZT |
| Item Weight |
|
| Maximum Media Size |
|
| Maximum Color Print Resolution |
|
| Product Dimensions |
|
| Status | Active |
Quick view
Overview

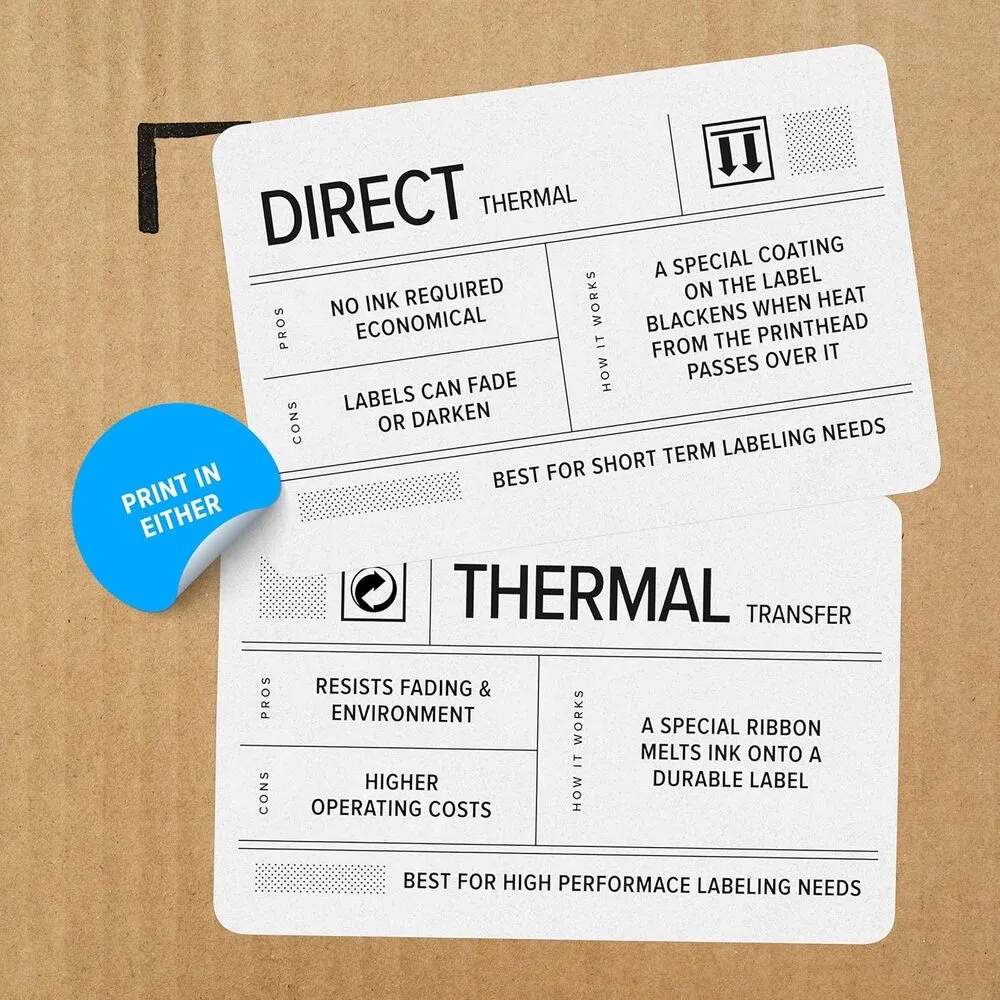

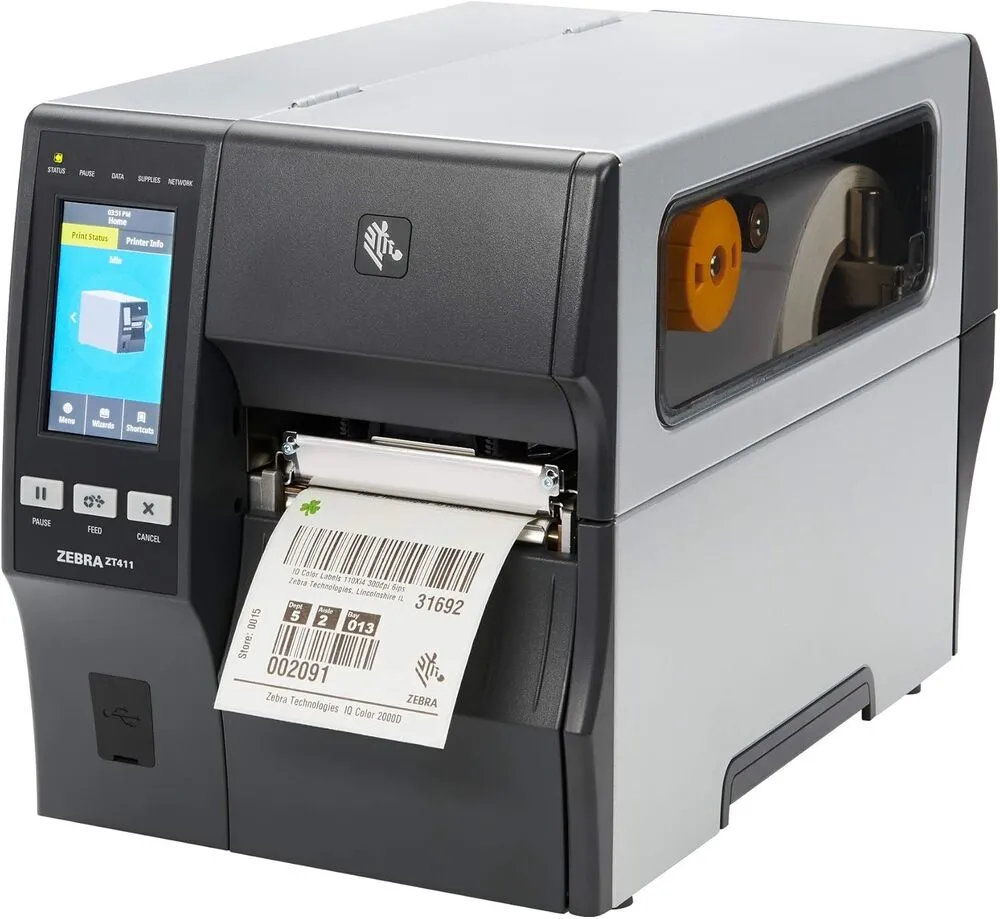

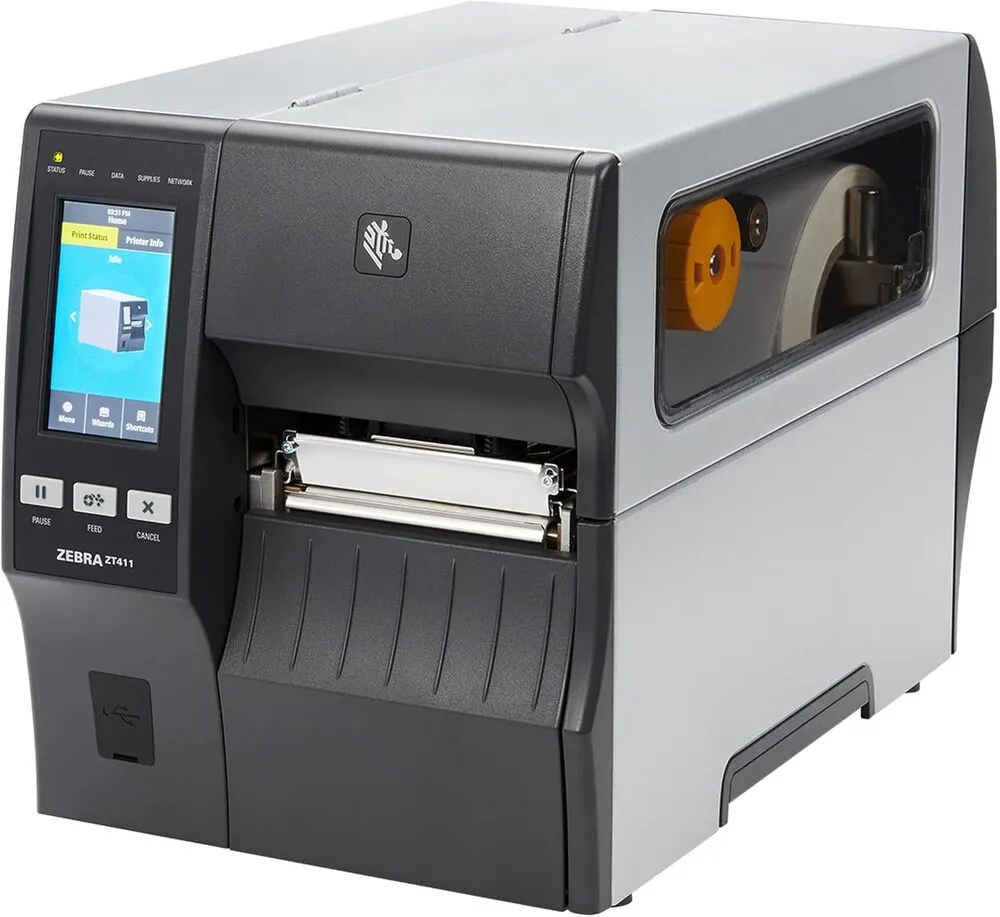

The Zebra ZT411 is a high-performance industrial printer designed for demanding labeling applications. It supports direct thermal and thermal transfer printing with resolutions of 203 dpi and 300 dpi, catering to diverse quality requirements.

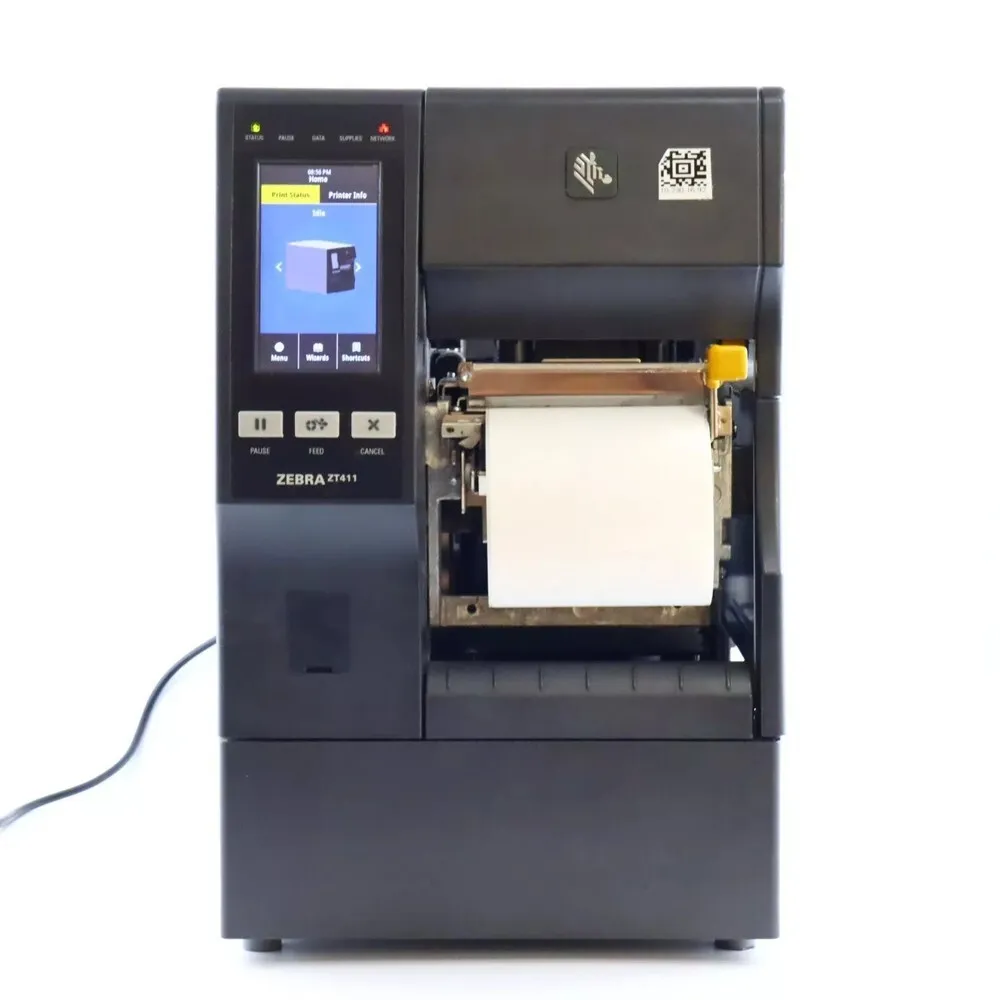

The printer features a modular design with an easy-to-use LCD interface for intuitive operation and configuration. It supports print speeds up to 14 inches per second, facilitating fast label production in busy environments.

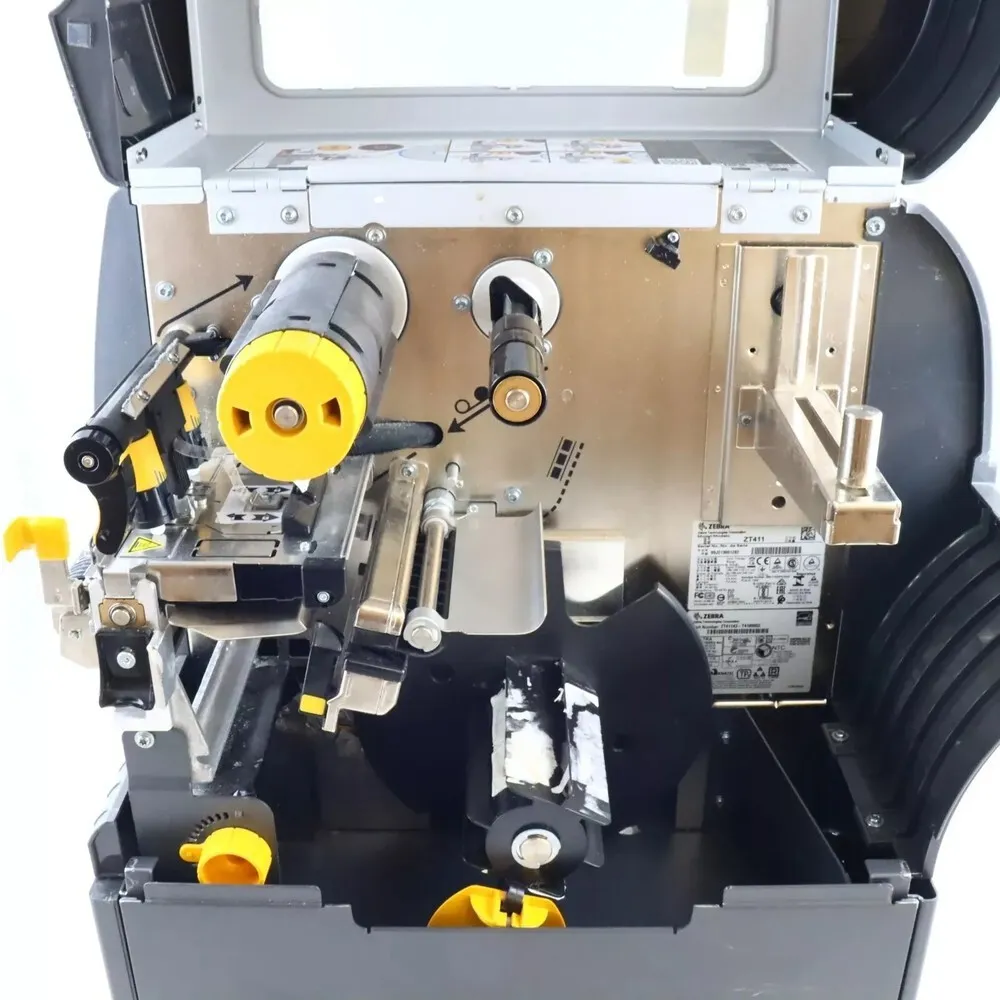

The ZT411 incorporates advanced media handling capabilities with ribbon and media roll support for continuous and fanfold media, allowing versatile usage. Connectivity options include USB, Serial, Ethernet, and optional Bluetooth and Wi-Fi for flexible network integration.
Additionally, its rugged metal frame construction ensures durability in industrial environments. The printer is compatible with various media types and sizes, enhancing its adaptability across industries needing barcode labeling and tracking.
It integrates with Zebra's Link-OS platform, enabling remote management and diagnostics. The printer supports multiple printer languages including ZPL and EPL, enabling easy migration from legacy Zebra printers.
Overall, the ZT411 combines robust hardware with flexible configuration for efficient, reliable label printing in industrial settings.
Specifications
| Max Input Sheet Capacity |
|
| Compatible Devices |
|
| Maximum Color Print Resolution |
|
| Sheet Size |
|
| Maximum Black and White Print Resolution |
|
| Warranty Type |
|
| Dual-sided printing | No |
| Max copy resolution color |
|
| Max copy resolution black-white |
|
| Duplex | Simplex |
| Hardware Interface | Bluetooth |
| Resolution |
|
| Additional Printer functions | Print Only |
| Control Method |
|
| Number of Drivers |
|
| Number of Trays | 1 |
| Processor Count | 1 |
| Series Number | 411 |
| Total Ethernet Ports | 1 |
| Total USB Ports |
|
| Specific Uses For Product | Office, Industrial |
| UPC | Does not apply |
| Printer Ink Type |
|
| Product Dimensions |
|
| Item Weight |
|
| Item model number | ZT411 |
| Date First Available |
|
| Manufacturer |
|
| Printer Type | Industrial Industrial Thermal Transfer and Direct Thermal Printer |
| Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
| Maximum Print Speed | Up to 14 inches per second (355 mm/s) |
| Print Width | Up to 4.09 inches (104 mm) |
| Media Type | Continuous, die-cut, black mark, tag |

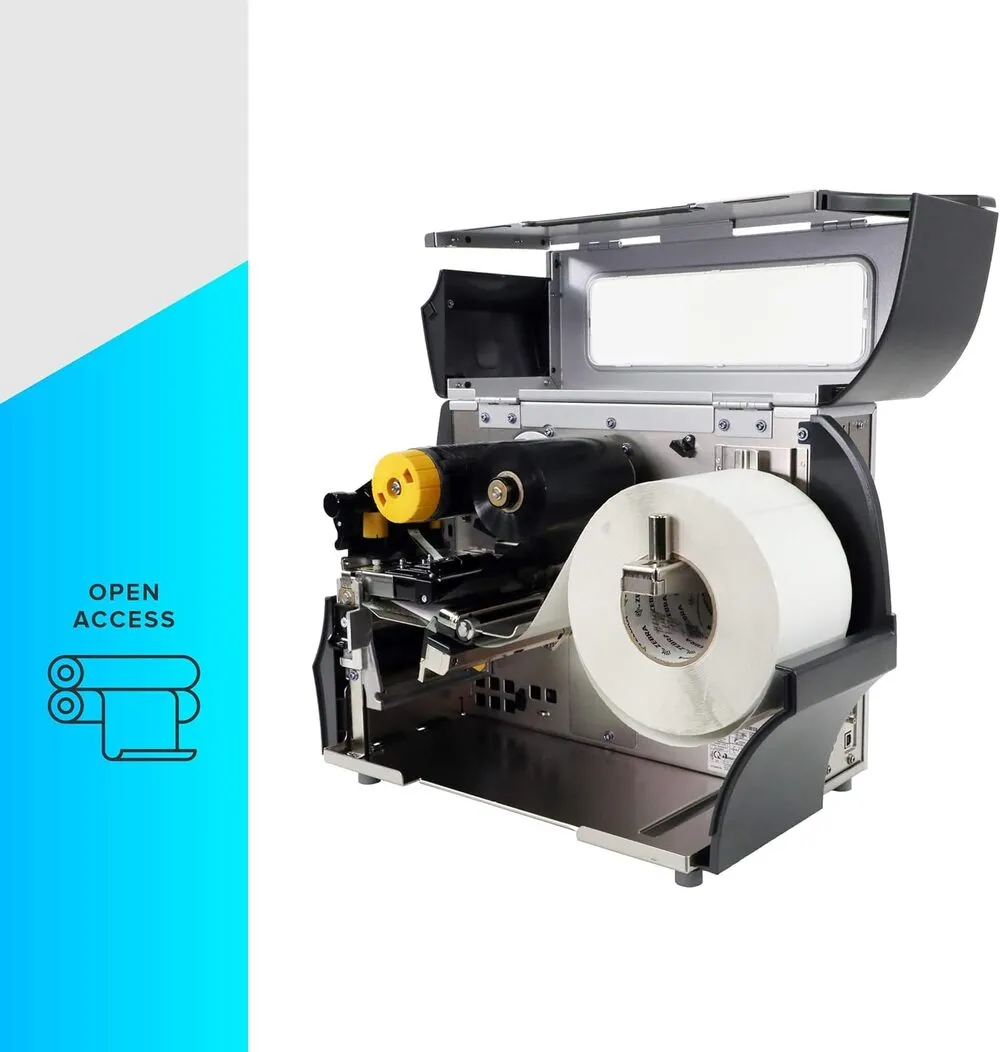

| Media Handling | Roll-fed or fanfold; width: 0.79-4.65 inches (20-118 mm); max roll diameter: 8.0 inches (203 mm) |
| Ribbon Type | Wax, wax/resin, resin - ink coated side in or out |
| Ribbon Length | Up to 450 meters |

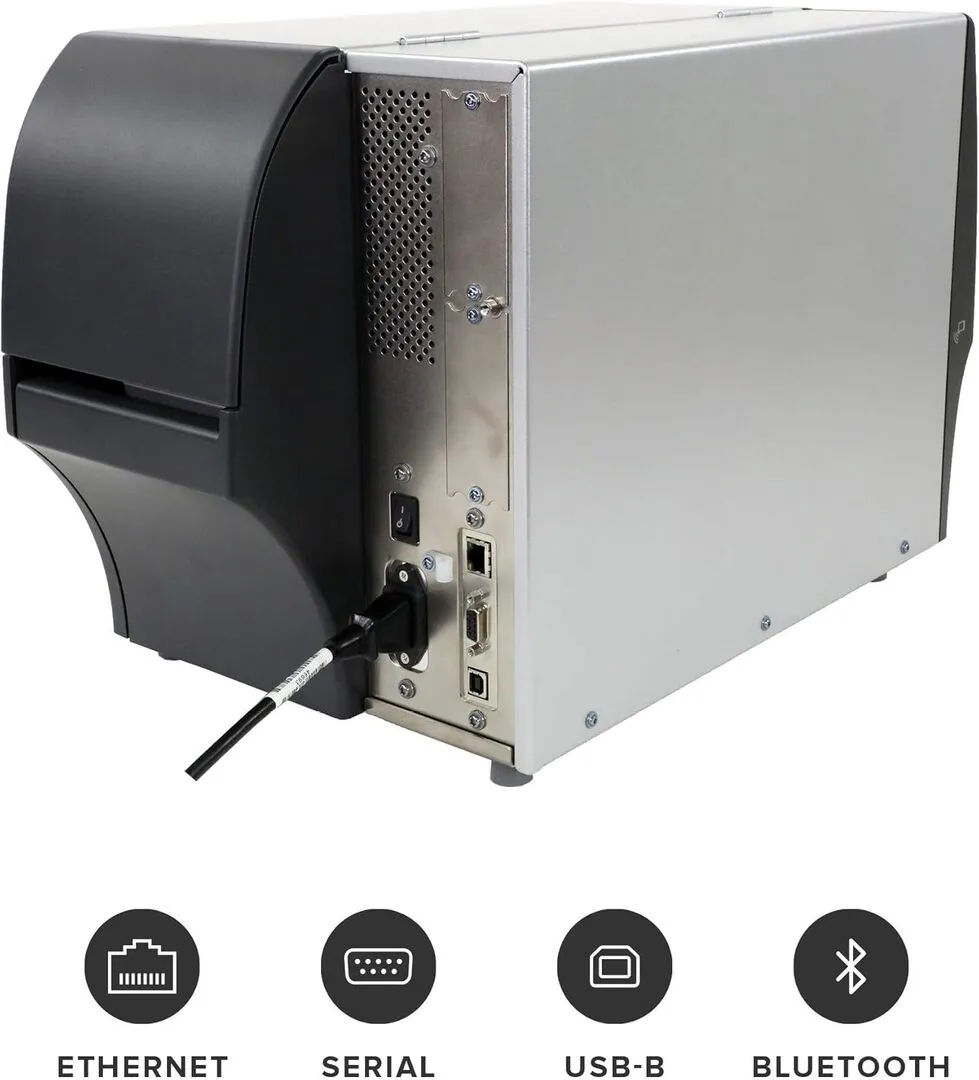

| Communication Interfaces | Standard USB 2.0, Serial RS-232, 10/100 Ethernet; optional Bluetooth and Wi-Fi |

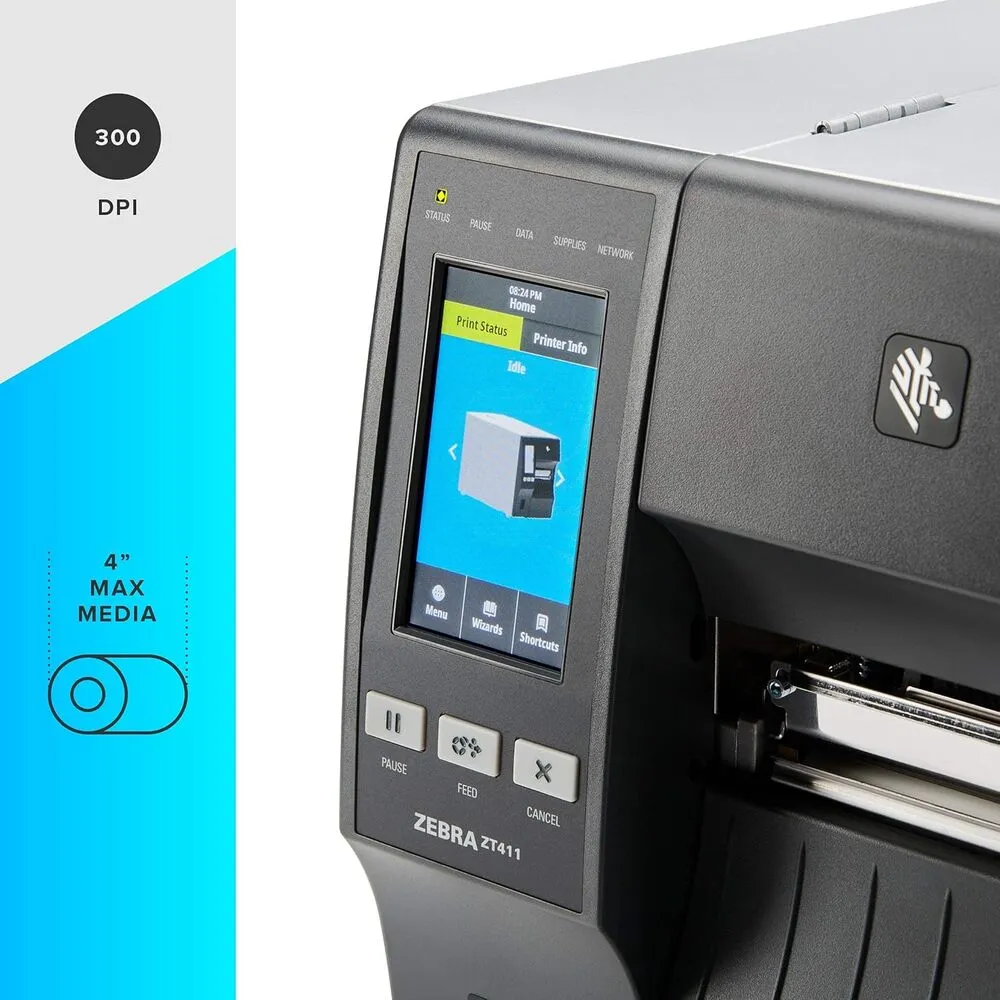

| Display | Color LCD with intuitive menu navigation |
| Processor | 32-bit RISC processor |
| Memory | 256 MB |
| Printer Languages | ZPL, ZPL II, EPL |
| Dimensions (W x H x D) | 10.2 x 15.3 x 17.7 inches (259 x 388 x 450 mm) |
| Weight | Approximately 31 lbs (14 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Operating Humidity | 20% to 85% non-condensing |
| Power Supply | 100-240V AC, 50-60Hz |
| Certifications | FCC Class A, CE, UL, CUL |
| Software Compatibility | ZebraDesigner, Zebra Setup Utilities, Link-OS |
| Number of USB 2 Ports | 1 |
| Print media | Labels |
| Display Type |
|
| Ink Color | black |
| Package Dimensions | 20 x 10 x 10 inches |
| Input Type | Monochrome |
| Type | Label Printer |
| Technology | Thermal |
| Output Type | Black & White |
| Maximum Resolution |
|
| Model | Zebra ZT411 |
| Connectivity |
|
| Features | Networkable |
| Product Line | Zebra Z |
| Maximum Media Size |
|
| Included Components |
|
| Color Depth | 1 bpp |
| Global Trade Identification Number | 10784196707192 |
| MPN | ZT41146-T010000Z |
Images
Key Advantages
The Zebra ZT411 offers high-resolution printing options (203 and 300 dpi) for crisp barcode and text quality.
Its durable all-metal construction guarantees long operational life under harsh conditions.
The printer supports fast print speeds up to 14 ips, increasing throughput for industrial applications.

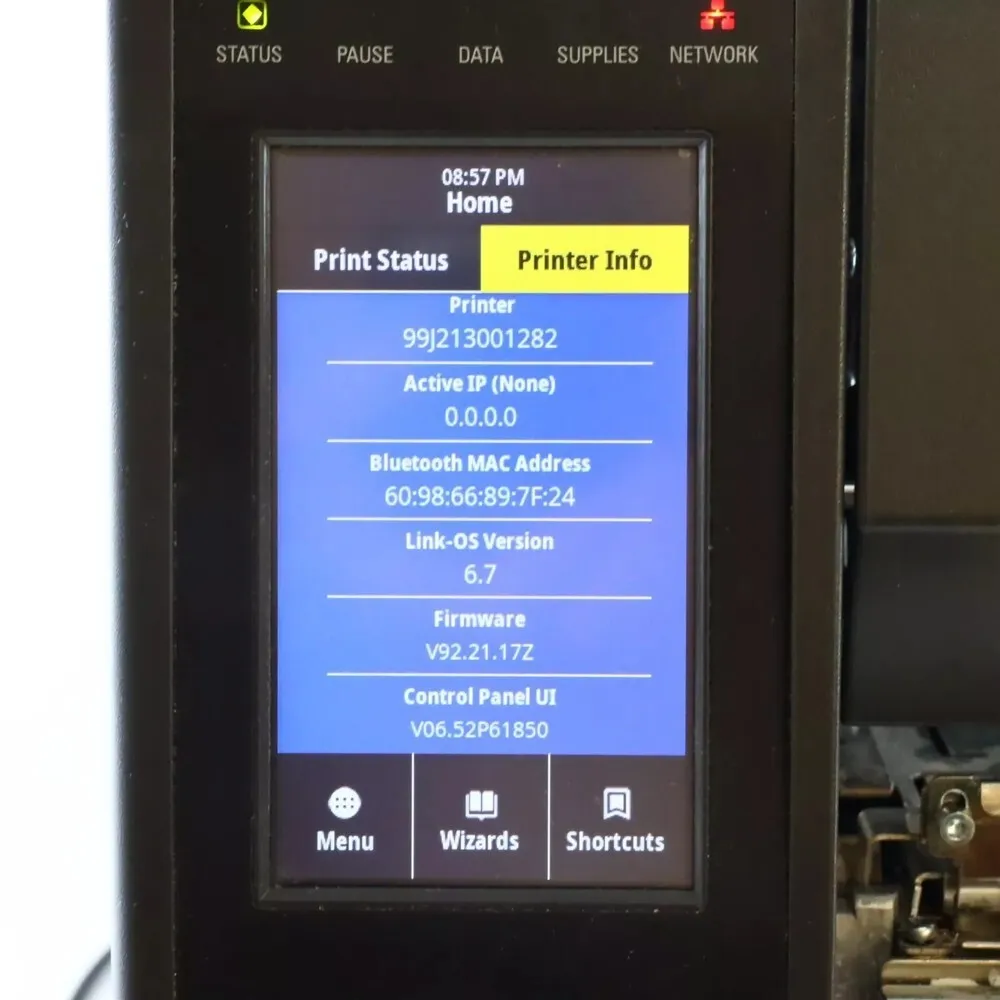

Intuitive LCD display with menu-driven interface simplifies setup and operation.
Comprehensive connectivity options, including USB, Ethernet, Serial, and wireless, provide integration flexibility.

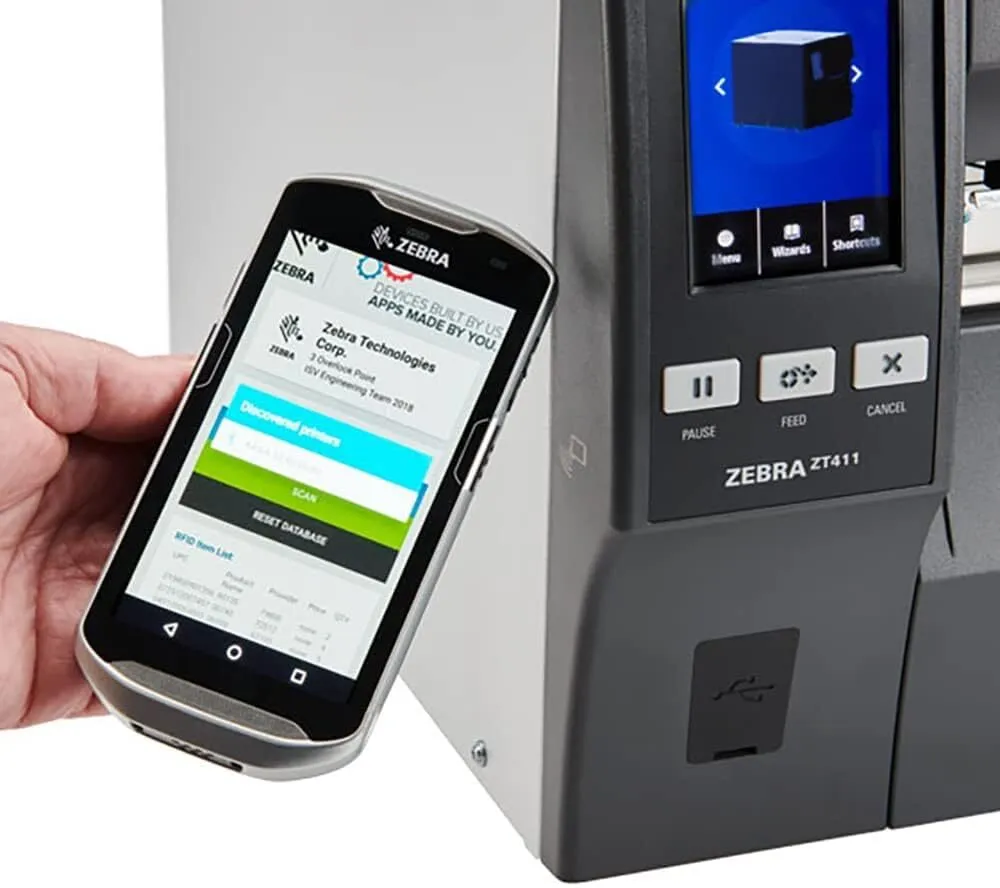

Compatibility with Zebra's Link-OS enables advanced device management and remote troubleshooting.
Limitations
The ZT411 is relatively heavy, which may reduce portability within industrial spaces.
It is primarily designed for industrial use, so it may be over-featured and costly for small office environments.
Some advanced features require additional software or firmware upgrades to unlock full potential.
Printhead replacement can be costly if damaged, impacting total cost of ownership.
Initial setup complexity might require trained personnel for optimal configuration.
Wireless connectivity options are optional, which may increase purchase price if included.
FAQ
What are the print resolution options for the Zebra ZT411?
The Zebra ZT411 supports two print resolutions: 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm), allowing users to choose between standard and high-quality printing.
Which media types can the ZT411 printer handle?
The ZT411 supports various media including continuous, die-cut, black mark, and tag media in both roll or fanfold formats.
What connectivity options are available on the Zebra ZT411?
Standard connectivity includes USB, Serial, and Ethernet. Optional Bluetooth and Wi-Fi modules can also be added for wireless communication.
Is the Zebra ZT411 compatible with legacy Zebra printer languages?
Yes, the printer supports both Zebra Programming Language (ZPL) and Eltron Programming Language (EPL) for easy migration from older models.
What is the maximum print speed of the ZT411?
It can print at speeds up to 14 inches per second, which helps in high-volume industrial labeling operations.
Does the ZT411 support remote printer management?
Yes, the printer is compatible with Zebra's Link-OS platform that allows for remote management, monitoring, and troubleshooting.
Is the Zebra ZT411 designed for portability?
No, it is an industrial-grade printer designed for stationary use in demanding environments, and its weight limits portability.
