Zebra Zt410
| Brand | Zebra 2014 |
| Model | ZT41046T010000Z |
| Released Year | 2014 |
| Type | Printers |
| Series | Z |
| Status | Active |
Quick view
Overview
The Zebra ZT410 is an industrial-grade thermal printer designed for high-volume label and barcode printing in office and manufacturing environments.
It features a robust metal frame construction that enhances durability and reliability in demanding settings.
The printer supports direct thermal and thermal transfer printing technologies, accommodating various label materials.
With print resolution options of 203 dpi, 300 dpi, and 600 dpi, it offers flexibility in print quality for different applications.
It includes versatile connectivity options such as USB, serial, and Ethernet interfaces, facilitating seamless integration into existing systems.

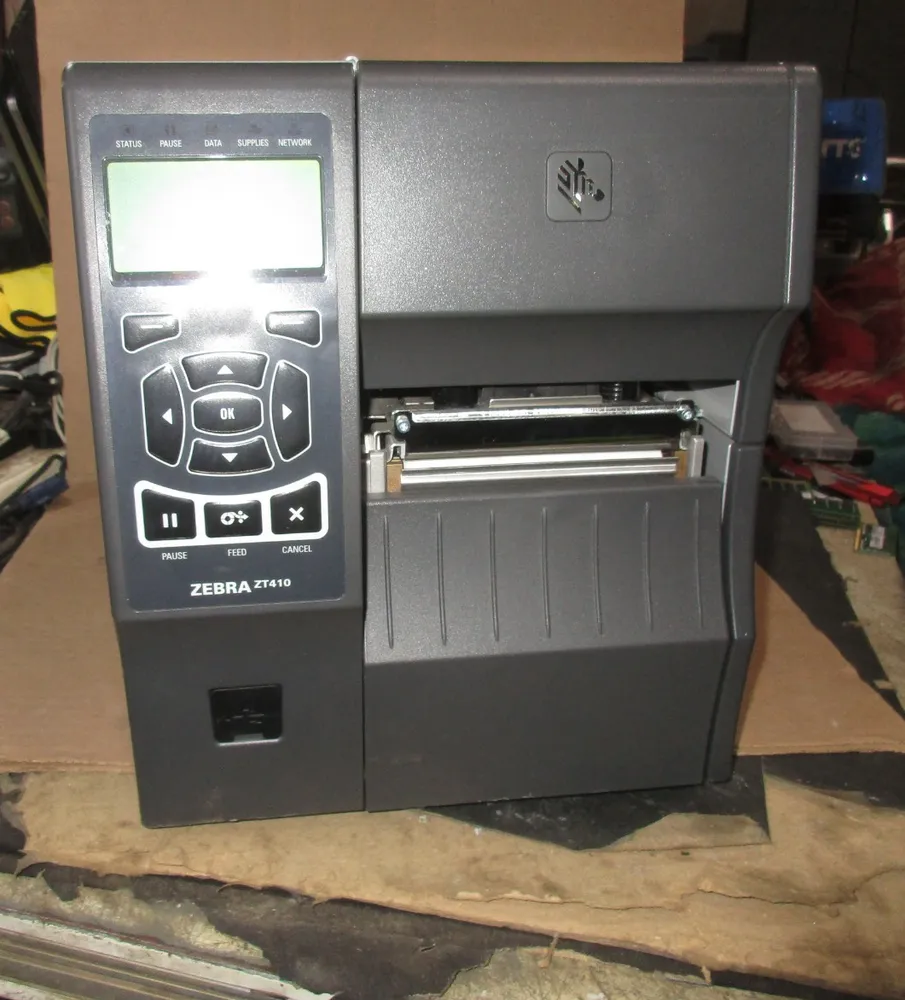

The ZT410 also features an advanced LCD control panel for easy setup and monitoring of printer status and settings.
Specifications
| Input Type | Monochrome |
| Grayscale Depth | 8 Bit |
| Color Depth | 8 Bit |
| Output Type | Black & White |
| Memory | Standard 256 MB SDRAM, 512 MB Flash |
| MPN | ZT41046T010000Z |
| Supported Paper Size | A6 (105 x 148 mm) |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | Zebra ZT410 |
| Connectivity | USB 2.0, Serial RS-232, Ethernet 10/100 Mbps |
| Features | Networkable |
| Scanning Resolution | 200x200 DPI |
| Black Print Speed | 14 ppm |
| Country/Region of Manufacture | China |
| Product Line | Zebra Z |
| Printer Type | Industrial Thermal Transfer and Direct Thermal Printer |
| Print Resolution | 203 dpi (8 dots/mm), 300 dpi (12 dots/mm), 600 dpi (24 dots/mm) |
| Print Width | Up to 4.09 inches (104 mm) |
| Print Speed | Up to 14 ips (356 mm/second) at 203 dpi |
| Display | 4.3-inch full-color LCD with touch screen |
| Ribbon Capacity | Up to 450 meters (1476 feet) |
| Media Types | Continuous, die-cut, black mark, notch, and tag stock |
| Operating Temperature | 40°F to 105°F (4.4°C to 41°C) |
| Dimensions | 11.8 in (W) x 19.5 in (D) x 11 in (H) |
| Weight | 29 lbs (13.2 kg) |
| Programming Languages | ZPL, EPL |
| Power Supply | Auto-ranging 100-240 VAC, 50-60 Hz |
Images
Key Advantages
The metal frame construction ensures long-lasting reliability and resistance to harsh environments.
High print resolution options provide excellent quality labels suitable for detailed barcodes and graphics.
Multiple connectivity ports enable flexible integration with various host devices and networks.
The printer supports a broad range of media types, enhancing its versatility for different labeling needs.
It offers advanced ribbon and media sensing technology to optimize print performance and reduce waste.
User-friendly controls and software tools streamline operation and configuration for improved productivity.
Limitations
The industrial-grade design results in a larger footprint, which may not suit small workspaces.
Initial setup complexity may require trained personnel for optimal configuration.
Higher cost compared to basic desktop printers could be a barrier for small businesses.
Maintenance and consumables such as ribbons and printheads incur ongoing expenses.
Software compatibility may require updates to support newer operating systems over time.
Being primarily designed for specialized industrial use, it may be over-spec for typical office printing tasks.
FAQ
What types of media can the Zebra ZT410 print on?
The Zebra ZT410 supports various media types including continuous, die-cut, black mark, and notch media in both direct thermal and thermal transfer formats.
What print resolution options are available for the ZT410?
The printer offers print resolutions of 203 dpi, 300 dpi, and 600 dpi, allowing users to choose based on the quality needed.
Does the ZT410 support network connectivity?
Yes, it includes Ethernet connectivity along with USB and serial interfaces for flexible integration.
Is the Zebra ZT410 suitable for small office use?
While it can be used in small offices, its industrial design and size may be more suited for manufacturing or warehousing environments.
Can the ZT410 handle high-volume printing?
Yes, it is designed for high-volume industrial printing with robust components to support continuous operation.
What software is compatible with the Zebra ZT410?
The printer works with ZebraDesigner and supports EPL and ZPL programming languages for label design and printing.
Is the ZT410 printer still available for purchase?
As of now, the Zebra ZT410 is still in production and widely available through authorized Zebra distributors.
