Zebra ZT410
Brand | Zebra 2014 |
Model | ZT410, ZT41042T010000Z |
Released Year | 2014 |
Type | Printers |
Series | Z |
Status | Active |
Quick view
Overview

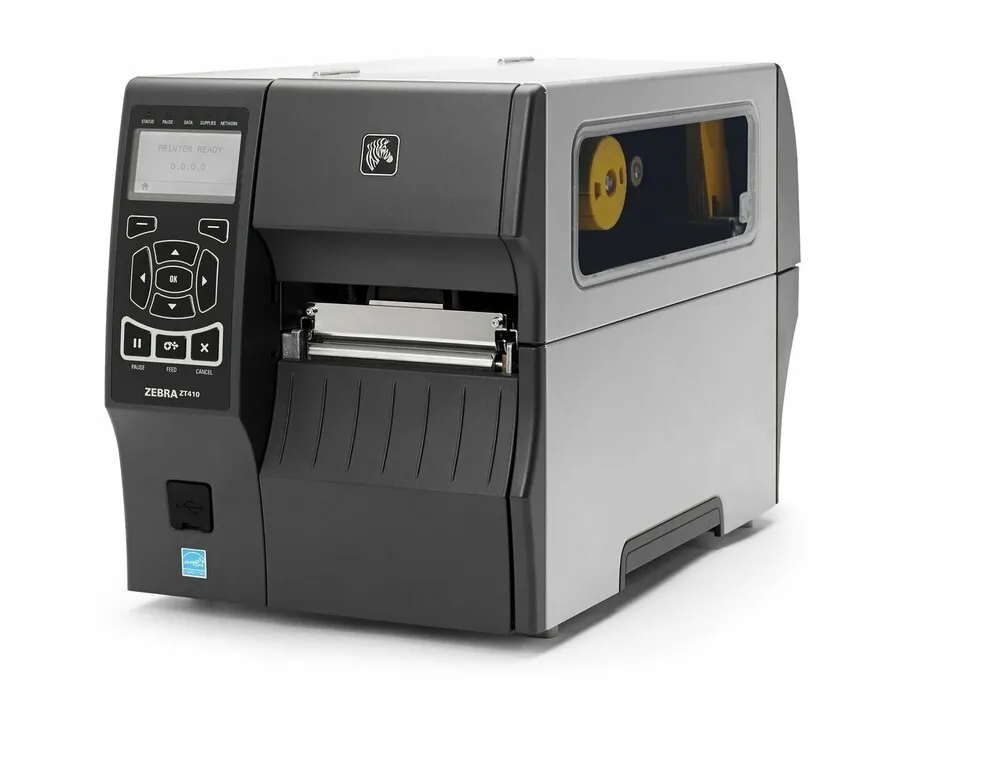

The Zebra ZT410 is a robust industrial label printer designed for high-volume printing applications. It offers a print resolution of up to 300 dpi, delivering crisp and precise labels for various sectors such as manufacturing, healthcare, and logistics. The device features a durable metal frame construction for extended service life in demanding environments. It supports multiple connectivity options including USB, Serial, and Ethernet interfaces, ensuring flexible integration into existing systems. The ZT410 uses Zebra's LINK-OS environment, allowing easy remote management and configuration through compatible software tools. Additionally, it supports a wide range of media types and sizes, enhancing its versatility in diverse printing tasks.
The printer is equipped with an intuitive LCD interface for straightforward operation and status monitoring. It incorporates advanced thermal transfer technology for long-lasting printouts and supports high-speed printing up to 14 inches per second, maximizing productivity. The ZT410's ribbon drive mechanism and media handling are engineered for smooth operation and minimal downtime. Overall, the device balances performance, reliability, and user-friendliness suited for industrial labeling needs.
Specifications
MPN | ZT410, ZT41042T010000Z |
UPC | 0611517883200, 0791999048899, 0705353208171, 0640213049115, 0783555037898 |
Model | ZT410 |
Memory | 256 MB SDRAM, 512 MB Flash |
Technology | Thermal |
Image Sensor | Light |

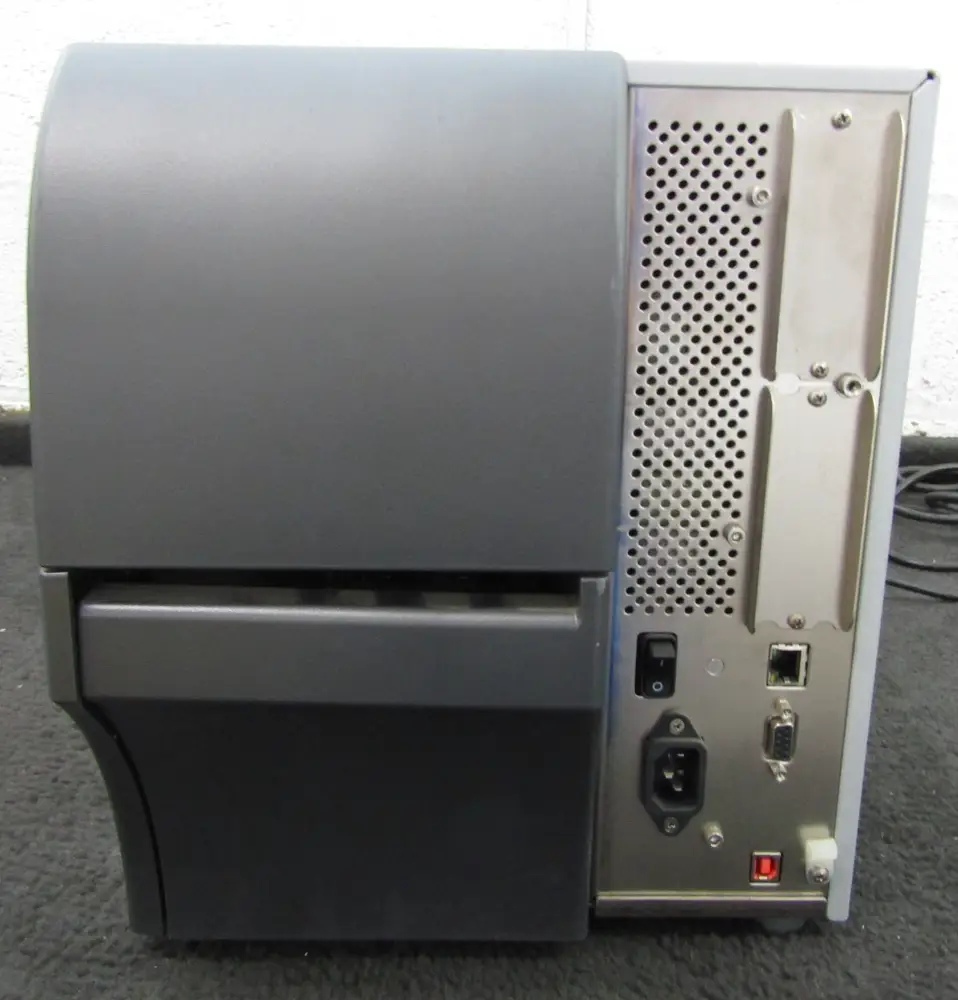

Connectivity | USB 2.0, Serial RS-232, Ethernet 10/100 Mbps |
Output Type | Black & White |
Features | Networkable |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 14 ppm |
Product Line | Zebra Z |
Weight | Approximately 37 lbs (17 kg) |
Length | 12 inches |
Printer Type | Industrial Thermal Transfer and Direct Thermal Printer |
Print Resolution | 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) |
Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 14 ips (356 mm/s) |
Processor | 32-bit ARM processor |

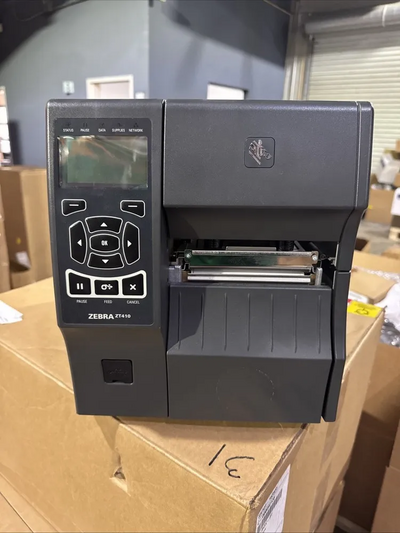

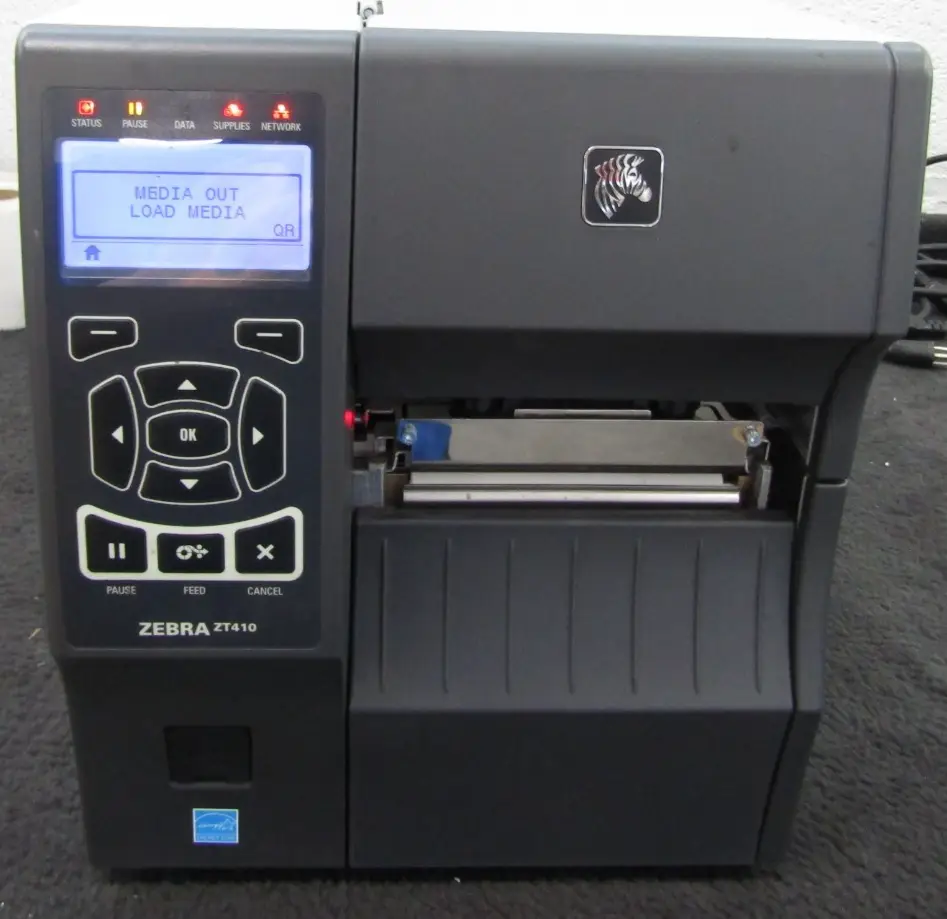

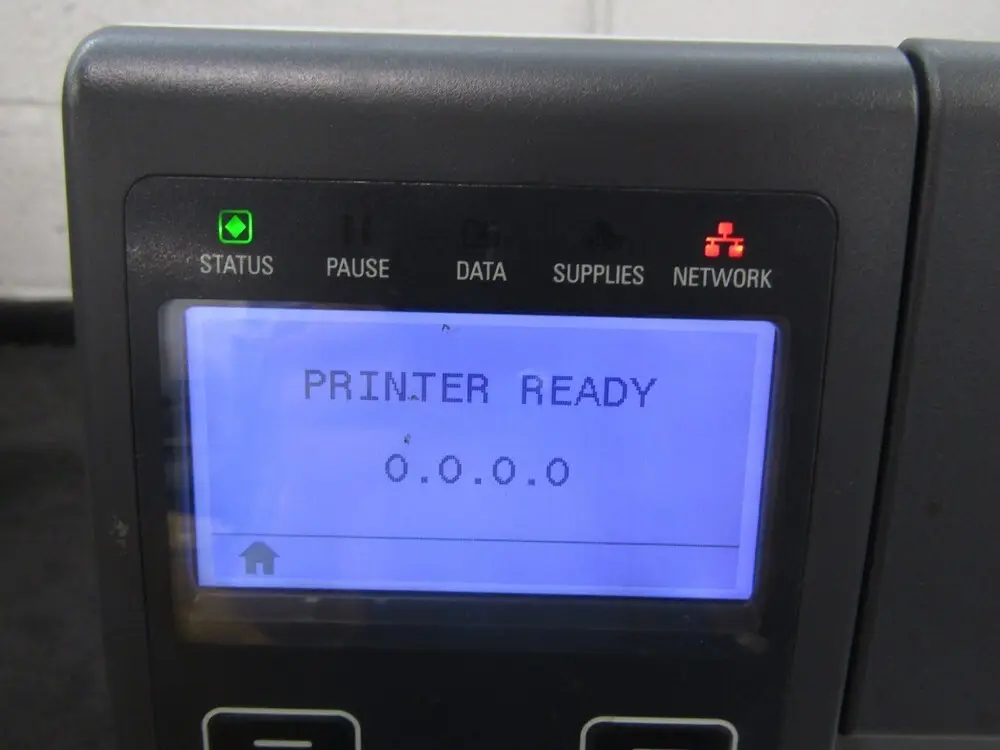

Display | LCD with intuitive menu for user interface |
Operating System | Zebra LINK-OS Printer Operating System |
Media Types | Roll-feed labels, fanfold labels, continuous labels, tags, and tickets |
Max Media Width | 4.5 inches (114 mm) |
Media Sensors | Moveable reflective and transmissive sensors |

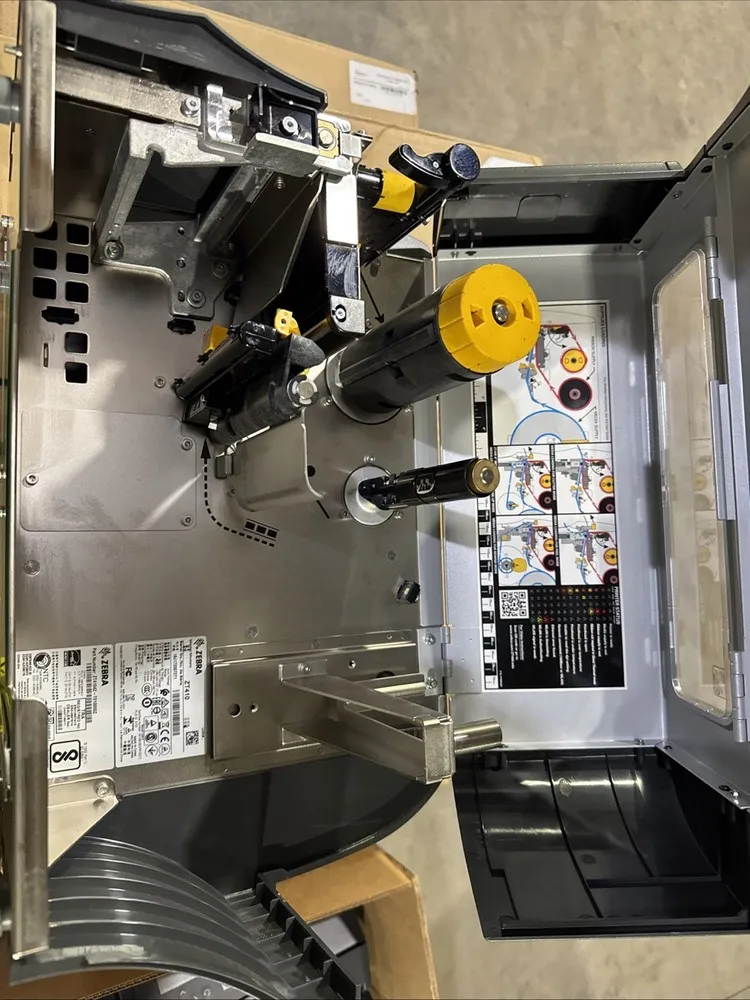

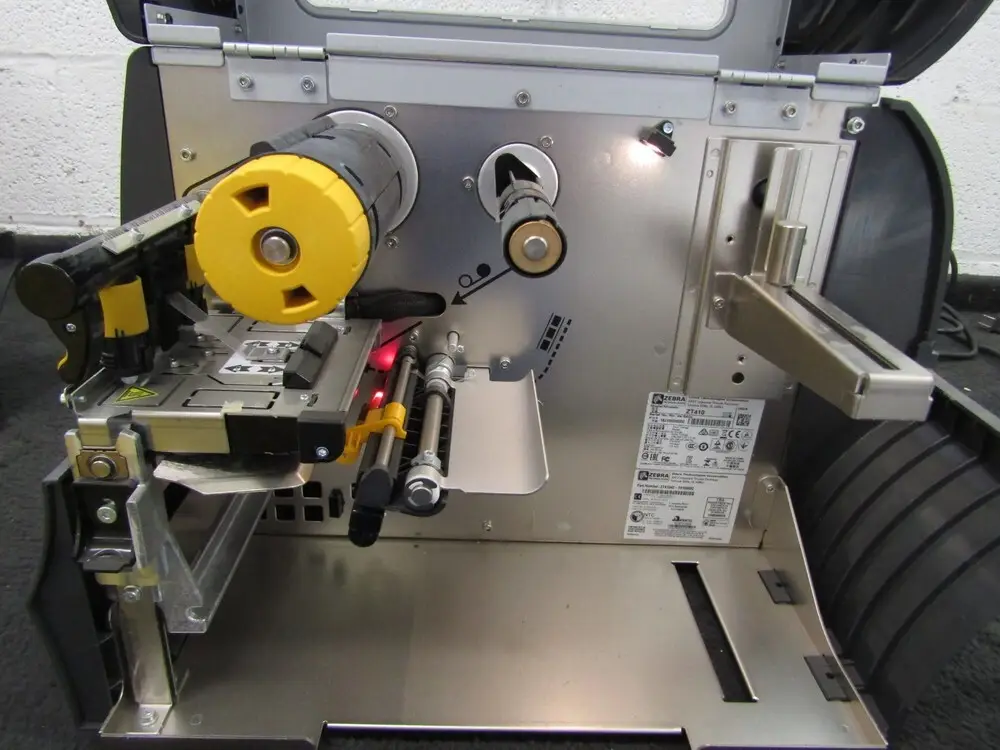

Ribbon | Ink-side-out only, max length 450 m |
Dimensions | 11.5 in (W) x 19 in (H) x 21.5 in (D) |

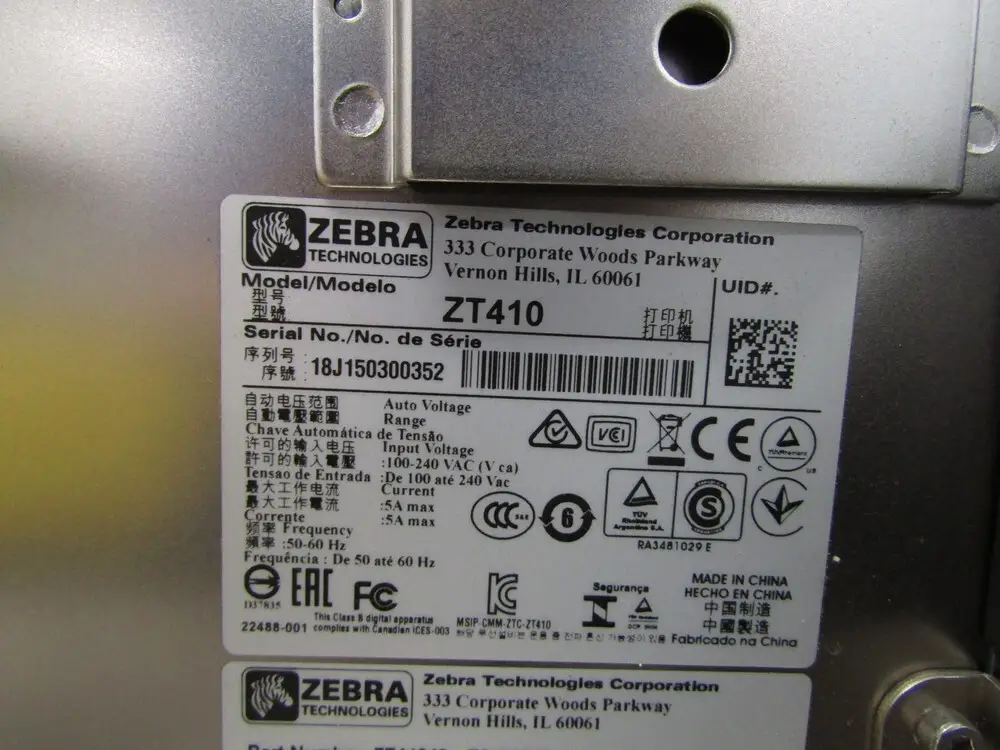

Power Source | Auto-ranging power supply 100–240 VAC, 50–60 Hz |
Images
Key Advantages
The Zebra ZT410 excels in providing outstanding print quality with a 300 dpi resolution ideal for detailed barcodes and graphics. Its rugged metal construction ensures durability in harsh industrial environments. The printer supports a broad range of connectivity options including wired Ethernet for network flexibility. It benefits from the LINK-OS platform for seamless device management and integration with business applications. The high print speed of up to 14 inches per second increases throughput and operational efficiency. Finally, its versatile media compatibility allows usage of various label sizes and types, adapting well to different industry requirements.
Limitations
While the ZT410 offers numerous industrial features, its size and weight may pose challenges for installations in limited spaces. The initial cost can be higher compared to desktop printers, making it a significant investment for small-scale applications. Some users might find the customization of printer settings and software configuration requiring technical expertise. Although it supports various connectivity interfaces, wireless options such as Wi-Fi are not standard and might need additional modules. Media loading and ribbon replacement may require user training to avoid operational errors. Lastly, the printer may not be suitable for extremely high-resolution print requirements beyond 300 dpi.
FAQ
What print resolution does the Zebra ZT410 support?
The Zebra ZT410 supports a maximum print resolution of 300 dpi, suitable for high-quality labels including barcodes and detailed graphics.
Which connectivity options are available on the ZT410?
The ZT410 includes USB, Serial, and wired Ethernet ports for flexible connectivity. Wireless options are not standard but can be added with accessories.
Is the Zebra ZT410 suitable for harsh industrial environments?
Yes, the ZT410 features a rugged metal frame designed to endure tough industrial conditions, offering reliable performance and durability.
Can the printer handle different label sizes and media types?
Yes, the ZT410 supports a variety of label sizes and substrate types, allowing adaptation to diverse printing needs.
Does the ZT410 support remote device management?
Yes, it operates on Zebra's LINK-OS platform, enabling remote management, configuration, and monitoring via compatible software.
What is the maximum print speed of the Zebra ZT410?
The printer can achieve print speeds of up to 14 inches per second, optimizing productivity for high-volume printing.
Is the Zebra ZT410 still supported or discontinued?
The Zebra ZT410 is currently still supported and available (not discontinued).
