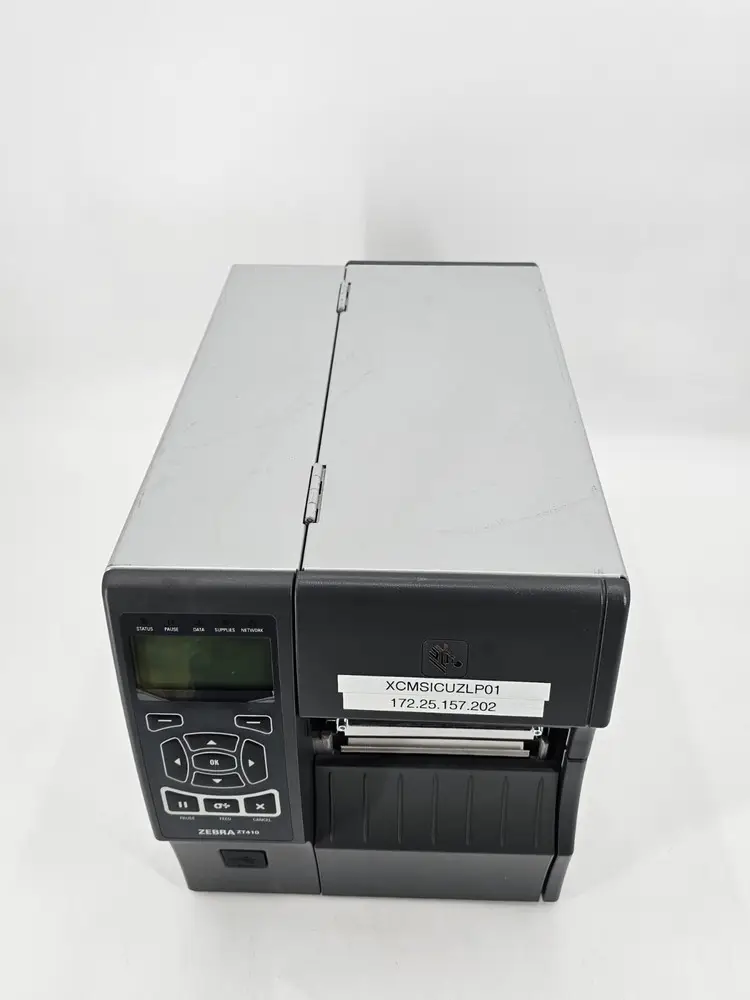

Zebra ZT410 image

Zebra ZT410

Quick information
Brand Zebra 2011

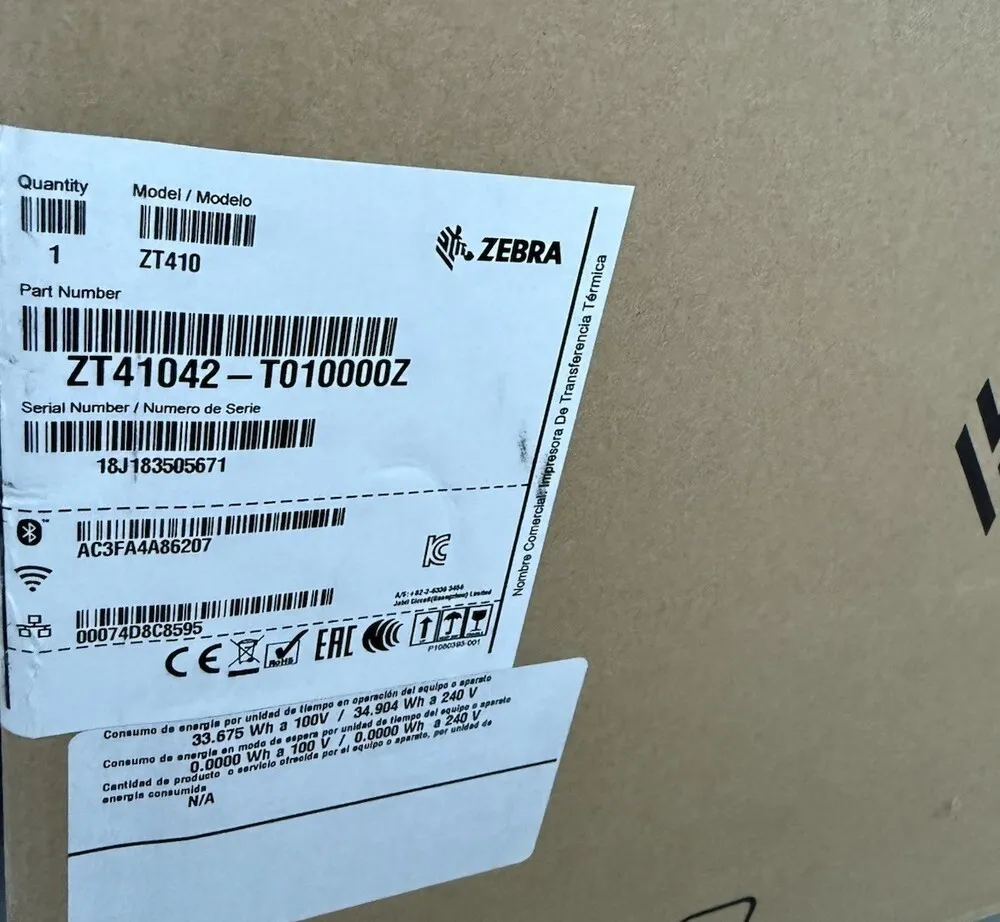

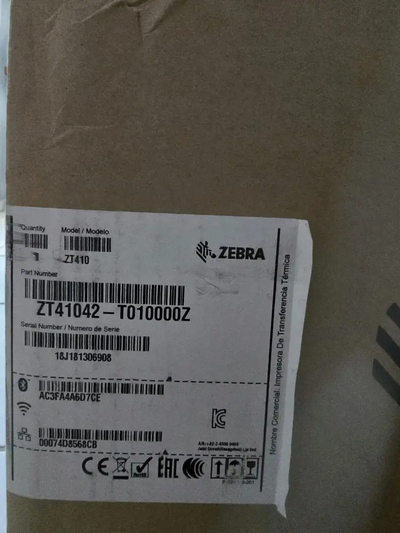

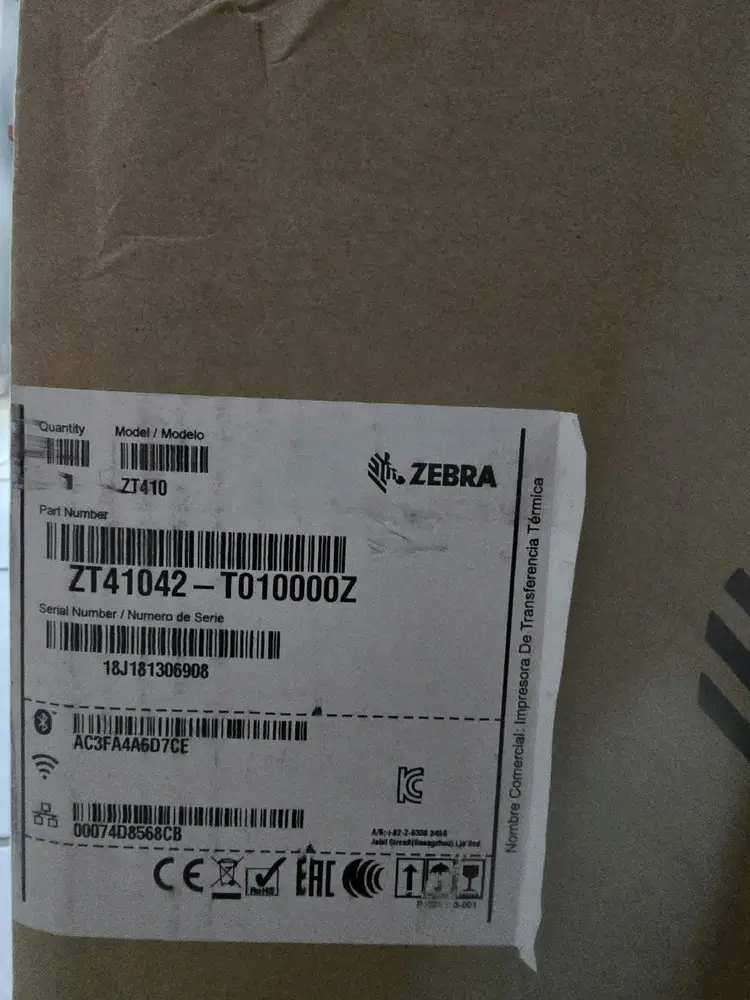

Model ZT41042-T010000Z
Released Year 2011
Type Printers
Series Z
Status Active
Quick view

Overview

The Zebra ZT410 is an industrial-grade thermal transfer and direct thermal label printer designed for medium to high volume printing demands in enterprises. It utilizes a durable metal frame chassis and offers a resolution of 203 dpi (8 dots/mm) or options up to 600 dpi for fine print quality. The device features a 4-inch print width and print speed reaching up to 14 inches per second, providing efficient label production. Connectivity options include USB, Serial, Ethernet, and optional Wi-Fi or Bluetooth, ensuring flexible network integration. The ZT410 incorporates an intuitive LCD interface for easier configuration and monitoring. It supports a wide range of media types and ribbon formulations, making it adaptable to various labeling applications.

With its advanced Link-OS environment, the printer supports remote device management and diagnostics. It is equipped with a fast 1 GHz processor and up to 512 MB of memory, enabling swift data processing. Its modular design allows tool-less replacement of printheads and platen rollers, reducing downtime. The robust build meets industrial certifications for durability in harsh environments.

Specifications

Output Type Black & White
MPN ZT41042-T010000Z
Supported Paper Size Up To 4” Wide Labels
Type Label Printer
Technology Thermal
Maximum Resolution 300 x 300 DPI
Model ZT410

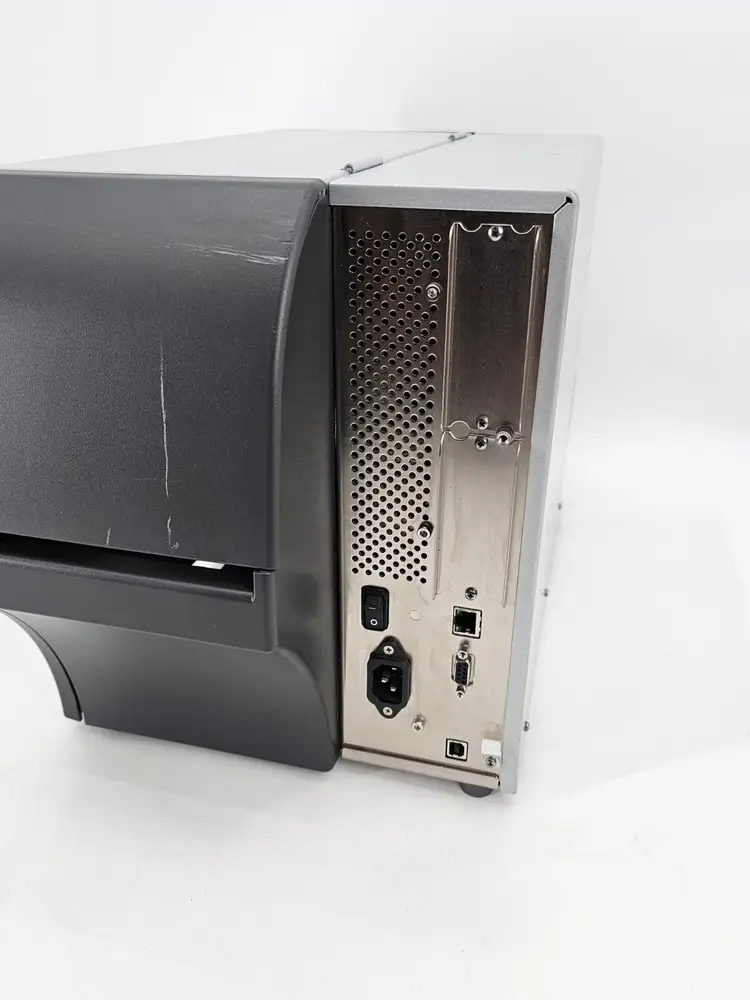

Connectivity USB 2.0, Serial RS-232, 10/100 Ethernet; optional Wi-Fi and Bluetooth
Features Networkable
Black Print Speed 60 ppm
Country/Region of Manufacture United States
Product Line Zebra Z
Printer Type Industrial Thermal Transfer / Direct Thermal Printer
Print Width Up to 4.09 inches (104 mm)
Print Speed Up to 14 ips (356 mm/s)
Print Resolution 203 dpi (8 dots/mm), 300 dpi and 600 dpi optional
Processor 1 GHz ARM Cortex-A9
Memory 512 MB RAM, 512 MB Flash
Display 4.3-inch color LCD with intuitive interface
Media Types Supported Continuous, Die-cut, Black-mark, Notch, Tag stock
Media Width 0.75 inches (19.05 mm) to 4.5 inches (114 mm)
Ribbon Width 1.57 inches (40 mm) to 4.33 inches (110 mm)
Max Media Roll Size 8.0 inches (203 mm) diameter
Dimensions 10.6 in (W) x 19.4 in (D) x 13.7 in (H)
Weight Approximately 31 lbs (14 kg)
Operating Temperature 40°F to 105°F (5°C to 40°C)
Software and Drivers ZebraDesigner, Zebra Setup Utilities, SDKs for various platforms

Key Advantages

The Zebra ZT410 delivers outstanding print speed and high-resolution capabilities for crisp, clear labels. Its rugged metal casing ensures longevity in industrial settings. The printer includes versatile connectivity options such as USB, Ethernet, and optional wireless interfaces, facilitating seamless network integration. Its user-friendly LCD and control panel simplify operation and maintenance. The modular design for quick replacement of components reduces downtime and maintenance costs. Enhanced Link-OS software supports remote management and integration into various IT infrastructures.

Limitations

The ZT410 is relatively heavy and bulky compared to desktop printers, requiring dedicated space. It may be over-specified for small volume or low-frequency printing environments, resulting in higher initial costs. The printer consumes a significant amount of power during high-speed printing, which could impact operational expenses. Wireless connectivity options are only available as add-ons, increasing overall cost. The printer requires specialized ribbons and media, limiting flexibility in consumable selection. Some users may find the advanced configuration options complex without proper training.
