Zebra Zt231
Brand | Zebra 2015 |
Model | ZT23142-T01000GA |
Released Year | 2015 |
Type | Printers |
Series | Z |
Status | Active |
Quick view
Overview
The Zebra ZT231 is an industrial label printer designed for medium-duty printing applications, combining durable mechanical construction with advanced printing technology. It supports both thermal transfer and direct thermal printing methods, offering high-resolution printing quality up to 203 dpi. The device features a robust metal frame and print mechanism that ensures longevity and consistent performance in demanding industrial environments. Connectivity options include USB, serial, and Ethernet interfaces, enabling flexible integration with existing office systems. The printer supports multiple label sizes and types, allowing users to customize outputs according to application needs. It operates under Zebra's Link-OS environment, providing ease in device management and driver support.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 512 MB Flash, 256 MB SDRAM |
MPN | ZT23142-T01000GA |
Supported Paper Size | Roll (4.5 in) |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | Zebra ZT231 |
Connectivity | USB 2.0, RS-232 Serial, 10/100 Ethernet |
Features | Internal Power Supply |
Black Print Speed | 720.5 inch/min |
Product Line | Zebra Z |
UPC | Does not apply |
Print Method | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 6 inches per second (152 mm/s) |
Max Print Width | 4.09 inches (104 mm) |
Max Print Length | 39 inches (991 mm) |
Media Types | Roll-fed or fan-fold labels, tags, continuous media |
Media Width Range | 0.75 to 4.5 inches (19 to 114 mm) |

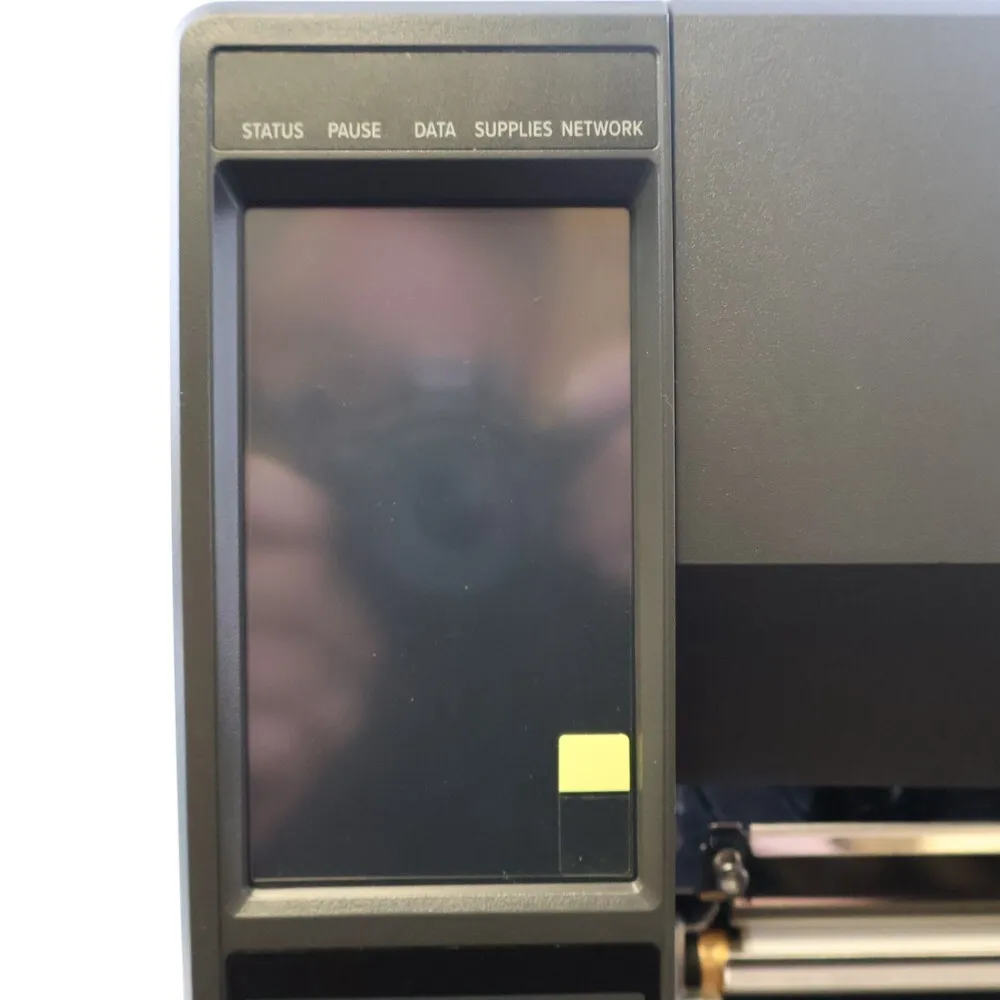

Display | 2.3-inch full color LCD |
Dimensions (HxWxD) | 246 mm x 287 mm x 460 mm |
Weight | Approx. 9.1 kg (20 lbs) |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |
Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
Operating Humidity | 20% to 85% non-condensing |
Emulations | ZPL, EPL, XML |
Firmware | Link-OS |
Power | AC Input 100-240V, 50/60Hz |
Images
Key Advantages
The ZT231 offers a balanced combination of performance and affordability for industrial printing. Its metal frame ensures durability against harsh working conditions and reduces downtime. Easy-to-use color LCD display enhances user interaction for quick configuration and monitoring. The printer provides versatile media handling capabilities for labels, tags, and receipts, supporting a wide range of applications. Link-OS compatibility enables streamlined device management and remote troubleshooting. Additionally, it supports multiple connectivity options to fit diverse network environments.
Limitations
While the ZT231 delivers solid functionality, its print resolution is fixed at 203 dpi, limiting suitability for applications requiring ultra-fine detail. The printing speed is moderate compared to higher-end models, possibly impacting throughput in high-volume scenarios. There is limited support for advanced wireless connectivity such as Wi-Fi or Bluetooth, reducing mobility. The device's firmware updates require manual intervention rather than over-the-air updates. Its industrial size and weight may not be ideal for small office spaces. Furthermore, the average cost of original Zebra parts and consumables may be higher compared to some competitors.
FAQ
What types of printing technology does the Zebra ZT231 use?
The Zebra ZT231 supports thermal transfer and direct thermal printing technologies, allowing for versatile label printing options.
What connectivity options are available with the ZT231?
It includes USB, serial, and Ethernet interfaces for flexible connectivity, but does not offer built-in Wi-Fi or Bluetooth.
Is the Zebra ZT231 suitable for high-volume printing?
While reliable for medium-duty tasks, the ZT231 has moderate print speeds that may limit its efficiency in very high-volume production environments.
What is the print resolution of the Zebra ZT231?
The printer offers a fixed print resolution of 203 dpi, suitable for standard barcode and label printing.
Can the Zebra ZT231 be managed remotely?
Yes, it supports Zebra's Link-OS environment, which enables remote device management and monitoring.
Are replacement parts and accessories readily available?
Original Zebra parts and accessories for the ZT231 are available through authorized distributors, though costs may be higher than generic alternatives.
Has the Zebra ZT231 been discontinued?
No, as of current information, the Zebra ZT231 has not been officially discontinued.
