Zebra ZT230 image

Zebra ZT230

Quick information
Brand Zebra 2016
Model ZT23042-T01000FZ, ZT23042T01200FZ, ZT230
Released Year 2016
Type Printers
Series Z
Status Active
Quick view
Full specs Images

Overview

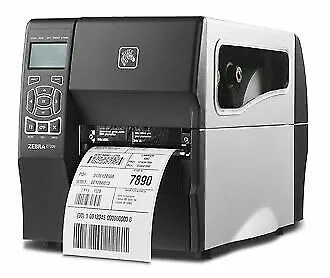

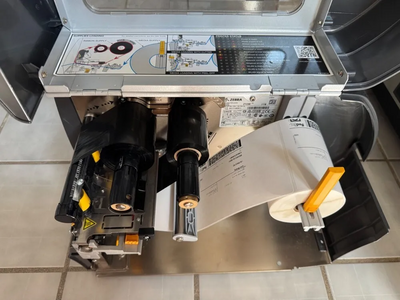

The Zebra ZT230 is an industrial label printer designed for moderate volume printing environments in warehouses, manufacturing, and logistics. It features a rugged metal frame construction with an easy-to-use clamshell design for quick media loading. The printer supports both thermal transfer and direct thermal printing methods with a print width of up to 4.09 inches and a print speed up to 6 inches per second. It offers a 203 dpi print resolution with an optional 300 dpi upgrade for enhanced print clarity. Connectivity options include USB, Serial, Parallel, and Ethernet interface capabilities to ensure versatile integration with various host systems. The ZT230's electronics support extensive compatibility with multiple media types, labels, tags, and ribbons to suit diverse industrial labeling needs.

Specifications

MPN ZT23042-T01000FZ, ZT23042T01200FZ, ZT230
GTIN 0000886615855, 0682017480138, 0682017481111, 0672860754739, 0783555034965
UPC 0000886615855, 0682017480138, 0682017481111, 4923773135624, 0133588131085, 0672860754739, 0783555034965
Model ZT230
Memory 128 MB Flash, 128 MB SDRAM
Technology Thermal

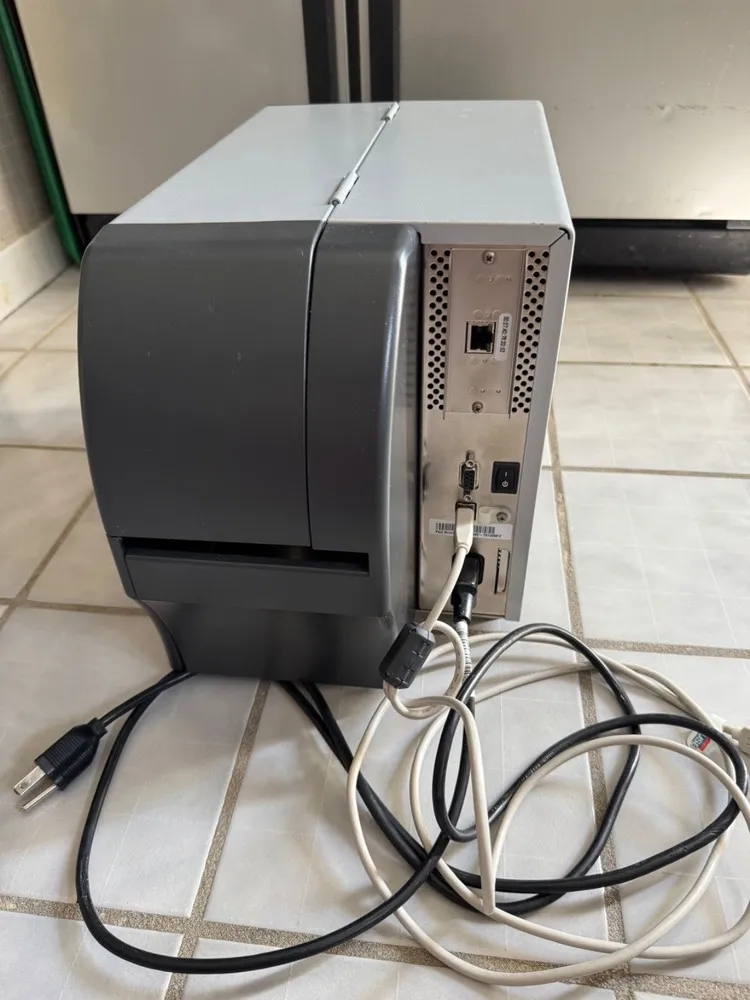

Connectivity USB 2.0, Serial RS-232, Parallel, Ethernet 10/100
Output Type Black & White
Features Scanner, Networkable
Supported Paper Size A4 (210 x 297 mm)
Type Label Printer
Maximum Resolution 203 x 203 DPI
Black Print Speed 6 ppm
Product Line Zebra Z
Item Height 11
Depth 17" (432 mm)
Height 10.9" (277 mm)
Width 9.53" (242 mm)
Printer Type Thermal Transfer and Direct Thermal
Print Width 4.09 inches (104 mm)
Print Speed Up to 6 inches per second (152 mm/sec)
Resolution 203 dpi standard, optional 300 dpi upgrade
Media Types Labels, Tags, Continuous, Die-cut
Media Width 1 inch to 4.5 inches (25.4 mm to 114 mm)
Media Thickness 0.0023 in to 0.0075 in (0.058 mm to 0.1905 mm)
Ribbon Type Wax, Wax/Resin, Resin
Dimensions (W x D x H) 10.3 in x 19.0 in x 14.7 in (262 mm x 483 mm x 373 mm)
Weight Approx. 21 lbs (9.5 kg)

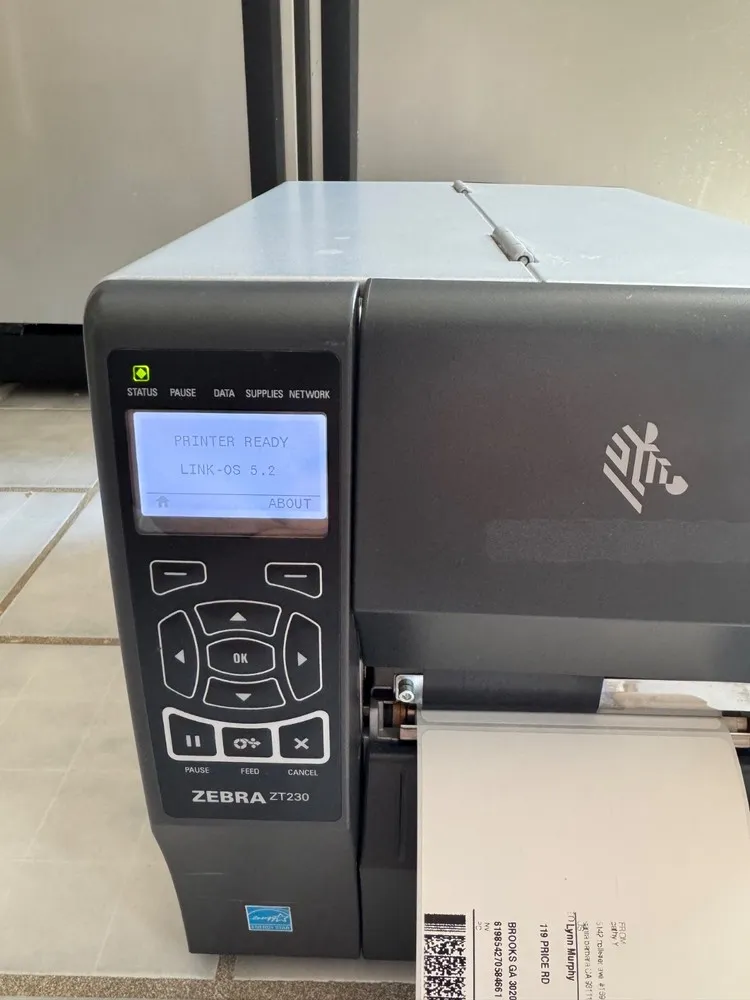

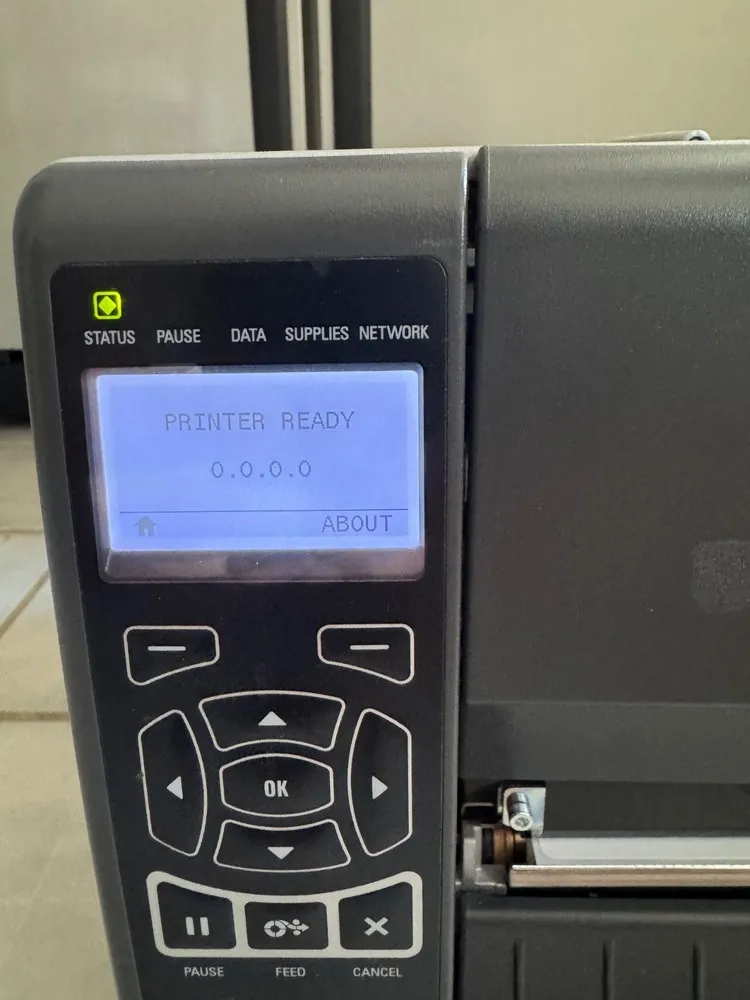

Display 2.3-inch backlit LCD
Operating Temperature Operating 41°F to 104°F (5°C to 40°C)
Power Supply 110 V or 220 V AC auto-ranging
Programming Languages ZPL, EPL

Key Advantages

The ZT230 delivers reliability with its metal frame and proven clamshell design, minimizing downtime. Its integration flexibility is enhanced by multiple interface options and support for various programming languages. This printer offers print quality suitable for barcode standards with resolutions up to 300 dpi for fine detail. User-friendly operation is ensured through a simple LCD display and easy media loading features. The compact footprint makes it adaptable to different workspace conditions without sacrificing industrial durability. Additionally, the ZT230 supports a wide range of media types and sizes, increasing application versatility across many industries.

Limitations

While robust, the ZT230 has a maximum print speed of 6 inches per second, which may be slower than higher-end industrial printers. The maximum print width of 4.09 inches limits use to smaller labels and tags. The standard print resolution at 203 dpi is adequate but may not meet needs requiring ultra-high resolution without the optional upgrade. Media capacity is moderate, potentially requiring more frequent media changes in very high volume settings. The device lacks some advanced connectivity options like Wi-Fi standard, relying primarily on wired network connections. Additionally, support for newer protocols and software updates may be limited due to its design release date.

FAQ

The Zebra ZT230 supports a variety of media types including labels, tags, continuous media, and die-cut media compatible with thermal transfer and direct thermal printing.

The ZT230 provides multiple connectivity options including USB, Serial, Parallel interfaces, and Ethernet networking for flexible integration.

Yes, the ZT230 comes standard with 203 dpi resolution and offers an optional upgrade to 300 dpi for higher print quality.

The ZT230 is designed for moderate volume environments; very high volume users might require printers with faster print speeds and larger media capacities.

The maximum print speed of the ZT230 is 6 inches per second.

Wireless connectivity is not standard on the ZT230; it primarily supports wired interfaces such as Ethernet and USB.

As of the latest information, the Zebra ZT230 is not discontinued and continues to receive support from Zebra.
