Zebra ZT230 image

Zebra ZT230

Quick information
Brand Zebra 2018
Model ZT23042-D01200FZ, Ethernet
Released Year 2018
Type Printers
Status Active
Quick view
Full specs Images FAQ

Overview

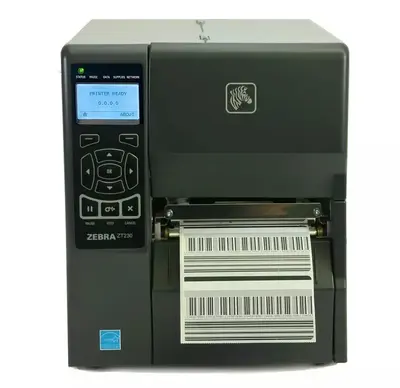

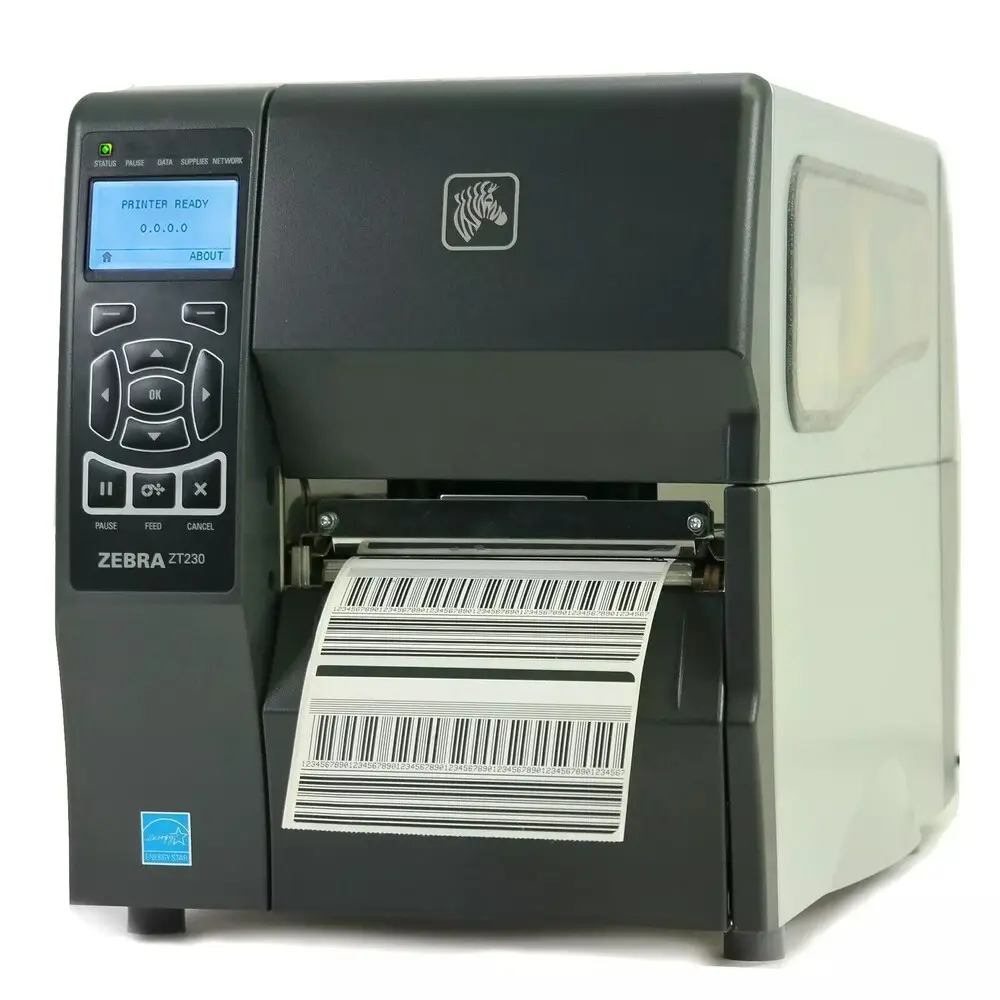

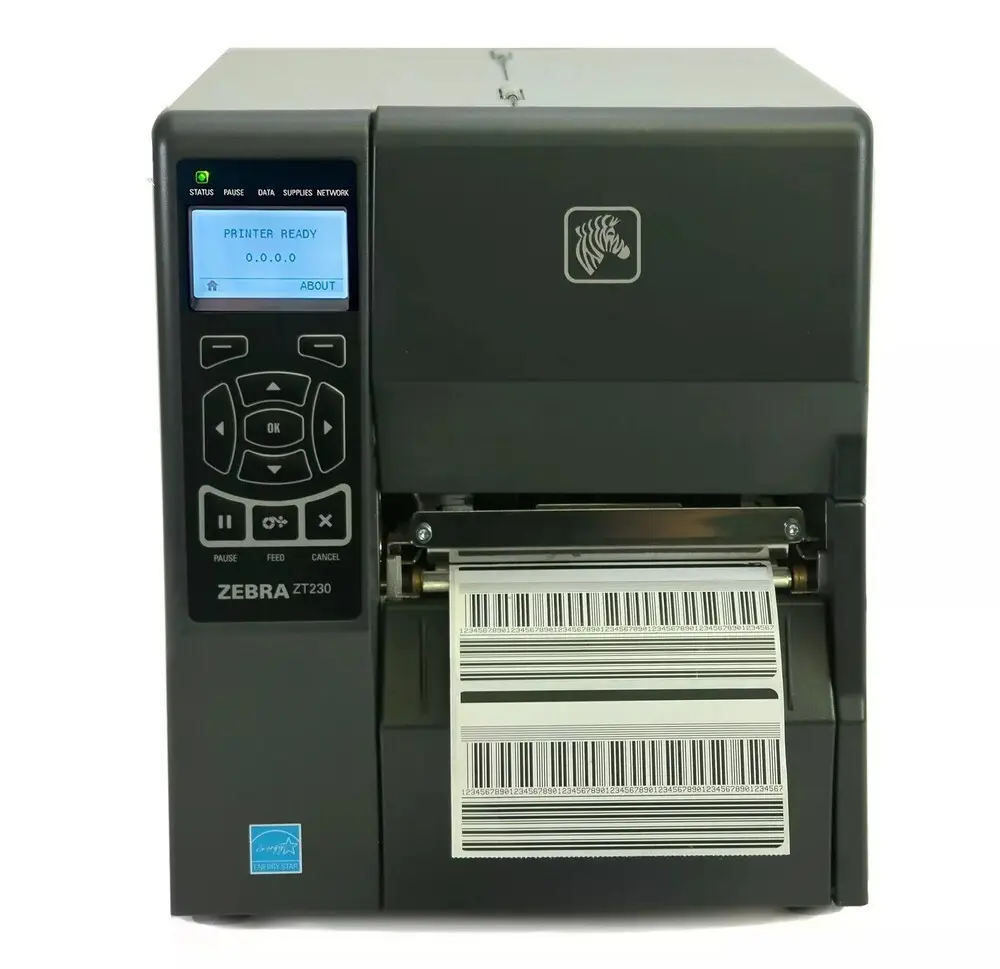

The Zebra ZT23042-D01200FZ is an industrial-grade thermal transfer and direct thermal label printer designed for medium-duty printing applications in office and industrial environments.

This model supports Ethernet connectivity, enabling reliable network integration for streamlined printing workflows.

It features advanced Link-OS software platform compatibility for easy remote management and configuration.

The printer supports a print resolution of 203 dpi, balancing quality and speed in label production.

Robust metal frame construction ensures durability and longevity in demanding office electronics environments.

With intuitive LCD control and extensive media compatibility, the ZT230 enhances operational efficiency and ease of use.

Specifications

Print Method Thermal Transfer and Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Print Speed Up to 6 inches per second

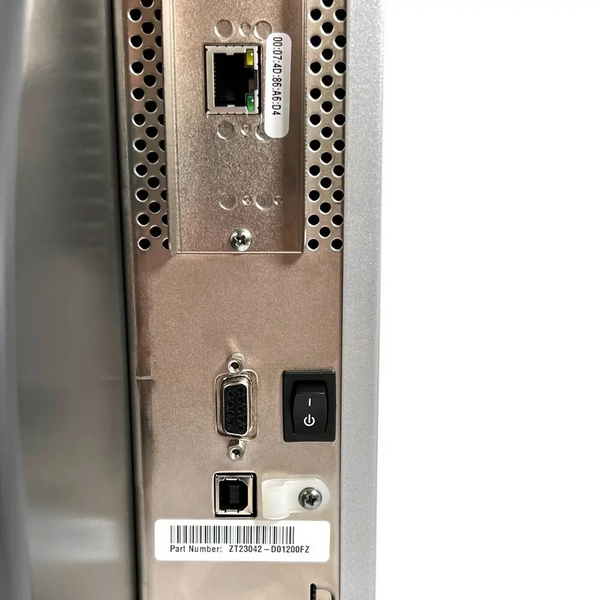

Connectivity USB, Ethernet (RJ-45), Serial (RS-232)
Media Types Supported Continuous, die-cut, tag, receipt, black mark
Memory 128 MB
Display 2.3-inch LCD graphical display
Dimensions 432 mm (W) x 254 mm (H) x 356 mm (D)
Weight Approx. 8 kg
Operating Temperature 5°C to 40°C
Power Supply AC input 100-240V, 50-60 Hz
Software Support ZebraDesigner, Link-OS
Frame Material Metal frame construction
Emulations ZPL, EPL
Ribbon Types Wax, Wax/Resin, Resin
Input Type Monochrome
Output Type Black & White
MPN ZT23042-D01200FZ, Ethernet
Supported Paper Size Maximum Label Width: 4.50"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model ZT230
Features Networkable
Black Print Speed 6 ips
Product Line Zebra
UPC Does not apply

Key Advantages

High-quality 203 dpi print resolution suitable for a broad range of labeling applications.

Ethernet connectivity provides fast and stable network integration for seamless office use.

Durable metal frame construction offers reliability and longevity in tough environments.

Link-OS platform support enables advanced device management and remote diagnostics.

Wide media compatibility including various label types and ribbons increases versatility.

The intuitive LCD interface simplifies operation and status monitoring for users.

Limitations

Maximum print speed is moderate compared to higher-end industrial printers, which may limit high-volume demands.

Resolution limited to 203 dpi may not be ideal for extremely fine or detailed labels.

Relatively large footprint could constrain placement in tight office spaces.

Advanced features might require additional investment in Link-OS compatible software solutions.

Limited to wired Ethernet connectivity; no built-in Wi-Fi option available.

Replacement parts and accessories for discontinued or older models might be harder to source over time.
