Zebra ZP 500 PLUS image

Zebra ZP 500 PLUS

Quick information
Brand Zebra 2006
Model ZP500PLUS
Released Year 2006
Type Printers
Series Z
Status Discontinued
Quick view
Full specs Images

Overview

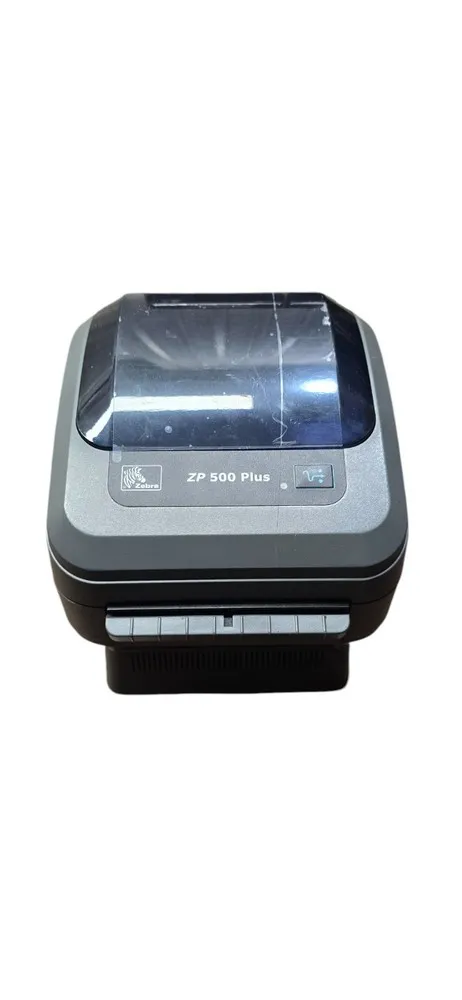

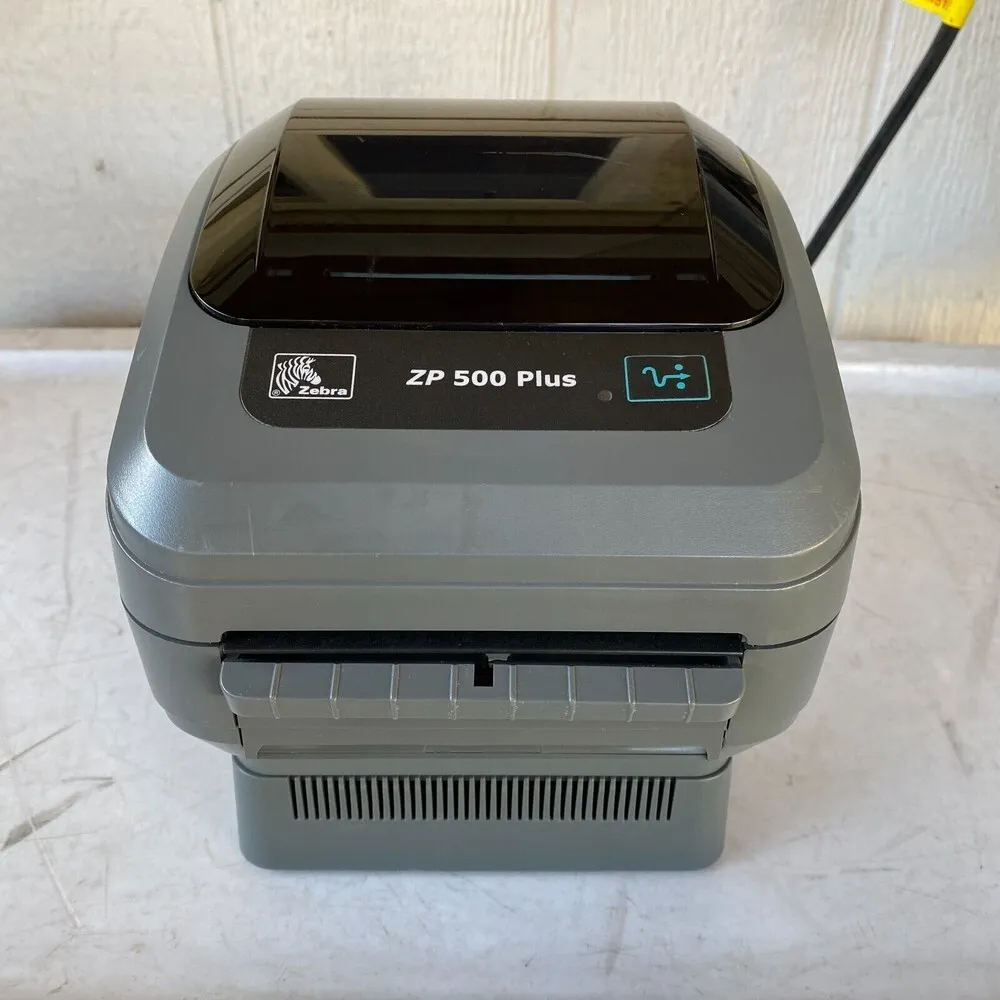

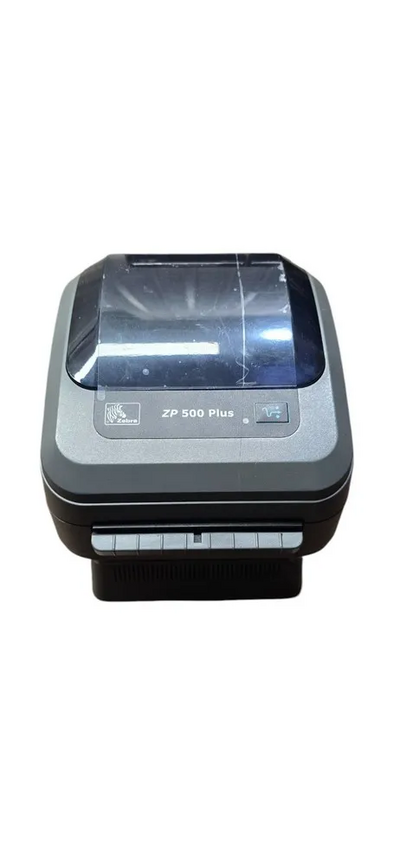

The Zebra ZP 500 PLUS is a thermal transfer and direct thermal desktop printer designed primarily for office and retail environments. It supports print widths up to 4 inches and provides resolutions of 203 dpi, suitable for barcode, label, and receipt printing. Connectivity options include serial and parallel interfaces, with optional USB and Ethernet via adapter kits. The printer features a user-friendly clamshell design for easy media loading and maintenance. It supports various media types such as continuous, die-cut, and fanfold labels, enhancing versatility. The device is compatible with Zebra's ZPL (Zebra Programming Language) for seamless integration with existing label printing workflows.

Specifications

MPN ZP500PLUS
UPC 0300849970152
Model ZP 500 PLUS
Technology Thermal

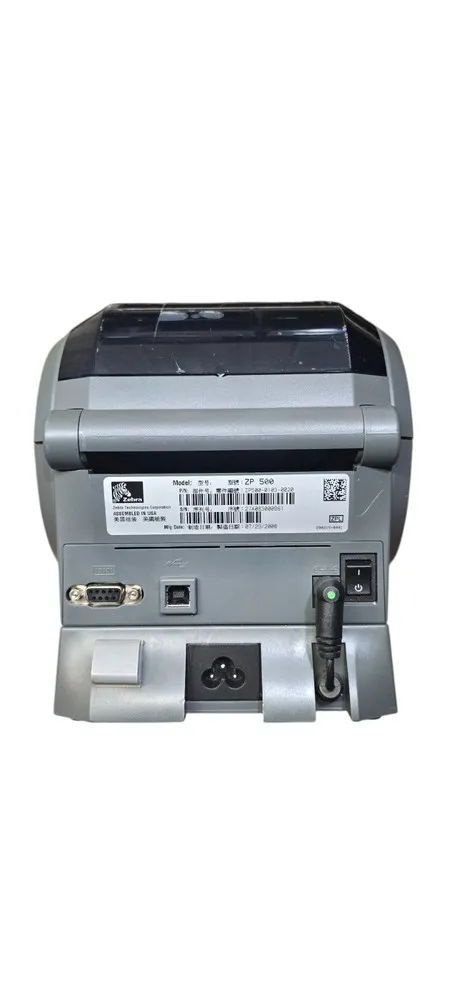

Connectivity Serial RS-232, Parallel, optional USB and Ethernet via adapters
Output Type Black & White
Features Portable, Networkable
Input Type Monochrome
Type Label Printer
Product Line Zebra Z
Print Technology Thermal Transfer and Direct Thermal
Print Width 4.09 inches (104 mm)
Print Resolution 203 dpi (8 dots/mm)
Print Speed Up to 4 inches per second
Memory 8 MB SDRAM, 4 MB Flash
Media Types Continuous, die-cut, fanfold labels and tags
Media Width 0.75 to 4.5 inches (19 to 114 mm)
Media Thickness 0.003 inches to 0.012 inches (0.08 to 0.3 mm)
Ribbon Type Wax, wax/resin, resin (thermal transfer only)
Ribbon Length Up to 300 meters
Dimensions 7.9 x 6.3 x 8.7 inches (200 x 160 x 221 mm)
Weight 6.4 lbs (2.9 kg)
Operating Systems Windows 2000, XP, Vista (drivers available)
Programming Language ZPL (Zebra Programming Language)

Key Advantages

The ZP 500 PLUS offers reliable printing performance with consistent print quality at a moderate speed. Its compact footprint makes it ideal for constrained office spaces. The clamshell design enables quick and easy media replacement, reducing downtime. Compatibility with both thermal transfer and direct thermal media increases flexibility. It supports multiple interface options, offering connectivity tailored to user requirements. Durable construction ensures robust operation in demanding office or light industrial environments.

Limitations

The ZP 500 PLUS printer is relatively slow compared to more modern desktop printers, impacting high-volume printing tasks. Limited built-in connectivity options require additional adapters for USB or network usage. The maximum print resolution is restricted to 203 dpi, which may be insufficient for very fine graphics. The printer's firmware updates and software support have become less frequent due to its age. It does not natively support wireless printing capabilities. Media capacity is limited by the relatively small internal roll size, necessitating frequent media changes in heavy-use situations.

FAQ

The Zebra ZP 500 PLUS supports direct thermal and thermal transfer printing on various media types including continuous, die-cut, and fanfold labels.

By default, it includes serial and parallel interfaces; however, network connectivity such as Ethernet can be added with optional adapter kits.

The printer offers a maximum resolution of 203 dpi, suitable for standard barcode and label printing.

While it originally supported older Windows versions, Zebra provides drivers and software that may allow limited compatibility with some current Windows OS versions.

Yes, the ZP 500 PLUS is compatible with a wide range of thermal transfer ribbons and label stock from third-party vendors, as long as they meet size and material specifications.

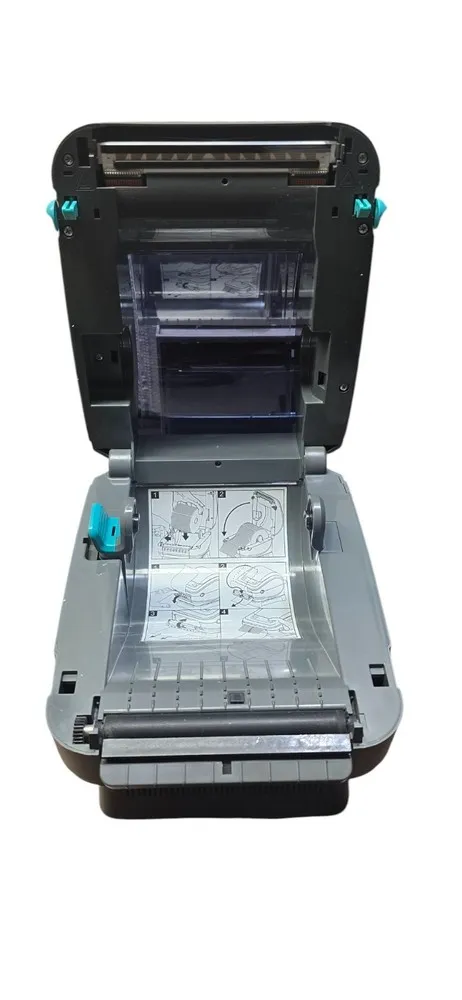

The printer features a clamshell design that opens easily to load label rolls and ribbons, simplifying media replacement.

The model is discontinued, meaning official support and firmware updates from Zebra are limited or no longer provided.
