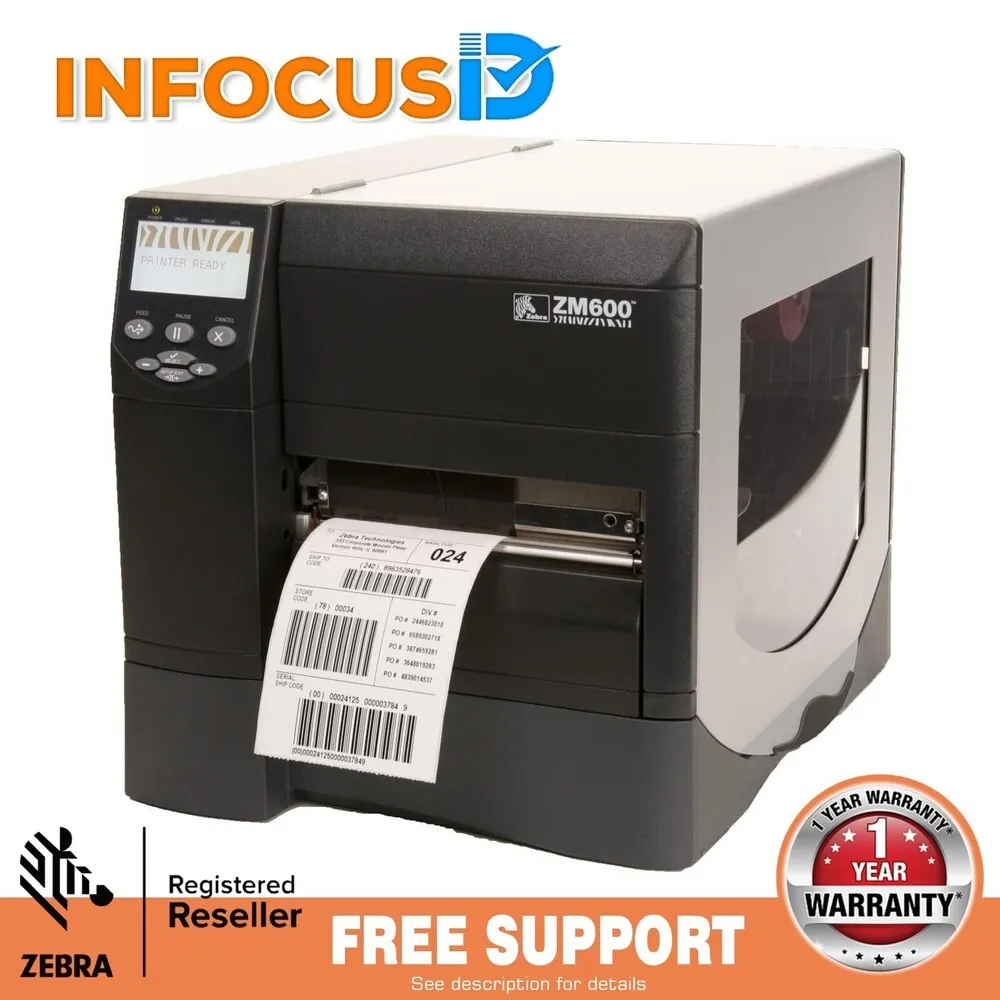

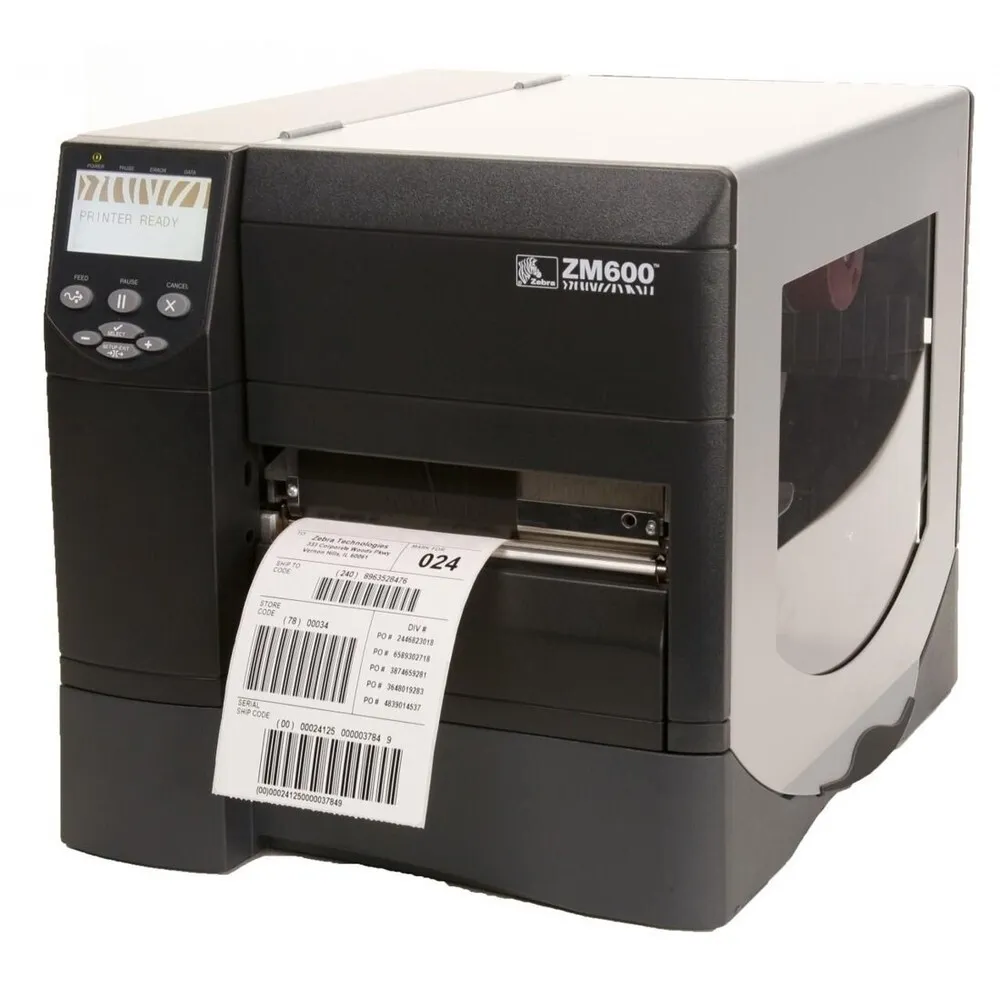

Zebra ZM600
| Brand | Zebra 2007 |
| Model | ZM600-200E-0100T |
| Released Year | 2007 |
| Type | Printers |
| Series | Z |
| Status | Discontinued |
Quick view
Overview
The Zebra ZM600 is a high-performance industrial label printer designed for heavy-duty printing environments. It utilizes thermal transfer and direct thermal printing technologies, supporting print widths up to 6 inches (152 mm) at resolutions of 203 or 300 dpi. The printer is equipped with a fast processor and substantial memory, ensuring rapid label throughput and complex label formatting. Robust connectivity options include USB 2.0, serial, parallel, and Ethernet interfaces, facilitating versatile integration within existing networks. The device supports a wide range of media types and sizes, providing adaptability for diverse labeling applications. Built for reliability, the ZM600 features a durable design with easy media loading and maintenance access to minimize downtime.
Specifications
| Input Type | Monochrome |
| Memory | Standard 32 MB SDRAM, 16 MB Flash memory |
| Output Type | Black & White |
| Print Method | direct-thermal or thermal-transfer |
| MPN | ZM600-200E-0100T |
| Operating Temperature - Thermal Transfer | 40º F / 5º C to 104º F / 40º C |
| Weight | Approximately 41 lbs (18.6 kg) |
| Supported Paper Size | Length: 102”/2,590 mm, Width: 6.6”/168 mm |
| Type | Label Printer |
| Operating humidity | 20 - 85% non-condensing |
| Technology | Thermal transfer and direct thermal printing |
| Maximum Resolution | 203 x 203 DPI |
| Electrical requirements | Auto-ranging 90-265 VAC; 48-62Hz |
| Model | ZM600 |
| Connectivity | USB 2.0, Serial RS-232, Parallel, 10/100 Ethernet |
| Features | Methods: direct-thermal or thermal-transfer, XML-Enabled printing, ZPL II®, Die-cast aluminum base, frame, Color-coded operator cues, Auto-ranging (90–265 VAC) power supply, Auto-calibration, Multi-language control panel, Real-time clock, Element Energy Equalizer™ (E3 ™), Metal media cover with large clear window |
| Black Print Speed | 10”/254 mm per second |
| Operating Temperature - Direct Thermal | 32º F / 0º C to to 104º F / 40º C |
| SKU | ZM600-200E-0100T-REF |
| Media Type | Continuous, die-cut, tags, black-mark |
| Product Line | Zebra Z |
| UPC | Does not apply |
| Printer Type | Industrial Thermal Transfer and Direct Thermal |
| Print Width | 4.09 inches (104 mm) to 6.6 inches (168 mm) media width, max 6 inches print width |
| Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
| Print Speed | Up to 10 inches per second (254 mm/s) |
| Media Handling | Roll-fed, die-cut, continuous, tags, linerless media |
| Media Sensors | Adjustable reflective and transmissive sensors |
| Max Media Roll Diameter | 8 inches (203 mm) |
| Dimensions (W x D x H) | 11.8 x 19.7 x 16.6 inches (300 x 500 x 422 mm) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | External power supply, 100-240 VAC |
| Operating System Support | Windows, Linux, Mac OS via Zebra drivers |
| Additional Features | Ribbon saving technology, field-installable options such as cutters and peelers |
Images
Key Advantages
The Zebra ZM600 offers excellent print speed and quality, ideal for industrial labeling tasks. Its flexible connectivity supports seamless integration in various IT environments. The printer's rugged construction enhances durability and long-term operation efficiency. Easy-to-use controls and quick media loading improve user experience and productivity. It supports a large memory capacity for complex label formats and fonts. Compatibility with Zebra's Link-OS platform allows enhanced device management and cloud connectivity.
Limitations
The ZM600, being an older model, lacks some modern connectivity options such as wireless Bluetooth or Wi-Fi support. Its size and weight make it less portable compared to desktop or mobile printers. Limited to 6-inch media width, which might not suit larger format printing needs. Maintenance and repair could be challenging due to the availability of parts over time. The printer does not support color printing as it is strictly a monochrome thermal printer. Compared to newer models, ZM600 has lower energy efficiency and fewer advanced software features.
FAQ
What printing technologies does the Zebra ZM600 support?
The Zebra ZM600 supports both thermal transfer and direct thermal printing technologies.
What is the maximum print width of the Zebra ZM600?
The maximum print width for the ZM600 is 6 inches (152 mm).
Which connectivity options are available on the Zebra ZM600?
Connectivity options include USB 2.0, serial, parallel, and Ethernet interfaces.
Is the Zebra ZM600 still in production?
No, the Zebra ZM600 has been discontinued.
Can the Zebra ZM600 print in color?
No, the ZM600 is a monochrome thermal printer and does not support color printing.
What type of media can be used with the ZM600?
It supports various media types including labels, tags, and continuous materials with widths up to 6 inches.
Does the Zebra ZM600 support modern device management platforms?
The ZM600 supports Zebra's Link-OS platform for device management, though features may be limited compared to current models.
