Zebra ZM400
Brand | Zebra 2008 |
Model | ZM4G1-2001-4000T, Liner Take Up, Barcode |
Released Year | 2008 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview

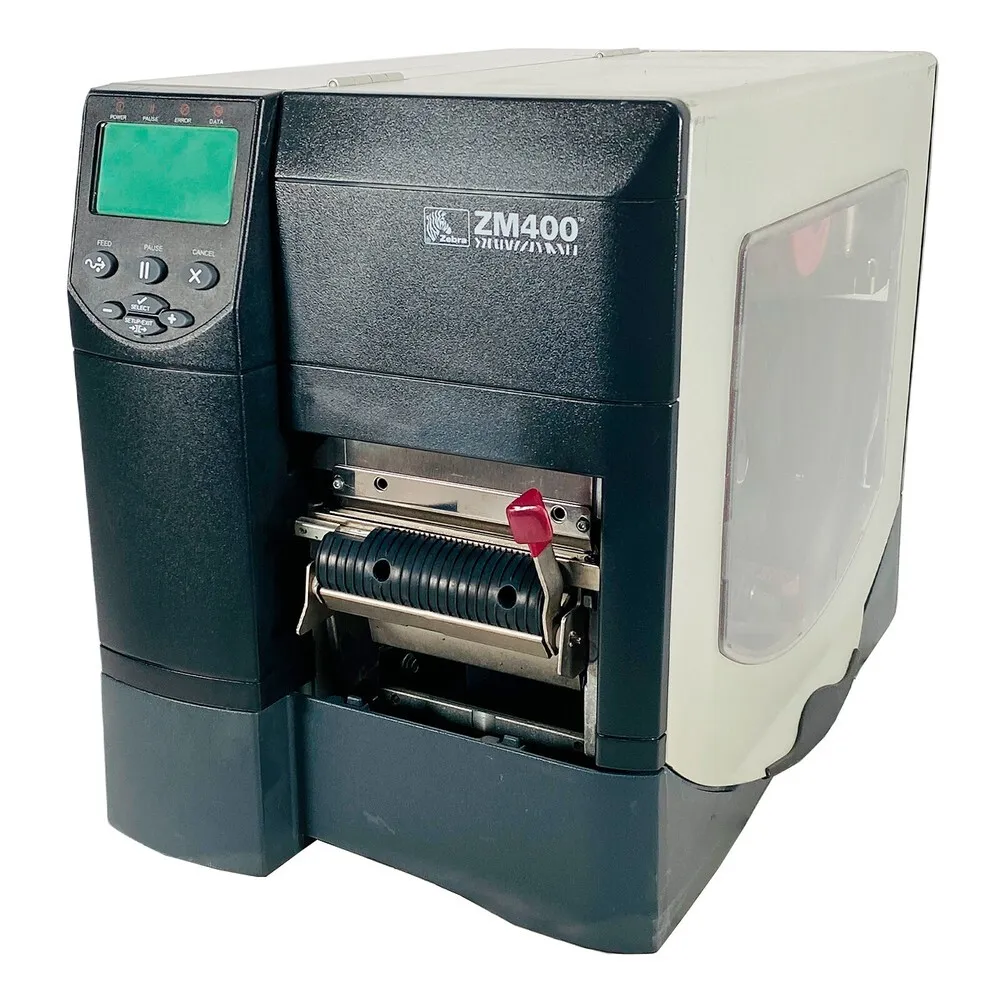

The Zebra ZM400 is a high-performance industrial barcode printer designed for medium to high volume printing environments. It features a durable metal frame and advanced thermal transfer printing technology suitable for a wide variety of media types. The printer supports print widths up to 4.09 inches and print speeds up to 10 inches per second for efficient label production. Its user interface includes an intuitive graphical display for easy operation and diagnostics. The device offers robust connectivity options including parallel, serial, USB, and Ethernet interfaces. Moreover, the ZM400 is engineered for continuous operation with optional liner take-up rewind capabilities, making it ideal for complex labeling applications.
This model is optimized for barcode printing with high resolution of 203 dpi, providing clear and precise output essential for logistics, manufacturing, and healthcare industries. The modular design further facilitates easy maintenance and upgrades, enhancing its lifecycle and performance. Additionally, Zebra offers comprehensive documentation and support resources to aid in device integration and deployment across various enterprise environments.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 64 MB SDRAM, 128 MB Flash |
MPN | ZM4G1-2001-4000T, Liner Take Up, Barcode |
Supported Paper Size | Max. Width: 4.25" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Printer Type | Thermal Transfer / Direct Thermal |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZM400 |
Connectivity | Parallel, Serial, USB, Ethernet |
Features | Peeler, Rewinder |
Black Print Speed | 10 ips |
Product Line | Zebra Z |
UPC | Does not apply |
Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 10 ips (254 mm/sec) |
Print Resolution | 203 dpi (8 dots/mm) |
Media Handling | Liner Take-Up Rewind, Tear-Off, Peel-Off (optional) |
Display | Graphical backlit LCD |
Dimensions | 11.5 x 17.2 x 17.4 inches (292 x 437 x 442 mm) |
Weight | Approximately 32 lbs (14.5 kg) |
Power | Auto-ranging power supply 90-264 VAC |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Discontinued | Yes |
Images
Key Advantages
The Zebra ZM400 stands out with its rugged metal construction ensuring durability in industrial settings. It delivers fast print speeds of up to 10 inches per second, enhancing productivity. Its support for multiple connectivity interfaces allows versatile installation options in different operational setups. The printer's advanced liner take-up feature accommodates continuous roll media, reducing downtime and improving workflow. User-friendly graphical display simplifies printer management and troubleshooting. Lastly, the high print resolution ensures crisp barcode and label clarity critical for tracking and identification.
Limitations
Despite its strengths, the Zebra ZM400's 203 dpi print resolution may not meet requirements for extremely fine or high-density barcode printing. The device's size and weight could pose challenges in environments with limited space. Although it supports many connectivity options, it lacks some modern wireless capabilities like WiFi or Bluetooth natively. Initial setup and configuration might require technical expertise compared to simpler desktop models. Replacement parts and accessories may become less accessible as the device ages. Additionally, it is relatively power-heavy which could influence energy consumption in large-scale deployments.
FAQ
What type of printing technology does the Zebra ZM400 use?
The Zebra ZM400 uses thermal transfer printing technology suitable for printing durable labels and barcodes.
What is the maximum print speed of the ZM400?
It supports print speeds up to 10 inches per second for efficient label production.
Does the ZM400 support liner take-up for media handling?
Yes, the printer offers a liner take-up rewind mechanism which is ideal for continuous roll media handling.
What connectivity options are available on this model?
The ZM400 includes parallel, serial, USB, and Ethernet connectivity options.
Is the ZM400 still supported or discontinued?
The Zebra ZM400 has been discontinued, but some parts and support may still be available through Zebra.
What industries commonly use the Zebra ZM400?
It is widely used in manufacturing, logistics, healthcare, and retail environments for barcode and label printing.
What is the print resolution of the ZM400?
The printer has a print resolution of 203 dpi, suitable for standard barcode and label needs.
