Zebra ZM400
Brand | Zebra 2006 |
Model | ZM400 |
Released Year | 2006 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview
The Zebra ZM400 is a high-performance industrial barcode printer designed for heavy-duty printing environments. It offers both thermal transfer and direct thermal printing technologies, supporting labels up to 4.09 inches in width. The printer supports fast print speeds up to 10 inches per second, enabling efficient handling of large volume printing tasks. It features a 32-bit RISC processor with 4MB Flash memory and 8MB SDRAM for processing complex label formats and graphics. Connectivity options include serial, parallel, and USB ports for versatile integration. Additionally, the ZM400 supports multiple printer languages such as EPL and ZPL, providing broad compatibility with existing systems.
Its rugged metal frame construction ensures durability in industrial settings. The adjustable media sensors and modular design allow easy media loading and maintenance. The printer includes a large LCD display and control panel for straightforward operation and diagnostics. Thermal transfer ribbons and media come in various sizes to accommodate different label materials and applications. The printer's firmware can be updated, and it supports real-time clock and multiple font options for customized labeling.
Specifications
Type | Industrial Thermal Printer |
Product Line | Zebra Z |
Technology | Thermal |
Output Type | Black & White |
Connectivity | Ethernet (RJ-45), Parallel (IEEE 1284), USB 2.0 |
Input Type | Monochrome |
Features | Networkable, Industrial, Commercial |
Model | ZM400 |
Supported Paper Size | Up to 4 Inches Wide |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 10 IPS |
Memory | 4MB Flash, 8MB SDRAM |
MPN | ZM400-2001-0100T |
Print Method | Thermal transfer and direct thermal |
Print Resolution | 203 dpi (8 dots/mm), optional 300 dpi available |
Maximum Print Width | 4.09 inches (104 mm) |
Maximum Print Speed | Up to 10 inches per second (ips) |
Processor | 32-bit RISC processor |
Interfaces | Serial RS-232C, Parallel, USB |
Label Roll Diameter | Up to 8 inches (203 mm) |
Ribbon Length | Up to 450 meters |
Media Sensors | Adjustable reflective and transmissive sensors |
Display | 16-character LCD with LED indicators |
Supported Printer Languages | ZPL, EPL |

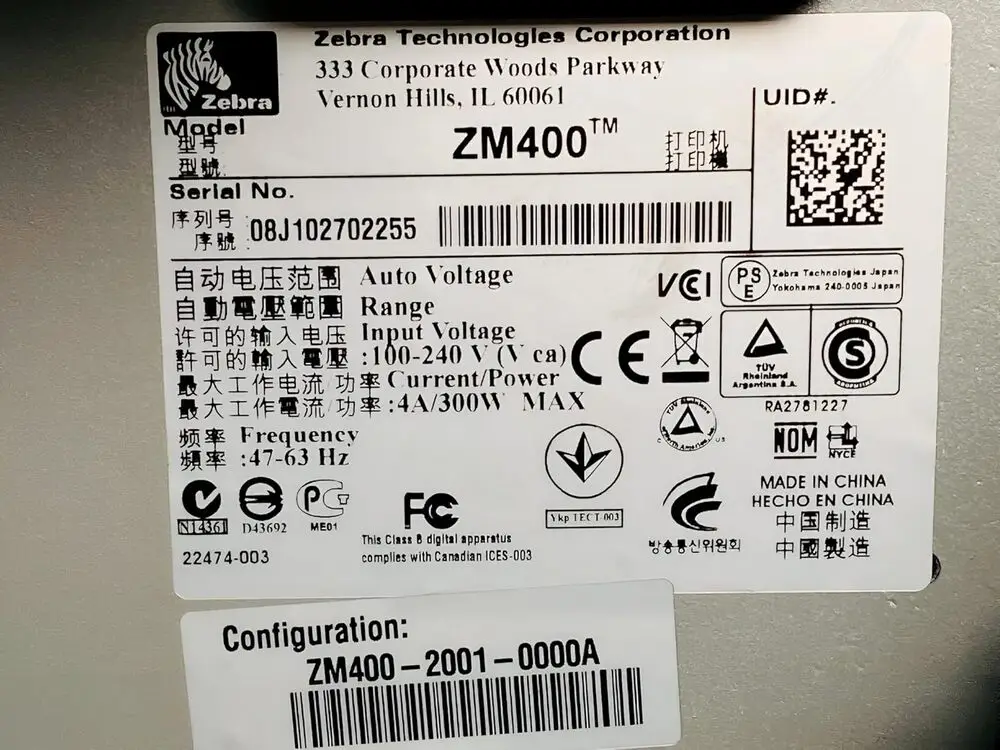

Power Supply | 100-240V AC, 50-60 Hz |
Weight | Approximately 21 lbs (9.5 kg) |
Dimensions (WxHxD) | 12.7 x 10 x 15 inches (323 x 254 x 381 mm) |
Operating Temperature | 41 to 104°F (5 to 40°C) |
Storage Temperature | -40 to 140°F (-40 to 60°C) |

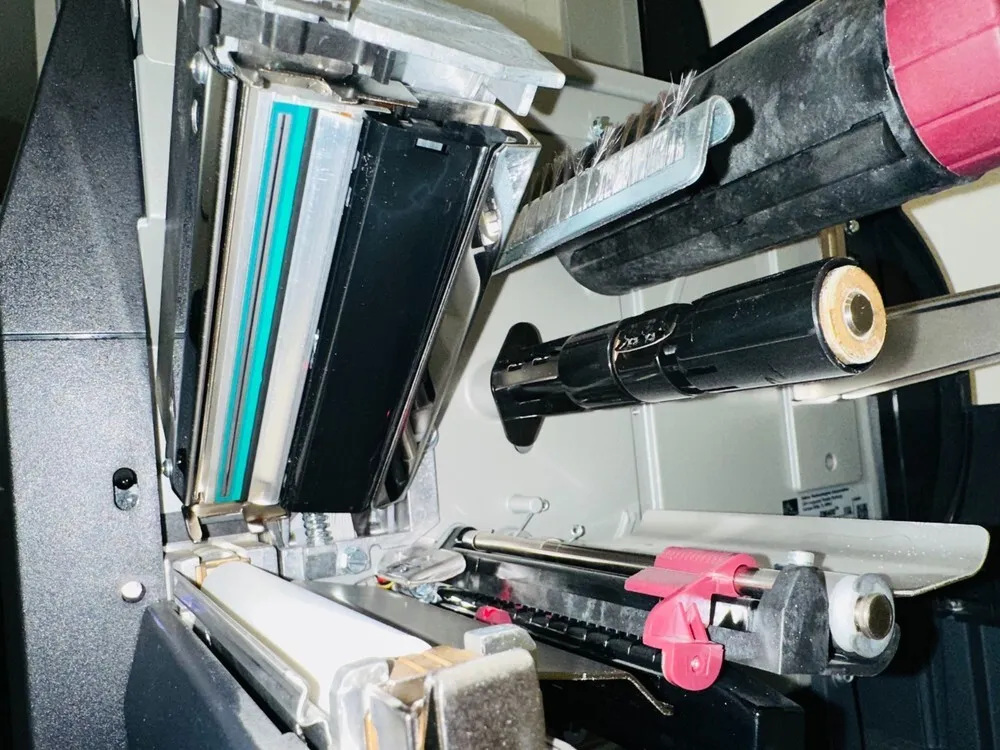

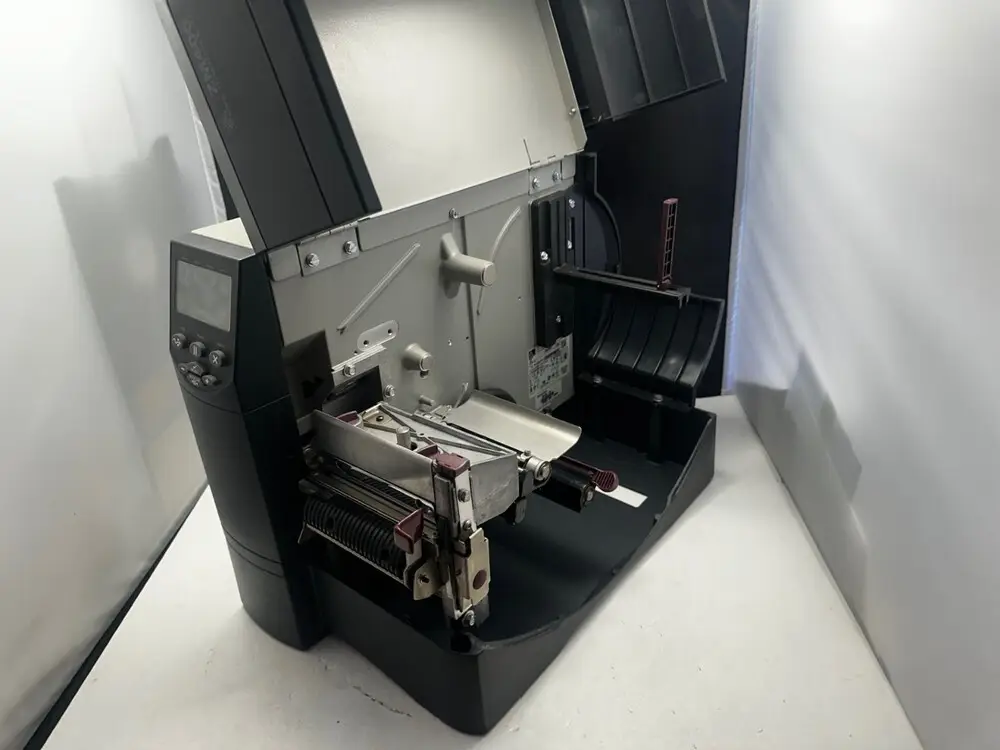

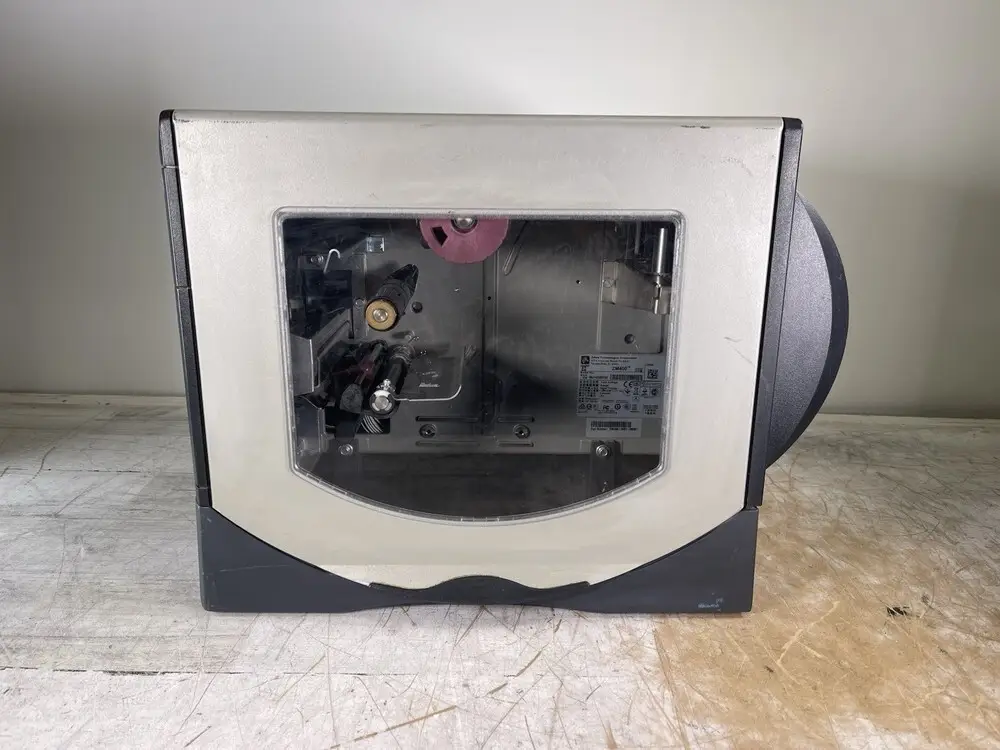

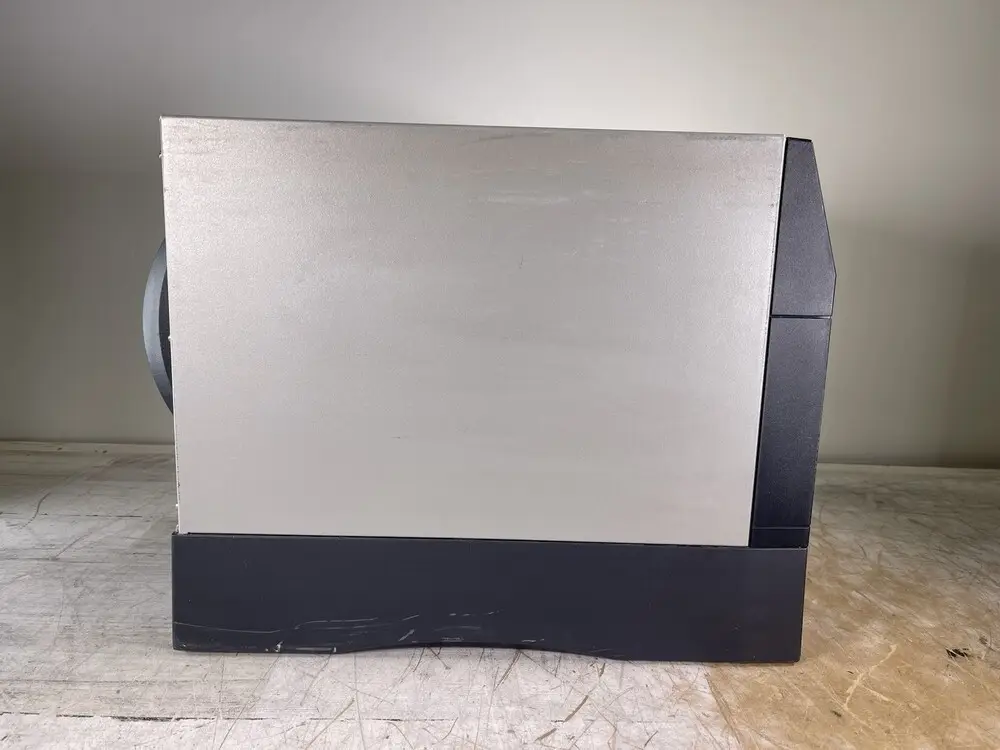

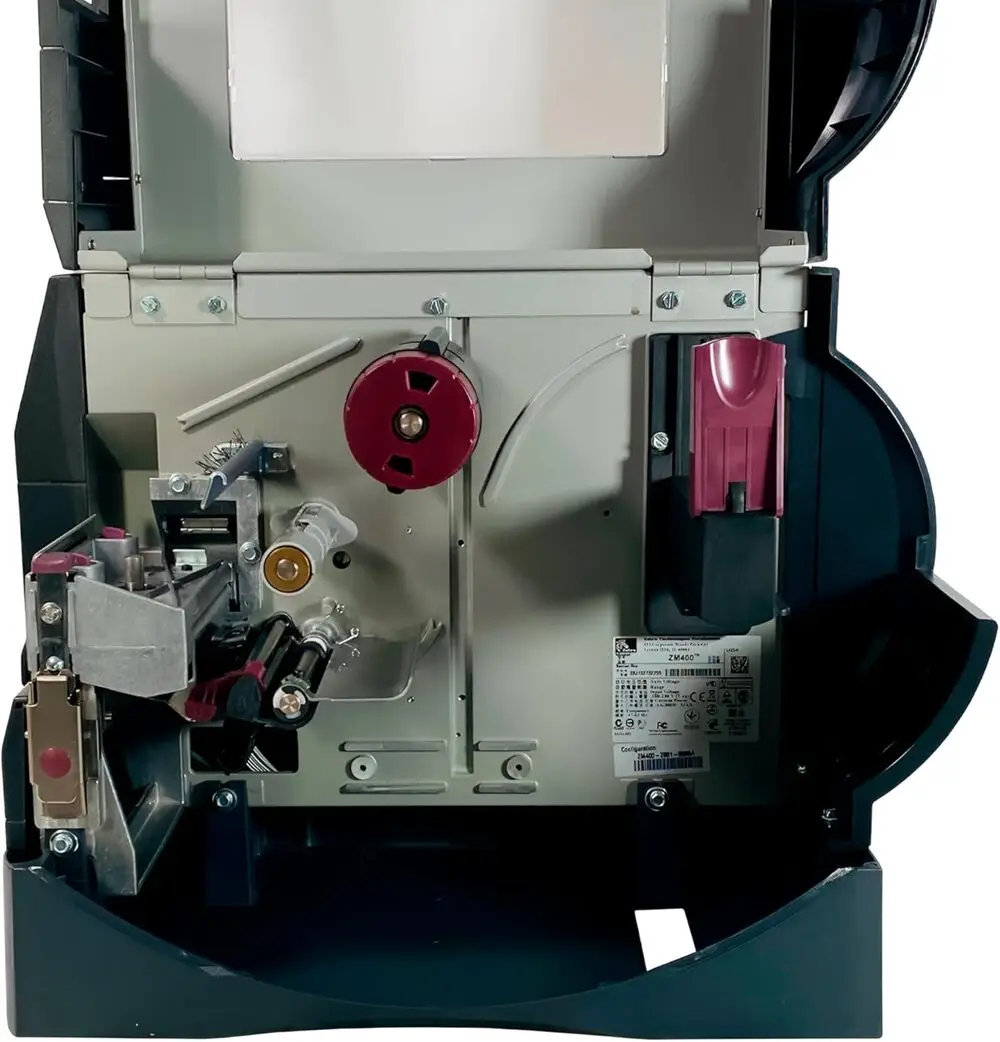

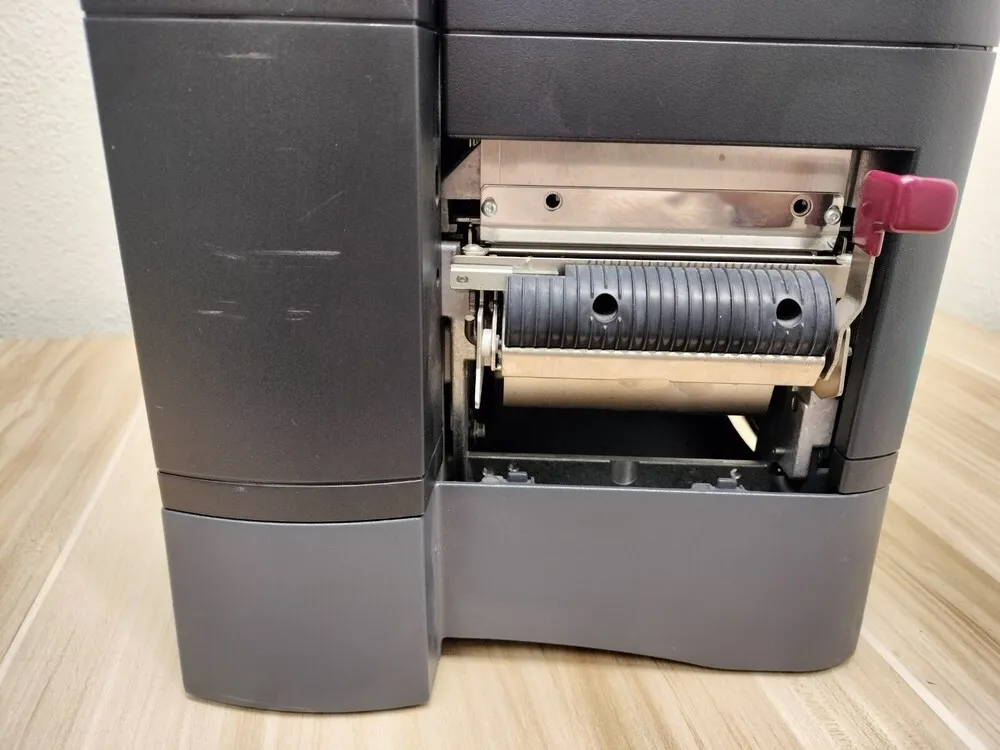

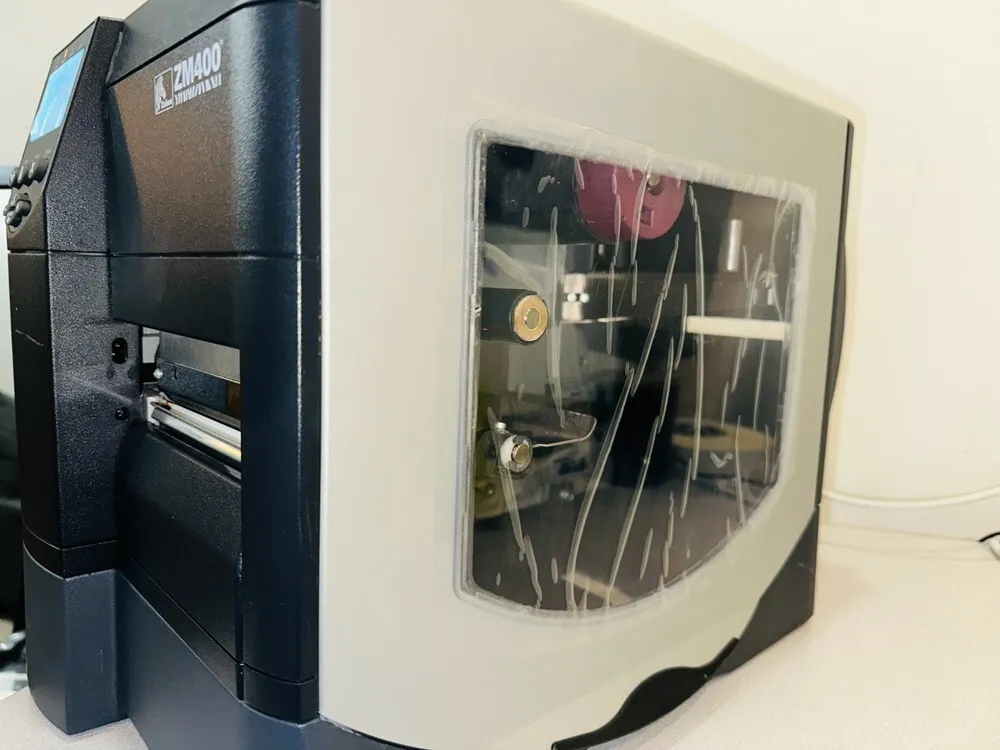

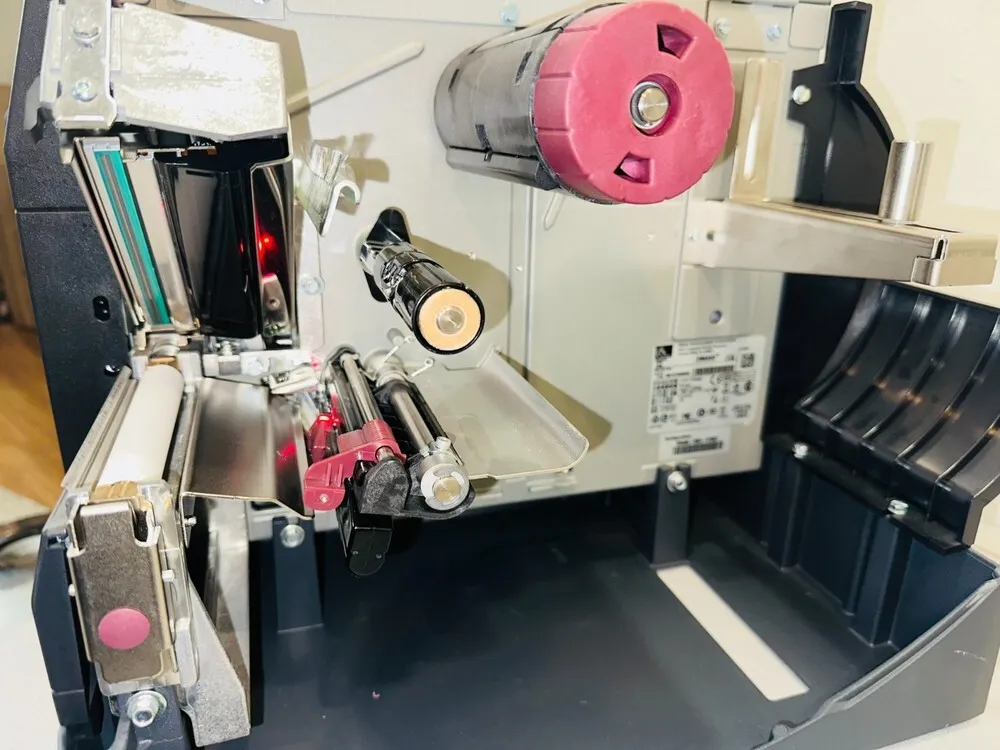

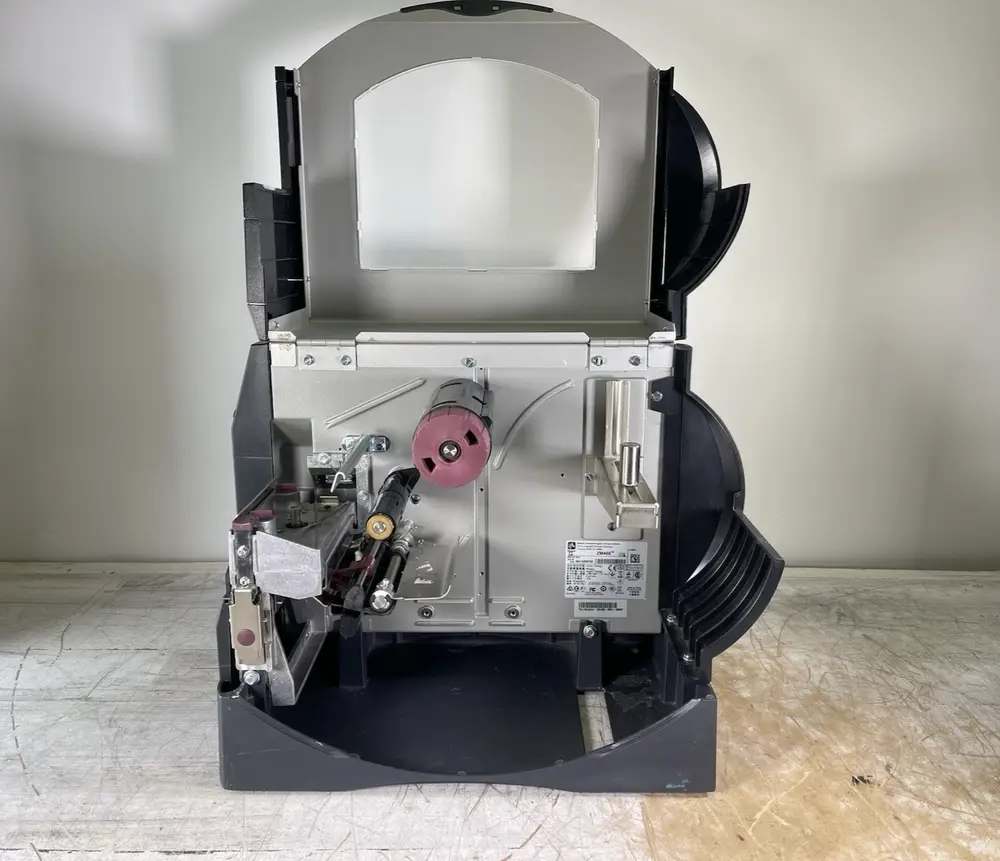

Images
Key Advantages
The Zebra ZM400 offers robust construction suitable for demanding industrial environments. It provides high-speed printing up to 10 ips, increasing operational efficiency. The device supports both direct thermal and thermal transfer printing methods, offering versatility for various applications. Extensive connectivity options including USB, serial, and parallel interfaces facilitate easy integration. Its substantial memory capacity enables storage of complex label formats internally. The printer supports multiple printing languages, ensuring compatibility with a wide range of software and systems.
Limitations
The ZM400 printer's metal build, while durable, results in a heavier device that may not be easily portable. Its print resolution of 203 dpi may not be sufficient for applications requiring very high-definition barcode printing. The device uses a ribbon-based system which entails ongoing consumable costs. Modern connectivity such as Ethernet or wireless options are not present as standard and may require additional modules. The printer's design and user interface may feel outdated compared to newer models with touchscreen controls. Firmware updates are less frequent due to its age, limiting new feature additions.
FAQ
What printing technologies does the Zebra ZM400 support?
The Zebra ZM400 supports both thermal transfer and direct thermal printing technologies, allowing for flexible printing options depending on label material and application.
What is the maximum print speed of the ZM400?
The printer can achieve maximum print speeds of up to 10 inches per second, suitable for high-volume industrial labeling.
Which connectivity interfaces are available on the ZM400?
The ZM400 includes serial, parallel, and USB interfaces as standard for flexible connectivity with various host systems.
Is the Zebra ZM400 still in production?
No, the Zebra ZM400 has been discontinued and replaced by newer models in Zebra's industrial printer lineup.
What print resolution does the ZM400 provide?
The standard print resolution is 203 dpi, with some models also available with 300 dpi for higher detail printing.
Can the ZM400 handle complex label formats?
Yes, with 4MB Flash memory and 8MB SDRAM, it can store and print complex label formats including graphics and multiple fonts.
Does the Zebra ZM400 support industrial environments?
Yes, its rugged metal construction and modular design make it ideal for heavy-duty industrial printing environments.
