Zebra ZD6A142-D01L01EZ
| Brand | Zebra 2021 |
| Model | ZD6A142-D01L01EZ |
| Released Year | 2021 |
| Type | Printers |
| Series | ZD621 |
| Item Weight | 3.6 pounds |
| Product Dimensions | 12.2 x 9.9 x 9.7 inches |
| Status | Active |
Quick view
Overview

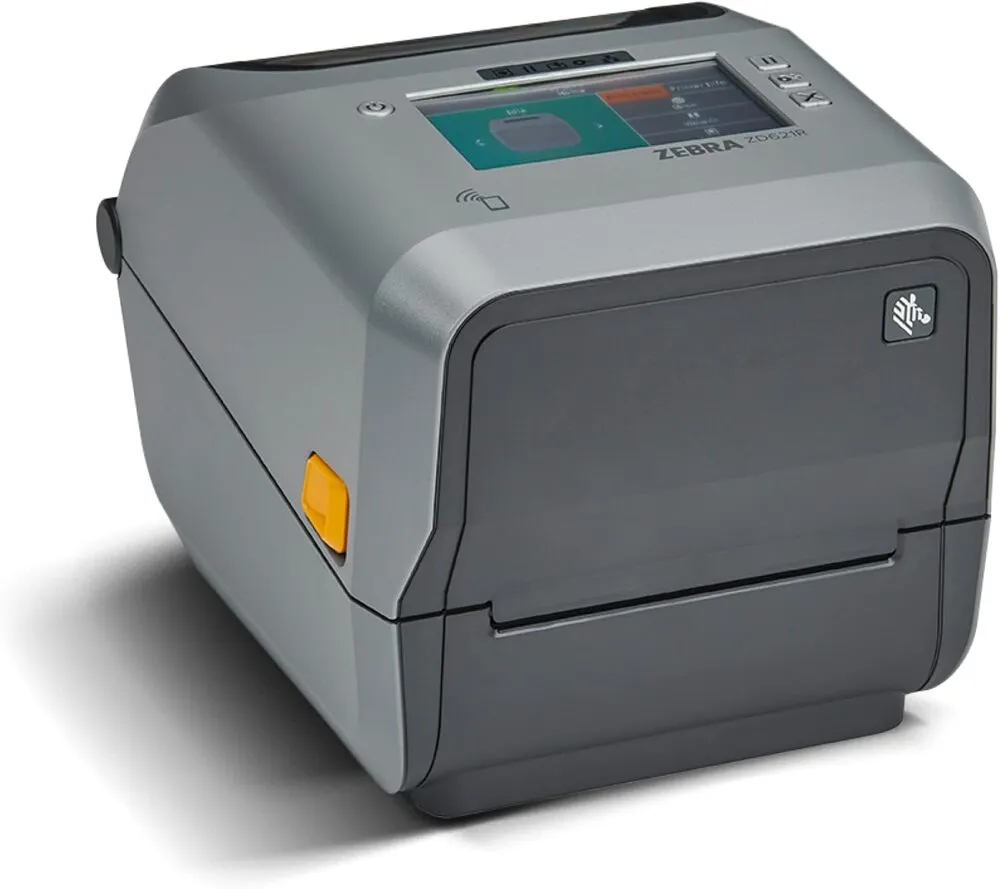

The Zebra ZD621 printer is a direct thermal and thermal transfer desktop printer designed for office and industrial applications.
It features a 203 dpi or 300 dpi print resolution, ensuring crisp and clear printing output suitable for barcodes, labels, and receipts.
The printer is powered by a 1 GHz 32-bit ARM processor delivering fast processing speeds for efficient job handling.

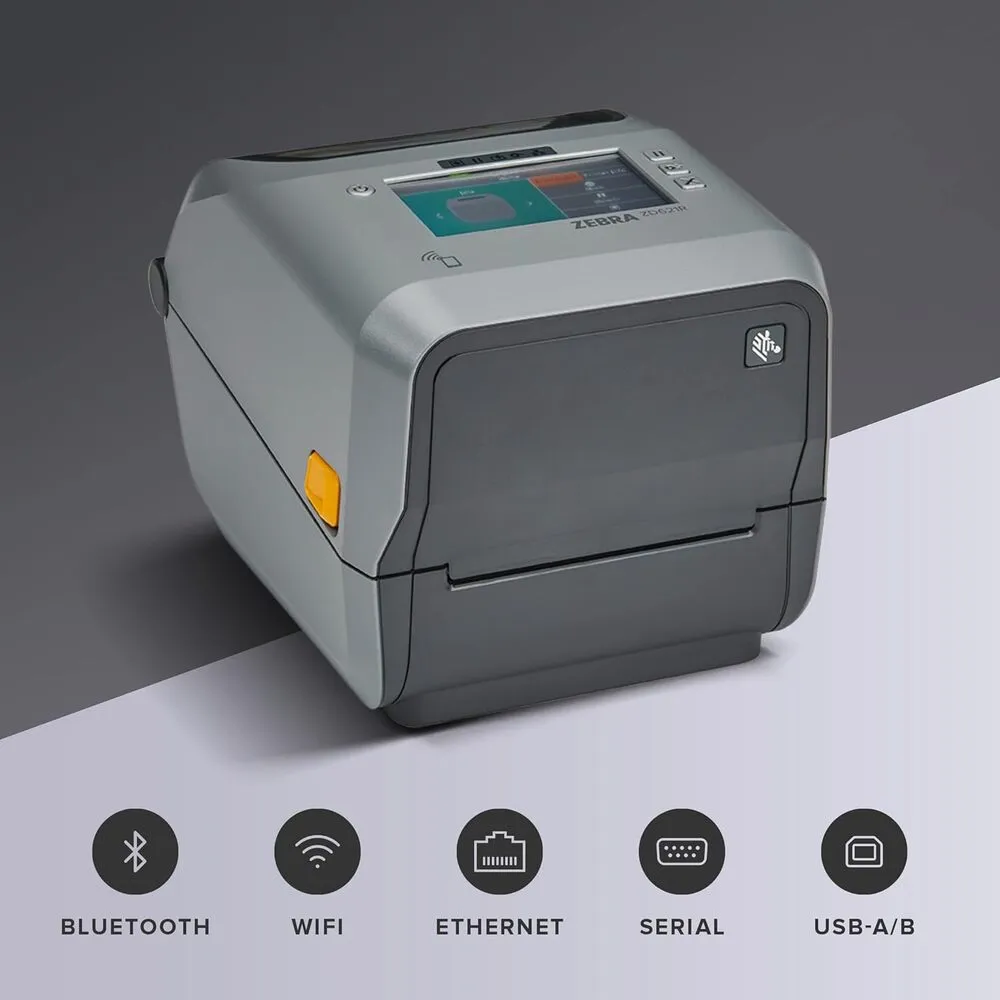

Connectivity options include USB, Ethernet, Bluetooth, and optional Wi-Fi, supporting various deployment environments.
The ZD621 supports a maximum print width of 4.09 inches (104 mm) and print speed up to 8 inches per second, optimizing productivity.
Its user-friendly interface includes a color LCD display with easy navigation buttons for simplified operation and diagnostics.
Specifications
| Included Components | Media rolls, field installable add ons (cutter, peeler), and labels |
| Print media | Labels |
| Max Input Sheet Capacity | 75 |
| Display Type | LCD |
| Compatible Devices | Laptops |
| Sheet Size | 4.25 inches |
| Maximum Black and White Print Resolution | 203 dpi |
| Warranty Type | limited warranty |
| Color Depth | 1 bpp |
| Dual-sided printing | No |
| Max copy resolution black-white | 203 dpi |
| Duplex | Simplex |
| Hardware Interface | Bluetooth |
| Resolution | 203 x 203 DPI |
| Additional Printer functions | Print Only |
| Control Method | Touch |
| Number of Drivers | 1 |
| Number of Trays | 1 |
| Processor Count | 1 |
| Series Number | 6 |
| Total Ethernet Ports | 1 |
| Number of USB 2 Ports | 1 |
| Total USB Ports | 1 |
| Printer Ink Type | No Ink |
| Product Dimensions | 12.2 x 9.9 x 9.7 inches |
| Item Weight | 3.6 pounds |
| Item model number | ZD6A142-D01L01EZ |
| Date First Available | August 4, 2021 |
| Manufacturer | ZEBRA |
| Printer Type | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
| Print Speed | Up to 8 inches/203 mm per second |
| Print Width | Maximum 4.09 inches (104 mm) |
| Processor | 1 GHz 32-bit ARM Cortex A9 |
| Memory | 512 MB Flash, 256 MB SDRAM |
| Connectivity | USB 2.0, Ethernet, optional Wi-Fi 802.11ac, Bluetooth 4.1 |
| Display | 4.3 inch full-color LCD with touch interface |
| Media Types Supported | Labels, tags, receipts, wristbands |
| Media Sensing | Gap, black mark, continuous |
| Ribbon Type | Wax, wax/resin, resin ribbons, 450 m length |
| Dimensions | 8.6 in W x 7.0 in H x 9.7 in D (219 mm x 178 mm x 246 mm) |
| Weight | 7.5 lbs (3.4 kg) |
| Operating Temperature | 40°F to 105°F (4.4°C to 40.6°C) |
| Power Supply | 100-240V AC, 50-60 Hz auto-ranging |
Images
Key Advantages
The ZD621's modular design allows easy upgrades such as adding RFID encoding or Wi-Fi capabilities, enhancing its versatility.
Its high print quality with 300 dpi option supports detailed label printing required for complex barcode symbologies.
Fast print speeds and processing power improve throughput in busy office environments.
Robust connectivity options ensure compatibility with various host devices and network configurations.
User-centric features like color display, media handling, and tool-less maintenance simplify day-to-day usage and reduce downtime.
The printer supports a wide range of media types and sizes, offering flexible printing solutions for diverse applications.
Limitations
The ZD621's size may be larger compared to some compact desktop printers, requiring more workspace.
While reliable, it might not fulfill very high volume industrial printing needs compared to larger industrial models.
The thermal transfer ribbon capacity is moderate, necessitating frequent replacement in extensive print runs.
Optional features such as Wi-Fi or RFID increase the total cost beyond the base model price.
Limited to desktop usage; it's not suitable for mobile or field printing applications.
Color printing is not supported as it is a monochrome printer, limiting use cases requiring color outputs.
FAQ
What print resolutions does the Zebra ZD621 support?
The Zebra ZD621 supports 203 dpi and 300 dpi print resolutions for high quality output.
Can I connect the ZD621 printer via Wi-Fi?
Yes, the ZD621 offers an optional Wi-Fi module for wireless network connectivity.
What types of labels can the ZD621 print?
It supports various label types including paper, synthetic, and tag media in different sizes.
Is the Zebra ZD621 suitable for industrial high-volume printing?
It is designed mainly for office and moderate volume applications, not heavy industrial use.
Does the printer support RFID encoding?
Yes, RFID encoding is available as an optional feature for compatible labels.
What connectivity options does ZD621 offer?
Standard connectivity includes USB and Ethernet, with optional Bluetooth and Wi-Fi.
Is the ZD621 printer still manufactured?
As of now, the Zebra ZD621 is still being manufactured and supported.
