Zebra ZD62142-D01L01EZ
Brand | Zebra 2018 |
Model | ZD62142-D01L01EZ |
Released Year | 2018 |
Type | Printers |
Series | ZD620 |
Item Weight | 7.5 pounds |
Maximum Color Print Resolution | 203 x 203 DPI |
Product Dimensions | 12.2 x 9.9 x 9.7 inches |
Status | Active |
Quick view
Overview

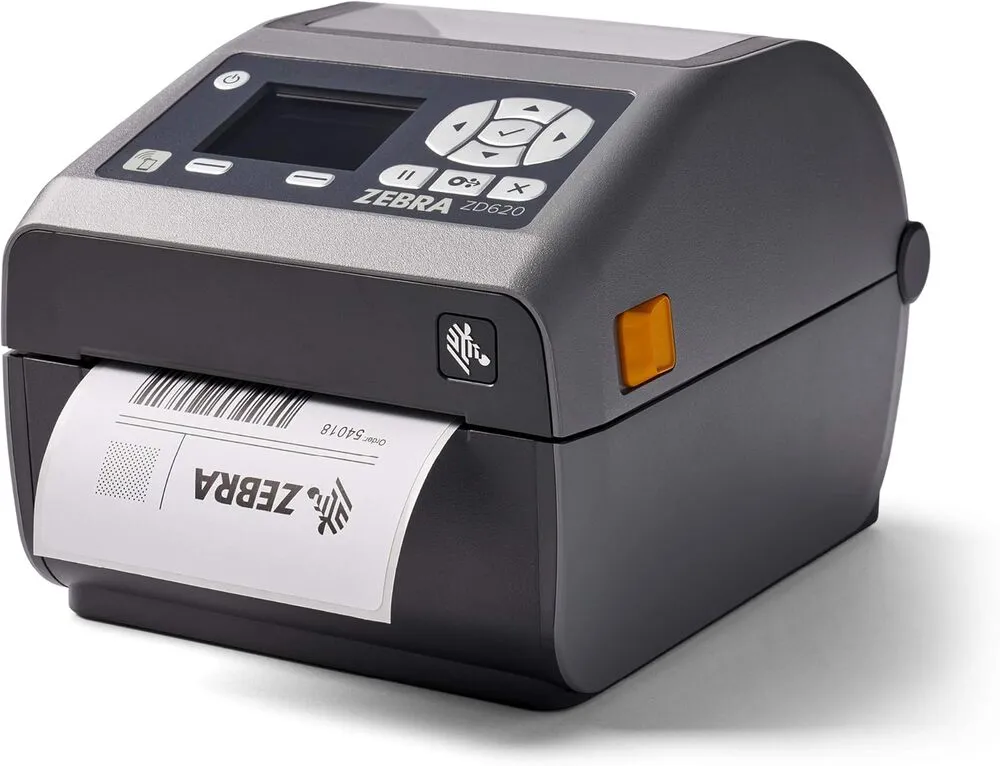

The Zebra ZD62142-D01L01EZ is a thermal transfer and direct thermal desktop printer, belonging to the ZD620 series. It supports resolutions up to 300 dpi, enabling high-quality label printing. The device is equipped with a 4.3-inch full-color touchscreen display for intuitive user interaction and easy configuration. It offers multiple connectivity options, including USB, Ethernet, and optional Wi-Fi/Bluetooth, allowing flexible integration in various office environments. The printer uses Zebra’s Link-OS environment, facilitating remote management and integration with enterprise applications. Additionally, it supports a wide range of media types and label sizes, making it suitable for diverse printing needs.
The printer’s print speed can reach up to 8 inches per second, optimizing productivity for medium to high volume tasks. Its rugged design includes an optional cold storage model variant for operation in temperatures as low as -10°C. Advanced media handling features such as peel, cutter, and rewind capabilities are available, enhancing its versatility. The ZD62142-D01L01EZ also provides easy maintenance with quick access printheads and platen rollers, minimizing downtime during replacements.
Specifications
Print media | Labels |
Max Input Sheet Capacity | 11 |
Display Type | LCD |
Compatible Devices | PC |
Maximum Color Print Resolution | 203 x 203 DPI |
Maximum Black and White Print Resolution | 203 dpi |
Warranty Type | limited warranty |
Wattage | 12.5 watts |
Max copy resolution black-white | 203 dpi |
Hardware Interface | Ethernet, Serial Interface, USB |
Ink Color | Black |
Resolution | 203 x 203 DPI |
Additional Printer functions | Print Only |
Control Method | Remote |
Processor Count | 1 |
Series Number | 620 |
Total Ethernet Ports | 1 |
Number of USB 2 Ports | 1 |
Total USB Ports | 1 |
Printer Ink Type | Direct Thermal |
Memory Storage Capacity | 256 MB |
Product Dimensions | 12.2 x 9.9 x 9.7 inches |
Item Weight | 7.5 pounds |
Item model number | ZD62142-D01L01EZ |
Is Discontinued By Manufacturer | No |
Date First Available | November 16, 2018 |
Manufacturer | ZEBRA |
Printer Type | Thermal Transfer and Direct Thermal |
Print Resolution | 300 dpi (12 dots/mm) |
Print Speed | Up to 8 inches per second |

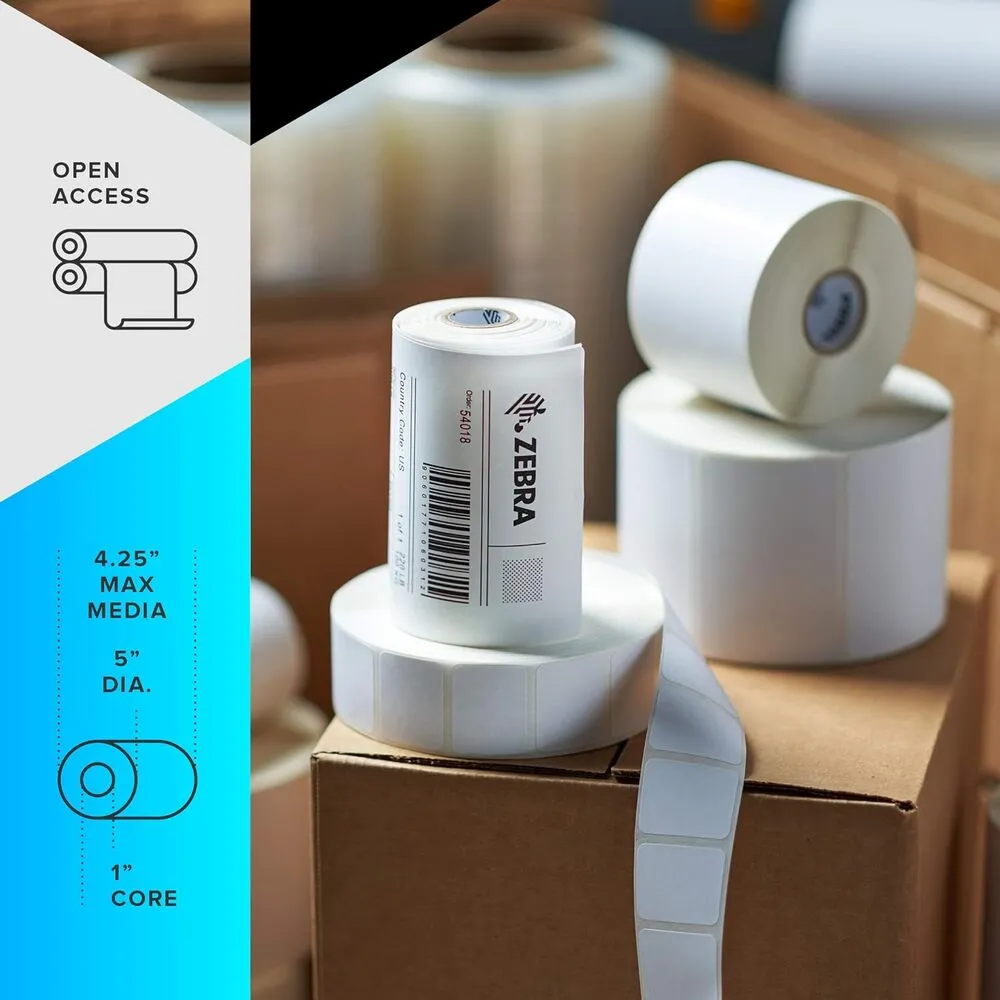

Media Width | 0.75 inch to 4.25 inches (19.05 mm to 108 mm) |

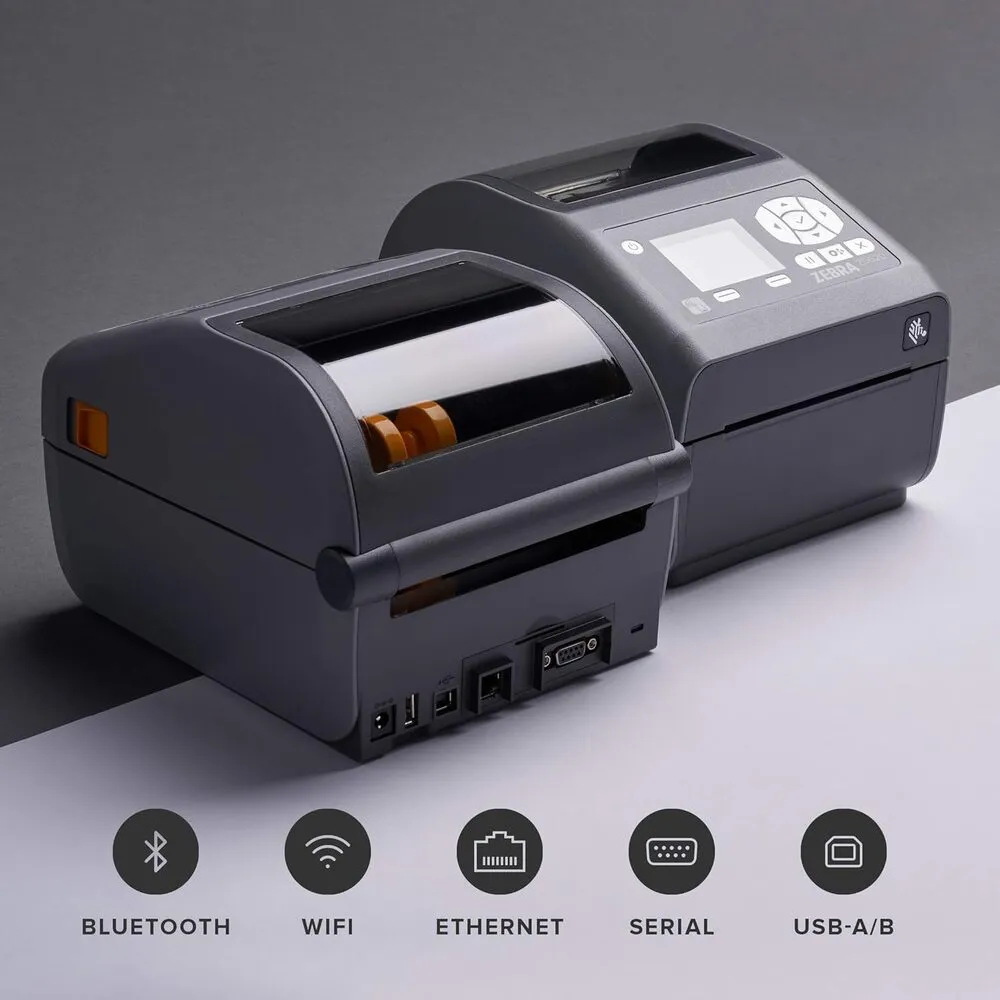

Connectivity | USB 2.0, USB Host, Ethernet 10/100, optional Wi-Fi and Bluetooth |
Display | 4.3-inch full-color touchscreen |
Memory | 512 MB Flash, 256 MB SDRAM |
Operating Temperature | 0°C to 40°C standard, -10°C to 40°C cold storage option |
Images
Key Advantages
The Zebra ZD62142-D01L01EZ boasts superior print quality with a high resolution of 300 dpi, catering to detailed barcode and label requirements. Its versatile connectivity options ensure seamless integration with existing IT infrastructures. The intuitive large color touchscreen simplifies operation and reduces training time. It supports a wide range of media types and sizes, adaptable to various office printing needs. The fast print speed significantly increases throughput, suitable for busy office environments. Furthermore, its rugged design and optional cold storage model enhance durability and operational flexibility.
Limitations
Despite its advanced features, the ZD62142-D01L01EZ may have a higher price point compared to entry-level desktop printers, potentially limiting accessibility for small businesses. The device is relatively larger and heavier than some compact desktop models, which may affect space-constrained office setups. While it supports wireless connectivity, these options are available as add-ons rather than standard, which could add to the cost. It is primarily designed for label printing and may not support other print media like full photographic documents. The maintenance of thermal printheads requires careful handling to prevent damage. Some specialized label materials may require additional calibration and testing for optimal print quality.
FAQ
What printing technology does the Zebra ZD62142-D01L01EZ use?

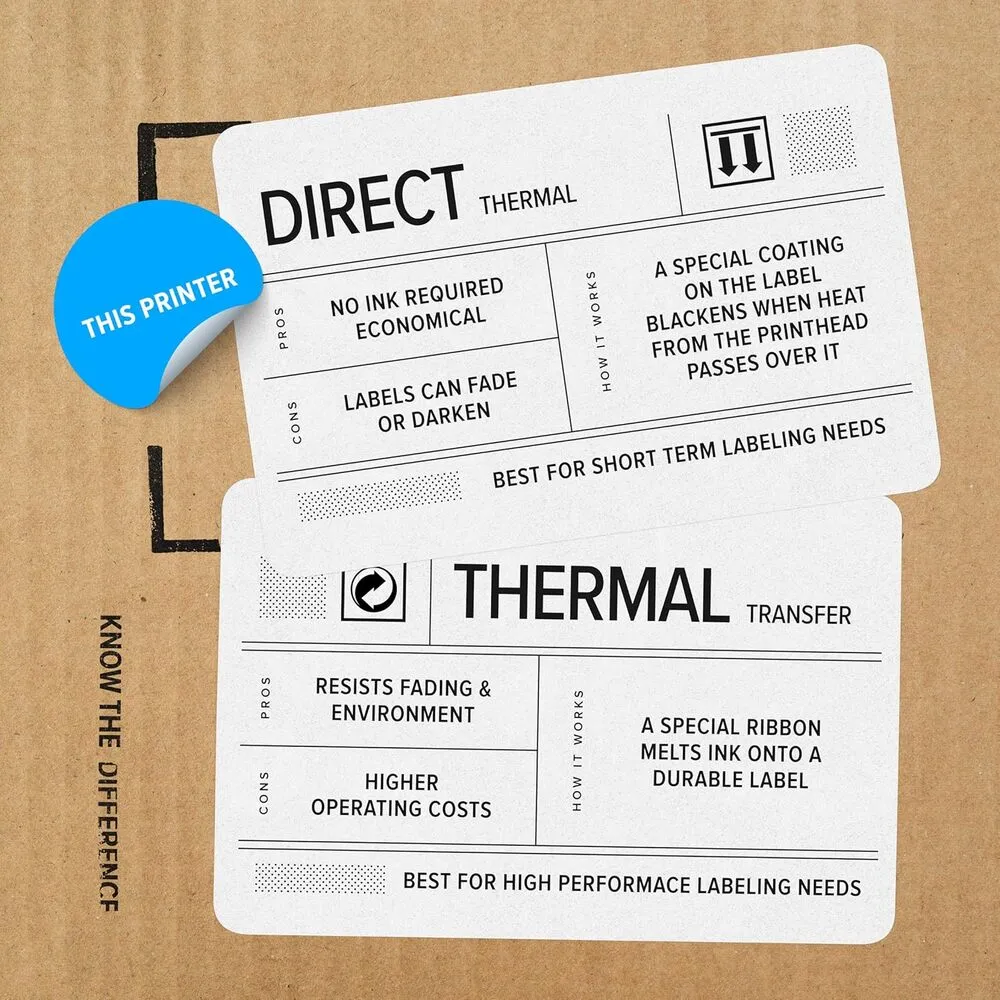

The Zebra ZD62142-D01L01EZ uses both thermal transfer and direct thermal printing technologies.
What is the maximum print resolution of this printer?
This model supports a maximum print resolution of 300 dots per inch (dpi).
Does the printer support wireless connectivity?
Wireless connectivity options such as Wi-Fi and Bluetooth are available but as optional add-ons.
What types of media can the ZD62142-D01L01EZ handle?
It supports various label types, tags, receipts, and wristbands of different sizes and materials.
Can this printer be remotely managed?
Yes, it uses Zebra’s Link-OS environment which allows remote management and monitoring.
Is the printer suitable for cold storage environments?
There is an optional cold storage variant that can operate in environments as low as -10°C.
What are the maintenance requirements for the printer?
Regular cleaning of printheads and platen rollers is recommended to maintain print quality and prevent downtime.
