Zebra ZD621
Brand | Zebra 2018 |
Model | AC Adapter, ZD621t, ZD6A042-301F00EZ, Ethernet Network |
Released Year | 2018 |
Type | Printers |
Series | Zd |
Status | Active |
Quick view
Overview
The Zebra ZD621 series is a high-performance, direct thermal and thermal transfer desktop printer designed for a wide variety of office and industrial applications. It supports advanced connectivity options, including Ethernet networking, to ensure seamless integration into most IT environments. The printer utilizes an easy-to-load design that simplifies media and ribbon replacement for improved efficiency. It is equipped with a fast processor and expanded memory, enabling high-speed label printing and data processing. The device supports multiple printer languages, enhancing compatibility with existing systems. Additionally, the ZD621 offers enhanced security protocols to protect sensitive print jobs and network communications.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 512 MB Flash; 256 MB SDRAM |
MPN | AC Adapter, ZD621t, ZD6A042-301F00EZ, Ethernet Network |
Supported Paper Size | Max Label Width: 4.65" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZD621 |
Connectivity | USB 2.0, Ethernet 10/100, Optional Wi-Fi 802.11ac, Bluetooth LE |
Features | Networkable, Portable |
Black Print Speed | 8 ips |
Product Line | Zebra ZD |
UPC | 657768016691 |
Printer Type | Direct Thermal and Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
Print Speed | Up to 8 inches per second |
Processor | 1 GHz 32-bit ARM processor |
Media Width | 0.585 inches (15 mm) to 4.65 inches (118 mm) |
Media Types Supported | Labels, tags, continuous, fanfold, receipt paper |
Media Sensing | Transmissive and reflective |
Ribbon Capacity | 74 m (242 ft) with 1.5 inch core |
User Interface | Color LCD with 5-button menu |
Dimensions (W x D x H) | 7.5 x 8.0 x 7.2 inches (191 x 203 x 182 mm) |
Weight | Approx. 4.3 lbs (1.95 kg) |
Power | 90W AC Adapter, 100-240V input, 50-60 Hz |
Operating Temperature | 40°F to 105°F (4.4°C to 41°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Operating Humidity | 10% to 90% non-condensing |
Certifications | FCC, CE, UL, cUL, CCC, CB |
Supported Printer Languages | ZPL, EPL, XML, CPCL |

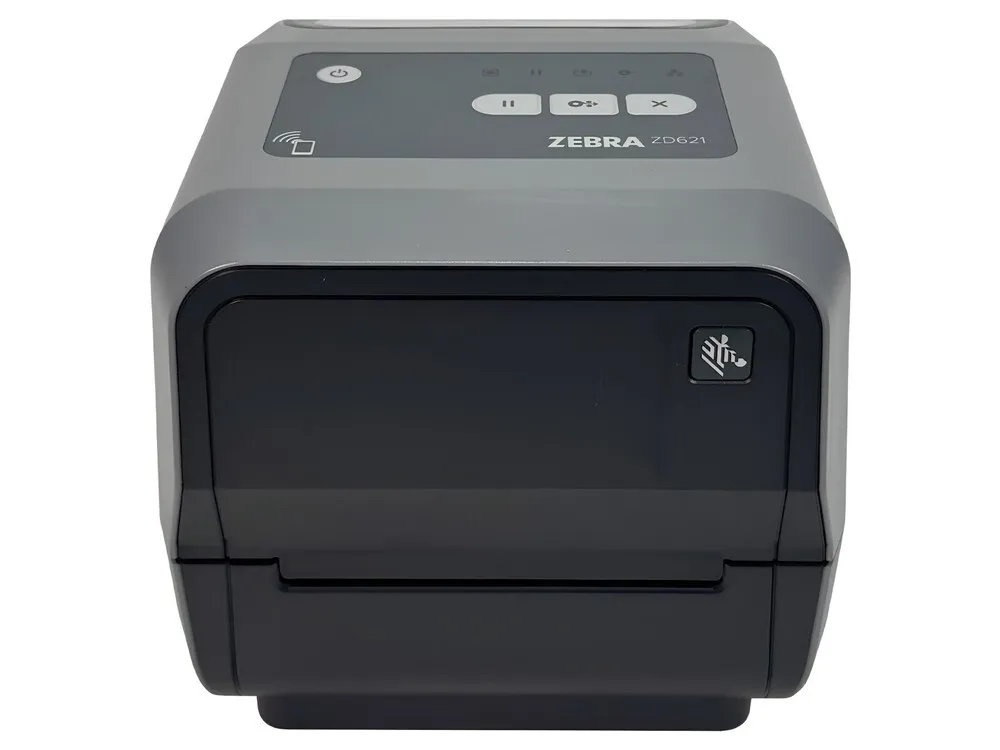

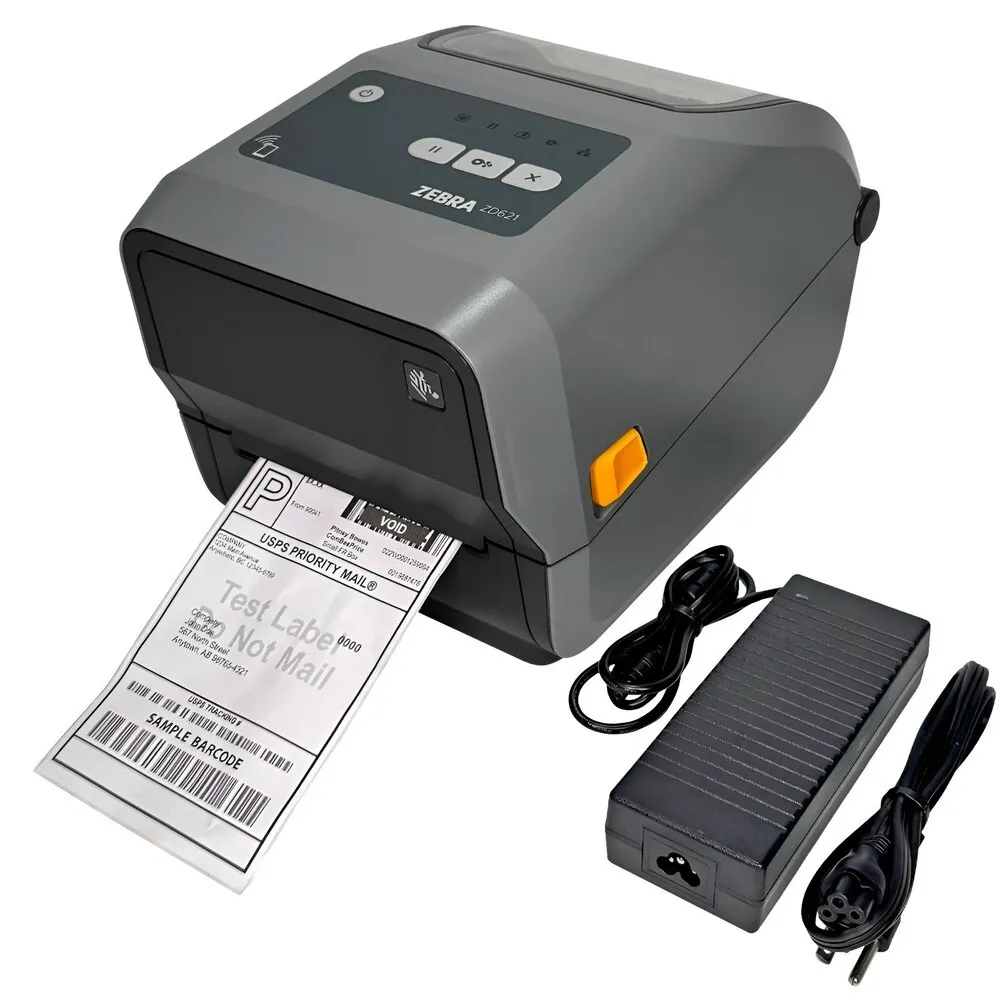

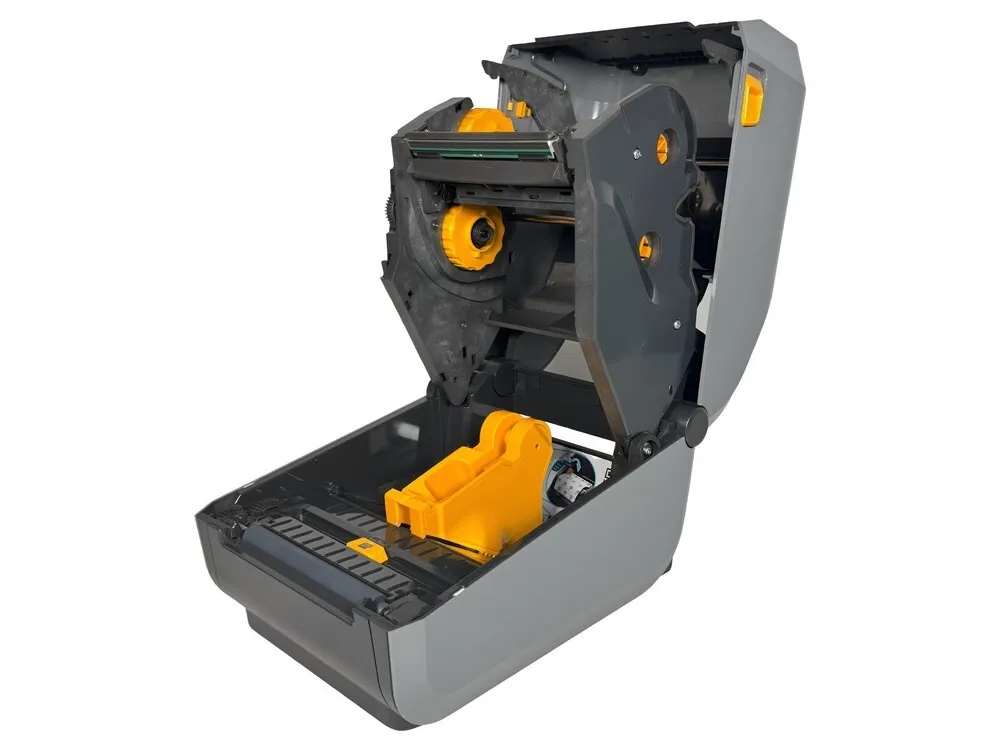

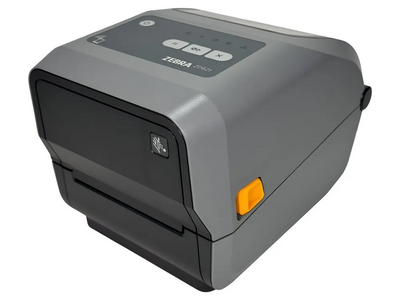

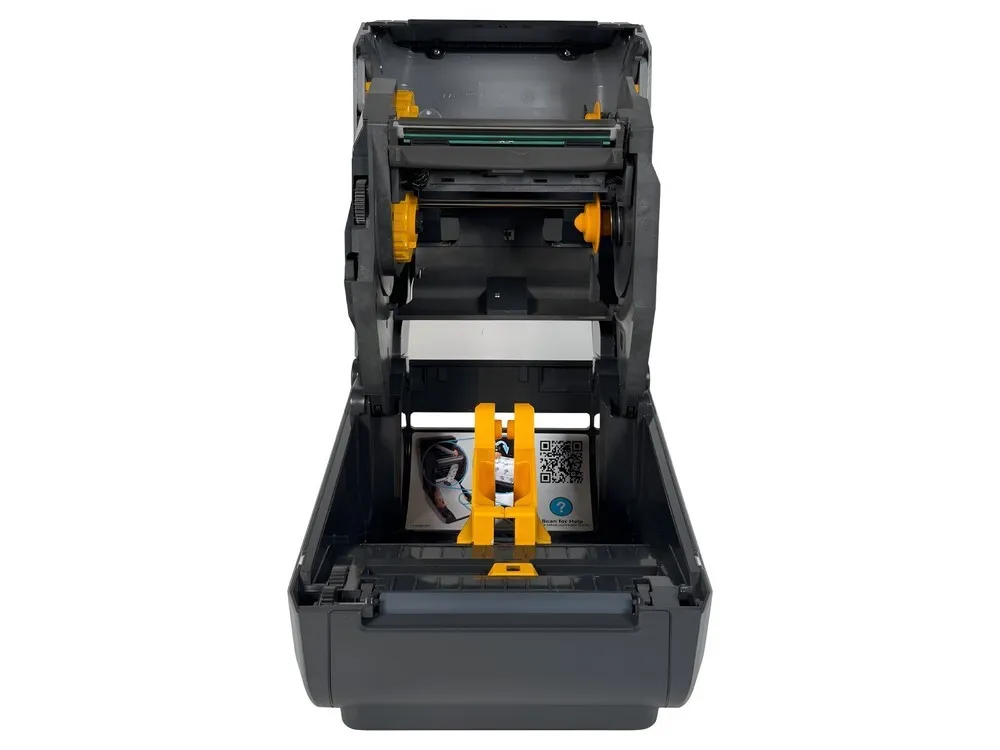

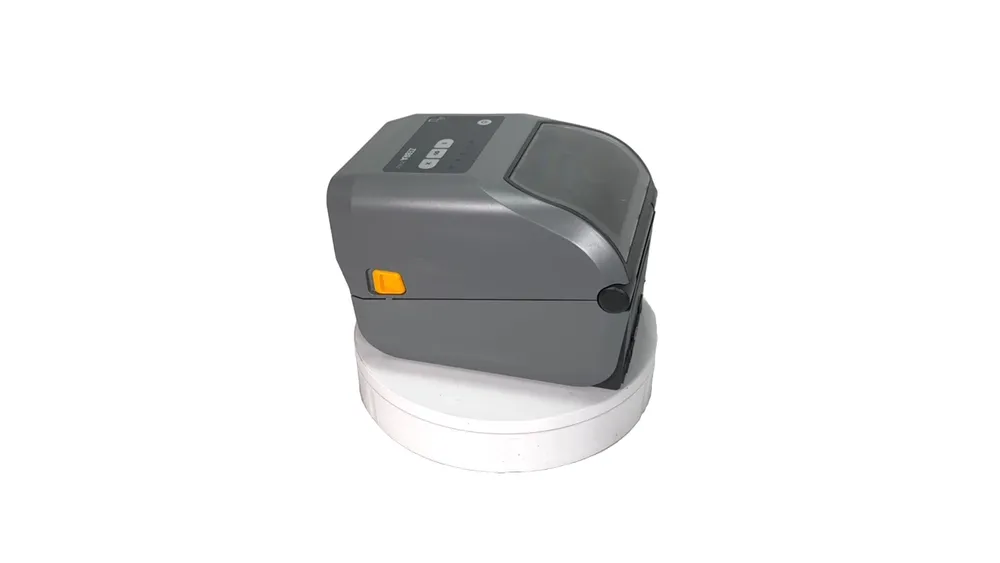

Images
Key Advantages
The ZD621 features an intuitive interface with an LCD screen, simplifying status monitoring and configuration. Its versatile connectivity options include USB, Ethernet, and optional Wi-Fi for flexible network access. The printer supports a wide range of media types and sizes, making it adaptable for diverse labeling needs. With improved print speed and precision, it increases productivity in demanding environments. The device's robust build ensures reliable operation under continuous use in office or warehouse settings. Furthermore, its intelligent power management optimizes energy consumption, reducing operational costs.
Limitations
Although powerful, the ZD621 is primarily designed for medium volume printing and may not be ideal for very high volume industrial demands. The initial cost can be higher than entry-level models, potentially limiting accessibility for small businesses. Optional wireless capabilities require additional modules, which increase the total investment cost. Some users may find the software setup complex, particularly when integrating with legacy systems. The printer's compatibility is limited mainly to Zebra’s proprietary consumables for optimal performance. Firmware updates are occasionally necessary to maintain security and functionality, which require administrative access.
FAQ
What connectivity options are available on the Zebra ZD621?
The Zebra ZD621 offers USB, Ethernet, and optional Wi-Fi connectivity for flexible network integration.
Is the ZD621 suitable for high volume printing environments?
The ZD621 is designed for medium volume printing and may not be optimal for very high volume industrial applications.
What types of printing technology does the ZD621 support?
The ZD621 supports both direct thermal and thermal transfer printing methods.
Can the ZD621 printer be integrated with existing legacy systems?
Yes, the ZD621 supports multiple printer languages that facilitate integration with many existing legacy systems.
Are there any additional hardware requirements for wireless functionality?
Yes, wireless connectivity requires an optional Wi-Fi module which is sold separately.
What types of media can be used with the ZD621?
The printer supports a wide range of media types and sizes, including labels, tags, and receipt media.
Is firmware updating necessary for the ZD621 printer?
Firmware updates are recommended to ensure security and optimal functionality, and they require administrative access.
