Zebra ZD62043-T01L01EZ
Brand | Zebra 2018 |
Model | ZD62043-T01L01EZ |
Released Year | 2018 |
Type | Printers |
Series | ZD620 |
Item Weight | 9.15 pounds |
Product Dimensions | 13.7 x 11.3 x 10.2 inches |
Status | Active |
Quick view
Overview

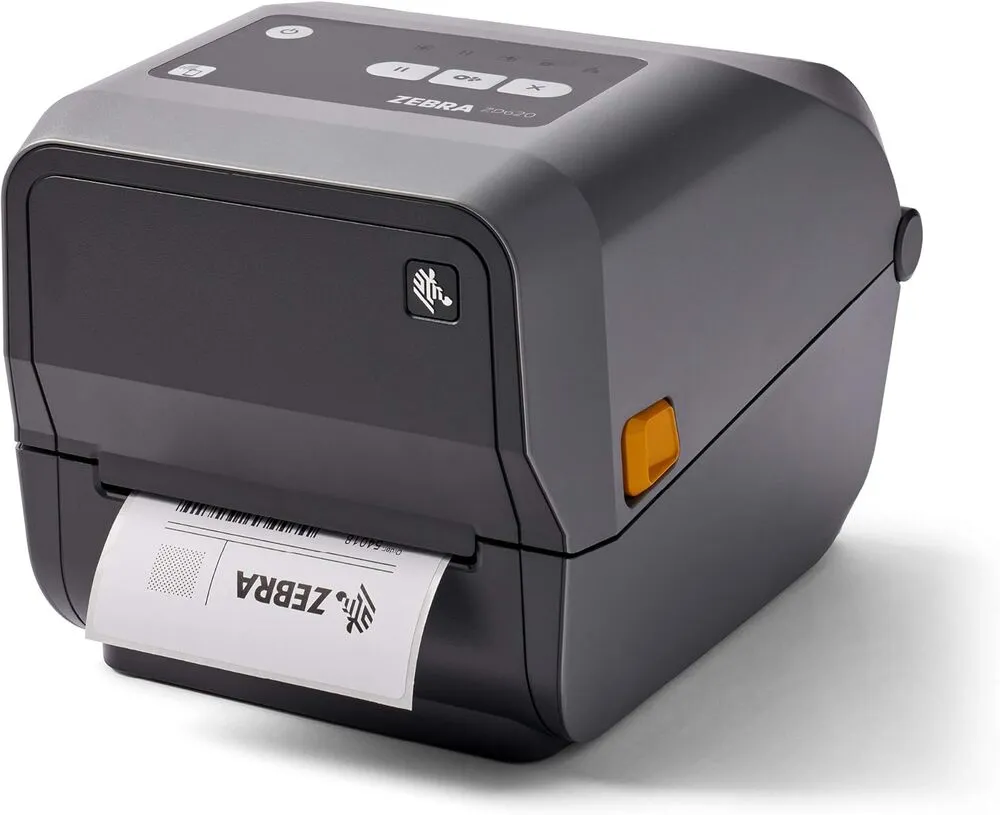

The Zebra ZD62043-T01L01EZ is a thermal desktop printer part of the ZD620 series known for high-speed and high-quality printing performance. It features direct thermal and optional thermal transfer printing mechanisms for versatile media compatibility. The printer uses a 203 dpi print resolution which is ideal for clear barcode and label printing. It comes equipped with a fast processor and ample memory (128 MB RAM, 256 MB Flash) to handle complex print jobs efficiently. Connectivity options include USB, Serial, Ethernet, and optional Wi-Fi and Bluetooth for flexible integration into various networks. Zebra’s Link-OS environment allows for easy printer management and seamless integration with enterprise systems.
Specifications
Compatible Devices | PC |
Sheet Size | 4.25 inches |
Maximum Black and White Print Resolution | 300 dpi |
Warranty Type | limited warranty |
Dual-sided printing | No |
Max copy resolution black-white | 300 dpi |
Duplex | Simplex |
Hardware Interface | Bluetooth |
Ink Color | Black |
Resolution | 300 x 300 |
Control Method | Remote |
Total USB Ports | 1 |
Specific Uses For Product | Office |
Product Dimensions | 13.7 x 11.3 x 10.2 inches |
Item Weight | 9.15 pounds |
Item model number | ZD62043-T01L01EZ |
Is Discontinued By Manufacturer | No |
Date First Available | November 16, 2018 |
Manufacturer | ZEBRA |
Printer Type | Thermal Desktop Printer |

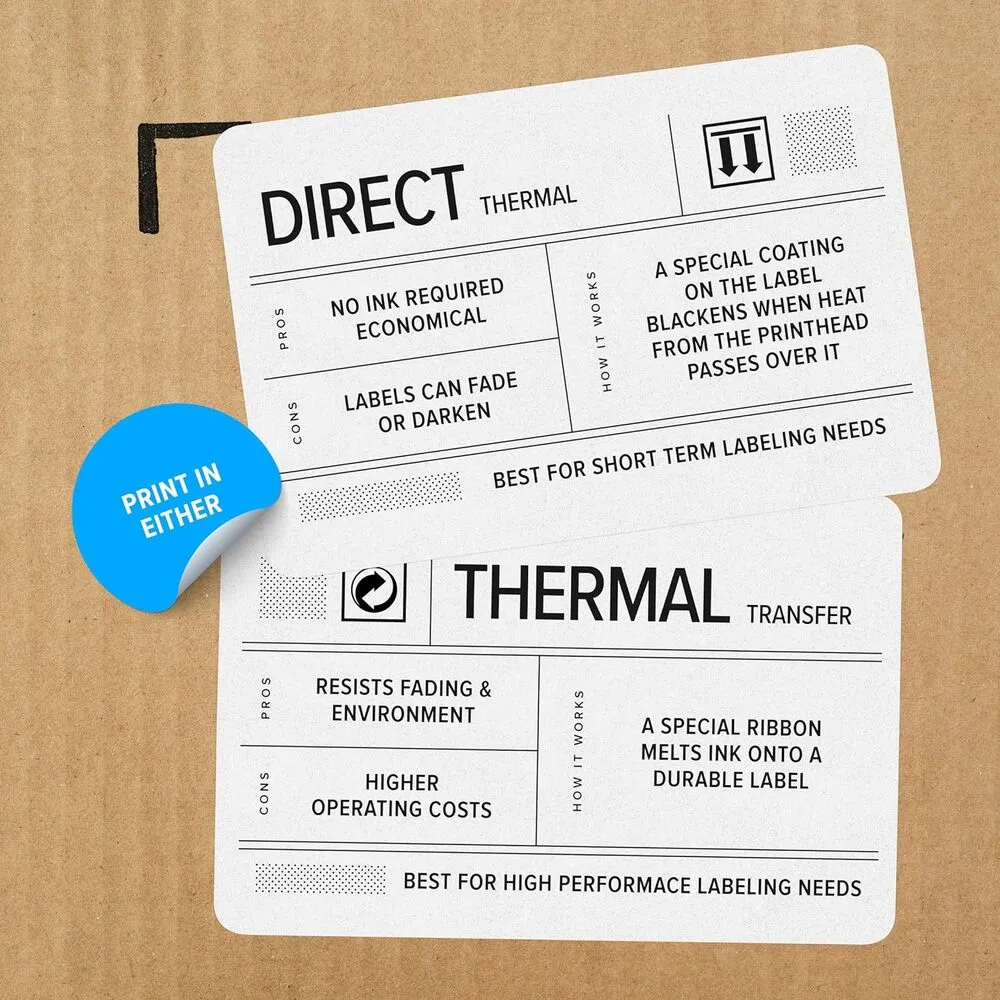

Print Method | Direct Thermal / Thermal Transfer (optional) |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Speed | 8 inches per second (203 mm/s) |
Print Width | 4.09 inches (104 mm) |
Processor | 32-bit ARM Cortex A9 |
Memory | 128 MB RAM, 256 MB Flash |

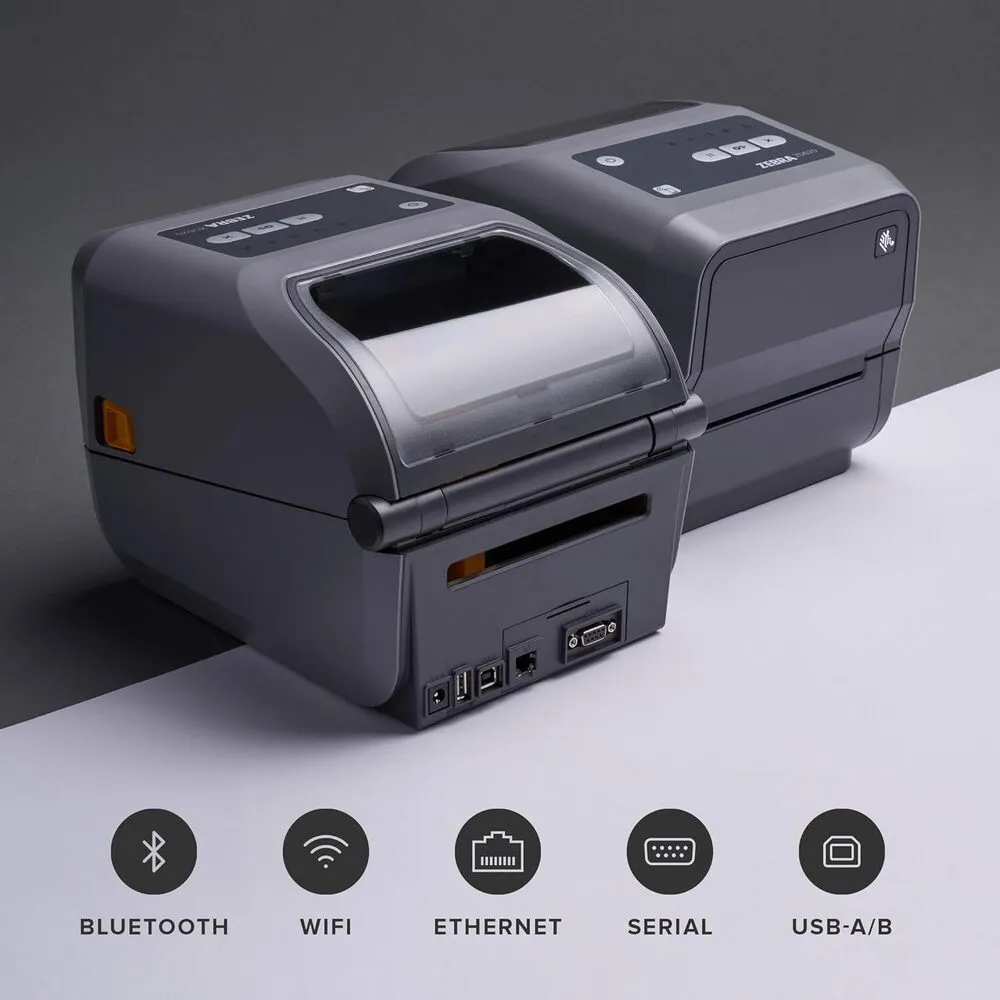

Connectivity | USB 2.0, Serial, Ethernet; optional Wi-Fi and Bluetooth |

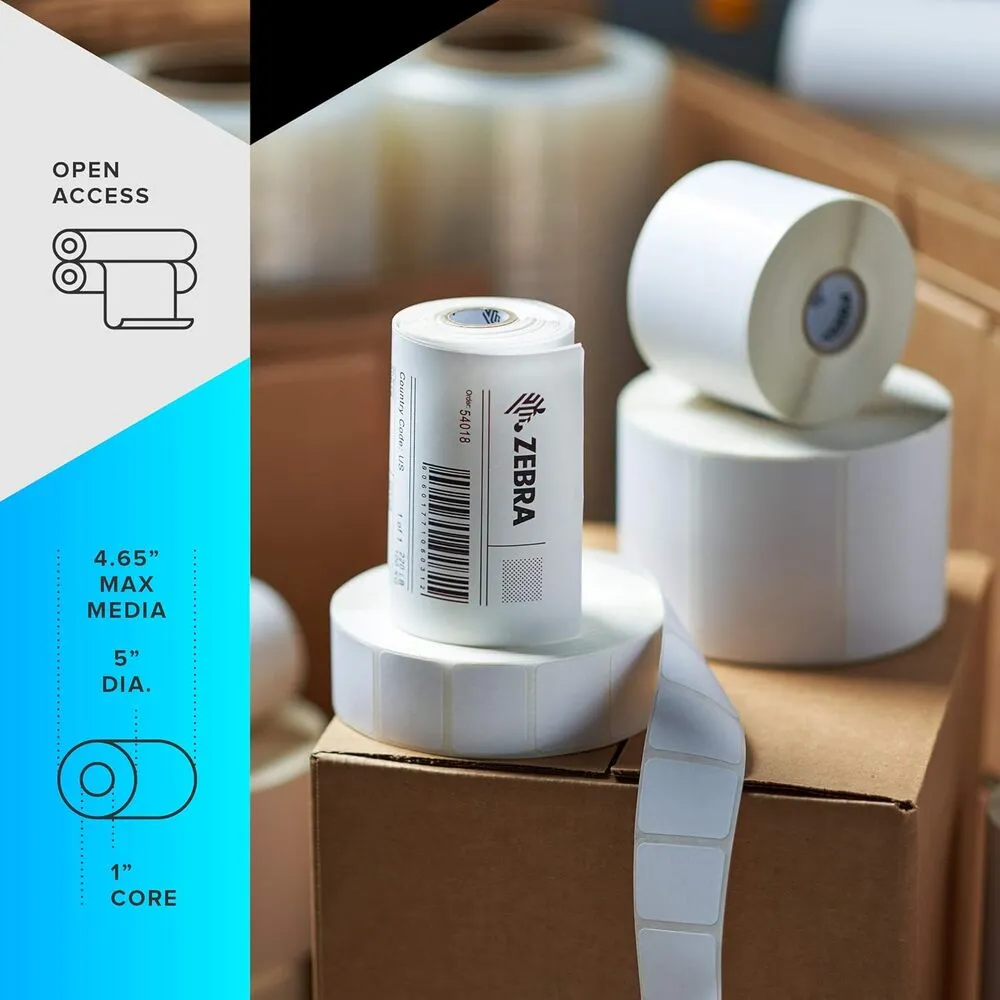

Media Types | Die-cut labels, continuous roll labels, tags, receipt paper, synthetic media |
Media Width | 0.75 inches to 4.5 inches (19 mm to 114 mm) |
Media Thickness | 0.003 inches to 0.012 inches (0.08 mm to 0.305 mm) |
Media Sensor | Moveable reflective and transmissive sensor |
Dimensions (WxDxH) | 8.7 x 7 x 7.5 inches (221 x 178 x 191 mm) |
Weight | 3.5 lbs (1.59 kg) |
Operating Temperature | 40°F to 105°F (4.4°C to 41°C) |
Printer Language | ZPL, EPL, XML |
Software | Zebra Setup Utilities, ZebraDesigner, Link-OS |
Power Supply | External 100-240 VAC, 50-60 Hz |
Display | Optional LCD screen |
Images
Key Advantages
The ZD620 model offers exceptional print speed of up to 8 inches per second for increased productivity. It supports a wide range of media types and sizes, enabling versatile application in inventory, shipping, and retail labeling. The printer’s modular design allows easy upgrades and maintenance to reduce downtime. Enhanced connectivity options provide flexibility to adapt to different business environments. It is compatible with Zebra’s robust suite of printer management tools, ensuring streamlined device control. Sharp 203 dpi print resolution delivers professional and durable barcode labels that are easy to scan.
Limitations
The ZD62043-T01L01EZ model is limited to 203 dpi resolution, which may not suffice for ultra-high-definition label requirements. Thermal printing technology restricts the printer to mainly label and receipt applications without color imaging. Some advanced connectivity features like Wi-Fi and Bluetooth are optional and may require additional modules and cost. Print width is limited to 4.09 inches, which may not fit wider media without selecting other models. The printer relies on thermal media specially coated for proper functioning, which could increase operational costs. Firmware updates and advanced configuration can require technical expertise for some users.
FAQ
What printing technology does the Zebra ZD62043-T01L01EZ use?
The Zebra ZD62043-T01L01EZ uses direct thermal and optional thermal transfer printing technologies.
What is the maximum print speed of the Zebra ZD620 printer?
The printer can print at speeds up to 8 inches per second.
Does the Zebra ZD620 support wireless connectivity?
Wireless connectivity such as Wi-Fi and Bluetooth is available as optional modules.
What is the print resolution of the Zebra ZD62043-T01L01EZ?
It has a print resolution of 203 dpi.
What types of media can the ZD620 handle?
It supports a variety of label and tag media including die-cut labels, continuous labels, receipt paper, and synthetic materials.
Is the Zebra ZD620 discontinued?
No, the Zebra ZD620 series is still available and supported by Zebra.
What software environment does the Zebra ZD620 use for management?
It utilizes Zebra's Link-OS environment for printer management and integration.
