Zebra ZD620
Brand | Zebra 2016 |
Model | ZD62H42-D01L01EZ |
Released Year | 2016 |
Type | Printers |
Status | Active |
Quick view
Overview
The Zebra ZD620 is a high-performance desktop direct thermal and thermal transfer printer designed for diverse office environments. It features advanced printing technology with resolution options of 203 dpi and 300 dpi for crisp barcode and label output. The device supports various connectivity interfaces including USB, Ethernet, Bluetooth, and Wi-Fi, offering versatile integration options. Equipped with a fast processor and ample memory, it can handle demanding printing tasks efficiently. The ZD620 also provides easy-to-use color LCD or LED interfaces for simple operation and status monitoring. Its compact design suits space-constrained workspaces without compromising productivity.
Specifications
Supported Scanning Sizes | A0 (841 x 1189 mm) |
Grayscale Depth | 16 Bit |
Color Depth | 12 Bit |
Memory | 512 MB Flash, 512 MB SDRAM |
Output Type | Black & White |
MPN | ZD62H42-D01L01EZ |
Item Length | 8 inch |
Technology | Thermal |
Manufacturer Warranty | 3 Months |
Item Height | 8 inch |
Features | Networkable, LCD Screen, USB 2.0, Small Footprint |
Item Width | 6 inch |
Print Language | Zebra ZPL |
Input Type | Monochrome |
Supported Paper Size | 4" x 6", 4" x 4" |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Image Sensor | CCD |
Model | ZD620 |
Connectivity | USB 2.0, USB Host, Bluetooth 4.1, 802.11ac Wi-Fi, Ethernet 10/100 Mbps |
Scanning Resolution | 203Dpi |
Black Print Speed | 4 ppm |
Country/Region of Manufacture | China |
Application | POS, Logistic, Retail, Shipping Label |
Product Line | Zebra |
Print Technology | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
Max Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 8 inches per second (203 dpi), up to 6 inches per second (300 dpi) |
Processor | 1 GHz ARM Cortex-A9 |

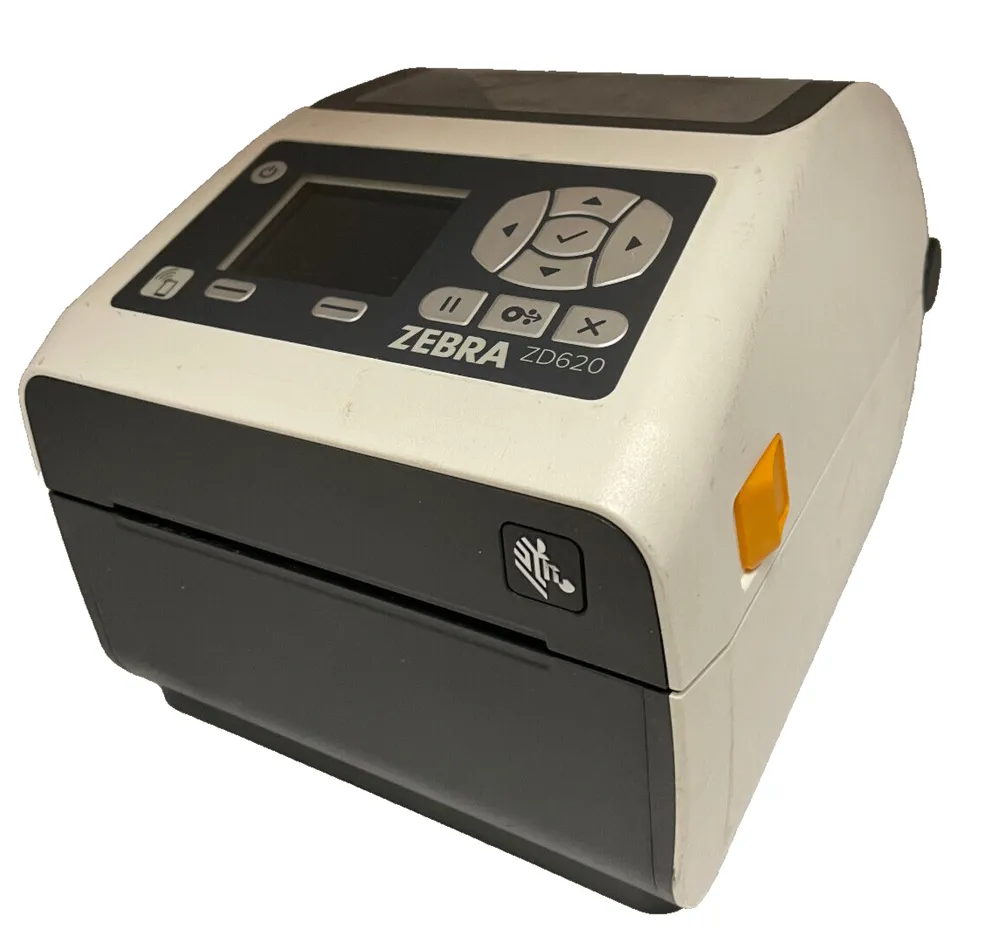

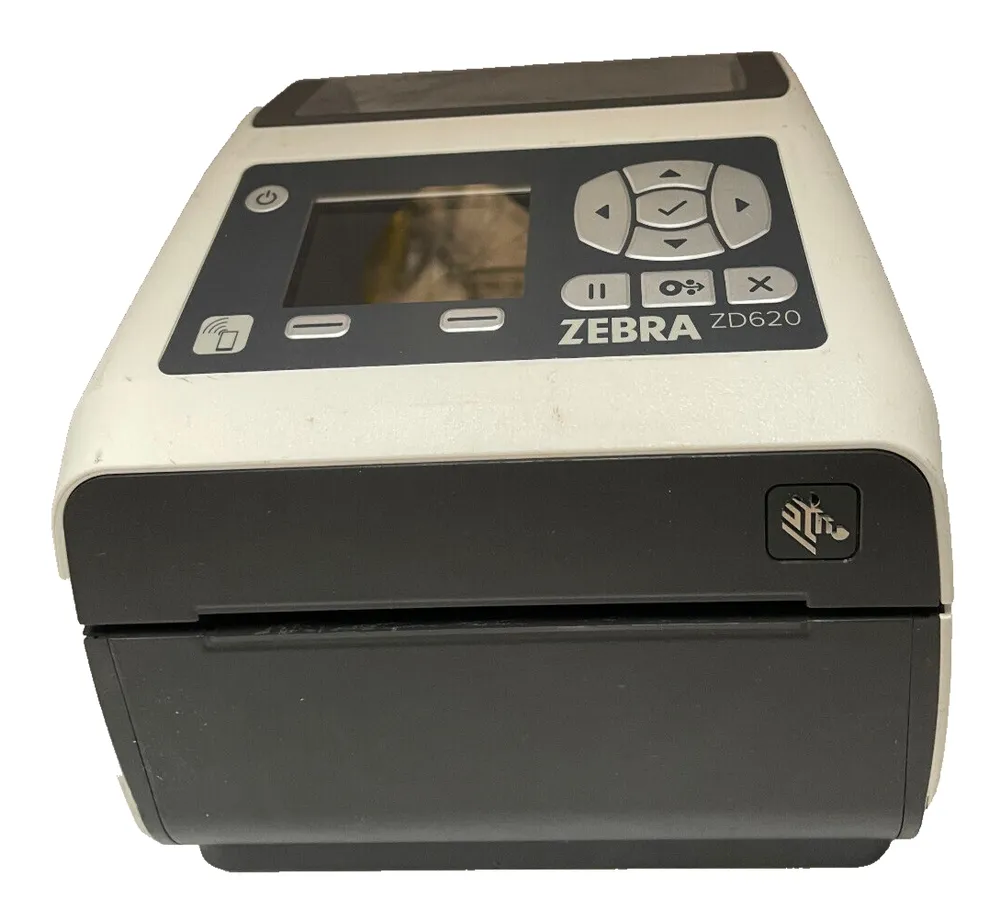

Display | Optional 4.3-inch color LCD or LED status indicators |
Media Types | Roll-fed, die-cut or continuous labels; tags; black mark sensing |
Dimensions | 8.7 in (W) x 7.0 in (H) x 8.9 in (D) |
Weight | Approx. 6 lbs (2.7 kg) |

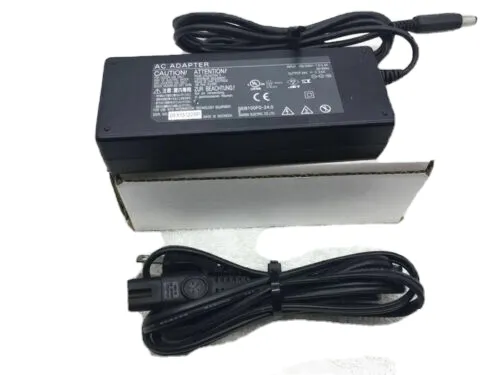

Power Supply | Auto-ranging power supply, 100-240 VAC, 48 watts max |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Operating Humidity | 10% to 90% non-condensing |
Images
Key Advantages

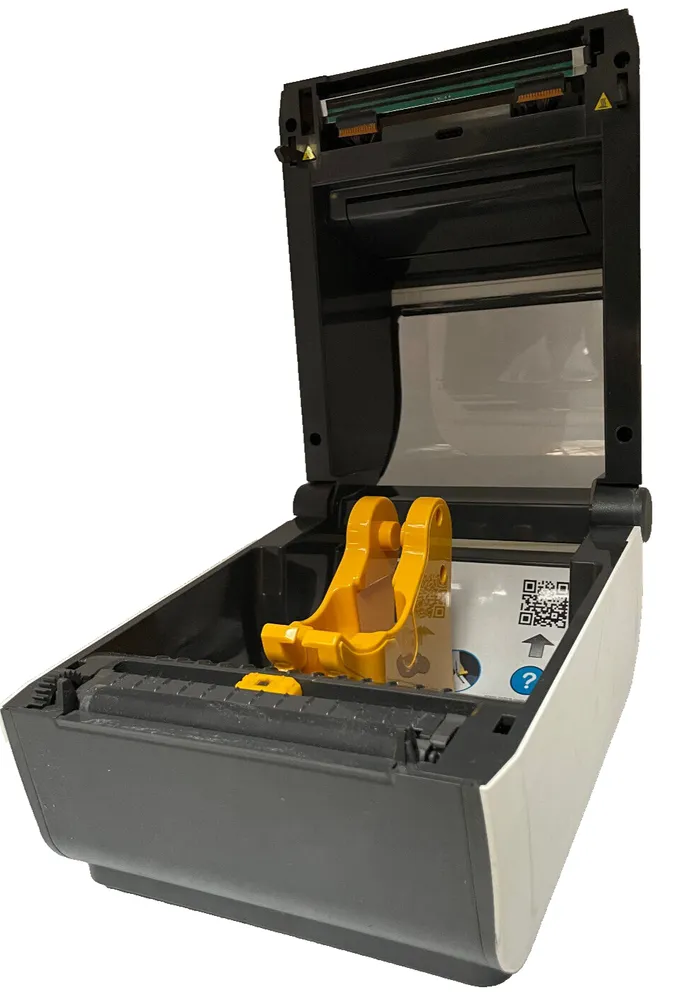

The Zebra ZD620 offers superior print speed and quality, suitable for both text and barcode labels. Its modular design allows for quick media and ribbon loading, minimizing downtime. The printer's broad connectivity options enable seamless network integration in multiple office setups. Energy-efficient operation and reliable hardware reduce maintenance costs and improve uptime. The inclusion of state-of-the-art diagnostics ensures proactive management and troubleshooting. Additionally, the printer’s compatibility with multiple Zebra programming languages enhances software flexibility.
Limitations
The Zebra ZD620, while robust, has a maximum print width limited to 4 inches which may not suit larger labeling needs. It primarily focuses on desktop environments and may not be ideal for large-scale industrial printing requirements. The cost of consumables and initial investment is relatively higher compared to some entry-level models. Wireless connectivity, though available, can sometimes experience interference affecting performance. The printer requires proper calibration for optimal print quality, which can be a learning curve for new users. Firmware updates occasionally necessitate technical support to prevent compatibility issues.
FAQ
What printing technologies does the Zebra ZD620 support?
The Zebra ZD620 supports both direct thermal and thermal transfer printing technologies.
Which connectivity options are available for the ZD620 printer?
Connectivity options include USB, Ethernet, Bluetooth, and Wi-Fi, depending on the model configuration.
What is the maximum print resolution of the Zebra ZD620?
The ZD620 offers print resolutions of 203 dpi and 300 dpi to meet different quality requirements.
Is the Zebra ZD620 suitable for high-volume industrial printing?
The ZD620 is designed primarily for desktop use and moderate volume printing; for high-volume industrial needs, other Zebra models may be more suitable.
Can the ZD620 be easily integrated into existing network setups?
Yes, the printer supports multiple interfaces including Ethernet and wireless options for flexible network integration.
Does the Zebra ZD620 include any diagnostic or management tools?
Yes, it features advanced diagnostic tools and Zebra's Link-OS environment for remote management.
Are there any common issues with firmware updates on the ZD620?
Firmware updates may require technical assistance to ensure proper installation and avoid compatibility issues.
