Zebra ZD620 image

Zebra ZD620

Quick information
Brand Zebra 2017
Model ZD620T, Barcode, Shipping, 300 dpi, 4x6 inch
Released Year 2017
Type Printers
Series Z
Status Active
Quick view
Full specs Images FAQ

Overview

The Zebra ZD620T is a thermal transfer barcode printer designed for high-quality label printing with a resolution of 300 dpi. It supports a maximum print width of 4.09 inches and a maximum print length of 39 inches, suitable for 4x6 inch shipping labels. Equipped with fast print speeds up to 8 inches per second, it ensures efficient throughput in busy office or warehouse environments. The device integrates multiple connectivity options including USB, Ethernet, and Bluetooth for versatile deployment. A Clear LCD display enhances user interaction, allowing easy configuration and status monitoring. Robust build quality and compatibility with Zebra's Link-OS software platform support seamless integration into existing enterprise printing workflows.

Specifications

Input Type Monochrome
Memory 256 MB Flash, 128 MB SDRAM
Output Type Black & White
MPN ZD620T, Barcode, Shipping, 300 dpi, 4x6 inch

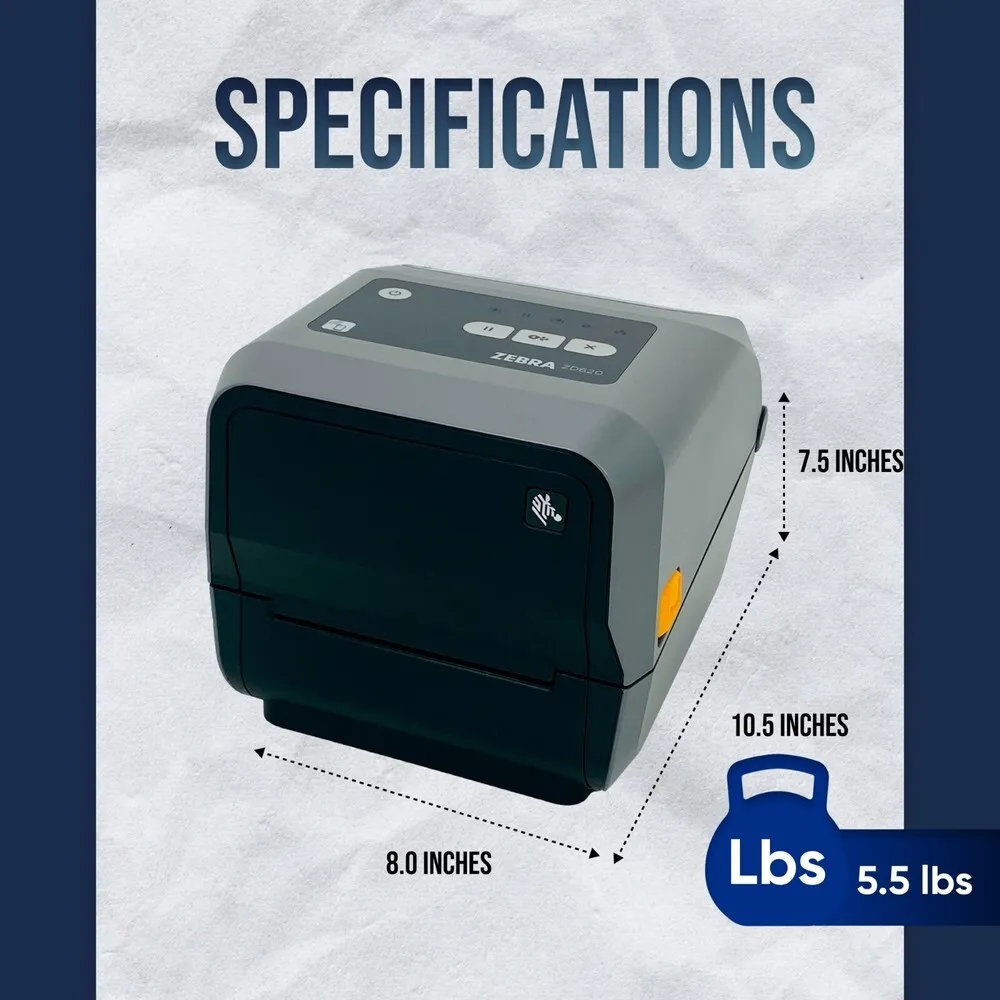

Item Length 10.5"
Supported Paper Size Max Label Width: 4.65"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 300 x 300 DPI
Item Height 7.6"
Model ZD620

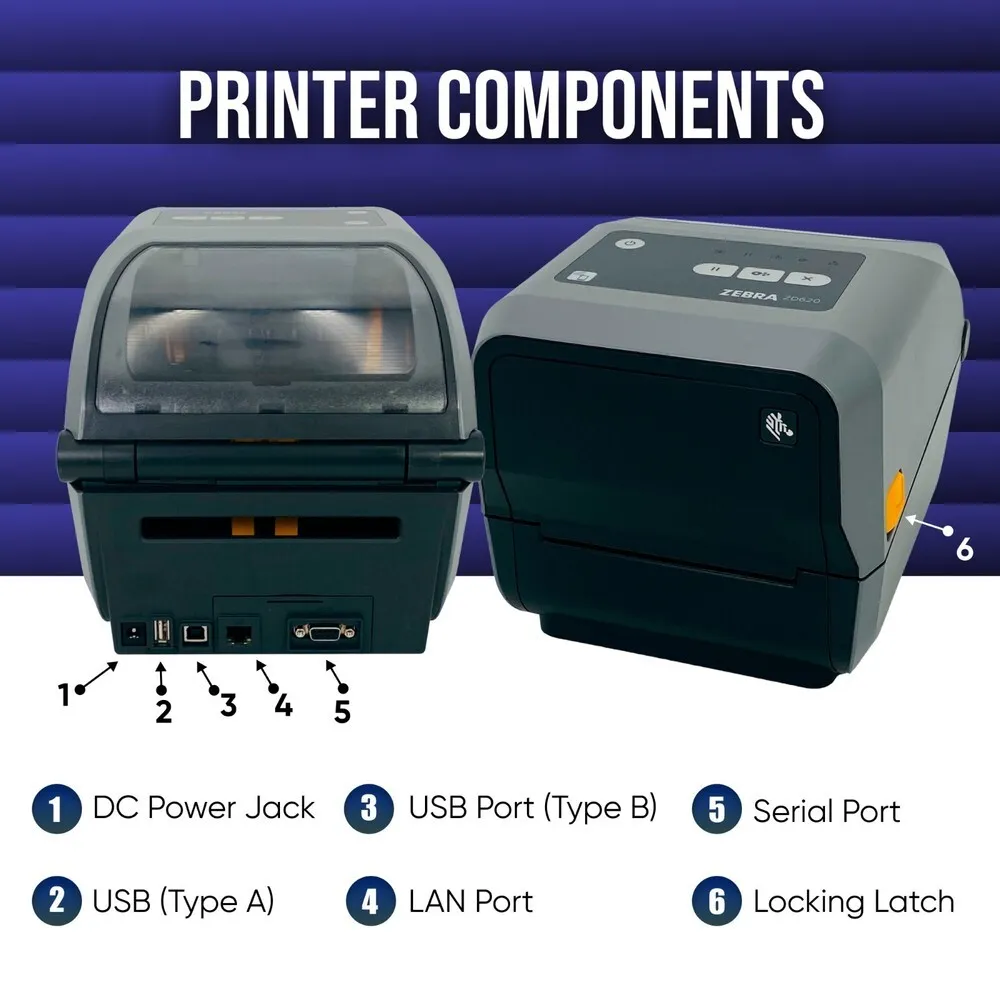

Connectivity USB 2.0, Ethernet, Bluetooth
Features Networkable

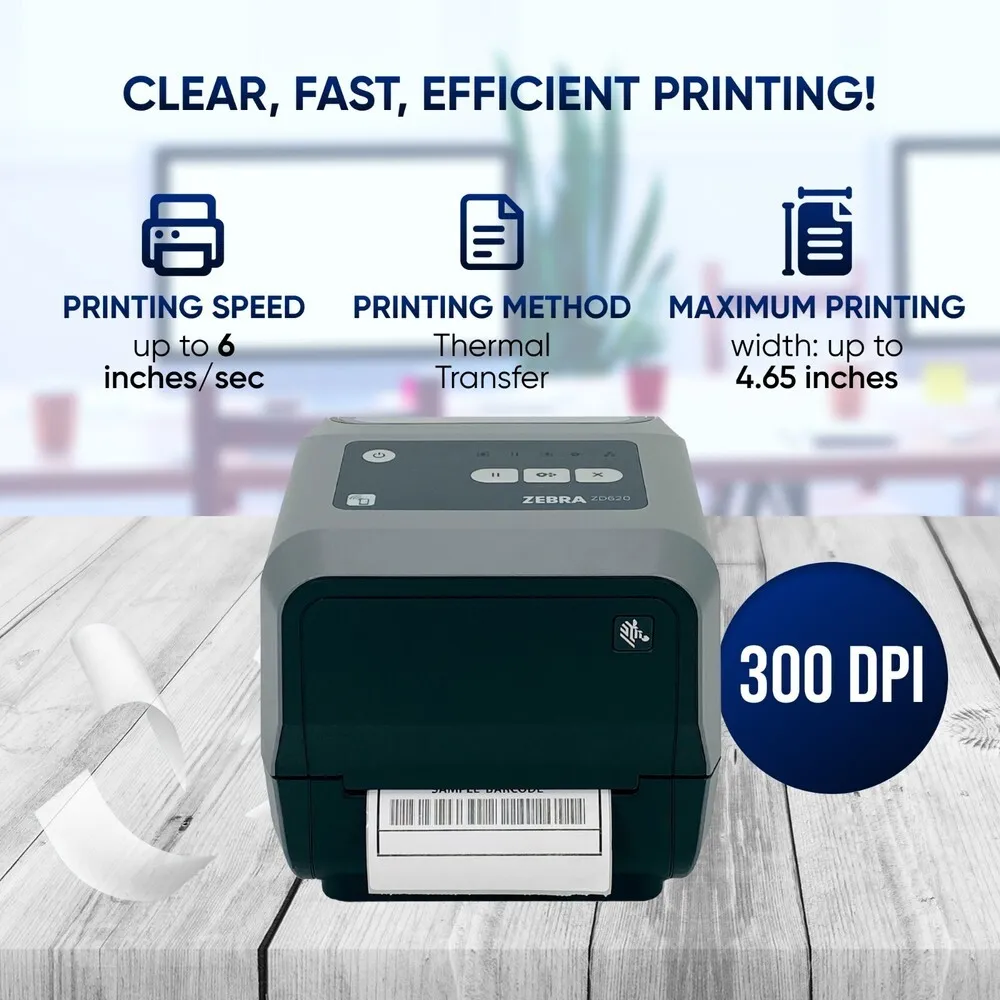

Black Print Speed 6 ips
Item Width 8"
Product Line Zebra Z
Printer Type Thermal Transfer
Print Resolution 300 dpi
Maximum Print Width 4.09 inches (104 mm)
Maximum Print Length 39 inches (991 mm)
Print Speed Up to 8 inches per second (203 mm/s)

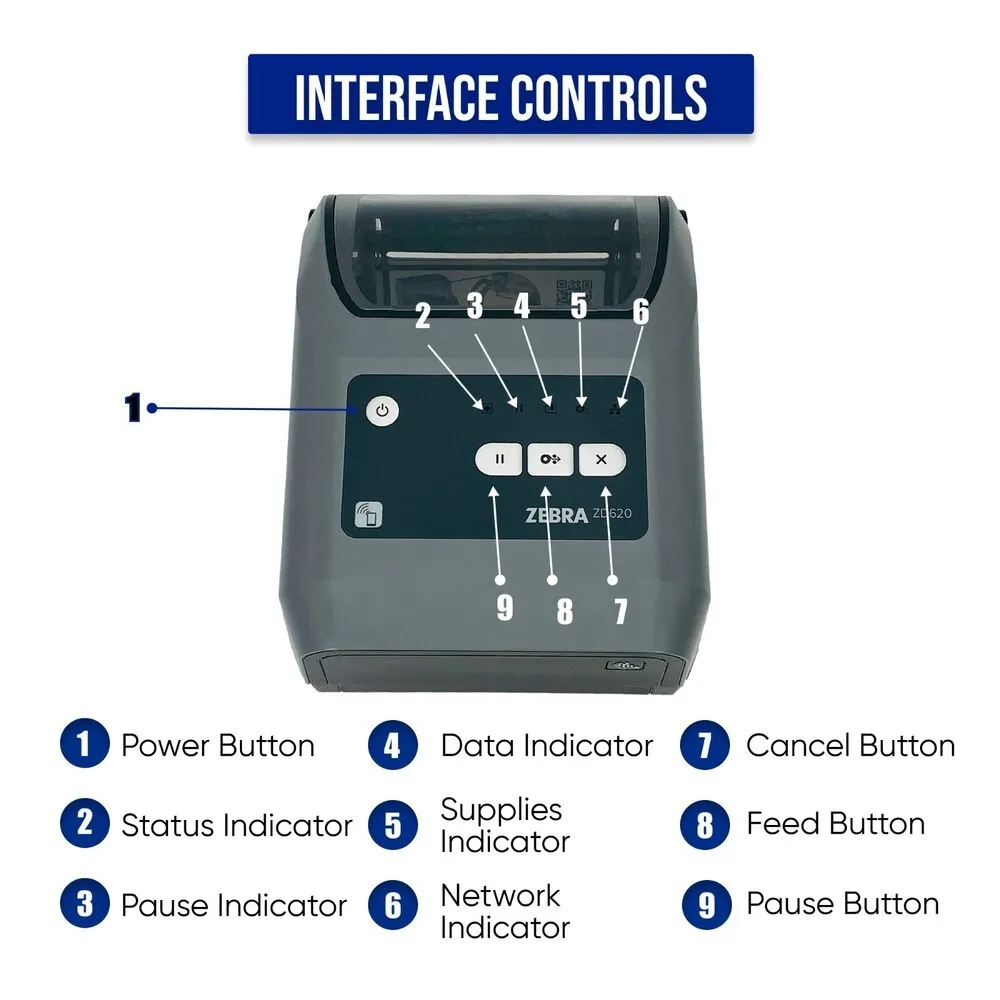

Display Color LCD with intuitive interface
Dimensions (HxWxD) 7.12 x 8.75 x 6.75 inches (181 x 222 x 171 mm)
Weight 5.9 lbs (2.68 kg)
Operating Temperature 40°F to 105°F (4.4°C to 40.5°C)
Media Types Supported Labels, Tags, Continuous, Receipt, Wristbands
Ribbon Types Wax, Wax/Resin, Resin
Software Compatibility Zebra Link-OS, ZebraDesigner, Printer Setup Utilities
Power Supply AC Input: 100-240 VAC, 50-60 Hz

Key Advantages

The Zebra ZD620T offers exceptional print clarity with its 300 dpi resolution, ideal for barcode and text accuracy. Its thermal transfer technology ensures durability and longevity of printed labels. The printer supports quick media loading and replacement, minimizing downtime. Multiple connectivity options provide flexible use across different network setups. Compact size combined with robust industrial design makes it suitable for both office and warehouse environments. Link-OS capabilities facilitate remote management and integration with enterprise systems.

Limitations

The ZD620T requires the use of thermal transfer ribbons, which adds an ongoing consumable cost compared to direct thermal printers. While print speeds are high, complex label formats can slow processing time. The 4x6 inch maximum print area limits use for larger format printing needs. It is primarily optimized for barcode and label printing, with limited utility for general office document printing. Initial setup may require technical know-how to fully leverage Link-OS features. Some legacy connectivity options may require adapters or additional configuration in modern IT environments.
