Zebra ZD620
| Brand | Zebra 2017 |
| Model | ZD62043-T01F00EZ, ZD620t, AC Adapter, 305 dpi, Label Printer, Direct Thermal, iOS Android |
| Released Year | 2017 |
| Type | Printers |
| Series | Zd |
| Status | Active |
Quick view
Overview
The Zebra ZD620 series is a sophisticated office electronics device designed for precise label printing using direct thermal technology. Featuring a high resolution of 305 dpi, it ensures sharp, clear prints suitable for detailed barcode and label applications. The printer supports multiple connectivity options including USB, Ethernet, Bluetooth, and wireless, enhancing flexibility in various office and industrial environments. Equipped with an intuitive LCD interface, it allows easy configuration and operation. The ZD620 supports iOS and Android devices, facilitating mobile printing through wireless networks. Its compact design integrates well into crowded workspaces while maintaining robust build quality for reliability.
Specifications
| Model Numbers | ZD62043-T01F00EZ, ZD620t |
| Print Method | Direct Thermal |
| Resolution | 305 dpi (12 dots/mm) |
| Print Speed | Up to 8 inches per second (203.2 mm/s) |
| Max Print Width | 4.09 inches (104 mm) |
| Media Types | Labels, Tags, Wristbands |
| Media Width Range | 0.75 inches (19.05 mm) to 4.50 inches (114.3 mm) |

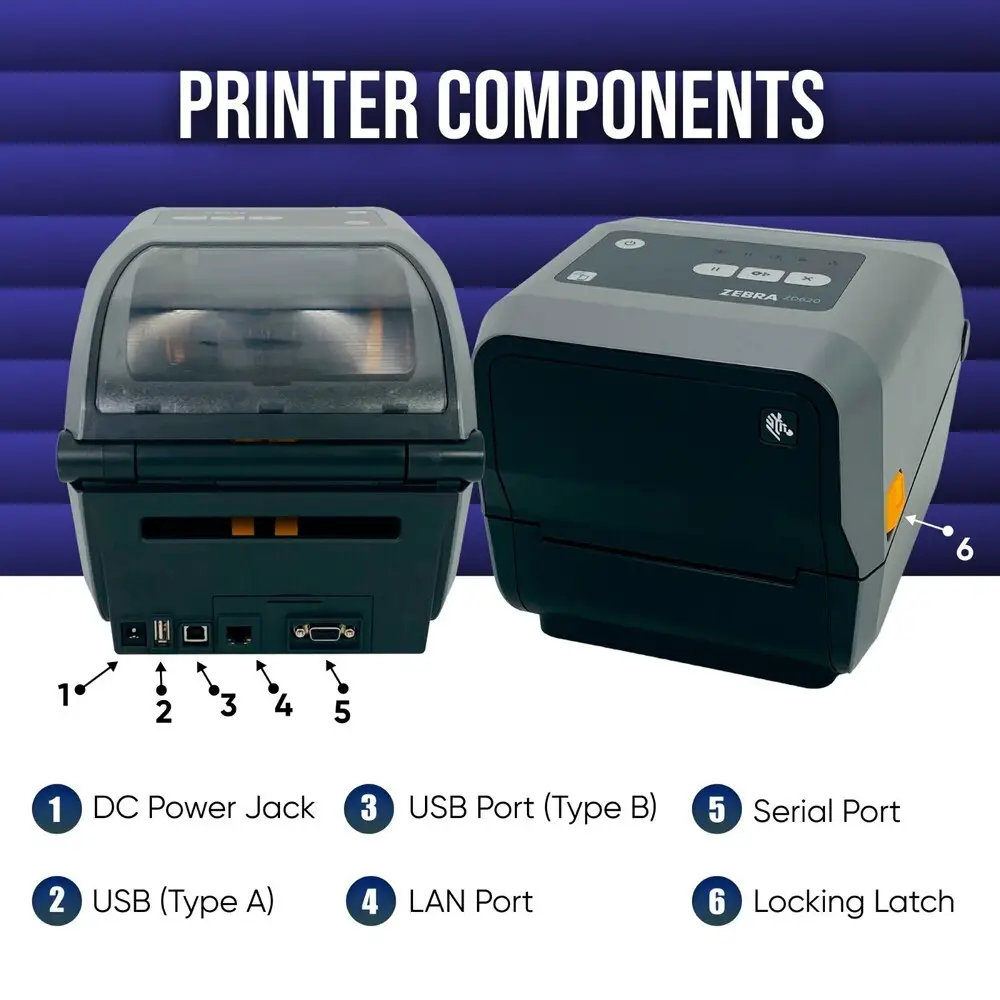

| Connectivity Options | USB 2.0, USB Host, Serial, Ethernet (optional), Bluetooth (optional), Wi-Fi (optional) |

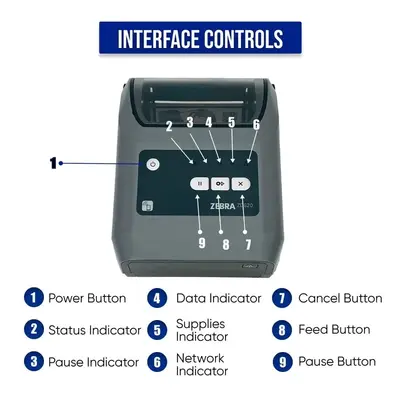

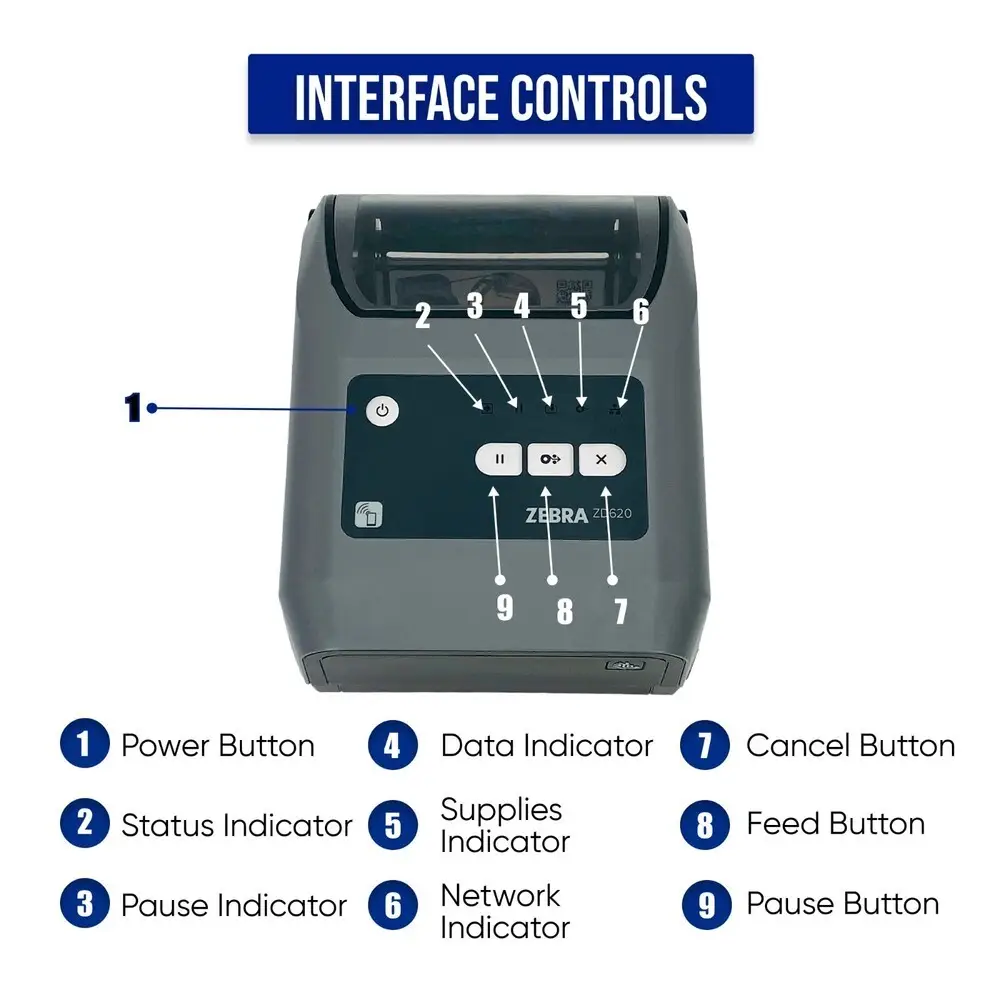

| Display | 3.5-inch Color LCD touchscreen |

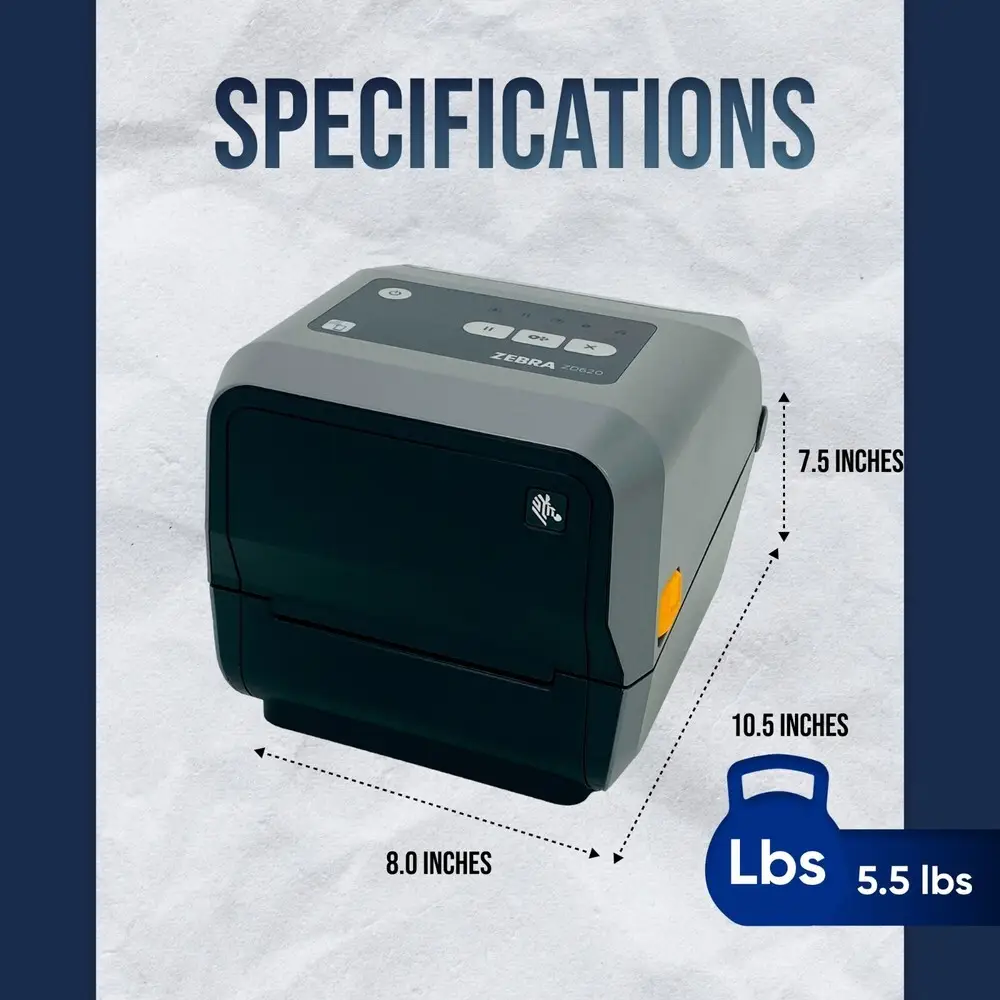

| Dimensions | 8.7 in (221 mm) L x 7.0 in (178 mm) W x 5.9 in (150 mm) H |
| Weight | Approx. 4.6 lbs (2.1 kg) |
| Operating Systems Supported | Windows, iOS, Android, and Linux |
| Power Supply | AC Adapter included |
| Emulations | ZPL, EPL, EZPL |
| Memory | 256 MB |
| Sensors | Head Open, Media Out, Ribbon Out, Peel Mode |
| Mobile Device Compatibility | Supports Zebra Print Touch and wireless printing apps |
| Environmental | Operating temperature 41°F to 104°F (5°C to 40°C) |
| Input Type | Monochrome |
| Output Type | Black & White |
| MPN | ZD62043-T01F00EZ, ZD620t, AC Adapter, 305 dpi, Label Printer, Direct Thermal, iOS Android |
| Supported Paper Size | Max Label Width: 4.65" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Model | ZD620 |
| Connectivity | Bluetooth, Ethernet (RJ-45), Serial (RS-232C), USB 2.0 |
| Features | Networkable, Portable |
| Black Print Speed | 6 ips |
| Product Line | Zebra ZD |
Images
Key Advantages
The Zebra ZD620 offers exceptional print quality at 305 dpi for detailed graphic and barcode rendering. Its versatile connectivity options provide seamless integration with different operating systems and devices. Mobile printing capability with iOS and Android enhances workflow efficiency on-the-go. The printer’s direct thermal mechanism reduces the need for ink or toner, cutting ongoing costs and simplifying maintenance. An intuitive LCD screen enables straightforward navigation and printer management. Additionally, it supports a wide range of label types and sizes to meet diverse business application needs.
Limitations
The direct thermal printing technology used in the Zebra ZD620 limits label durability in environments exposed to heat or prolonged sunlight. It may require frequent replacement of media for high-volume print demands. The relatively higher initial investment compared to basic label printers could be a consideration for small offices. Although versatile, the printer's wireless setup may experience connectivity issues in environments with interference. The 305 dpi resolution, while suitable for most applications, may not be adequate for extremely high-detail or photo-quality printing needs. Some users report a learning curve with printer configuration and driver installation.
FAQ
What types of labels can the Zebra ZD620 print?
The Zebra ZD620 can print various labels including standard paper labels, synthetic labels, wristbands, and tags suitable for barcode, shipping, and inventory management.
Does the ZD620 support wireless printing?
Yes, the Zebra ZD620 offers wireless connectivity options including Wi-Fi and Bluetooth which enable printing from mobile devices and computers without cables.
Is the Zebra ZD620 compatible with iOS and Android devices?
Yes, this model supports printing from both iOS and Android devices through network or Bluetooth connections, aiding mobile and remote printing applications.
What is the print resolution of the ZD620 printer?
The Zebra ZD620 features a print resolution of 305 dots per inch (dpi), allowing for high quality and precise label printing.
What types of connections are available on the ZD620?
It supports USB, Ethernet, serial, Bluetooth, and Wi-Fi connections depending on the configuration, providing flexible connectivity options.
Does the ZD620 require ink or toner to print?
No, the ZD620 uses direct thermal printing technology which does not require ink or toner, reducing maintenance and supply costs.
Is the Zebra ZD620 still being manufactured and sold?
As of now, the Zebra ZD620 is still available in the market and has not been discontinued.
